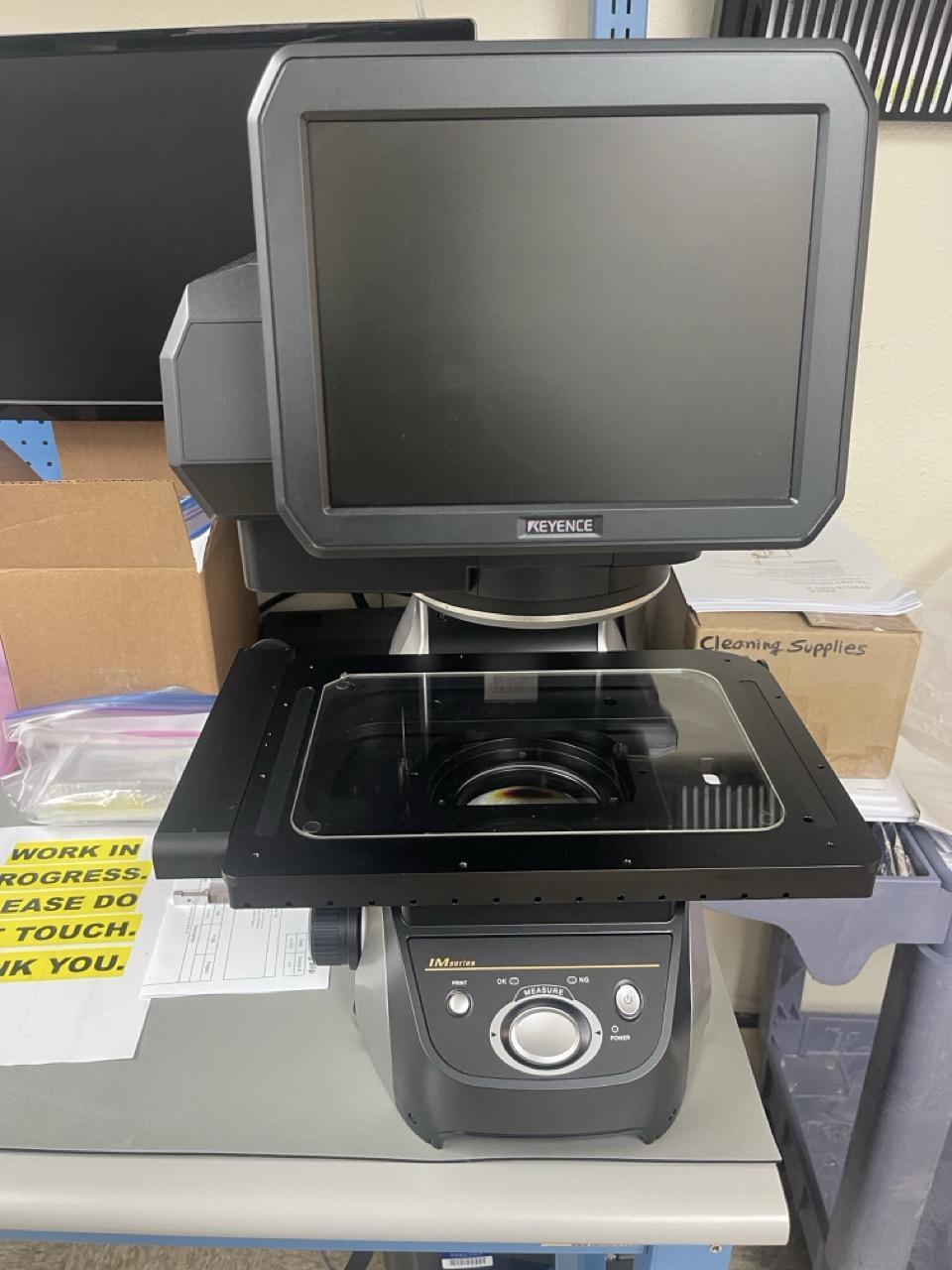

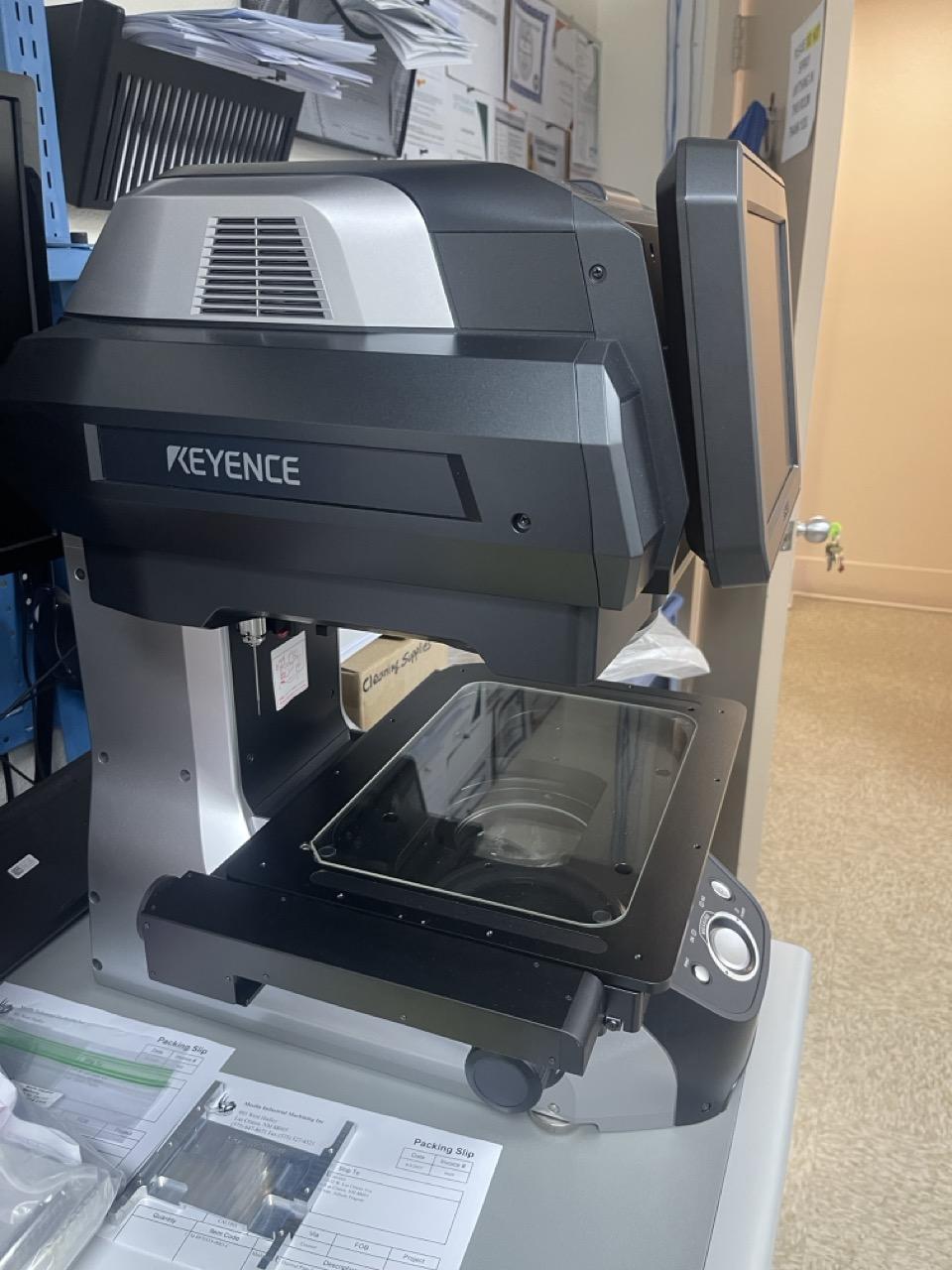

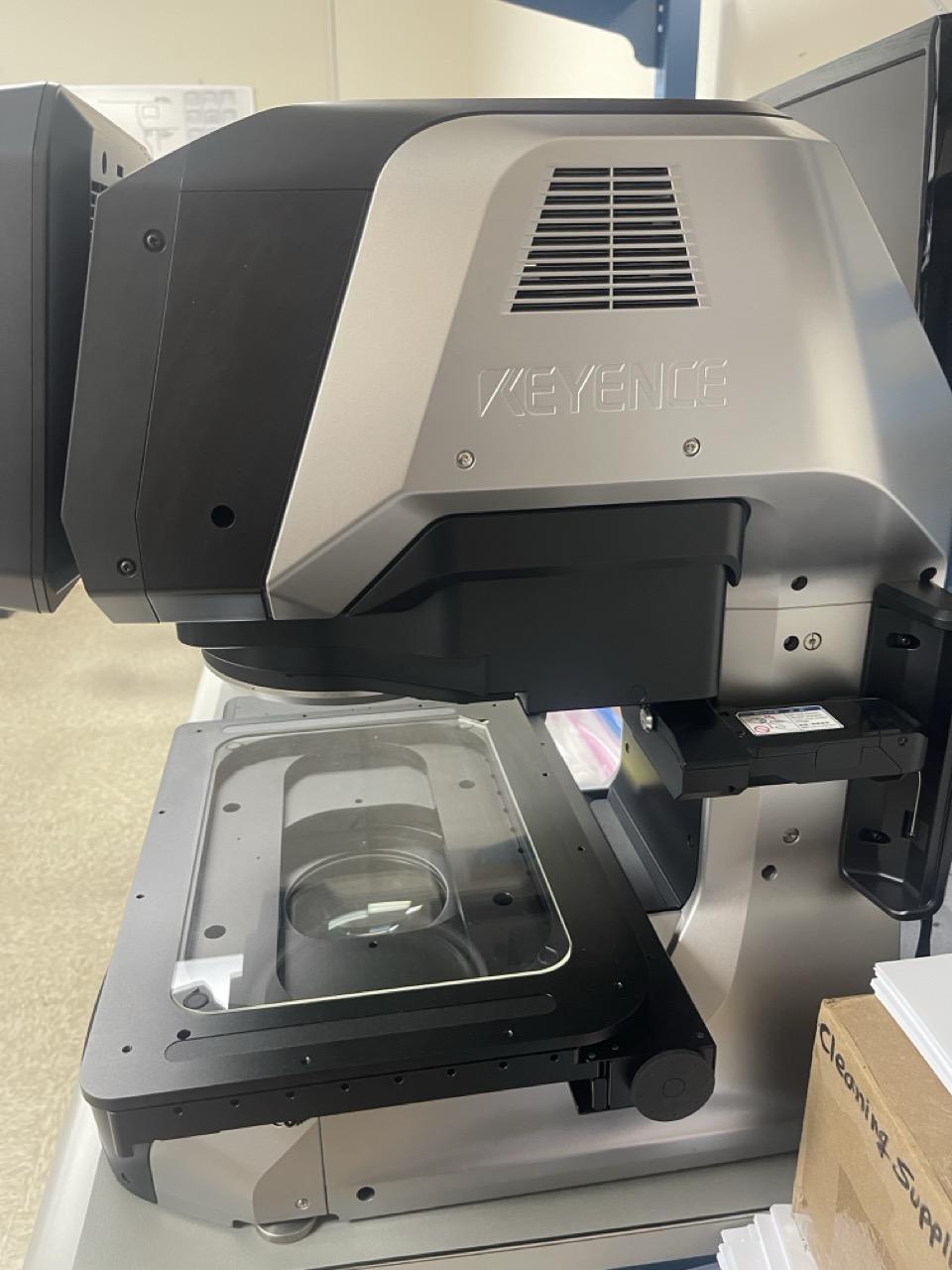

Keyence IM-7030T CMM, 2020 – IM 7501 Controller Unit, IMM75A Accessory Set

Image Sensor: 1” 6.6-megapixel monochrome CMOS Display: 10.4” LCD monitor (XGA: 1024 x 768) Receiver Lens: Double telecentric lens

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Imaging Measurement/Field of View Wide-Field Measurement Mode: 300 mm x 200 mm (11.81” x 7.87”) High-Precision Measurement Mode: 225 mm x 125 mm (8.86” x 4.92”) Minimum Display Unit: 0.1

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Repeatability (without stage movement) Wide-Field Measurement Mode: 1 High-Precision Measurement Mode: 0.5

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Repeatability (with stage movement) Wide-Field Measurement Mode: 2 High-Precision Measurement Mode: 1.5

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measurement Accuracy (without binding) Wide-Field Mode: 5 High-Precision Mode: 2 With Binding Wide-Field Mode: (7 + 0.02L) High-Precision Mode: (4 + 0.02L)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Light Probe Measurement: Measurable Area (XY): 190 mm x 90 mm (7.48” x 3.54”) Maximum Measurement Depth: 30 mm (1.18”) Light Probe Diameter: 3 mm Measuring Force: 0.015 N Repeatability: 2 Measurement Accuracy: (8 + 0.02L)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Interface: LAN: RJ45 (10BASE-T/100BASE-TX/1000BASE-T) USB 3.1: 4 ports (rear: 4) USB 2.0: Series A 2 ports (front: 2) External Remote Input: Non-voltage input (with and without contact) External Output: OK/NG/Fail/Meas. Photomos output rated load 24 VDC 0.5 A, on-resistance 50 or lower Recording: Hard disk drive: 500 GB

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Illumination system: Transparent: Telecentric transparent illumination Ring: Four-division, multi-angle illumination (electric) Slit Ring (directivity): Illumination (electric)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,XY Stage Moving Range: 200 mm x 100 mm (7.87” x 3.94”) (electric) Z Stage Moving Range: 75 mm (2.95”) (electric)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power supply: 100–240 VAC, 50/60 Hz Environmental Resistance Ambient Temperature: +10°C to 35°C (+50°F to 95°F) Relative Humidity: 20% RH to 80% RH (no condensation) Weight: Approx. 33 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
