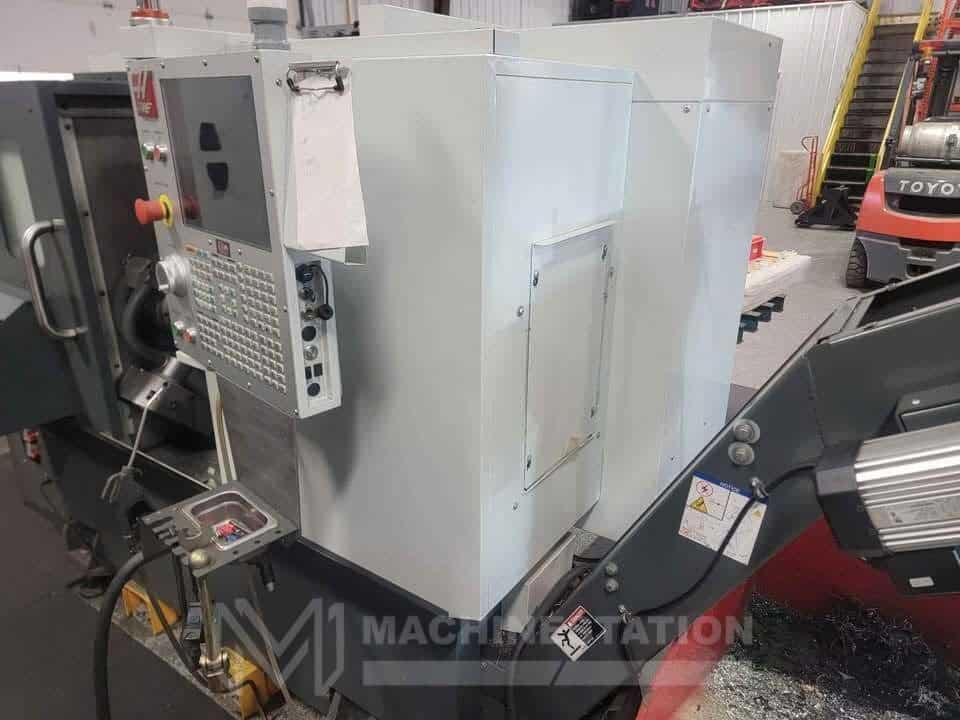

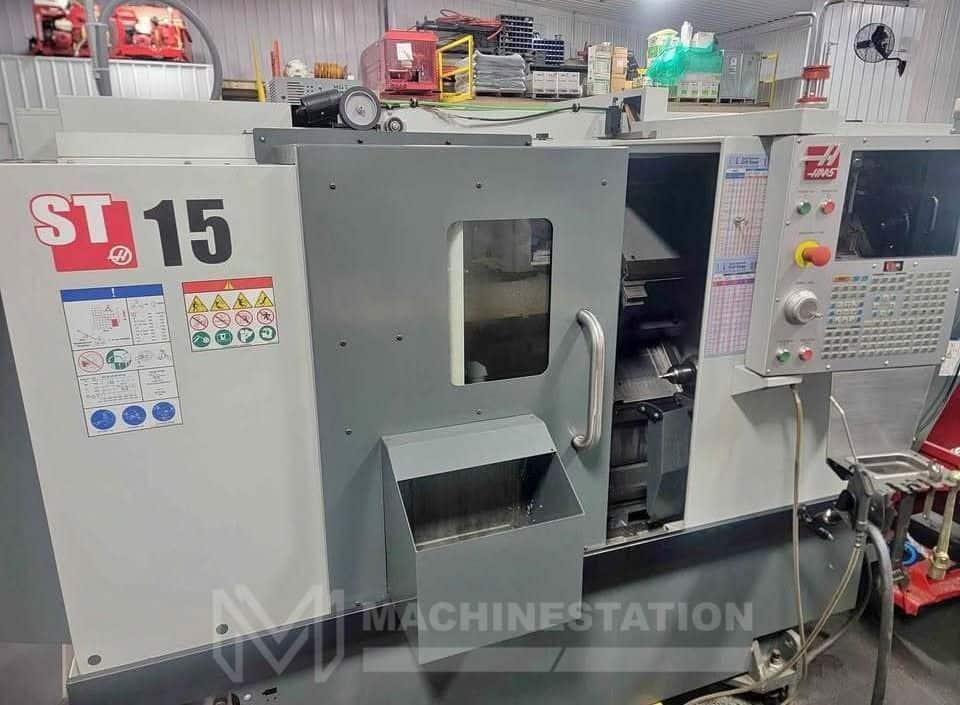

Haas ST-15 CNC Turning Center – 2019

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Make:HaasModel:ST-15
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Haas
Model:ST-15
Year:2019
Condition:Used – Good



Equipped With:
Haas CNC Control
8″ 3-Jaw Chuck
4000 RPM, A2-6 Spindle
20 HP Spindle Drive

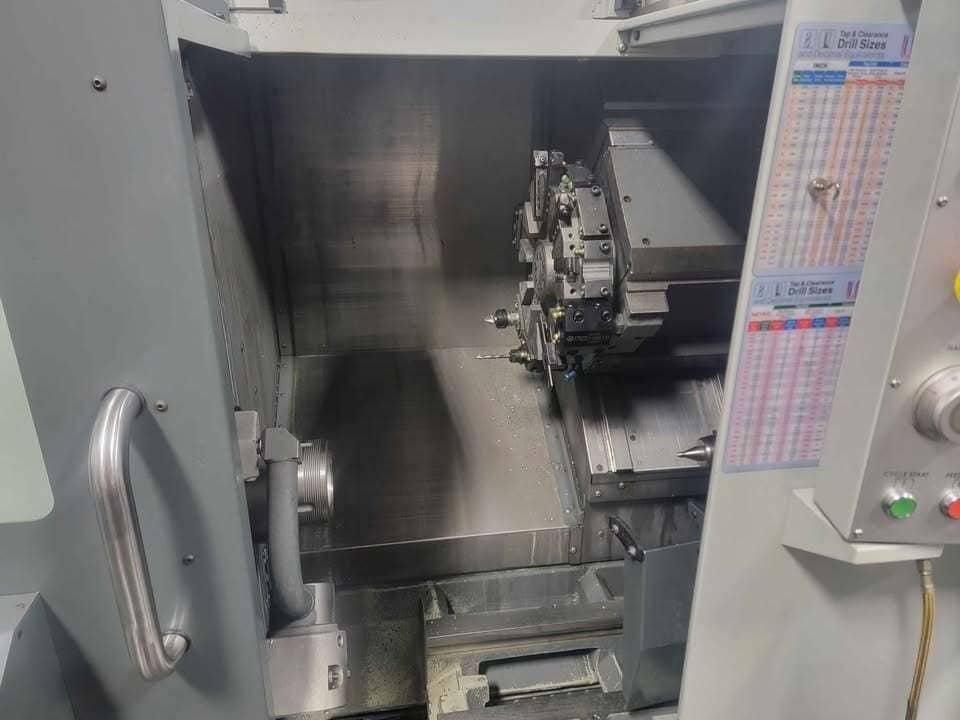

12 Station Turret
Automatic Tool Presetter (Upgraded $5295 value Included)
Part Catcher (Upgraded $3195 value Included)
Coolant System
Tailstock (Upgraded $6695 value Included)

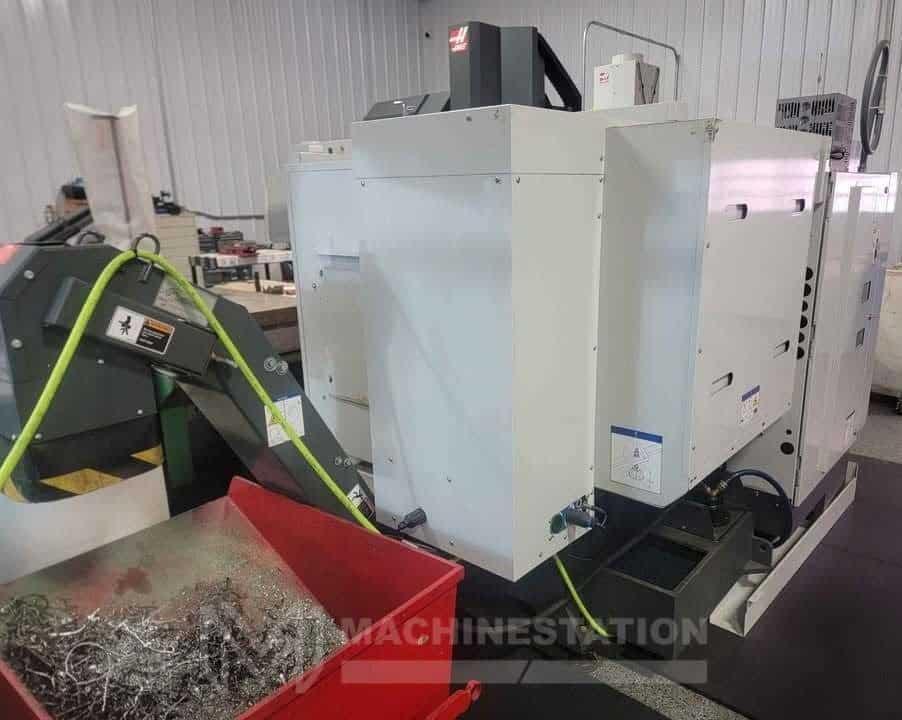

Chip Conveyor (Upgraded $5295 value Included)



Capacity:
Max Turning Diameter : 12.0″
Max Swing Over Bed : 16.5″
Max Turning Length: 16.0″
Max Bar Capacity : 2.5″



Travels:
X Axis Travel : 7.88″
Z1 Axis Travel : 16.00″



Feedrate:
Rapid Traverse X Axis: 1200 IPM
Rapid Traverse Z Axis: 1200 IPM



Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP



Turret:
Turret Capacity: 12 Stations
Tool Holder Type: BMT



Tailstock:
Taper: MT-3
Hydraulic Quill Travel 3.8″
Manual Body Positioning 20.0″
Max Thrust (Hyd. Quill Only) 1130 lbf



General:
Air Requirement: 4 scfm @ 100 psi
Machine Dimensions: 126″ x 70.0″ x 81.0″ High
Machine Weight:7,900 lbs Approx.
