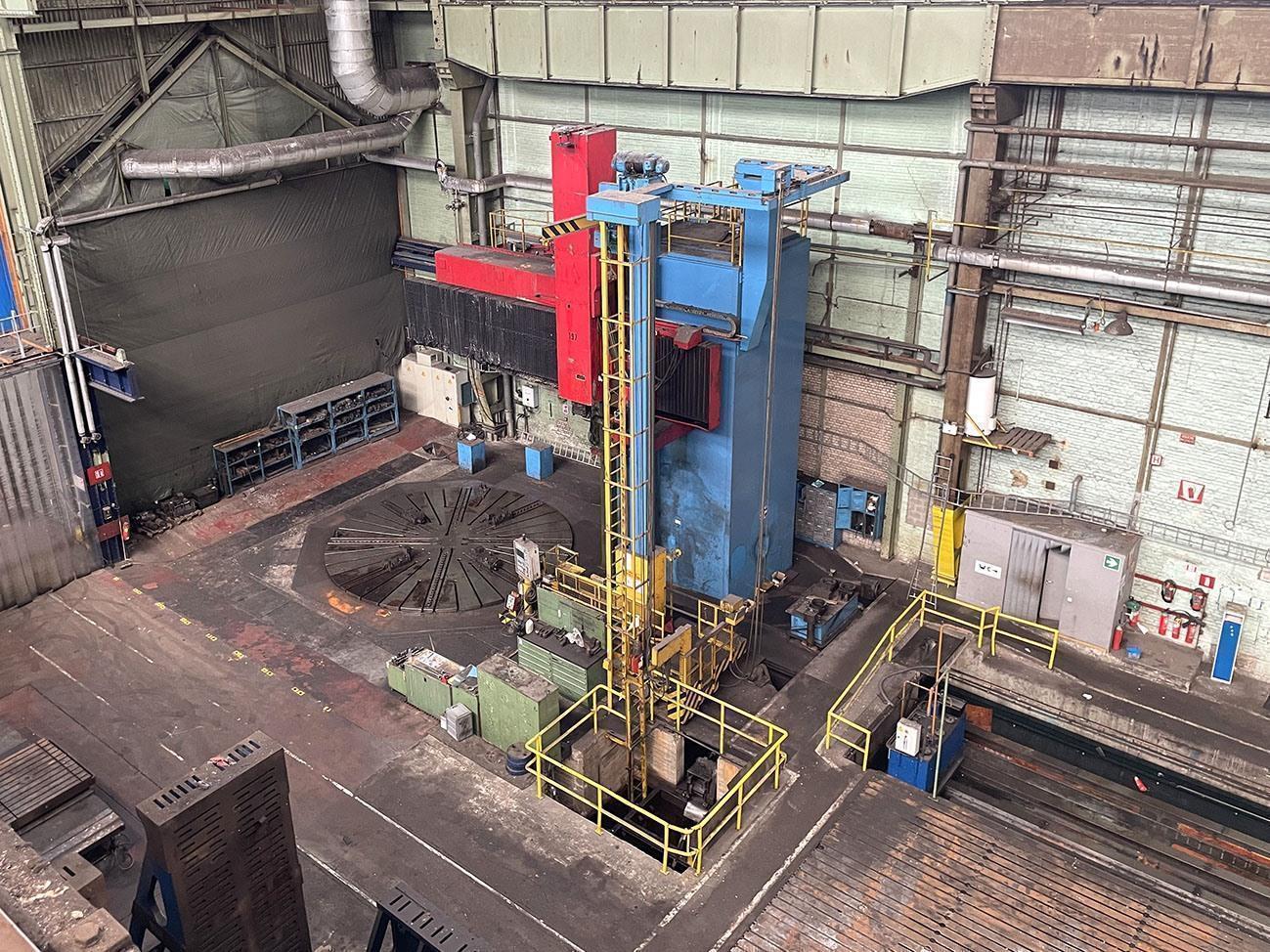

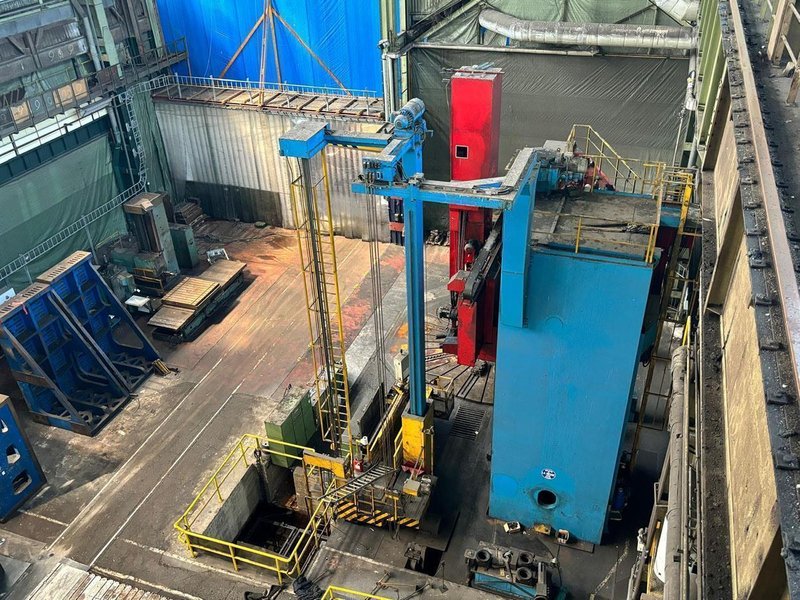

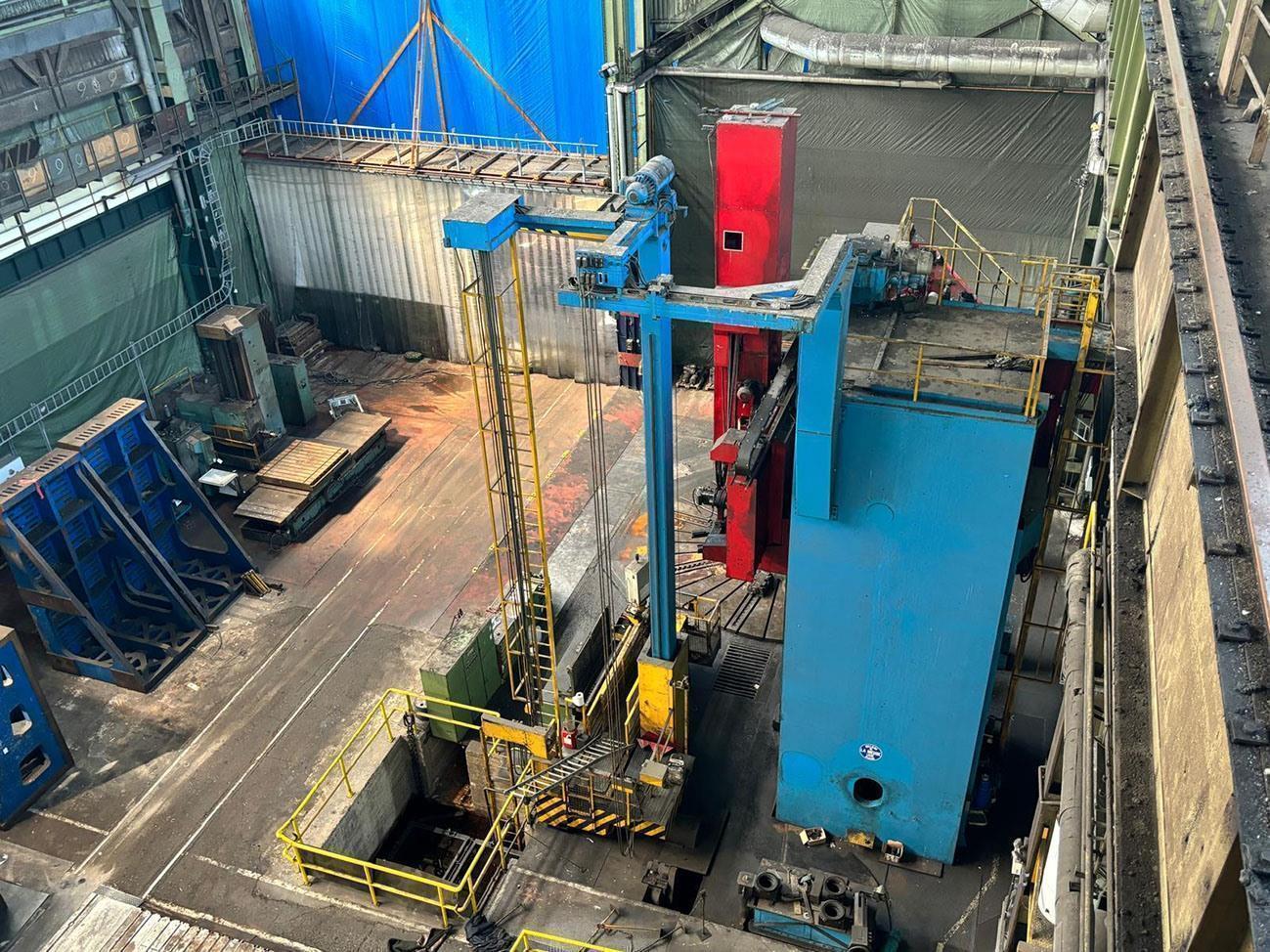

Schiess 80 DF Ø 9000 x 5547 mm CNC

Brand
SCHIESS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Ø 9000 x 5547 mm CNC
Stock #
A.12 14134
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

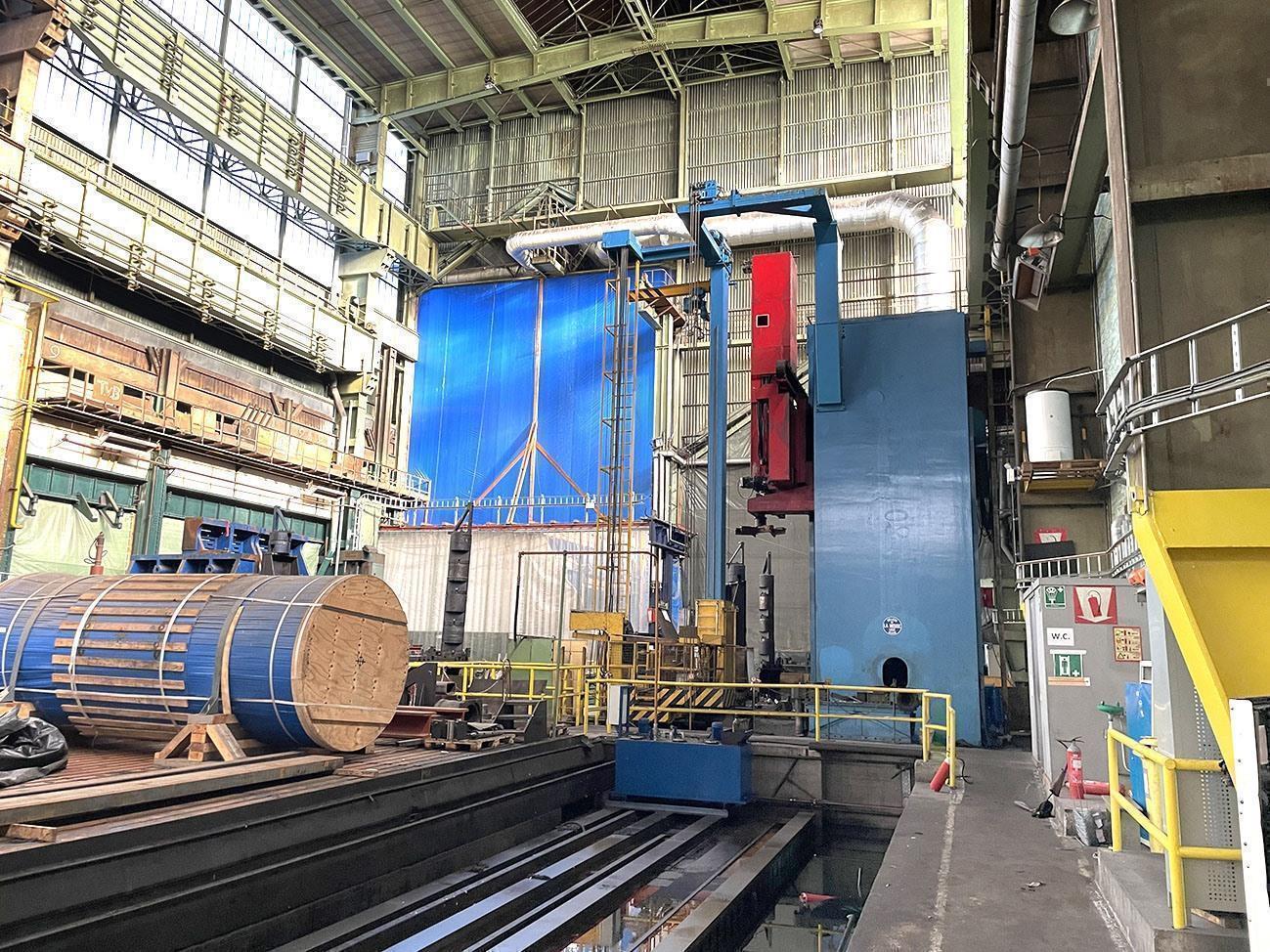

Located in Deinze, Belgium

Additional info

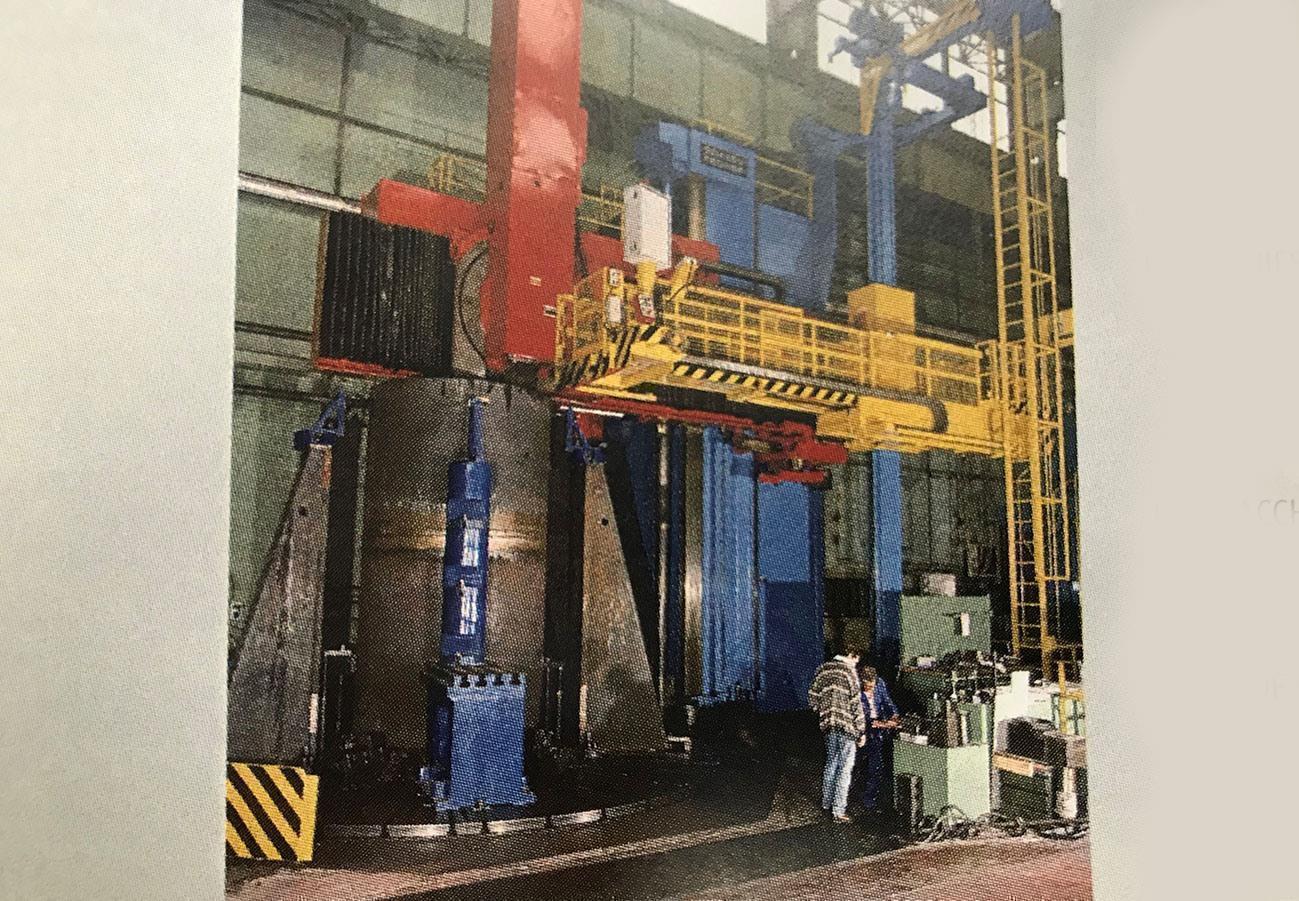

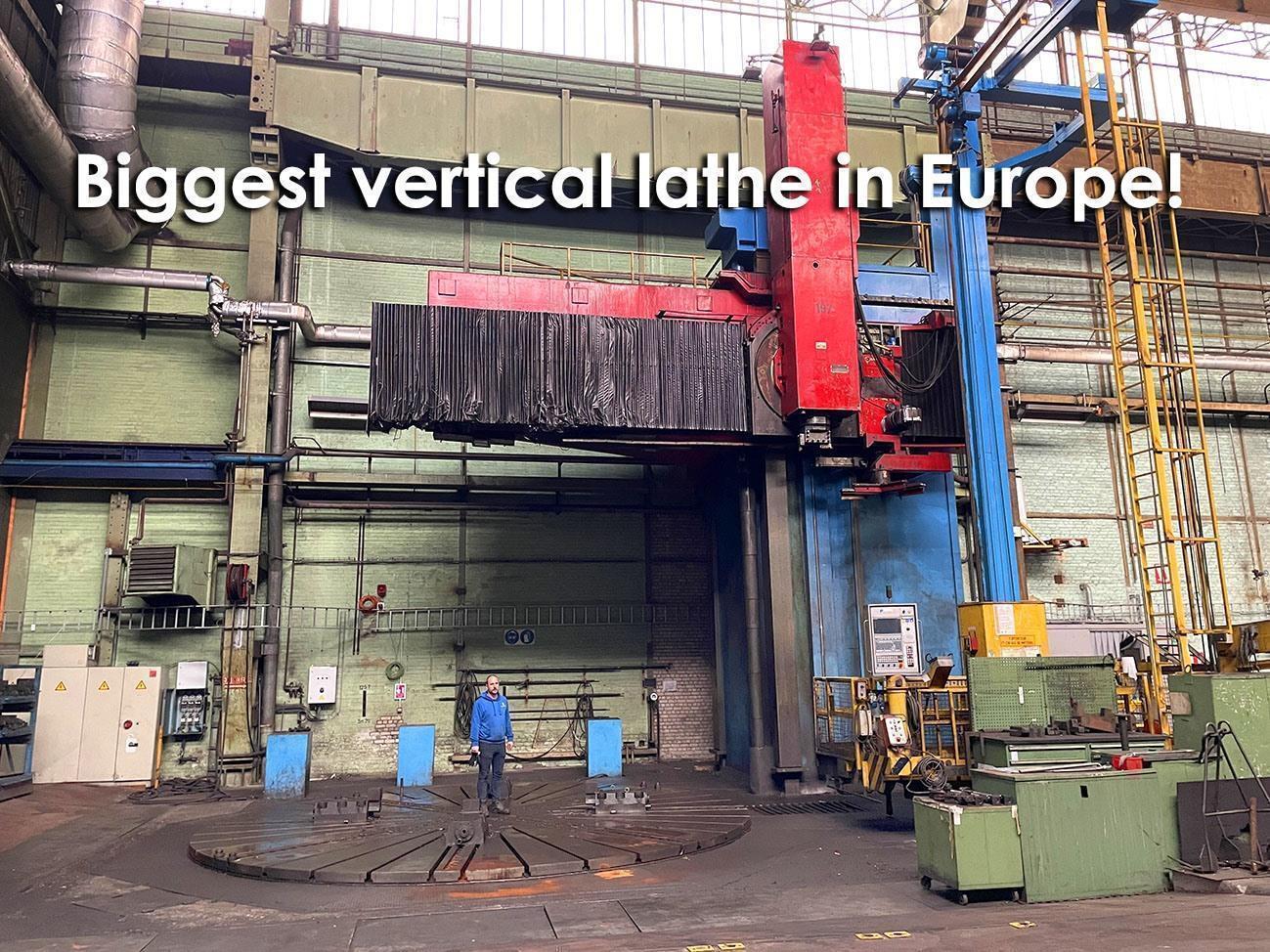

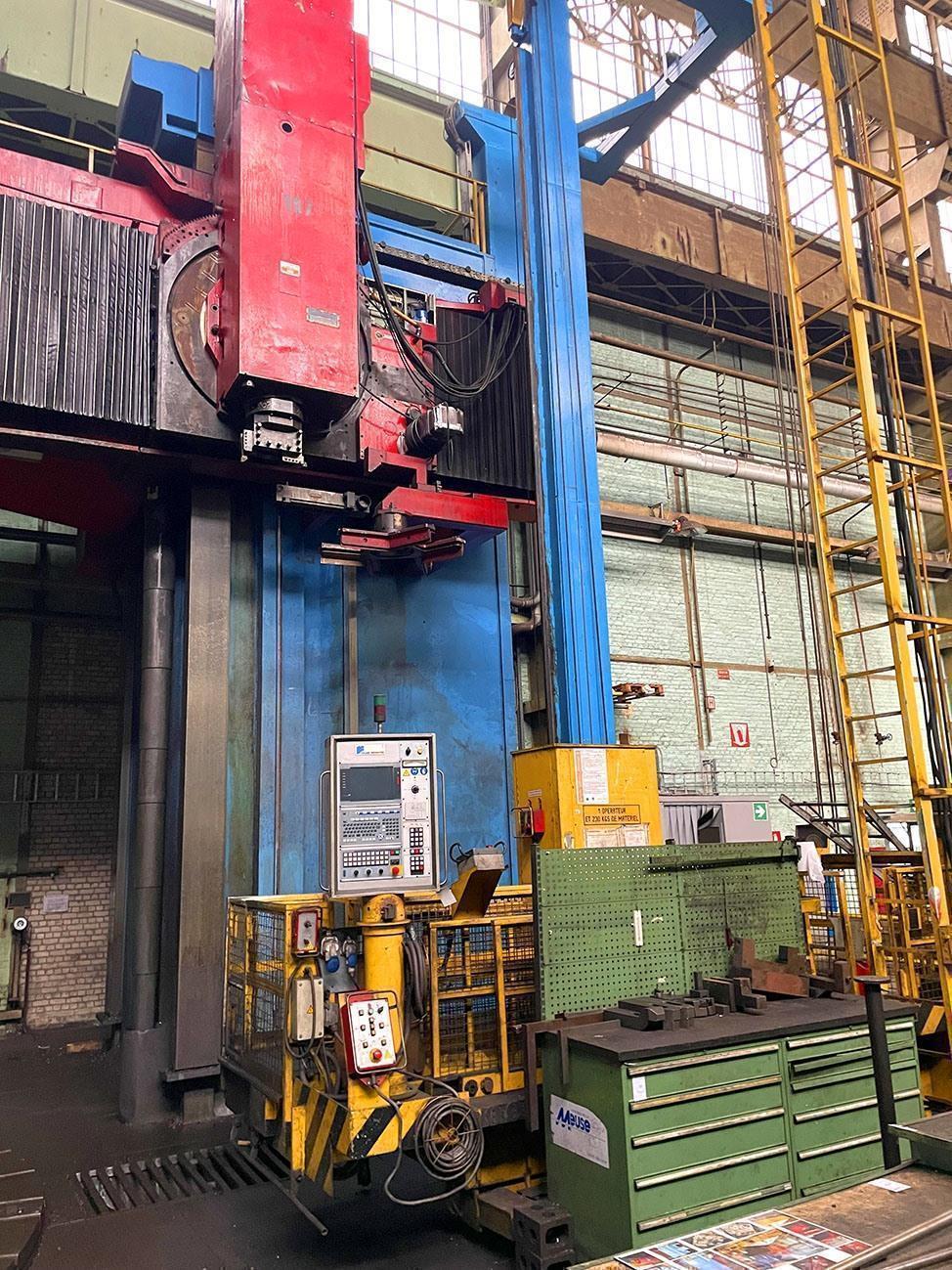

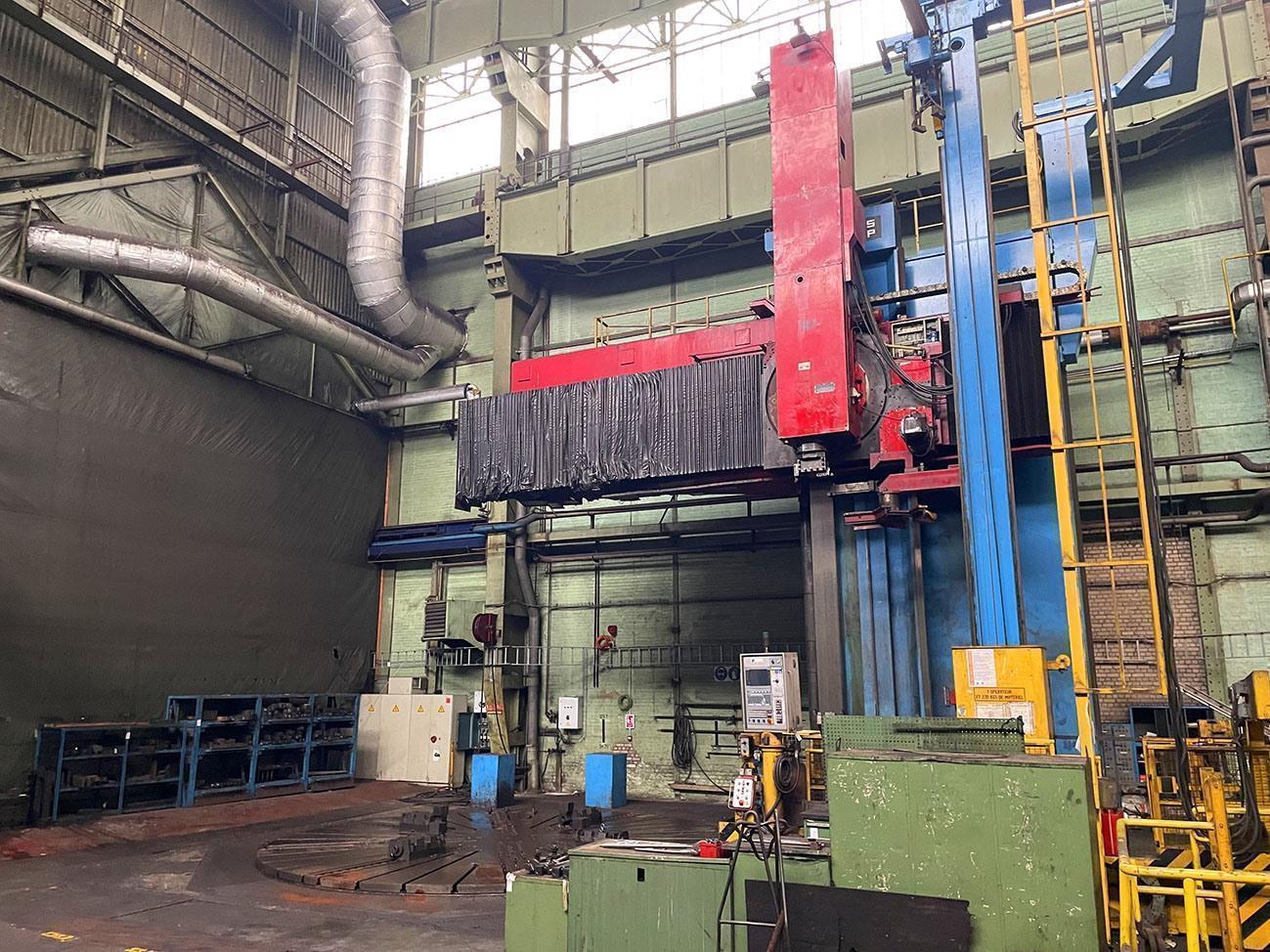

  • Schiess 80 DF
    Type: 80 DF 700/900-550/280
    Original CNC machine from Schiess (no conversion from conventional to CNC)

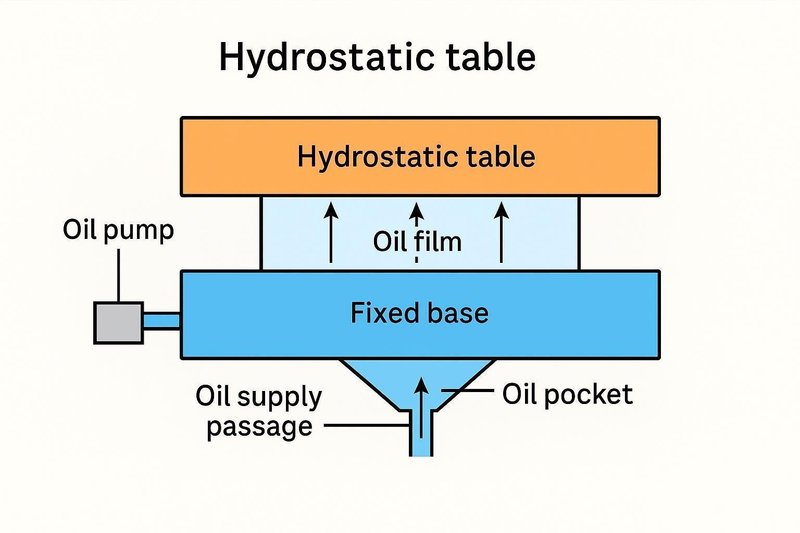

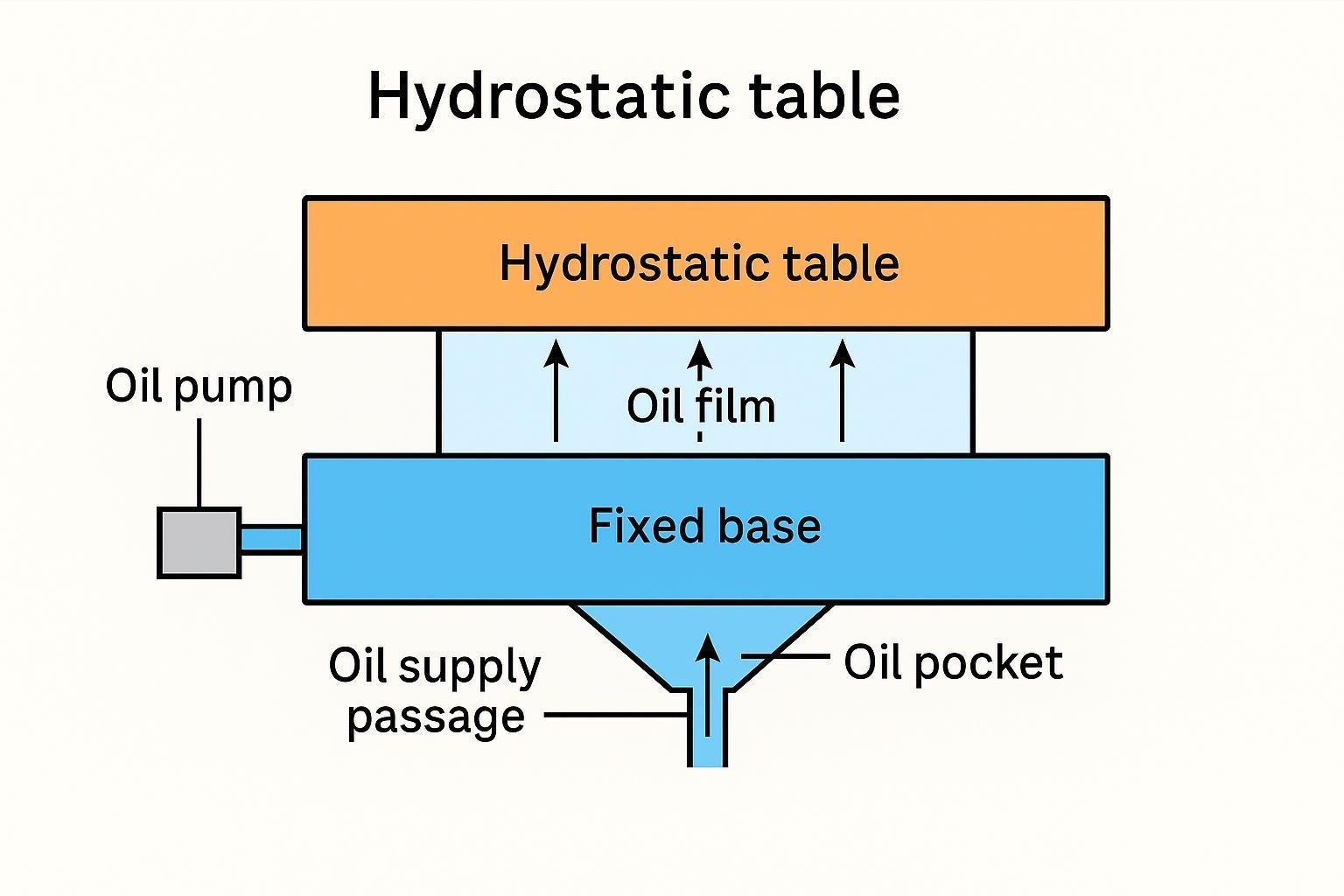

    Fully hydrostatic machine

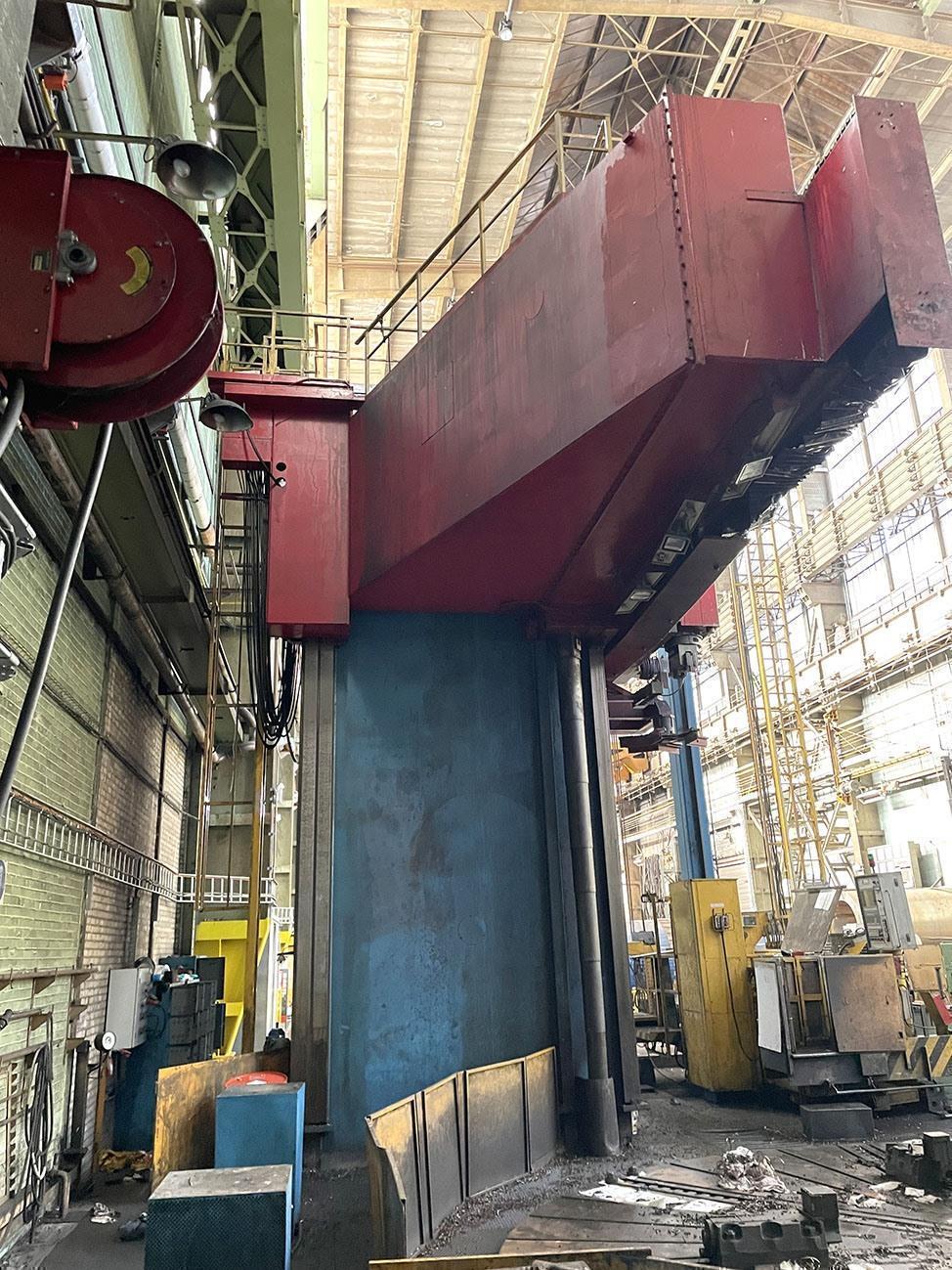

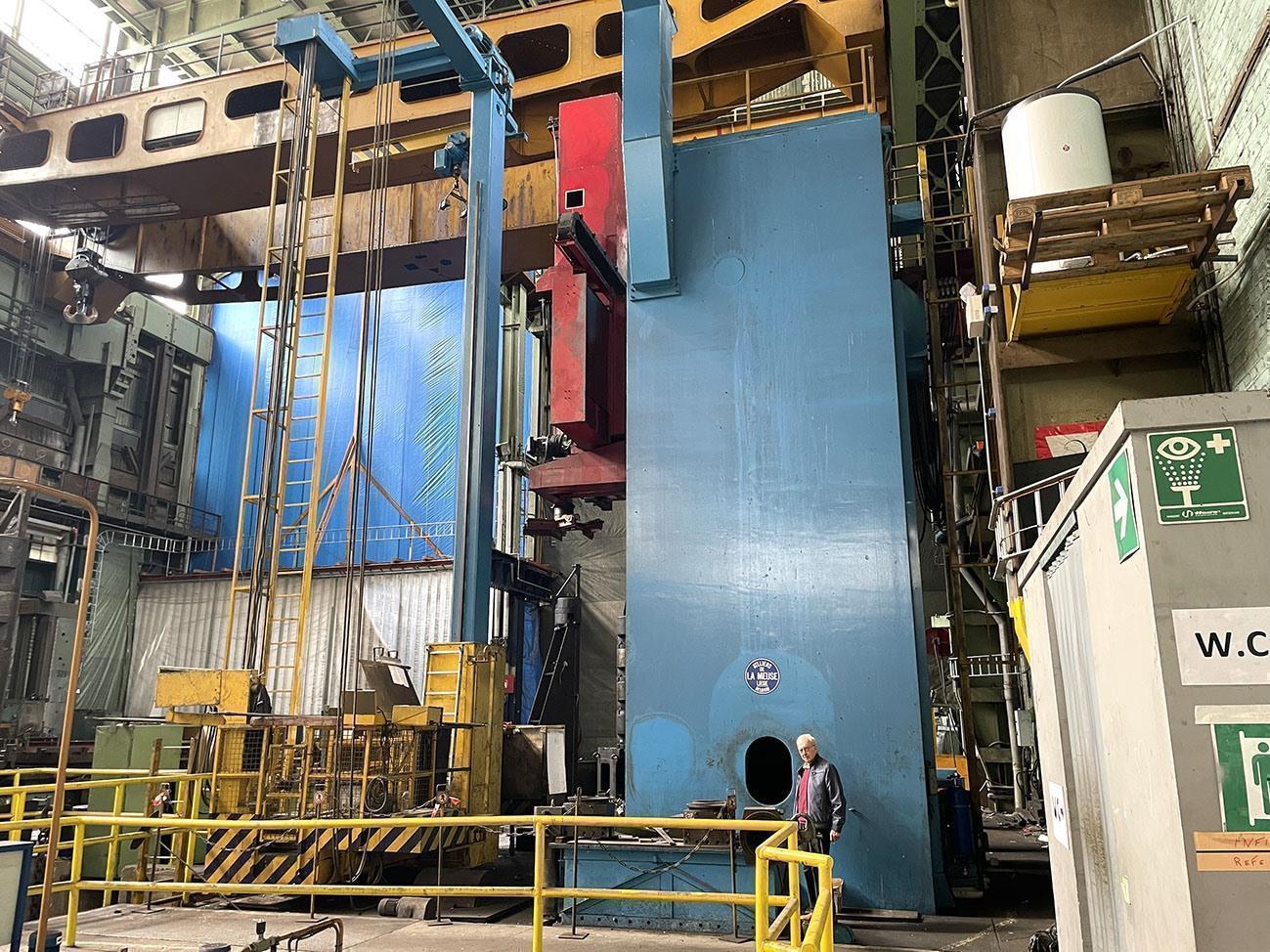

    Welded column
    Siemens motor
    Equipped with a control lift to view the top of the workpiece
    Machine with very high tolerance

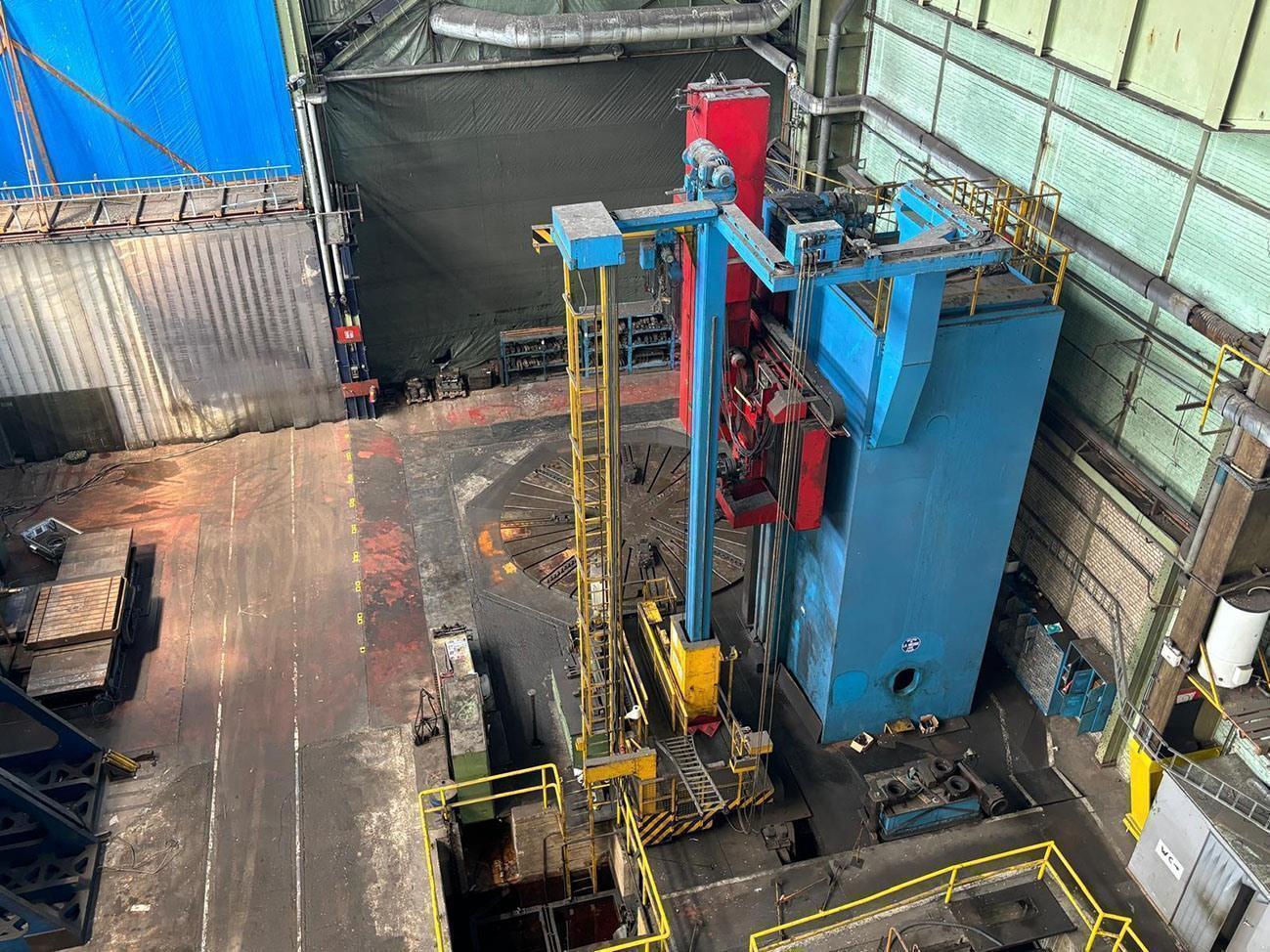

    Table diameter: 7000 mm
    Maximum diameter of workpiece: 9000 mm

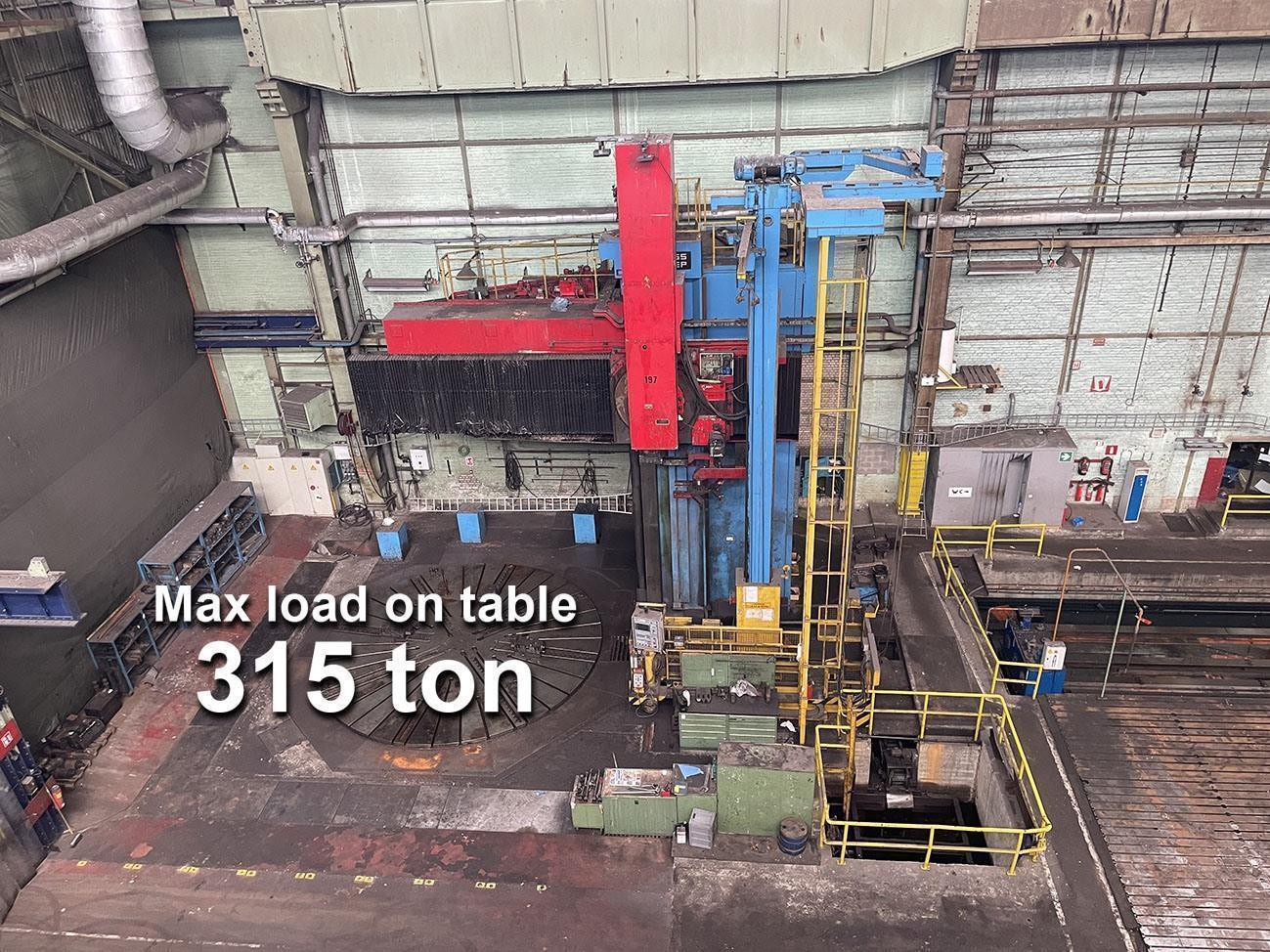

    Maximum load: 315 tons
    Speed: 0.25 > 25 rpm

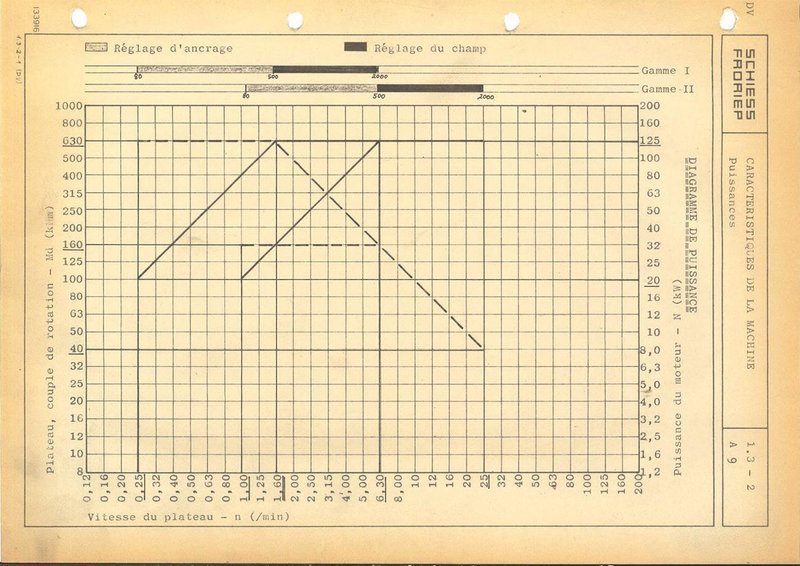

    Maximum rotational torque: 63,000 kgm
    Maximum cutting force with ram extended to 900 mm: 12,500 kg

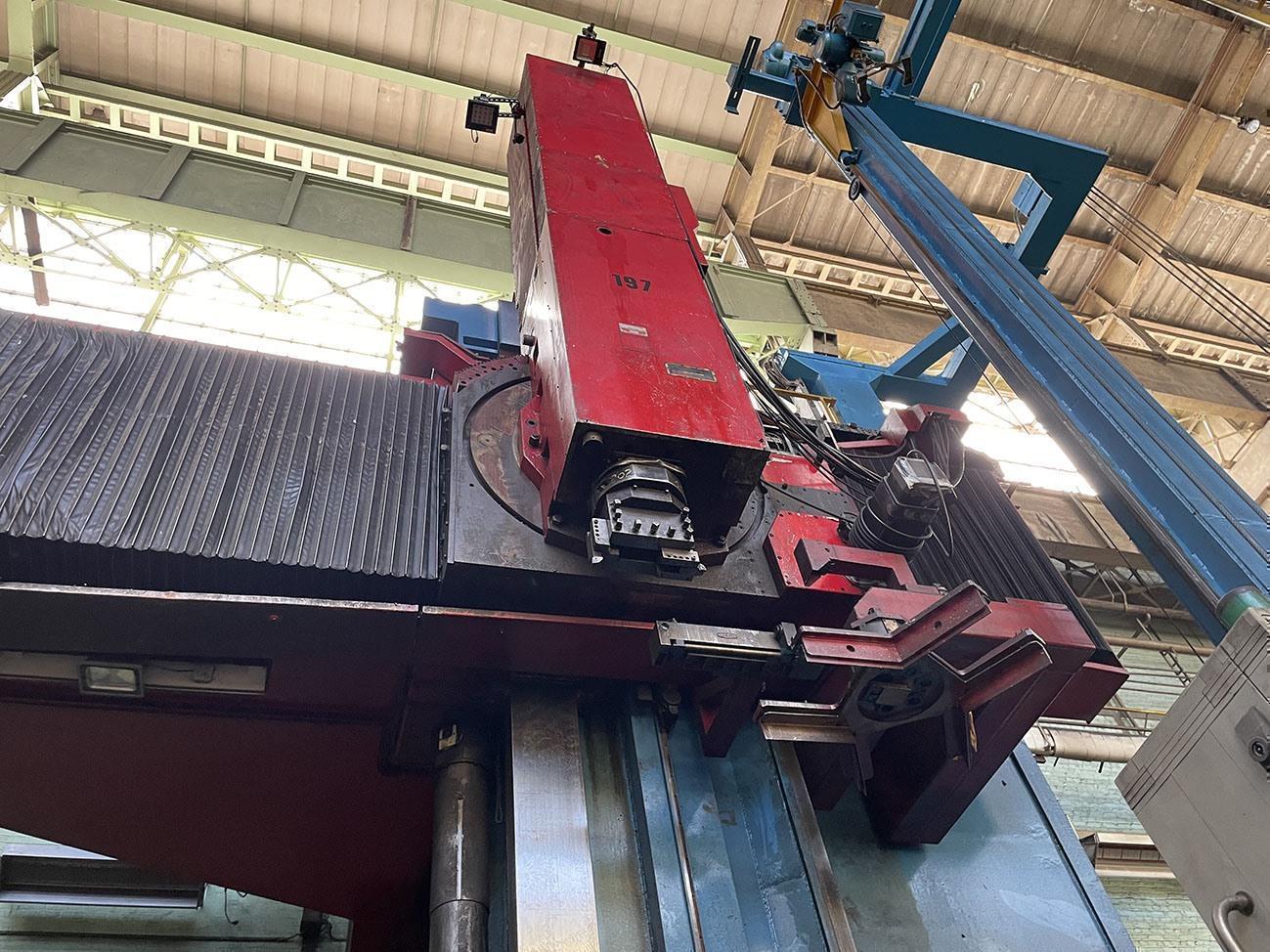

    Tool head can tilt -40° to +40°
    Power: 125 kW
    weight of the table: 71 tons

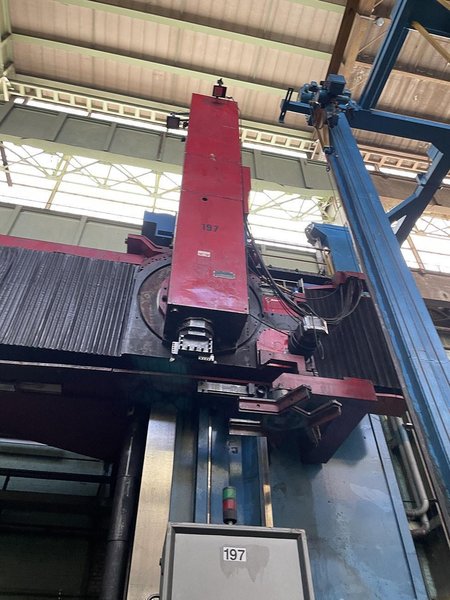

    Ram section: 380 x 380 mm
    Horizontal displacement of ram from center of table: 5640 mm
    Vertical stroke of the ram: 2800 mm
    Maximum height under crossbar: 5547 mm
    Horizontal displacement of the cross beam: 4700 mm
    Equipped with 3-position automatic tool changer
    Total weight of the machine: 260 tons!

    Unique feature >> there are 3 possible configurations of the main column:
    1 - for maximum swing 9000mm (as currently set)
    2 - for max. swivel range 10,500 mm
    3 - for max swing 13 100 mm
    This can be achieved by repositioning the main column on the foundation.

Want to request a quote from the owner of this listing?

Similar Listings to - Schiess 80 DF Ø 9000 x 5547 mm CNC

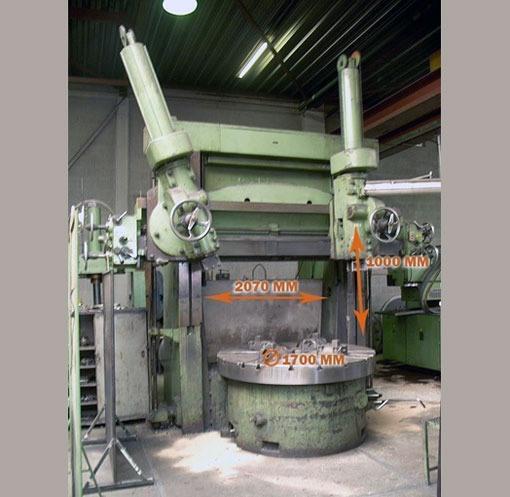

Schiess Ø 2070 x H 1000 mm
SCHIESS

Turning Centers

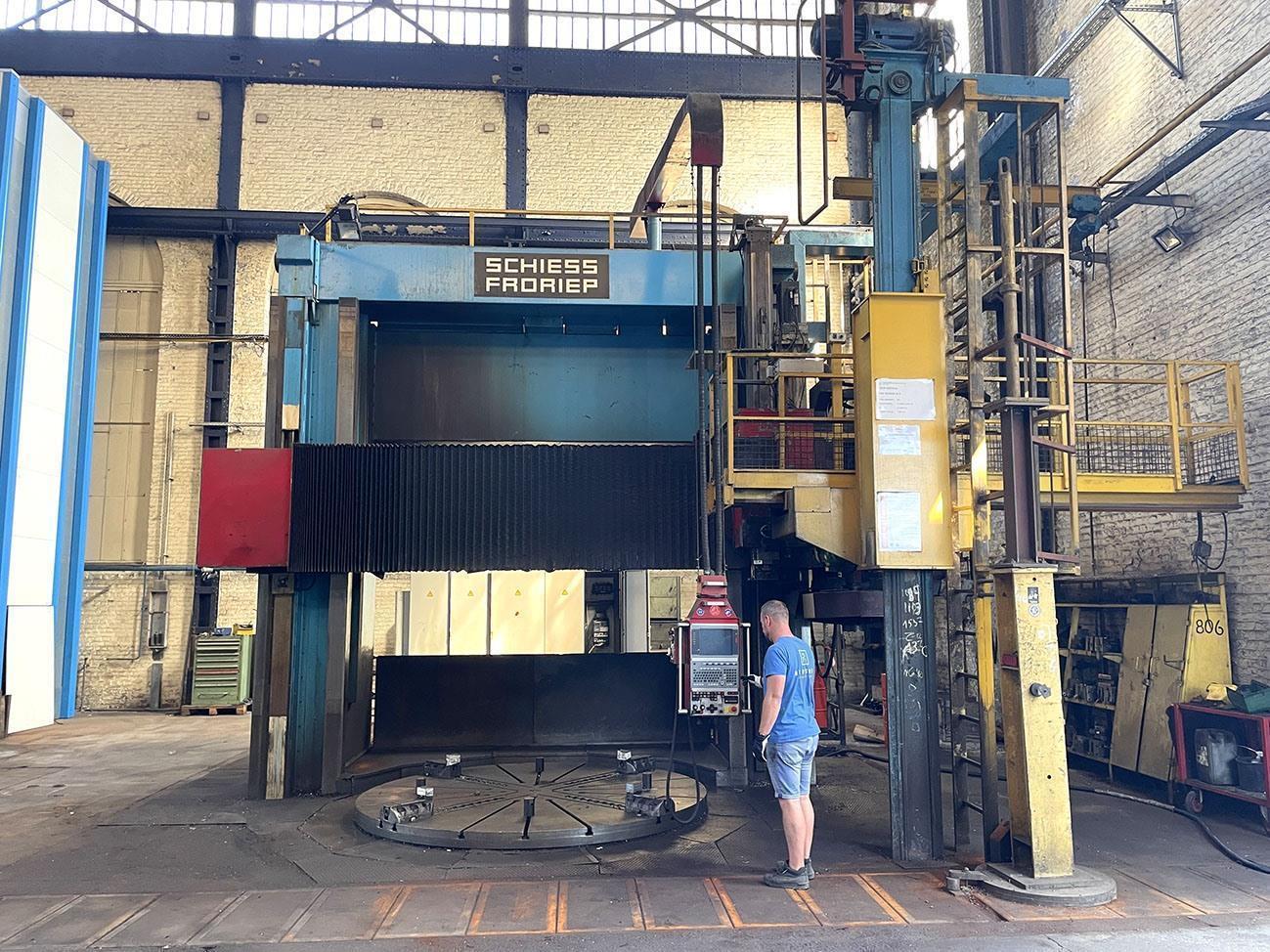

Schiess 32 DZ Ø 4020 x 3420 mm CNC
