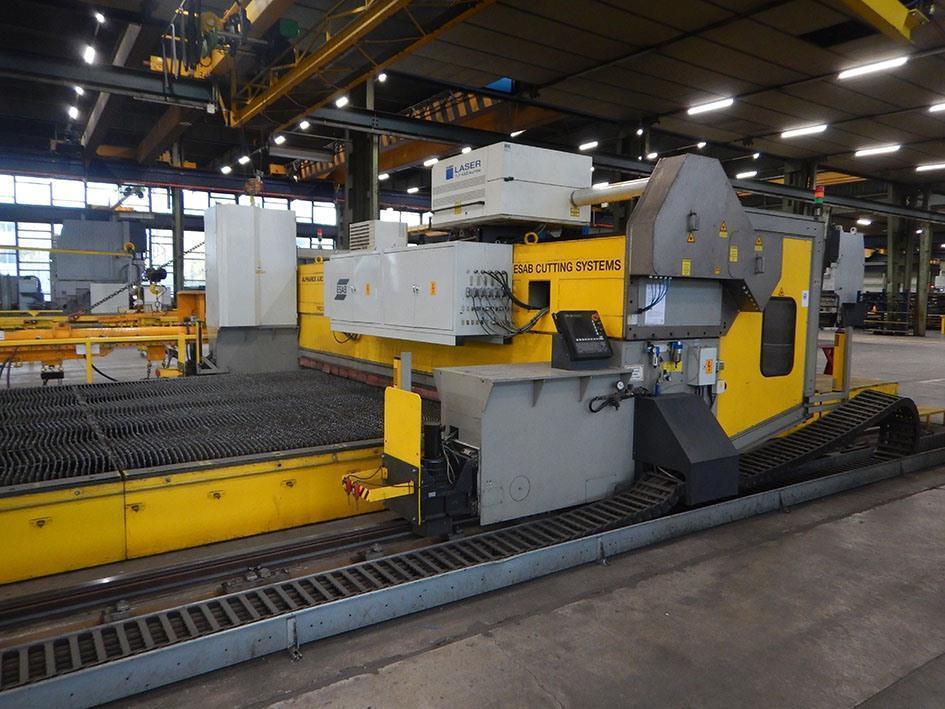

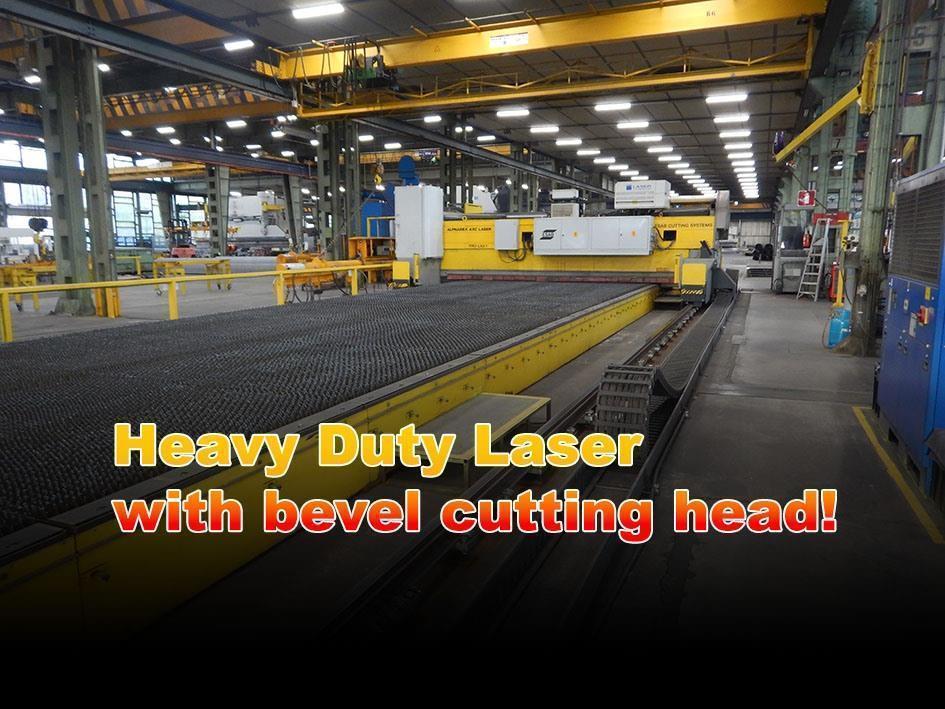

Esab Trumpf Heavy Duty bevelcut laser 24 x 6,3 meter

Brand
Model
Trumpf Heavy Duty bevelcut laser 24 x 6,3 meter
Stock #
O.12 11132
Year
Not specified
Condition
Not specified

Location

Not specified
Located in Deinze, Belgium

Technical information

  • Type of Laser TLF 4000 Turbo
  • Power 4000 Watt

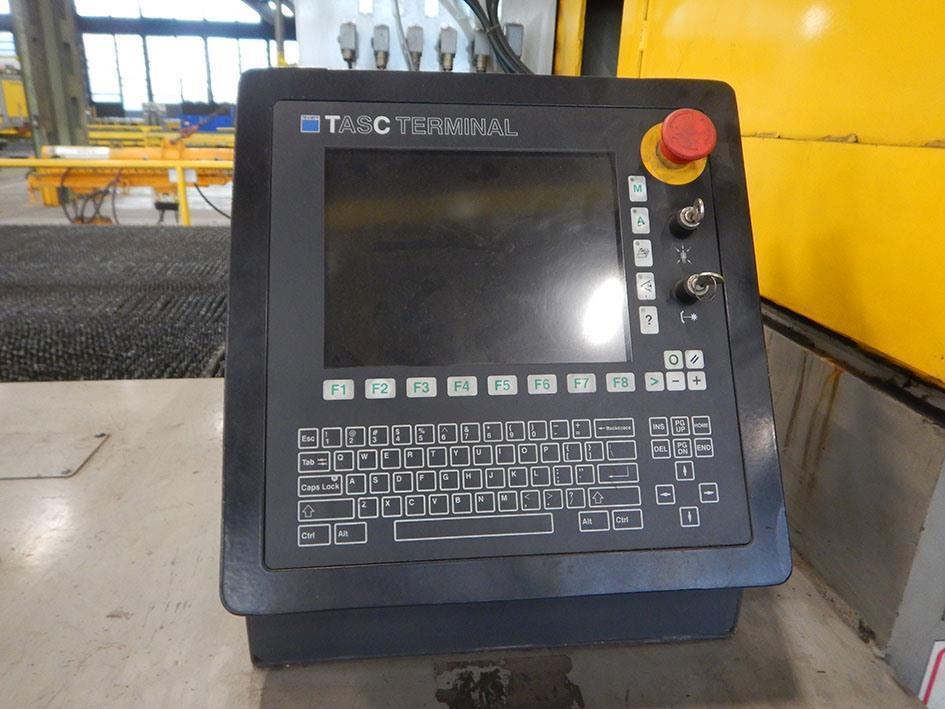

  • Control Esab NCE 620 + Trumpf Tasc
  • Longitudinal travel X-axis 24 000 mm
  • Cross travel Y-axis 7000 mm
  • Hight travel Z-axis 260 mm
  • Max cuttingthickness in steel 20 mm
  • Max cuttingthickness in Inox 15 mm
  • Courant needed 3x 400V

Additional info

  • Type: Alpharex AXC 7000
    Trumpf TLF 4000 Turbo

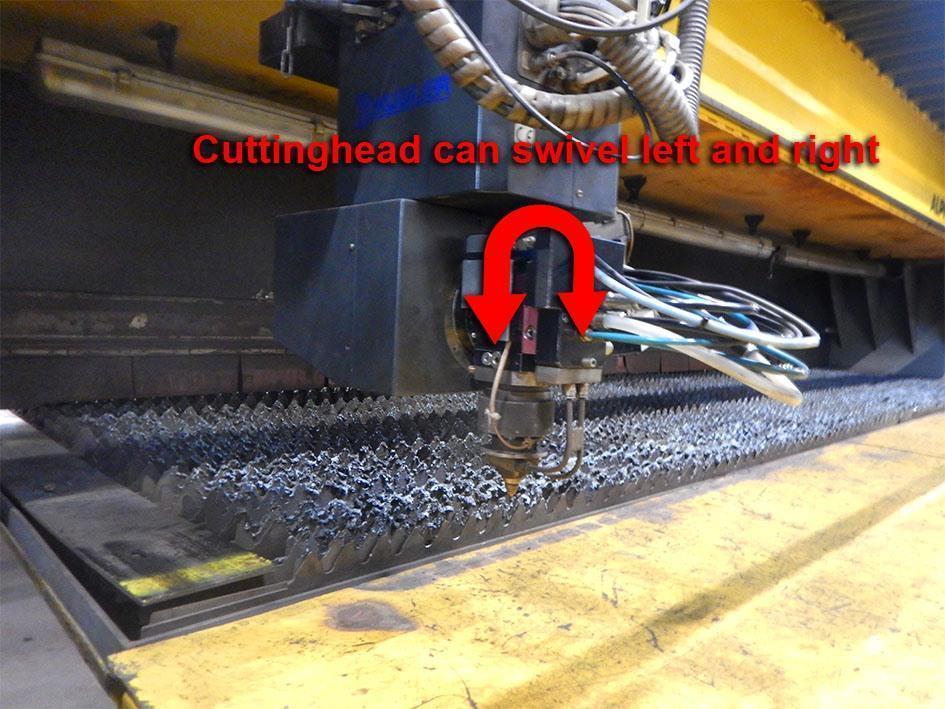

    Cutting head can swivel and can make bevel cuts!!
    including Columbus software with all options
    Ezeclean cutting tables with integrated dust extraction
    Pro-Las laser guard system = allows for operating times of up to 8 hours without the need of permanent supervision

    - Trackwidth: 7000 mm
    - Cuttingwidth: 6300 mm
    - Height travel of cutting head: max 260 mm

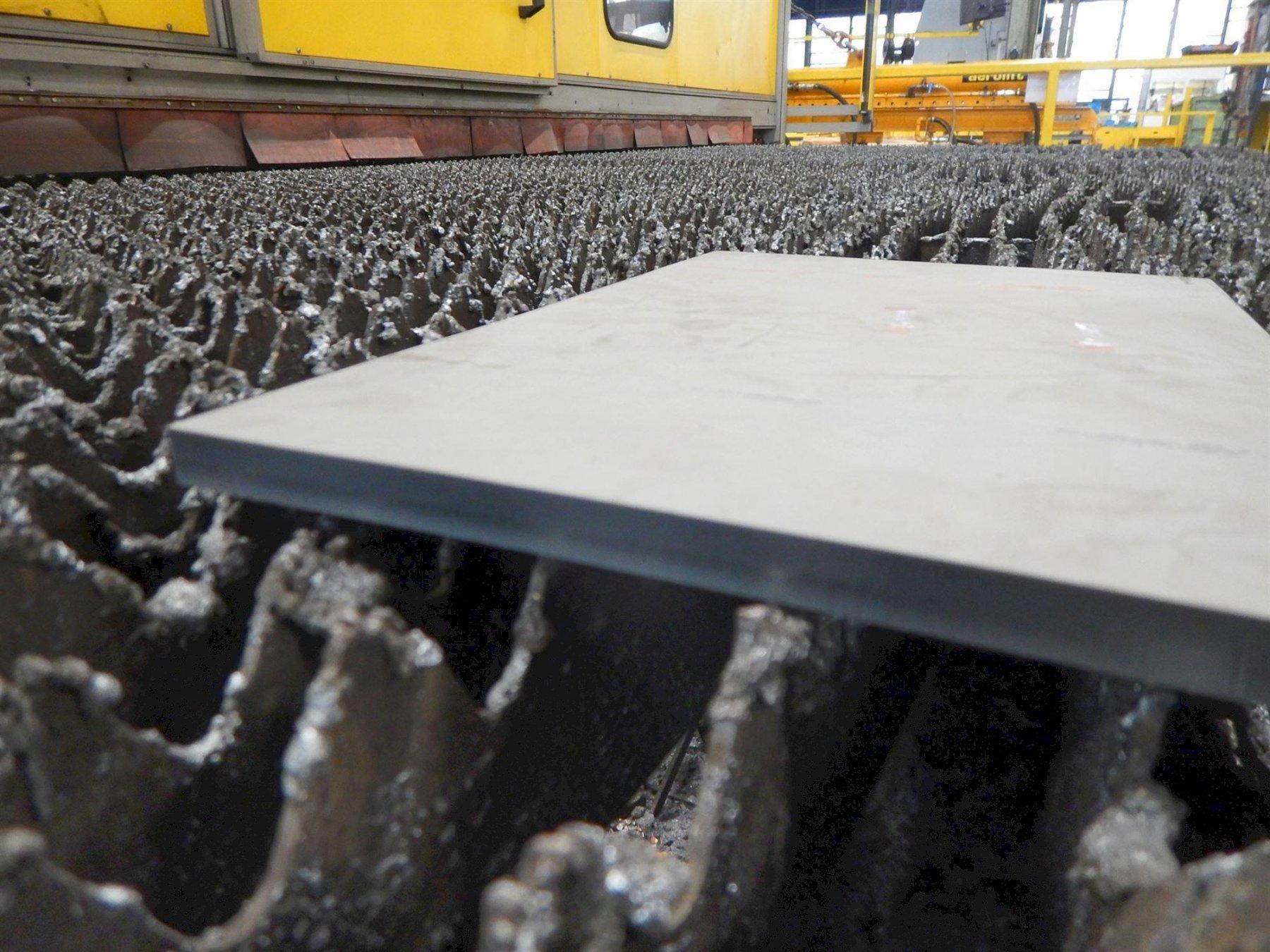

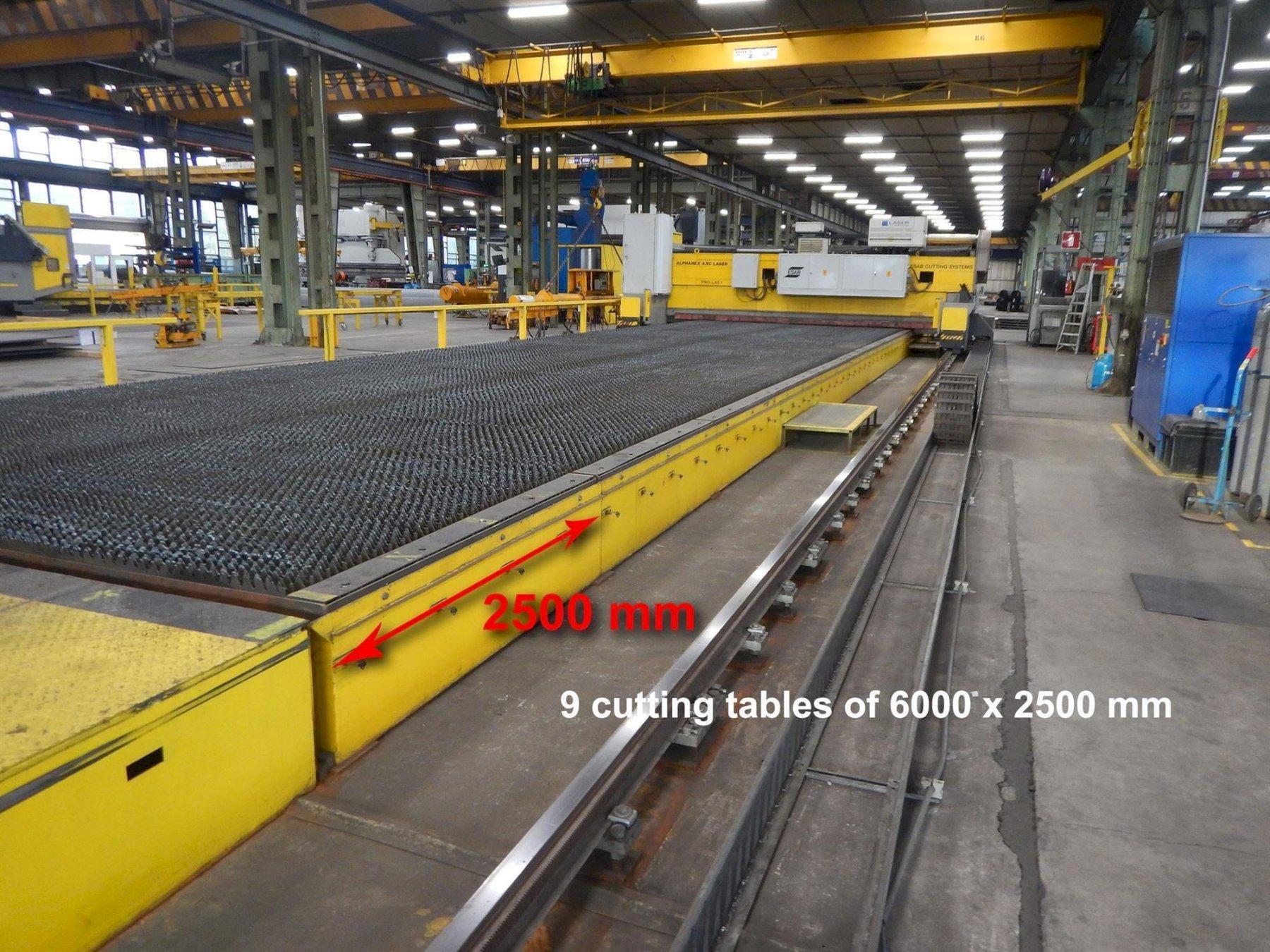

    - 9 cutting tables of 6300 x 2500 mm
    - Video camera for monitoring cuttinghead

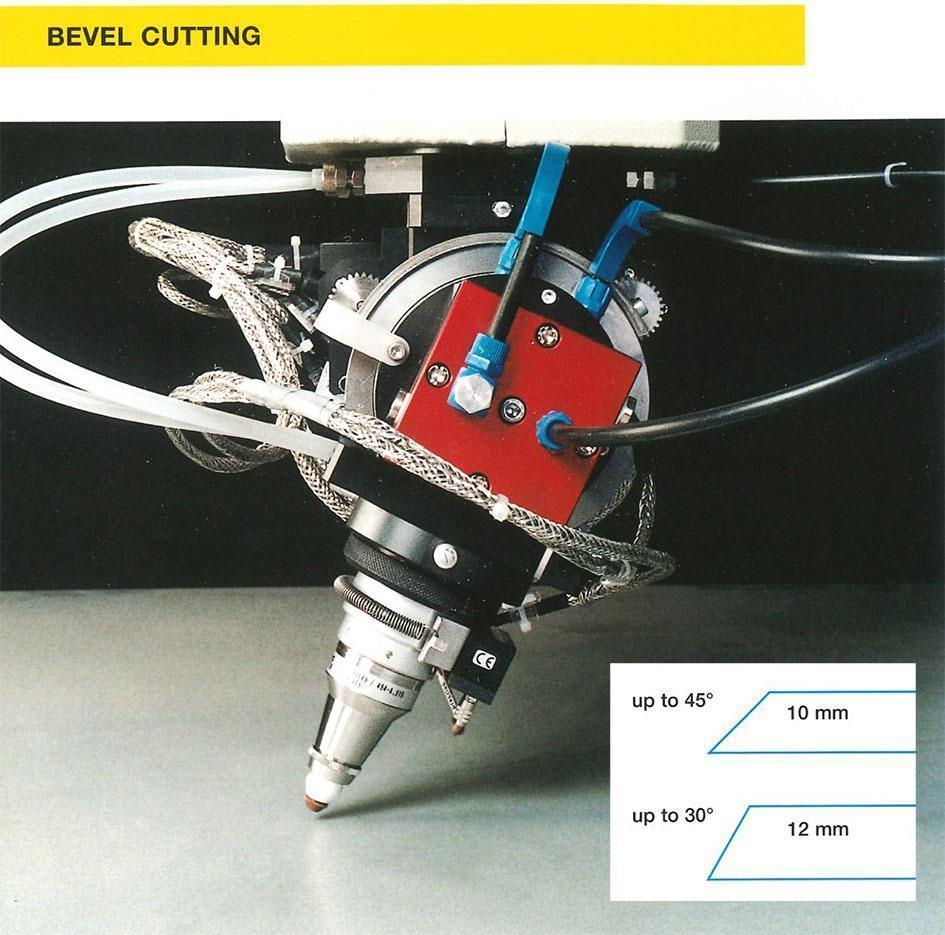

    Laser cutting head for vertical and bevel cutting on flat plates in horizontal position

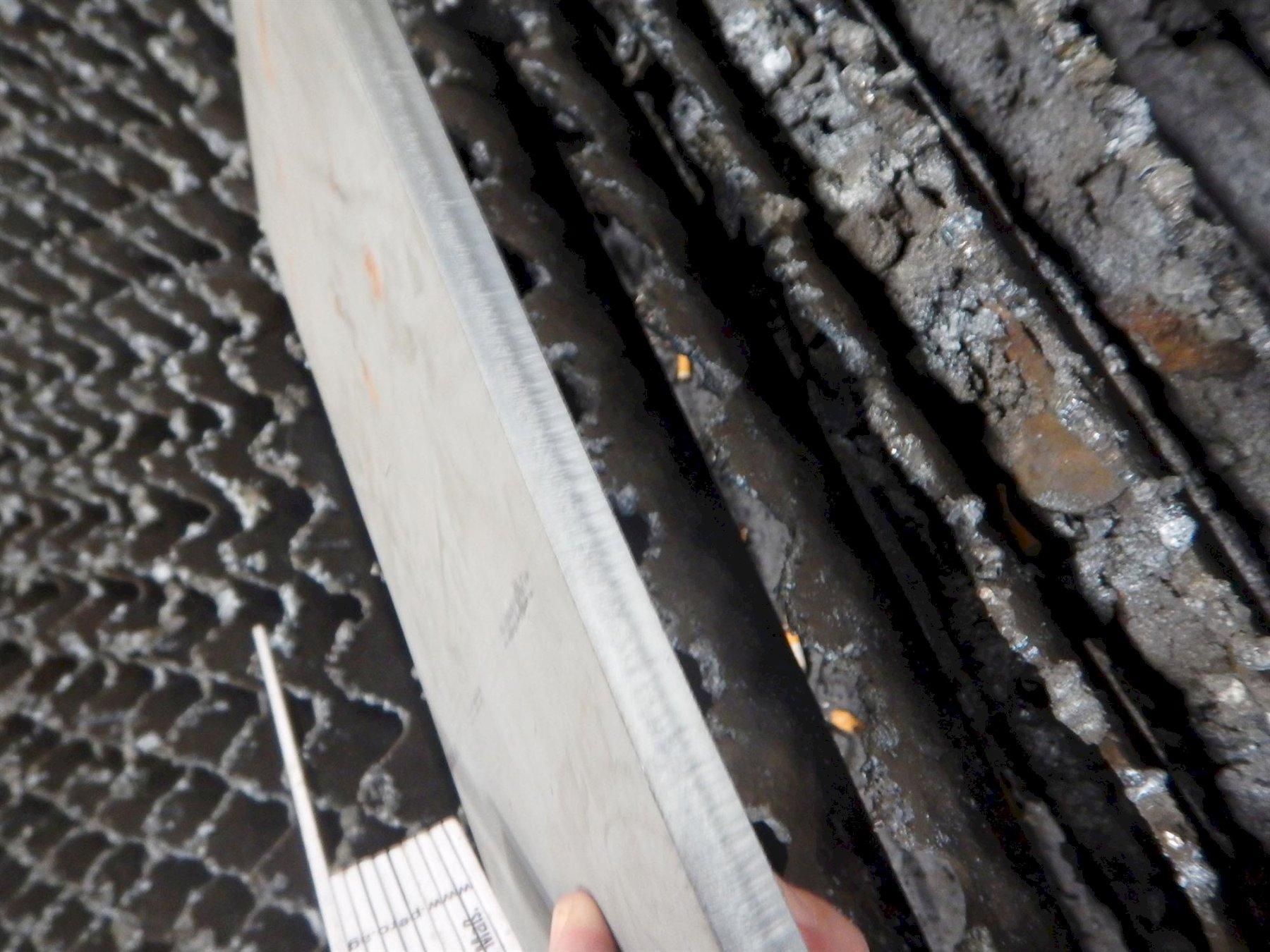

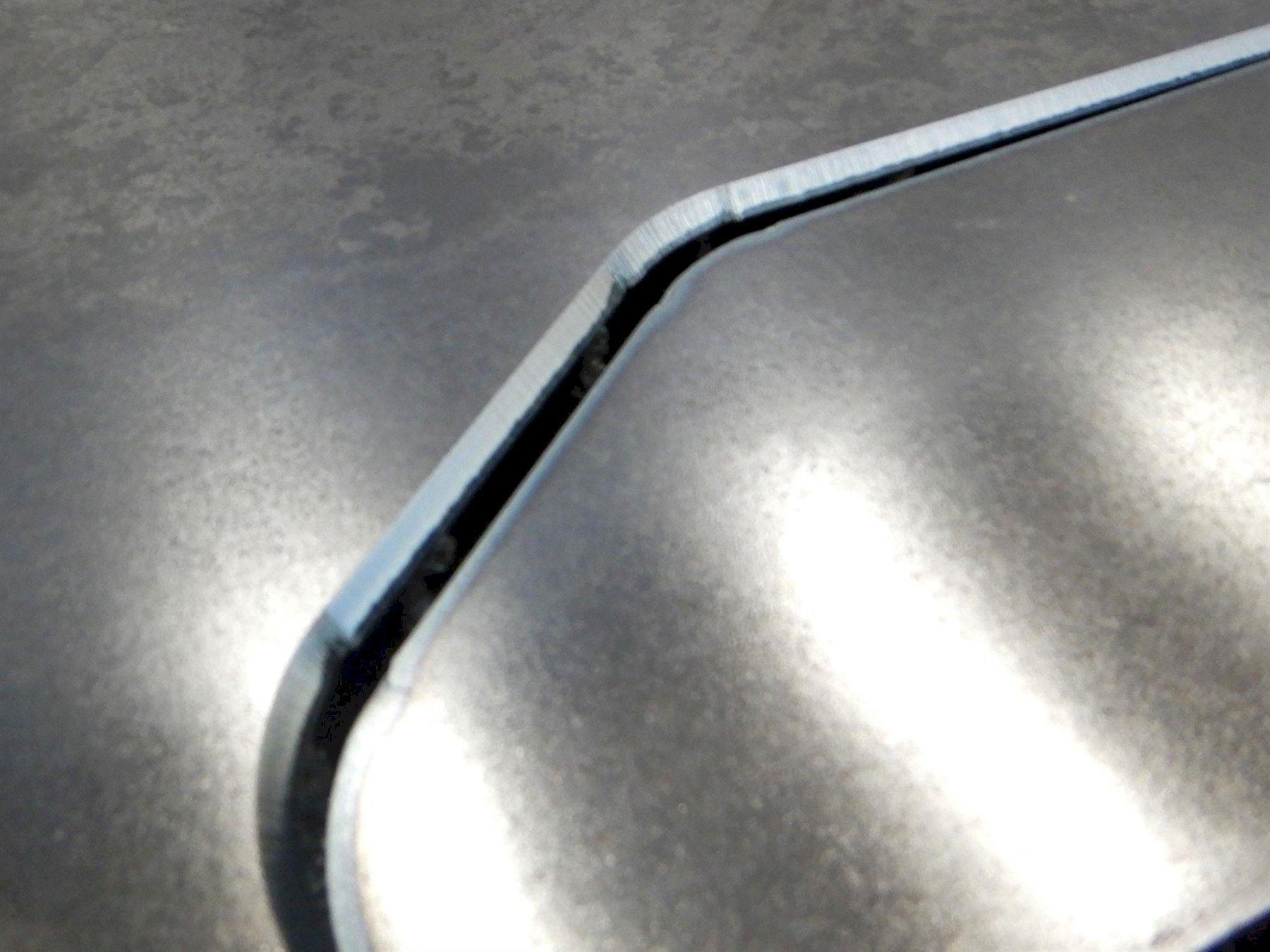

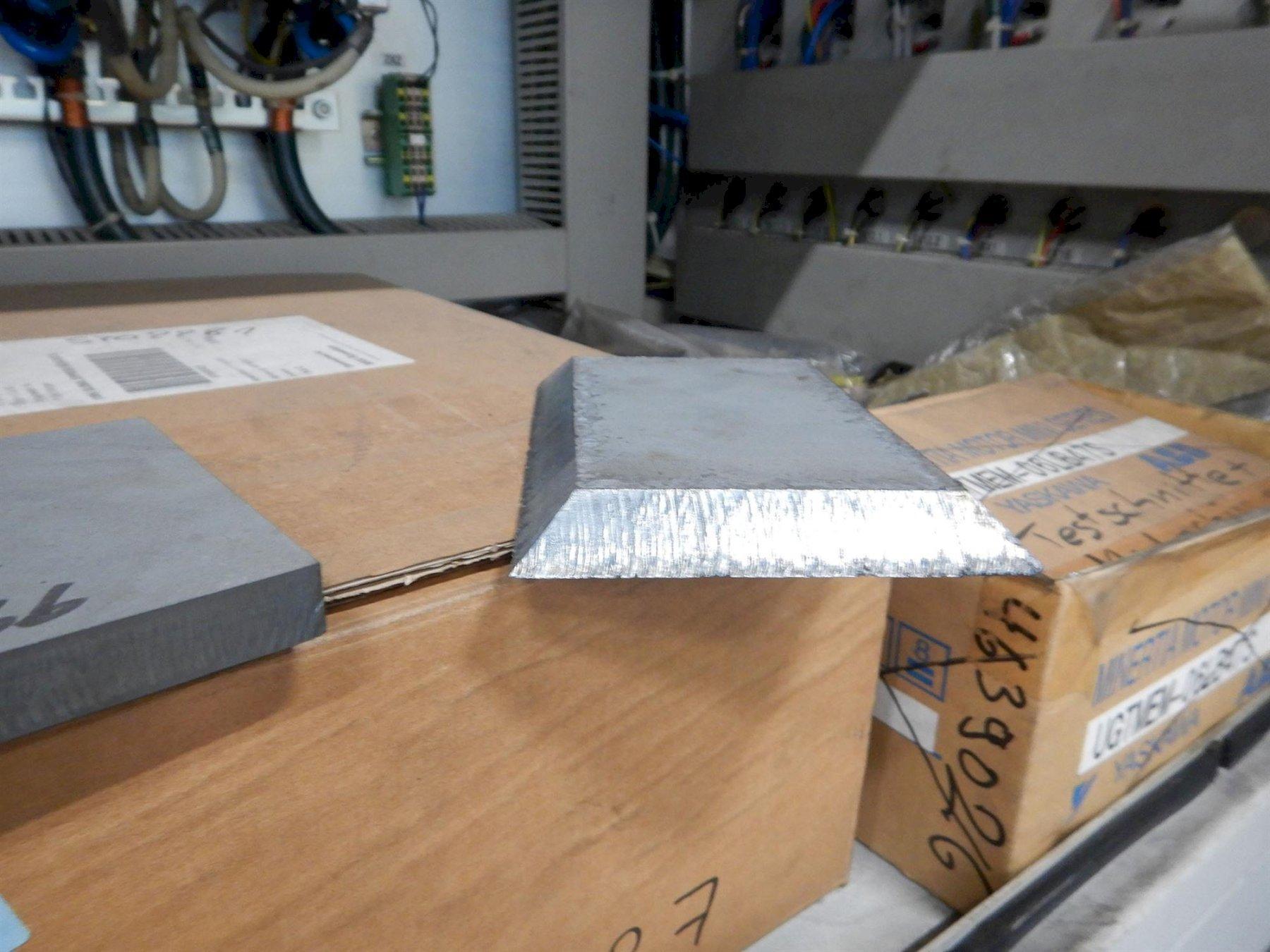

    Up to 20° bevel angle laser quality cuts are possible, with larger bevel angles serrations and burrs must be expected
    Max vertical cutting steel: 20 mm
    Max vertical cutting stainless steel: 12 mm
    Max vertical cutting alu: 8 mm
    Max bevel cutting steel: 15 mm
    Max bevel cutting  stainless steel: 10 mm
    Max bevel cutting alu: 6 mm

    Columbus software:
    > Basic module comprises various functions which enable the convenient generation of machine programs from part information.
    > Including the modules integrated Cad-system, 65 standard shapes and DXF-convertor
    > Marking tool module
    > Bevel unit module
    > Data management module, for the organization and administration of the parts to be processed
    > Date information module, calculation of layouts
    > Plate management module
    > Automatic nesting module, fully auto nesting of any kind of contour
