2004 TRUMPF MODEL #CUT5 5 AXIS CNC LASER : YOBRO 25873

Name: 2004 TRUMPF MODEL #CUT5 5 AXIS CNC LASER : YOBRO 25873
Brand: Unknown
SKU: 25873
Availability: InStock

Brand

Not specified

Location

Ohio

Specifications
Files & Videos

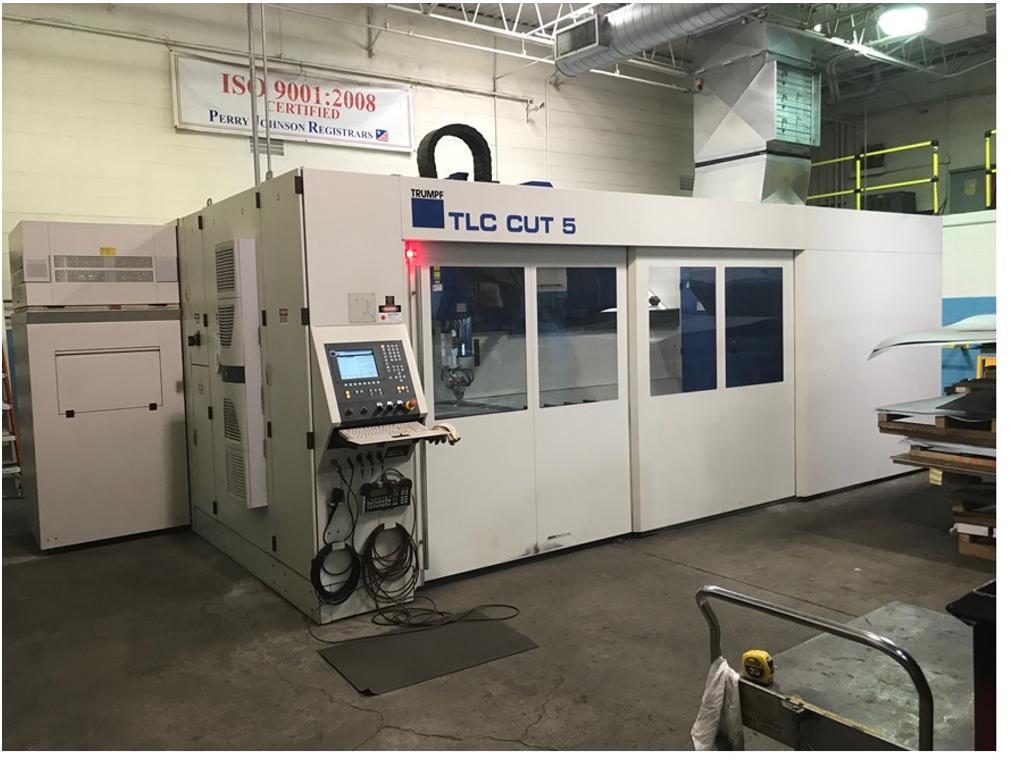

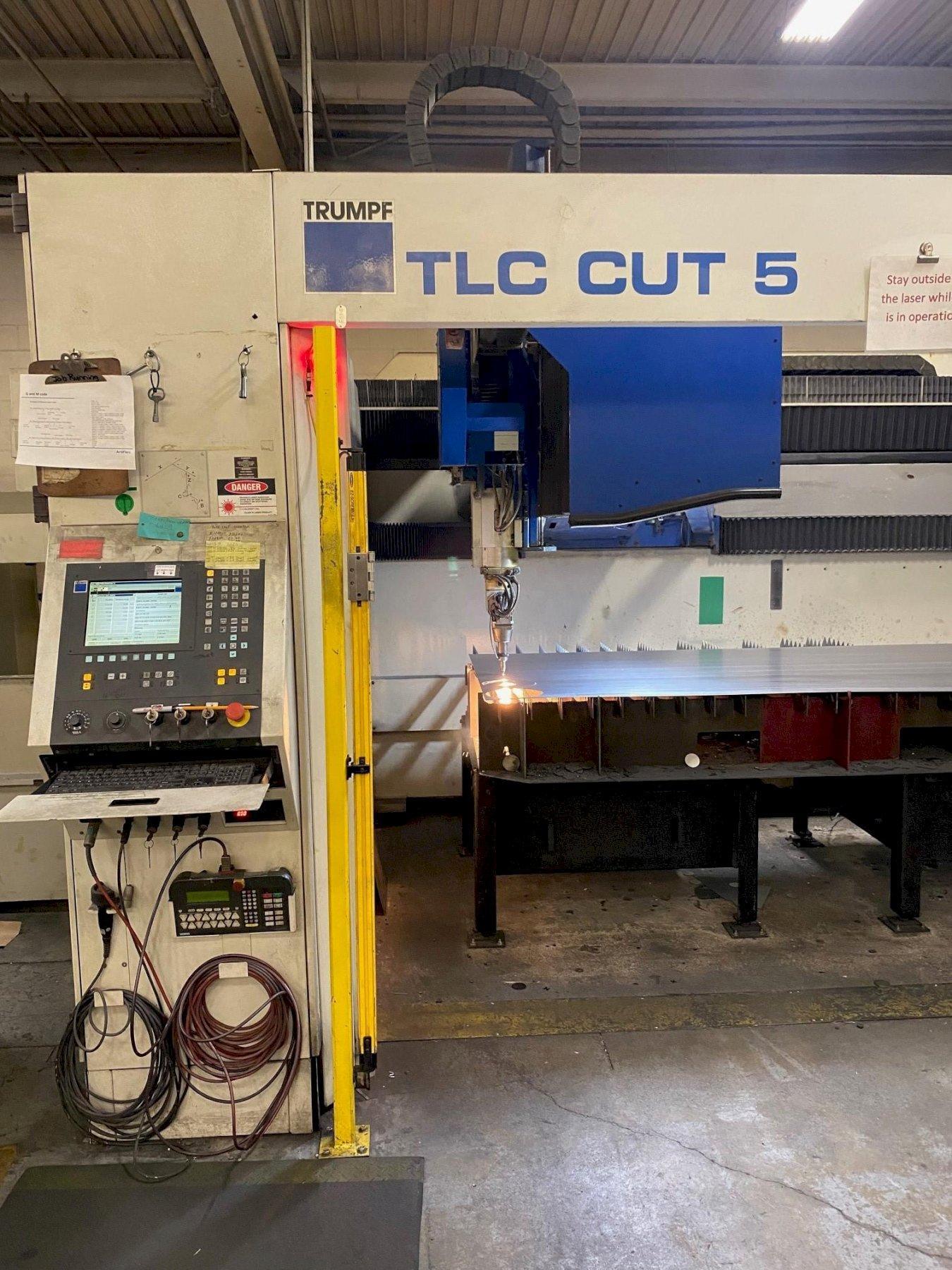

Model: Trumpf TLC Cut 5 5-Axis Laser
Year: 2004

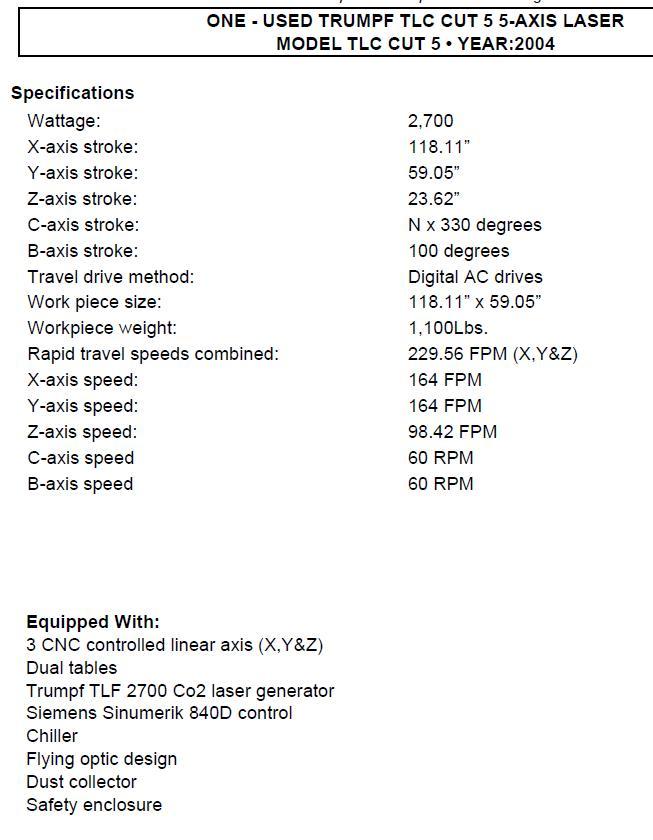

Technical Specifications

Wattage: 2,700
X-axis stroke: 118.11"
Y-axis stroke: 59.05"
Z-axis stroke: 23.62"
C-axis stroke: N x 330 degrees
B-axis stroke: 100 degrees
Travel drive method: Digital AC drives
Work piece size: 118.11" x 59.05"
Workpiece weight: 1,100 Lbs.
Rapid travel speeds combined: 229.56 FPM (X, Y & Z)
X-axis speed: 164 FPM
Y-axis speed: 164 FPM
Z-axis speed: 98.42 FPM
C-axis speed: 60 RPM
B-axis speed: 60 RPM

Included Equipment & Features

3 CNC controlled linear axis (X, Y & Z)
Dual tables
Trumpf TLF 2700 CO2 laser generator

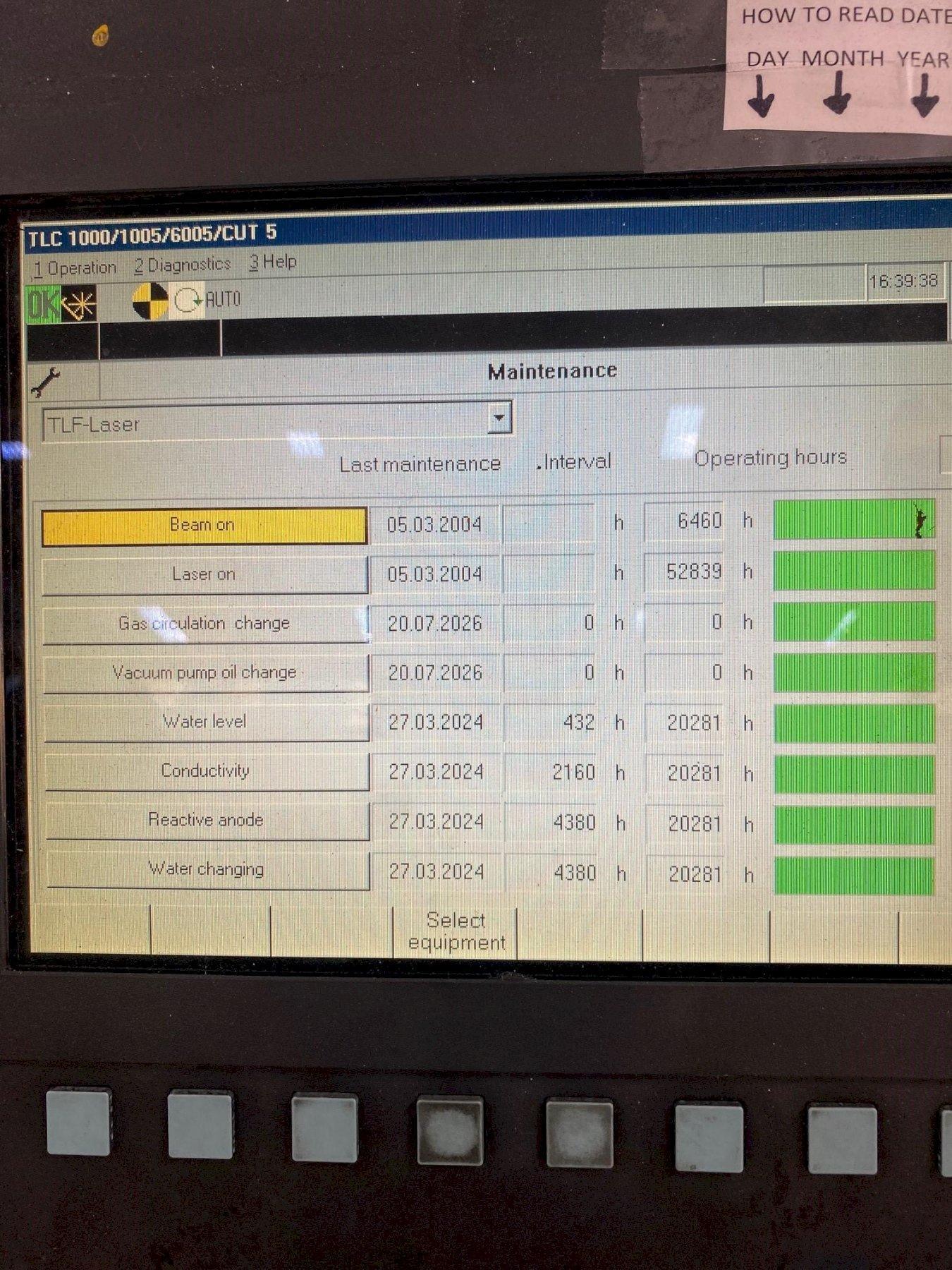

Siemens Sinumerik 840D control
Chiller
Flying optic design

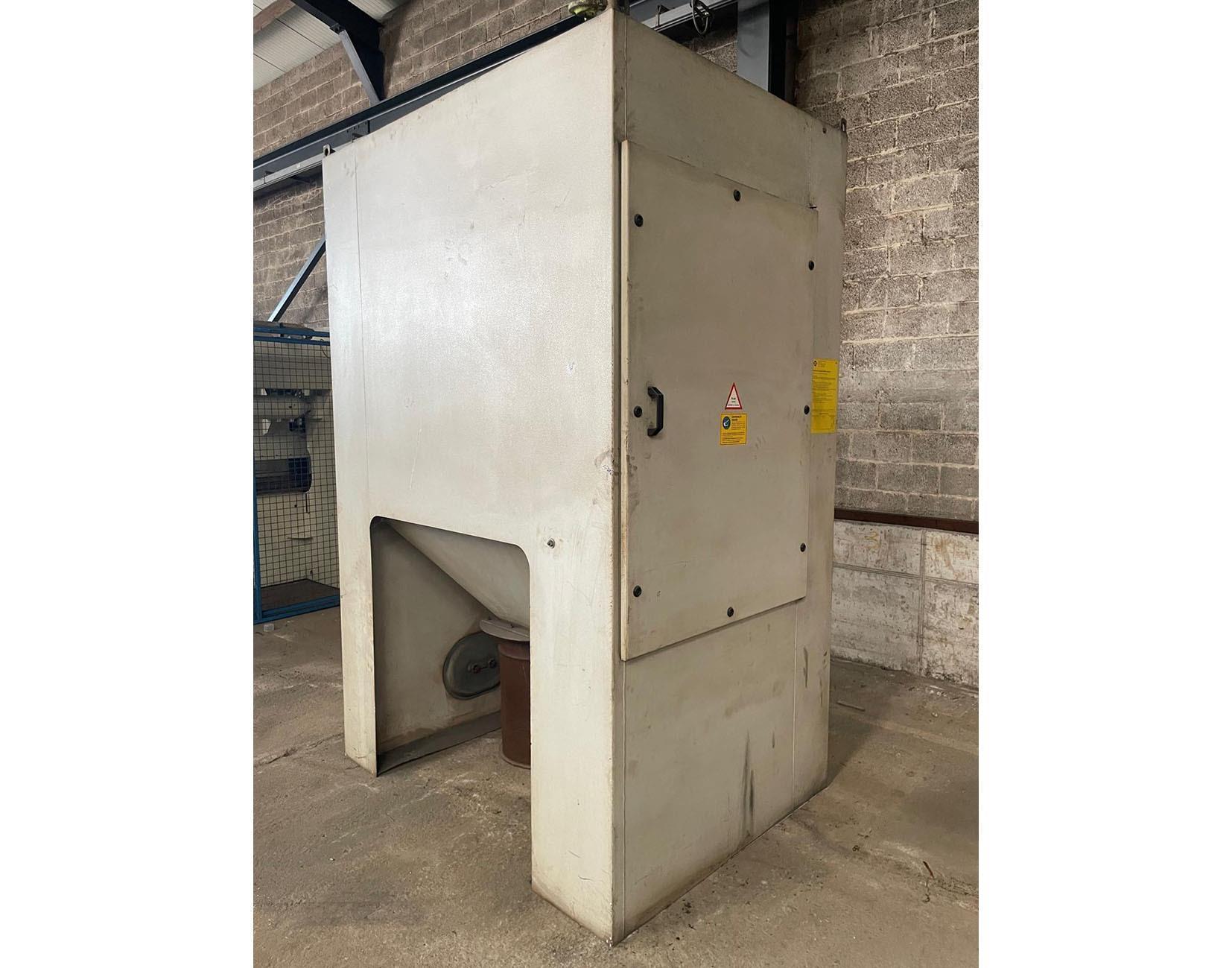

Dust collector
Safety enclosure
