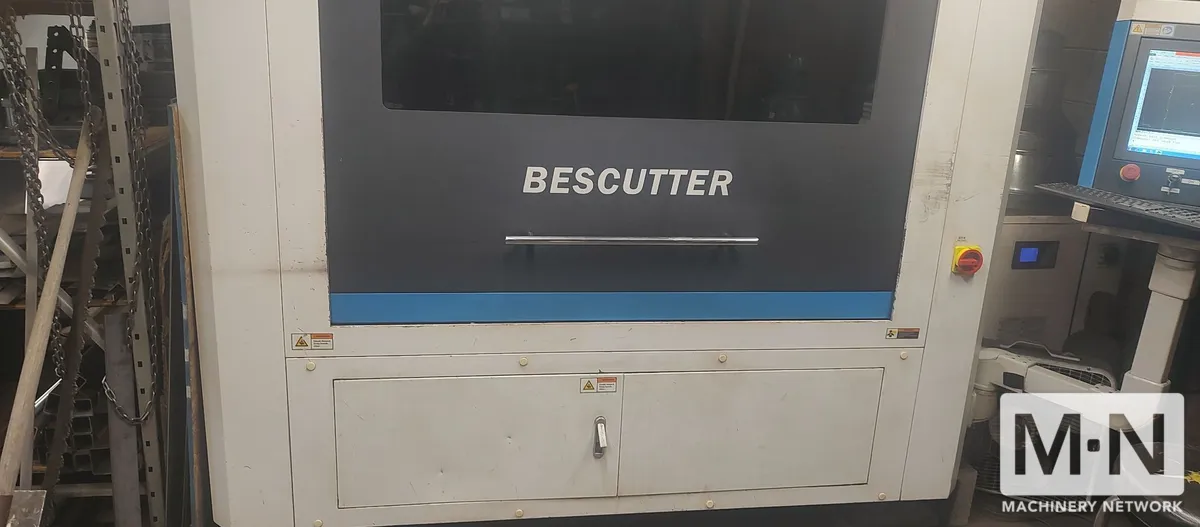

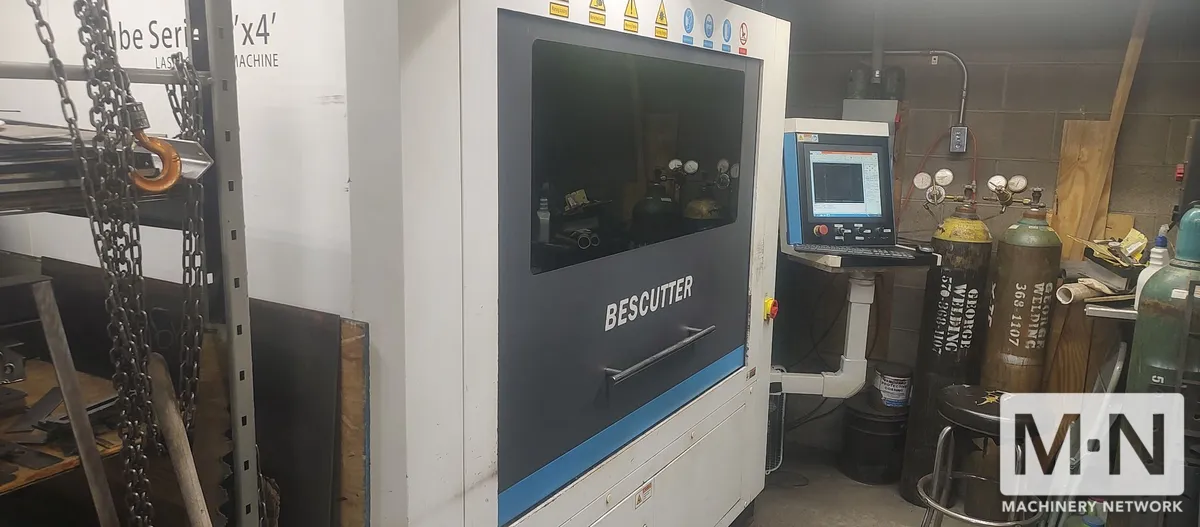

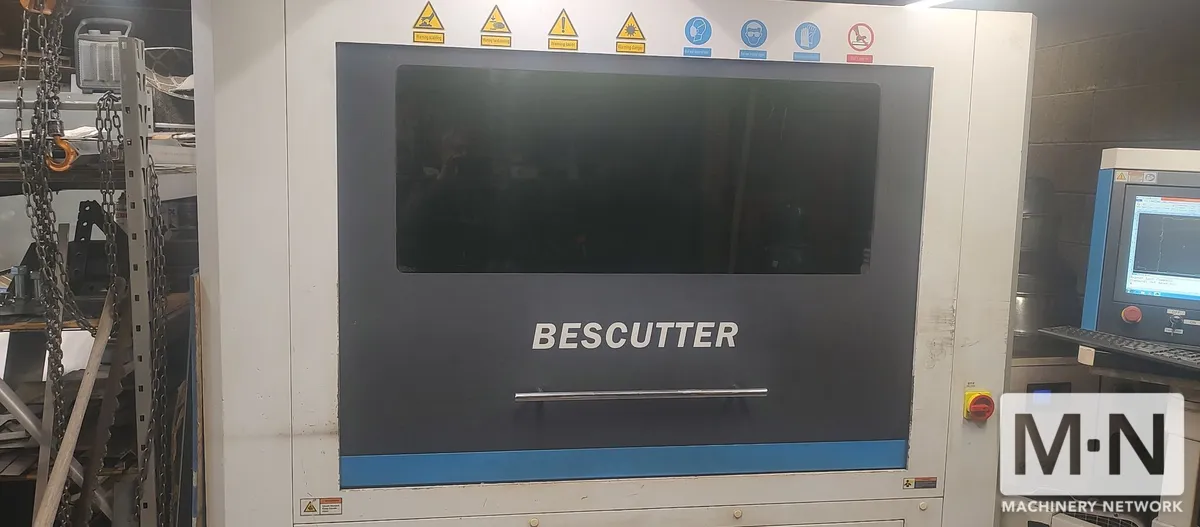

BESTCUTTER 51" X 51" CUBE SERIES 2000 WATT FIBER LASER

Work Envelope
Cutting area: 51″ × 51″ (1300 × 1300 mm)
Z-axis travel: 4″ (100–120 mm)

Laser System
Laser power: 2000W (options 1500–4000W typical)
Laser type: Continuous wave fiber laser (~1.07 µm wavelength)
Laser source: IPG / Raycus / Max Photonics (varies by build)
Beam quality: <0.373 mrad

Cutting Head / Control
Laser head: RayTools or equivalent auto-focus head

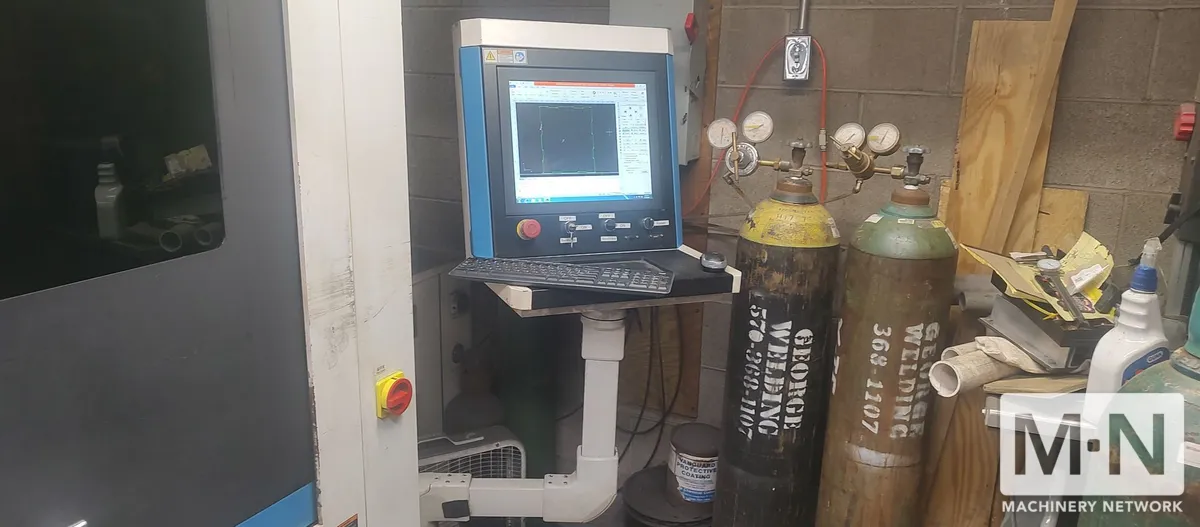

Control system: CYPCUT BCS100

⚙️ Motion & Accuracy
Max rapid speed: ~55″/sec (≈84 m/min)
Positioning accuracy: ±0.05 mm/m
Repeatability: ±0.02 mm
Drive system: Servo motors (X/Y/Z)

⚡ Electrical / Utilities
Power supply: 208V / 240V / 480V, 3-phase
Power consumption: ~10–30 kW depending on configuration
Assist gas: Oxygen or Nitrogen
Cooling: Industrial water chiller (CWFL series or equivalent)

🏗️ Mechanical
Machine size: ~85″ × 91″ × 83″ H
Weight: ~5,500 lbs
Construction: Enclosed safety cabinet, cast aluminum beam, rack & pinion drive

🔩 Typical 2000W Cutting Capacity (realistic shop range)
(varies by gas, nozzle, and tuning)
Mild steel: ~3/8″–1/2″ (O₂)
Stainless: ~1/4″
Aluminum
