Name: Used CR Square air ducts production line For Sale O.27 10500
Brand: CR
SKU: O.27 10500
Availability: PreOrder

Brand

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Material thickness x width 1,5 х 2000 mm
Length x width over all 15100 x 6100 mm
DECOILER(s) 3 units
Min -- max dia coil 400 > 540 mm
Max weight admit 5 ton
STRAIGHTENER(s) yes
Feedingrolls (dia x W) 2x
Flattingrolls (dia x W) 7x (dia 100 mm)

Additional info

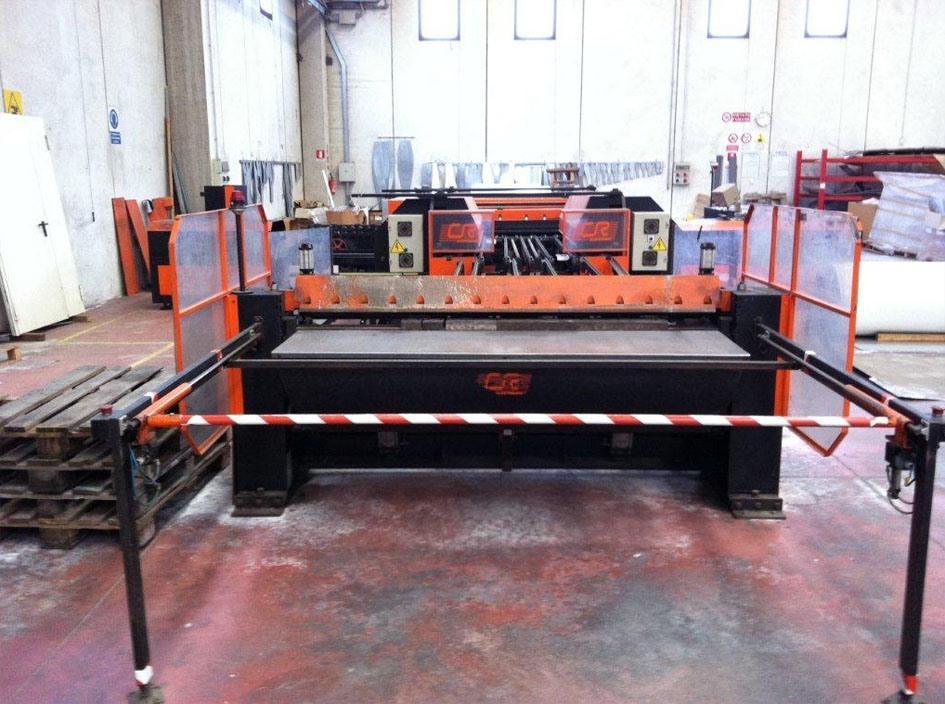

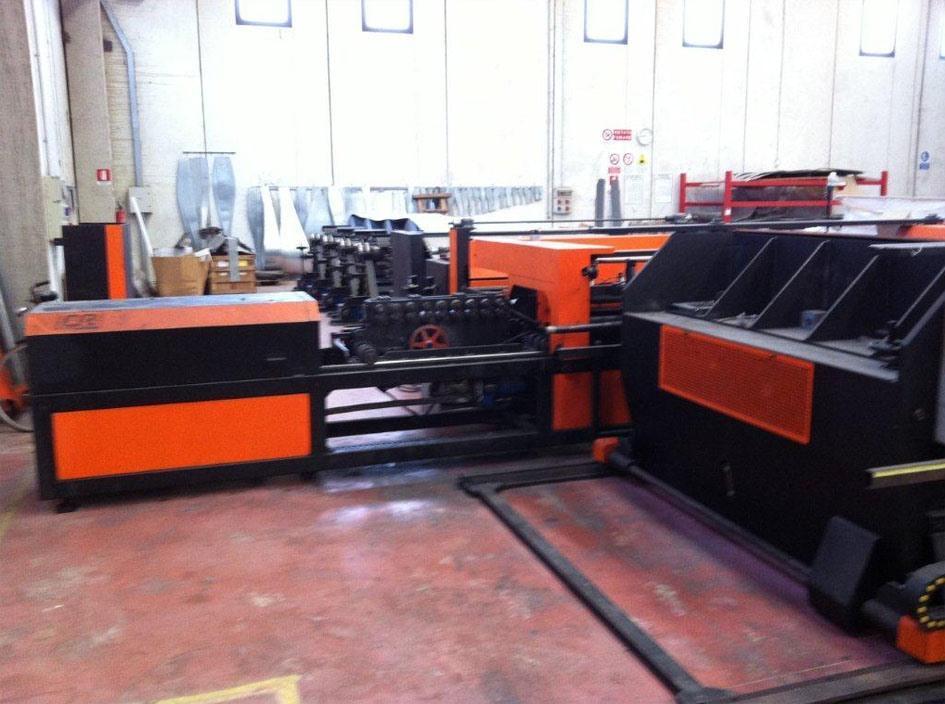

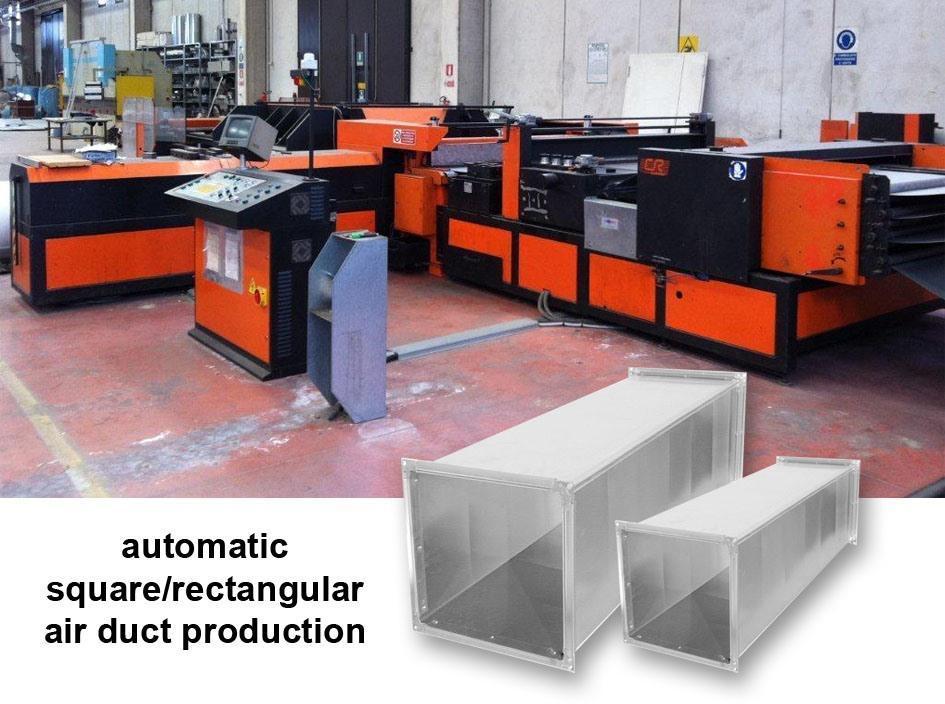

The STRADA is a system for the automated production of complete rectangular air conditioning ducts.
The system makes it possible to manufacture complete, high quality ducts quickly and efficiently since production is digitally controlled.

The plate from the coil is flattened, ribbed, notched and cut to size. The system then forms the Pittsburgh or snap-lock overlaps. The FLAROM unit then flanges the ducts. The plate is then bent to size to shape the duct.
Manual assembly of the flange accessories and longitudinal overlap closings complete the process.

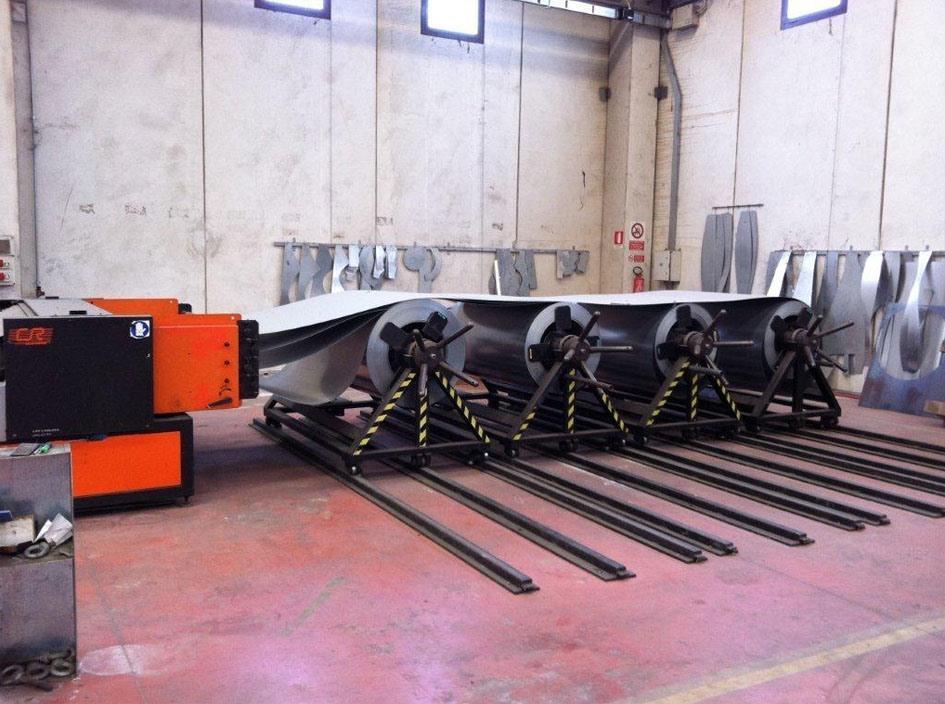

1 - Decoiler
Reels for 5000 kg or 8000 kg coils.

2 - Automatic feeder/selector
Unit to select and start automatic machining of plate from one of the 4 available coils. This unit avoids having the operator manually insert the plate into the machine when working with different thicknesses.

3 - Flattening Unit
A sturdy, electronically controlled 9 roller flattening unit feeds the plate into the system.

4 - Ribbing Unit
With a series of rollers this unit creates ribs that increase the duct's stiffness.

5 - Punching Unit
This machine, consists of a hydraulic control unit and four punches (two on each side of the plate) and makes the triangular and rectangular notches needed for the next phases of edge-forming and bending.

6 - Roll Former for Longitudinal Overlaps
This unit consists of a 9 station roll former (with Pittsburgh rollers) mounted on a carriage that moves on a track. It makes seam pockets on the longitudinal overlaps quickly and accurately.

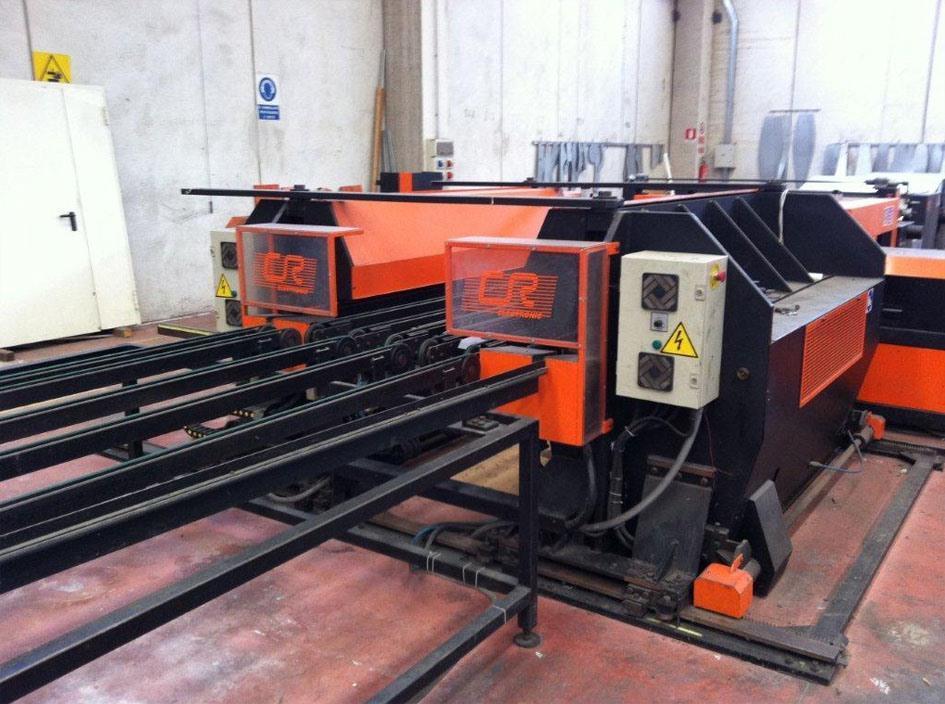

7 - Double Station for Flanging on the Duct
Two Flarom type presses, one on each side of the plate make a flanged profile directly on the duct.

8 - Digitally Controlled Bending Unit
This electronically controlled bending unit accurately bends the plate to size.

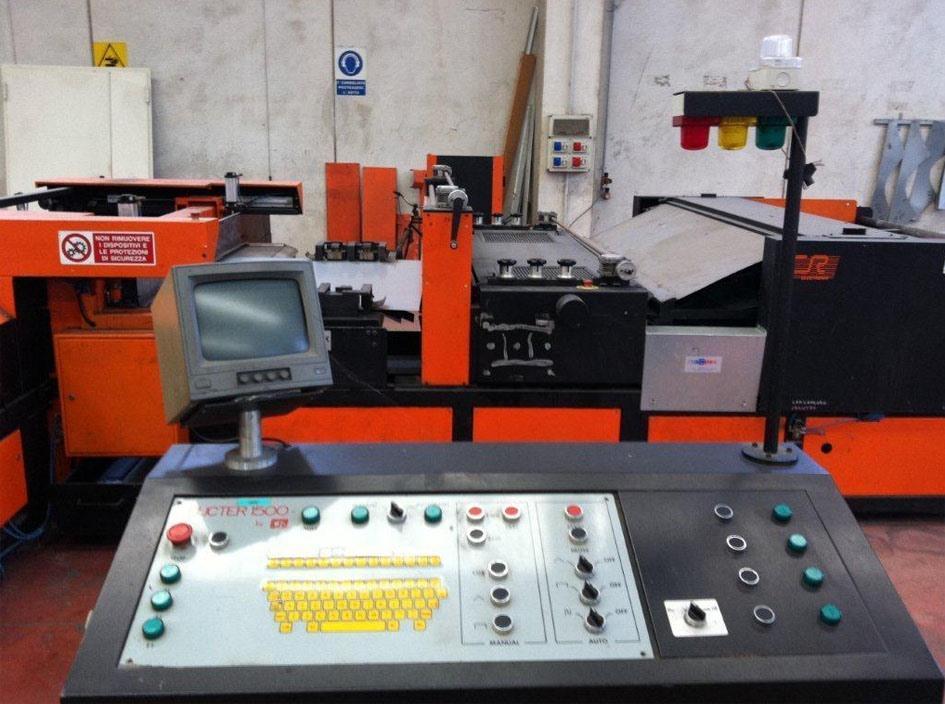

9 - Digital Control Unit
A control console, complete with monitor, designed and built by CR Electronic makes it possible to program and control all phases of the Strada System's operations. A link with a personal computer makes it possible to transmit programs directly from the engineering department.

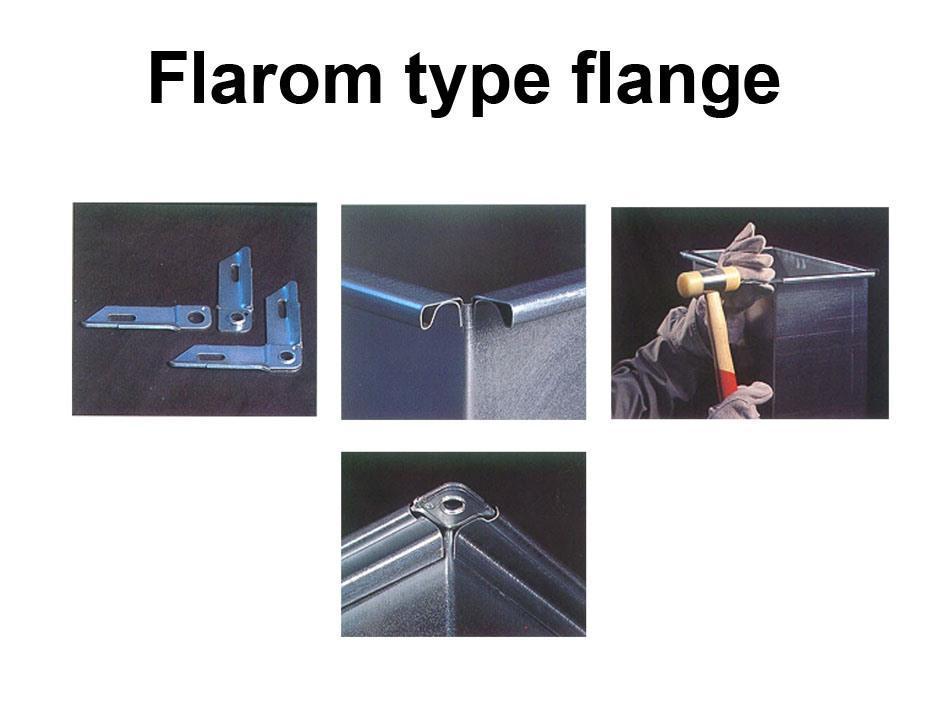

FLAROM Type Flange Unit

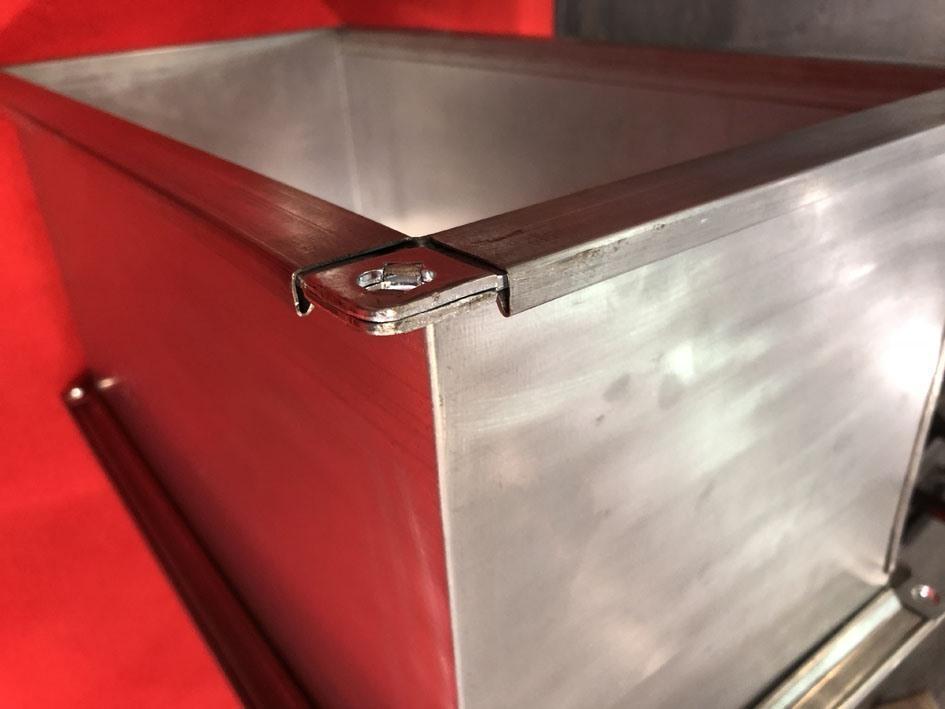

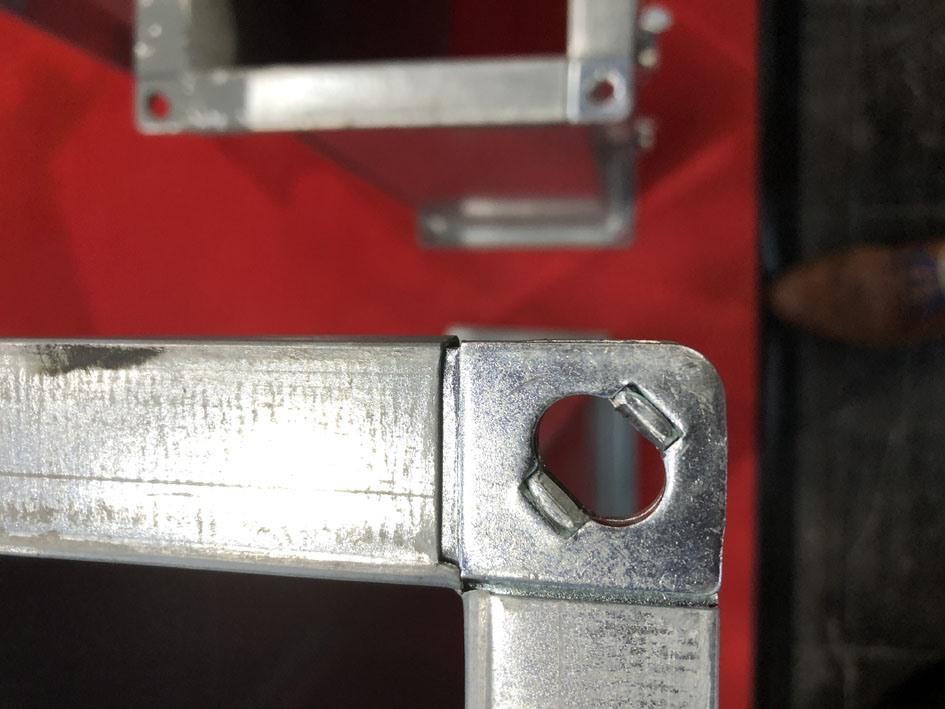

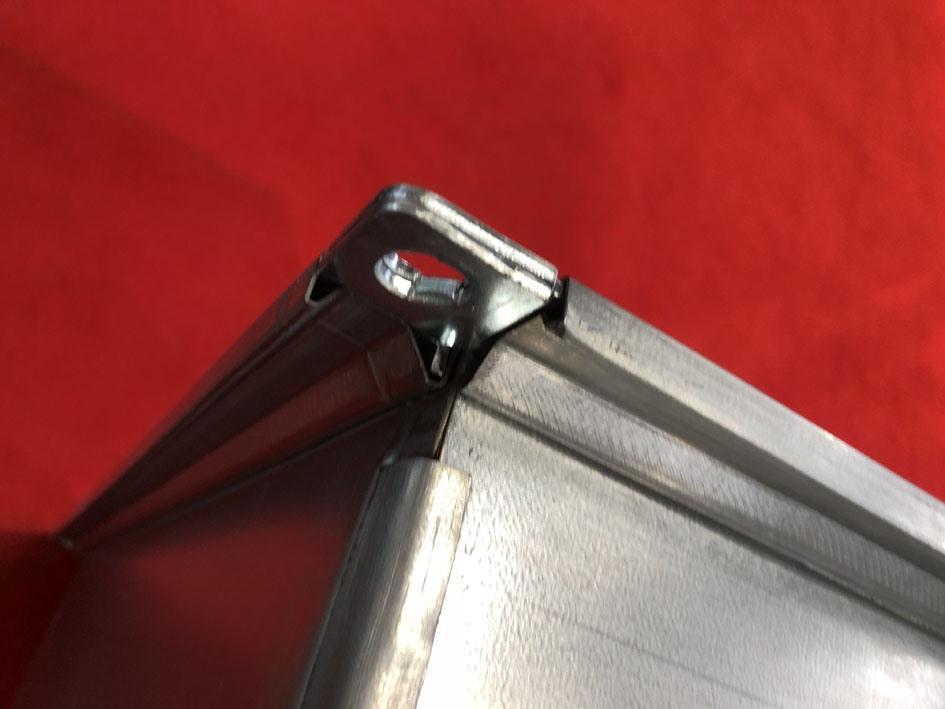

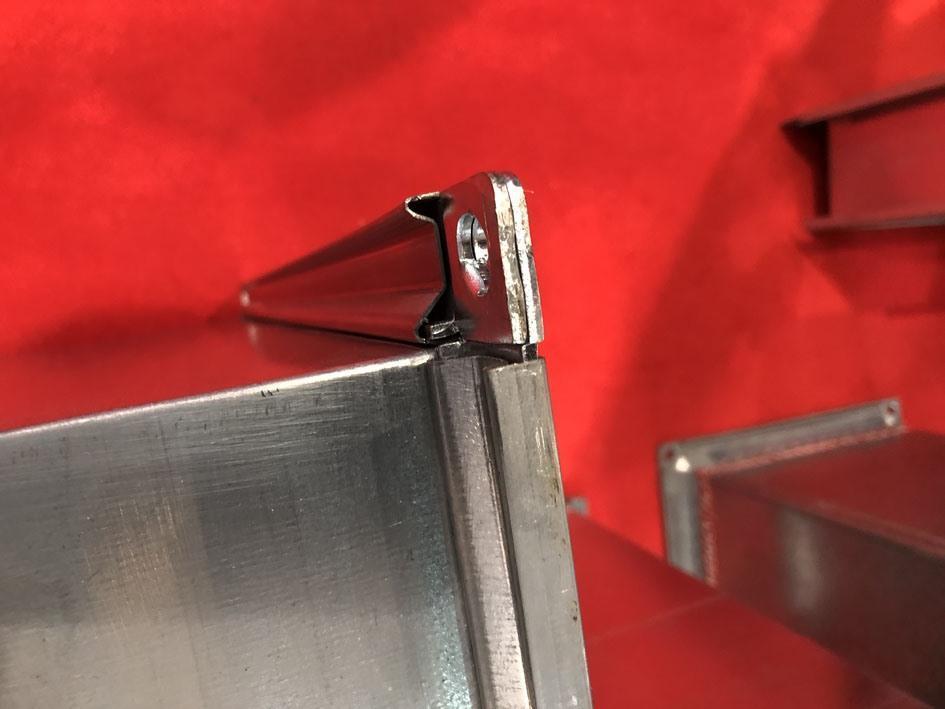

The FLAROM flange system, patented by CR Electronic, makes the flanged profile directly on the duct.

The system consists of two Flarom type presses, one on each side of the plate. Each press makes a flange profile using a sophisticated, microprocessor controlled hydraulic system (four controlled axes).

The FLAROM type flange offers considerable advantages when compared with traditional flanges to mount on the duct:

> reduction of labor needed for assembly;
> reduction of bar and accessories (rivets, screws, etc.) inventories;
> reduction of time needed to mount the flange (only the corners have to be mounted);
> excellent air-tightness for the completed duct;
> safety (the FLAROM is CE certified);
