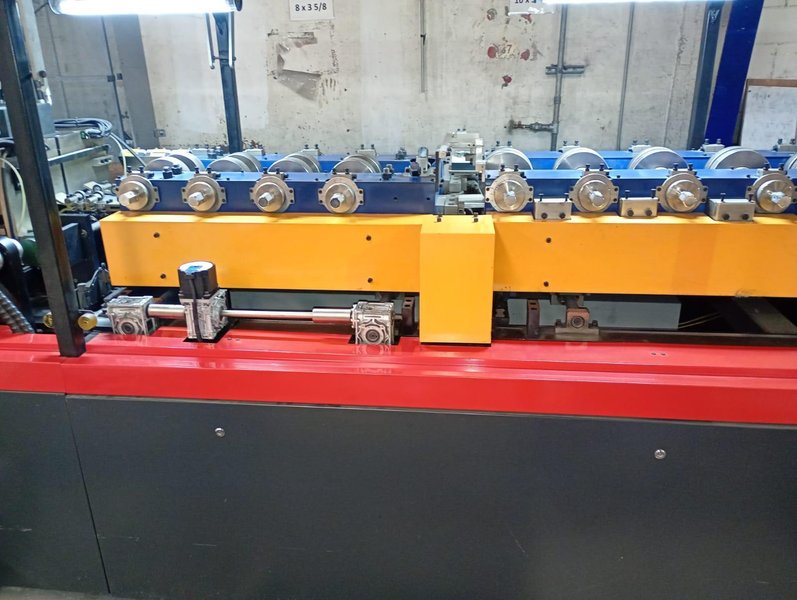

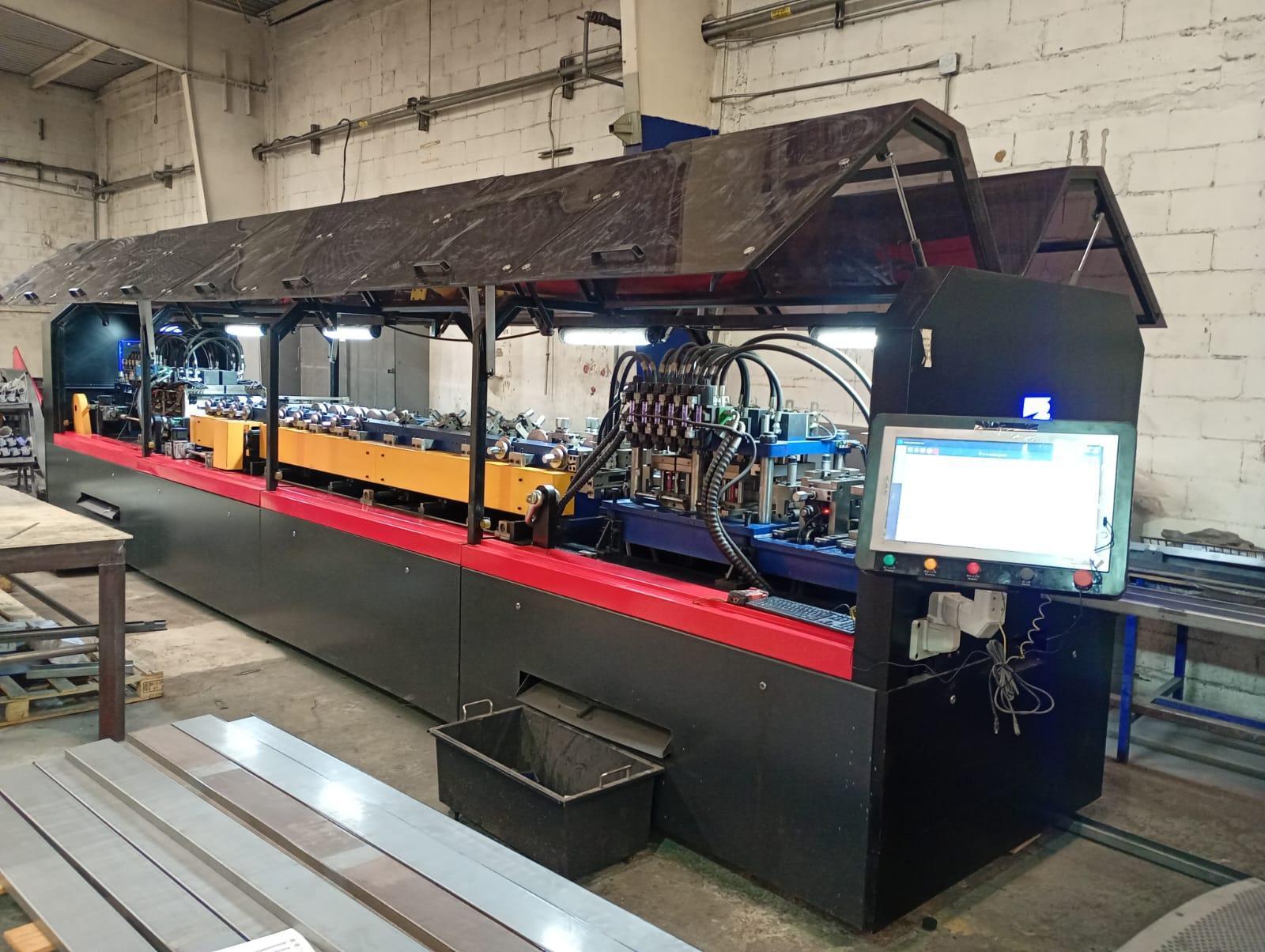

2022 Xiamen Metoform MF1600T Roll Former - Fully Automatic Light Gauge Steel Framing

Brand

Not specified

Baja California, Mexico

FORMING CAPACITY

Material thickness: 0.75–1.60 mm / approximately 22–16 gauge
Profile/web width: Fully adjustable 75–160 mm / 2.95–6.30 in.
Standard profile widths: 75 mm, 89 mm, 92 mm, 140 mm, plus intermediate/custom widths within the machine's adjustment range
Profile type: C-shaped light-gauge steel framing
Flange: Approximately 41 mm / 1.61 in.
Lip: Adjustable 8–15 mm
Material: Galvanized / zinc-coated high-tensile steel coil, including G500/G550-type material

PRODUCTS / APPLICATIONS

The machine can manufacture profiles for:

INTEGRATED OPERATIONS

Complete automated production line incorporating:

Integrated tooling provides multiple fabrication operations including:

Service holes • Bolt holes • Web notches • Lip cuts • Chamfer cuts • Swaging • Dimple holes • Automatic cut-to-length

Punching accuracy is rated at approximately ±0.5 mm.

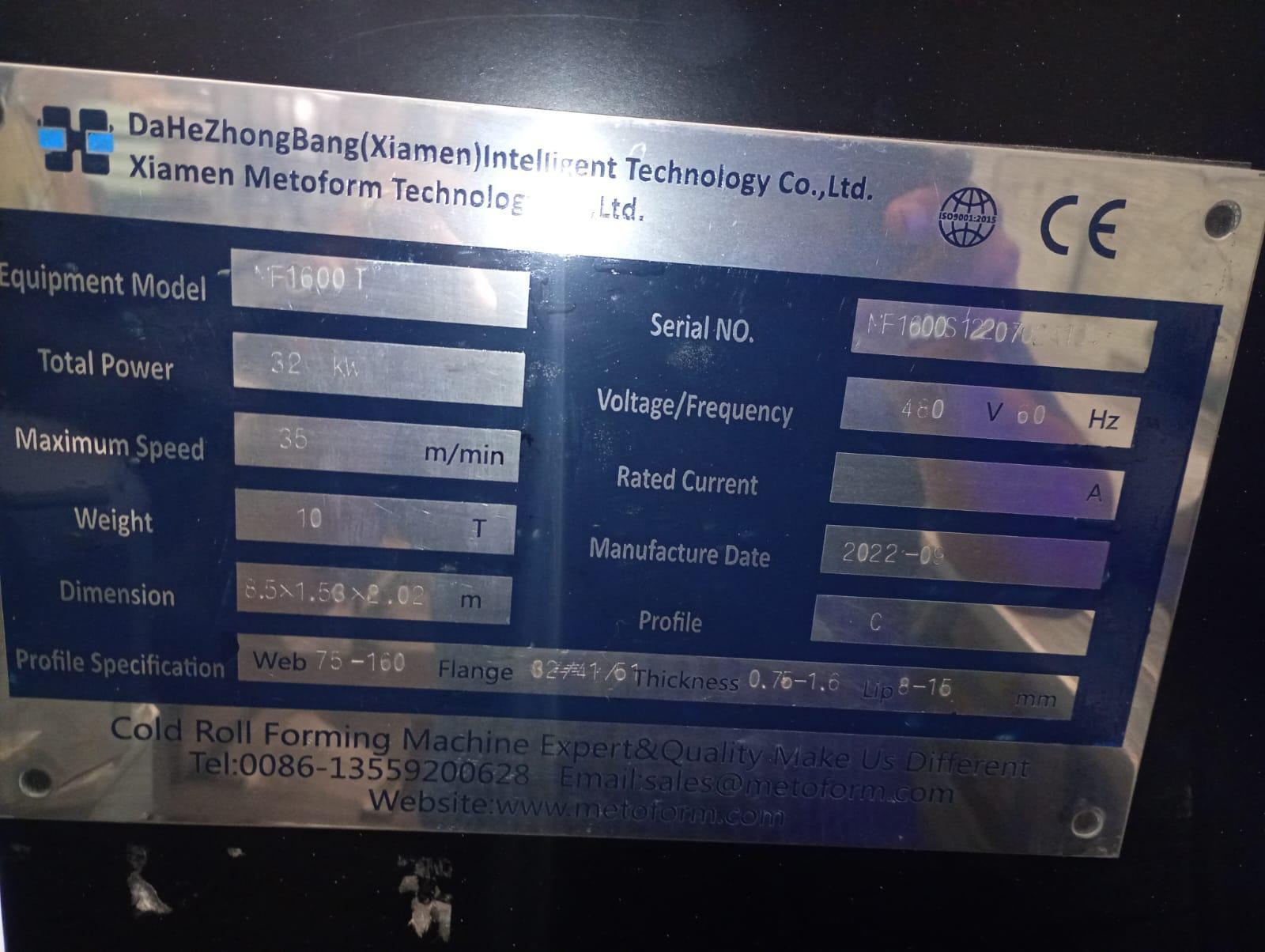

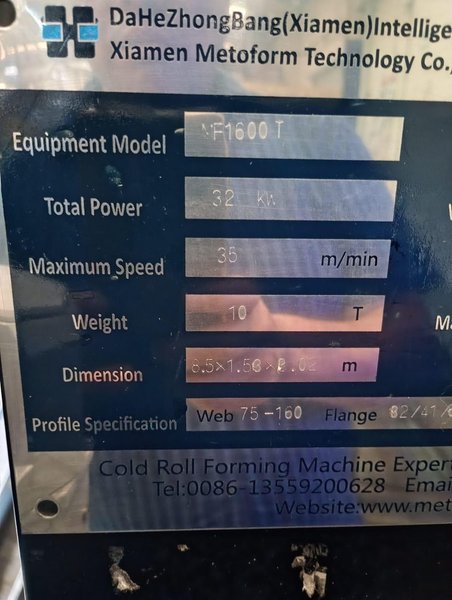

MACHINE SPECIFICATIONS

Main servo motor: 15 kW
Hydraulic motor: 11 kW
Total machine power: Approximately 29 kW
Standard production speed: Approximately 400–900 meters/hour
Machine dimensions: Approximately 8.0 m × 1.71 m × 2.0 m
Machine weight: Approximately 8,100 kg / 17,850 lb
Decoiler capacity: 3,000 kg / 6,600 lb
Control: LG-R1 system with 21-inch touchscreen
CAD/CAM production capability: Designed for integration with structural framing design software
