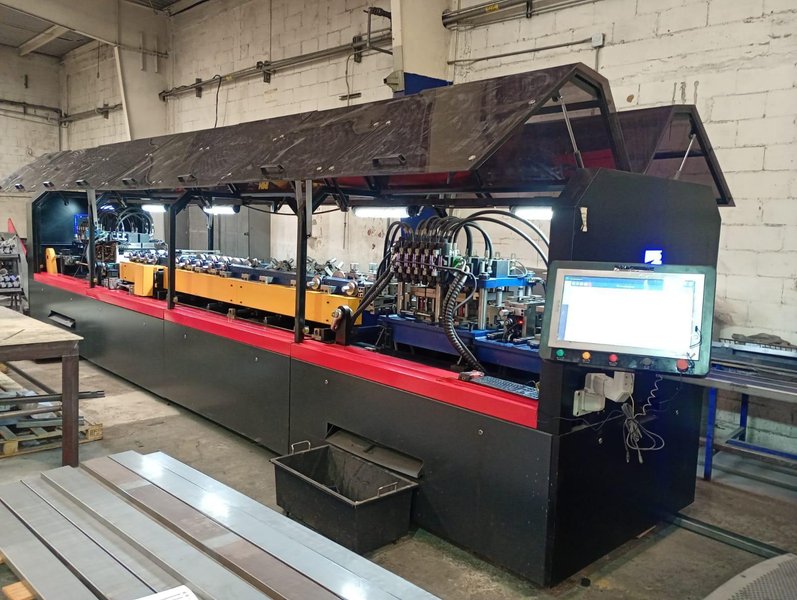

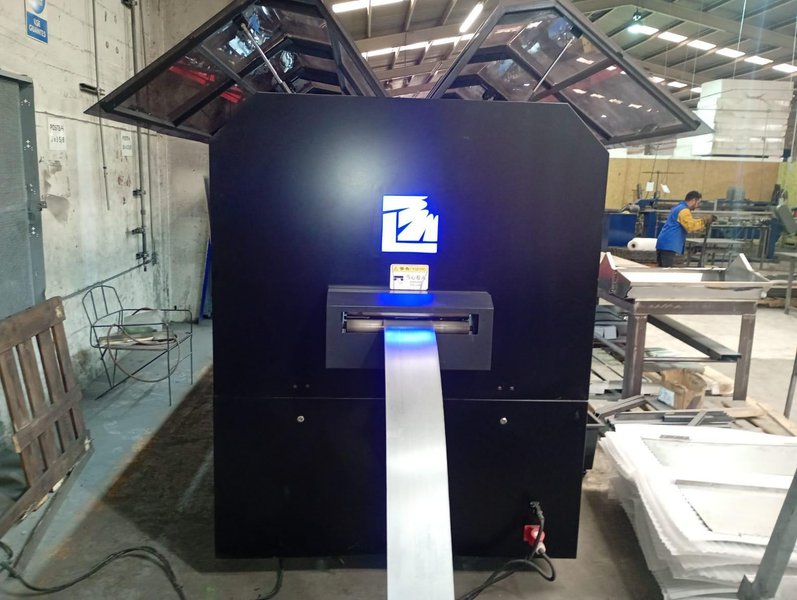

Xiamen MF1600T Roll Former, 2022 – Hydraulic Decoiler, CAD/CAM Integration, Multi‑Operation Tooling

-Material: Galvanized coil, zinc coil, G550 -Thickness: 0.75-1.6mm -Width:75-200mm changeable -Height: 41mm(it can be updated to 32/41/51mm,cost extra) -Lip: 8-15mm

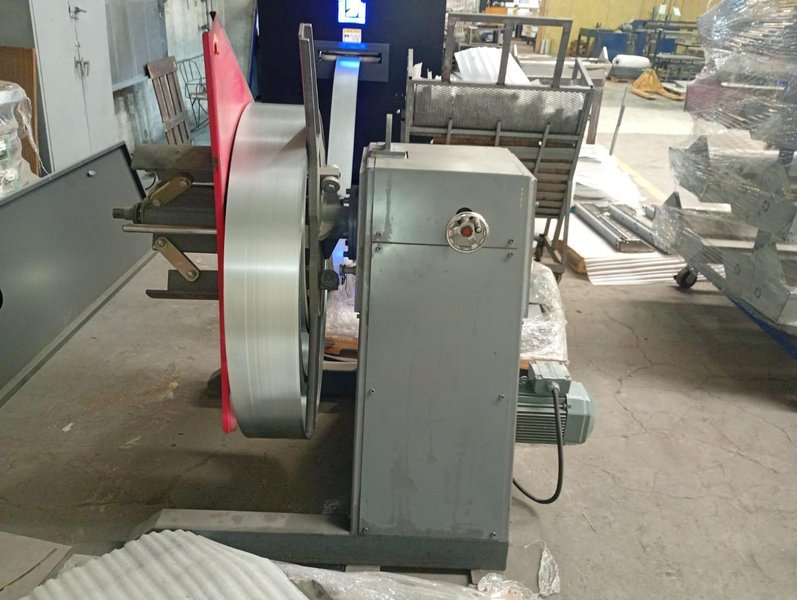

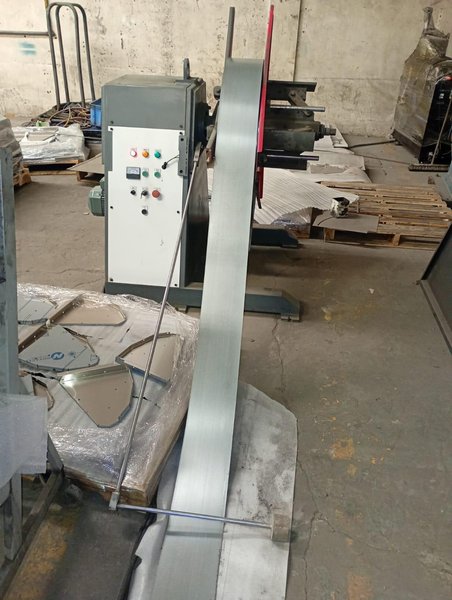

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Decoiler: De-coiler Type: Hydraulic auto de-coiler Weight capacity: Max 5.0T Diameter of inner: 480-510mm Diameter of outer: 800mm Motor power: 3.0Kw,50Hz, 380V(Customized) Control type: Electric button control Function: Auto rotation feed sheets into roll forming parts. Semi auto for loosening and tightening coil; Weight of de-coiler: 1000KGS. 10) Side Locks provided on de-coiler to fix coil.

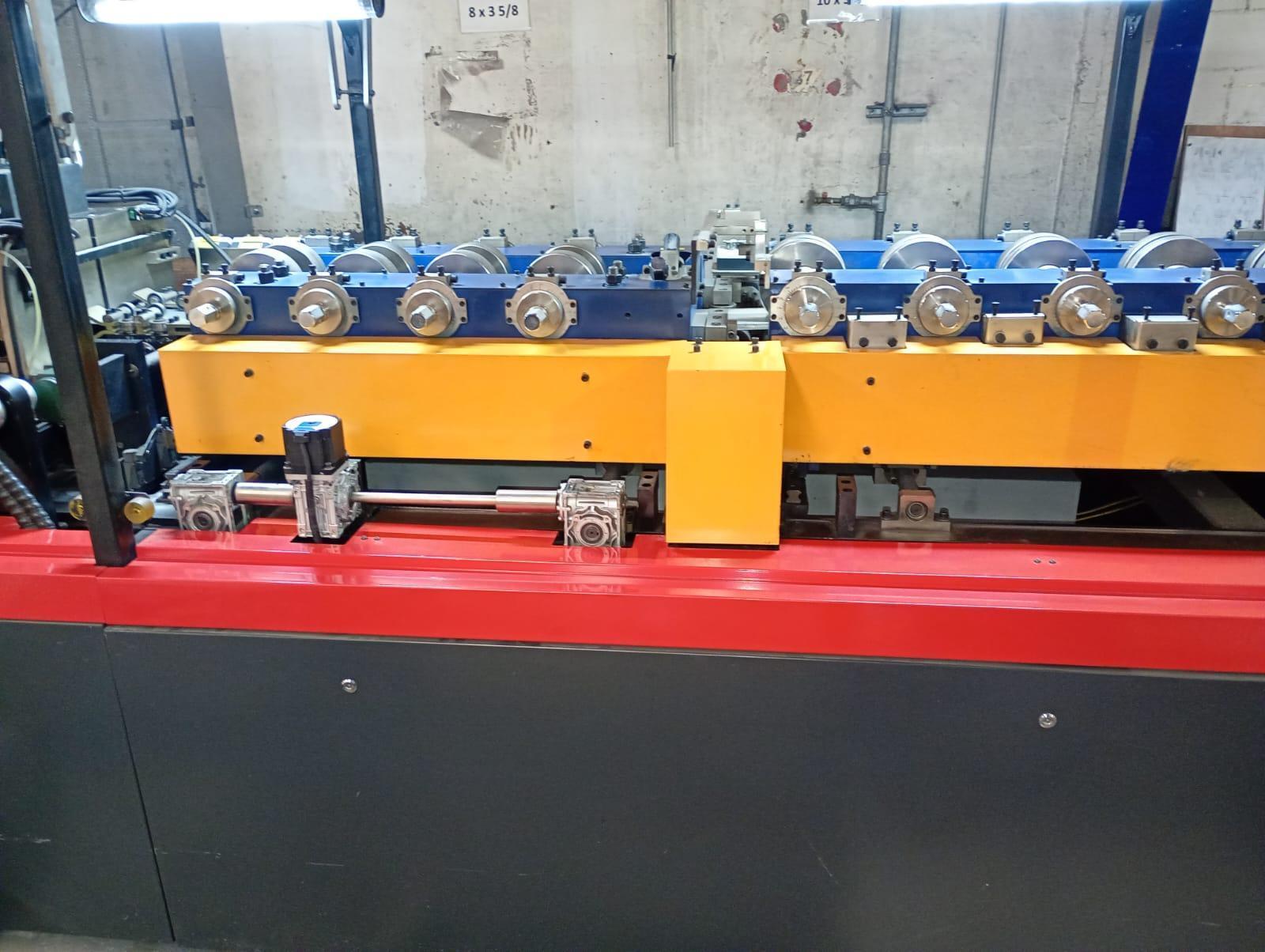

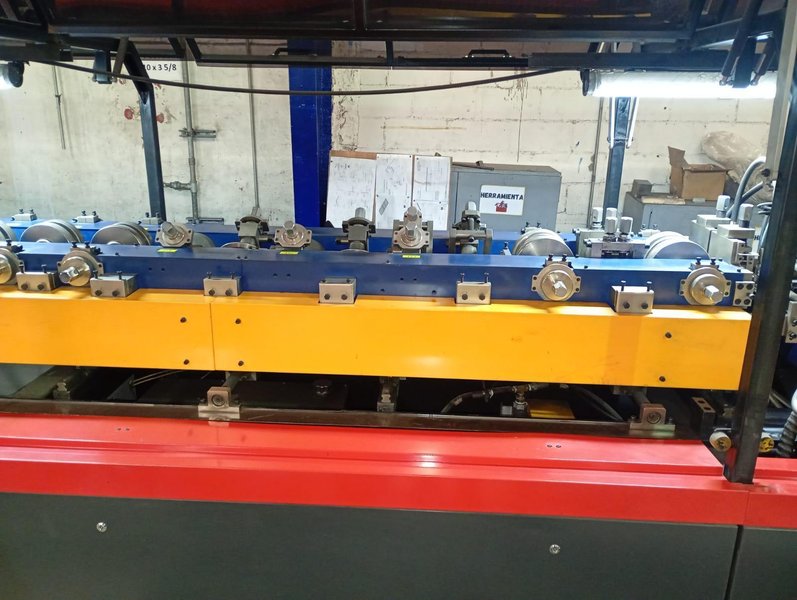

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rolling Forming System Main motor type: 3 phases Main motor power: 15Kw, 60Hz, 380V (suits Australian power requirements) Servo motor brand: INNOVANCE Speed of forming: 25m/min Comprehensive speed: 5-12m/min Roller: 17 groups rollers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

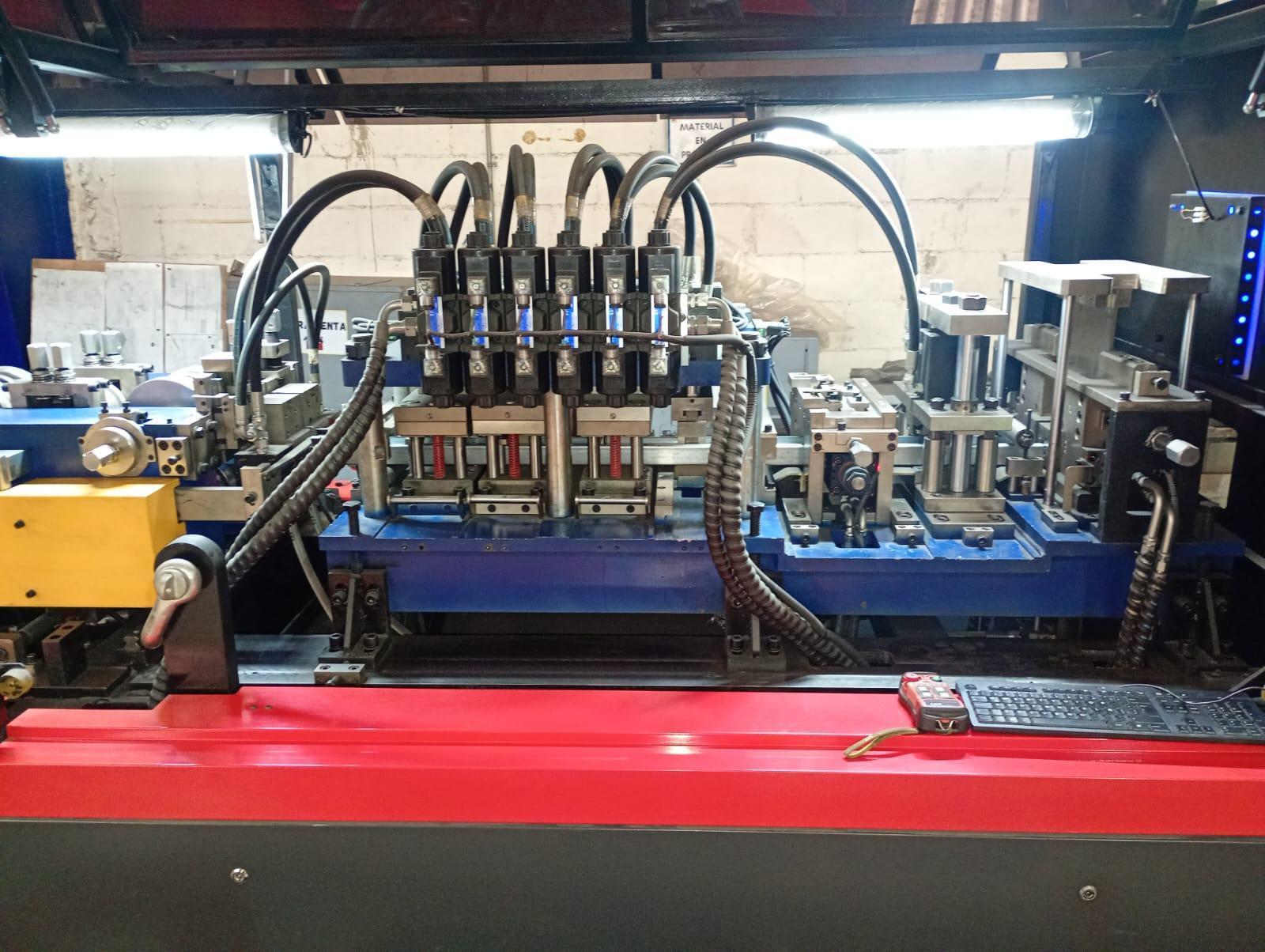

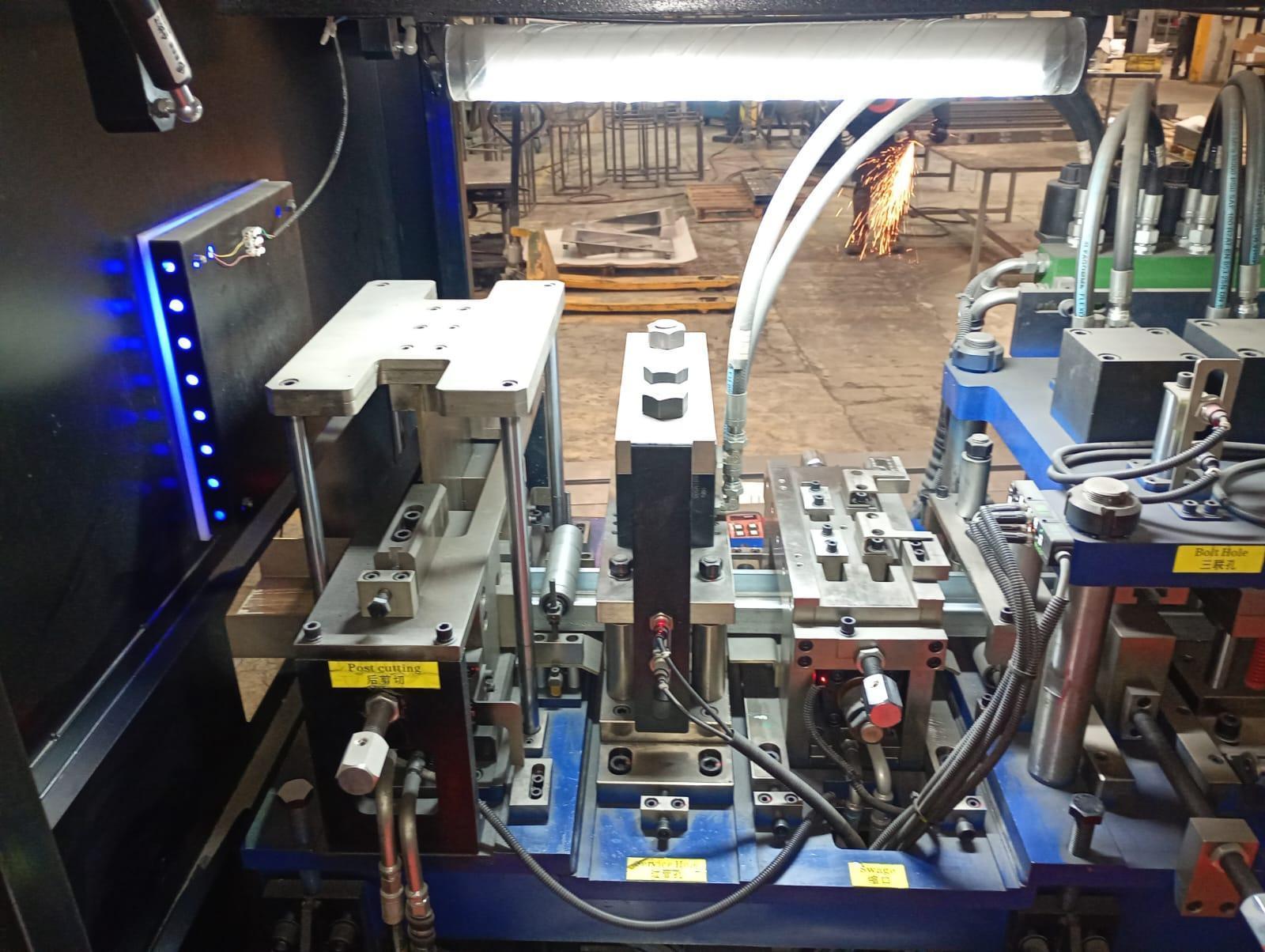

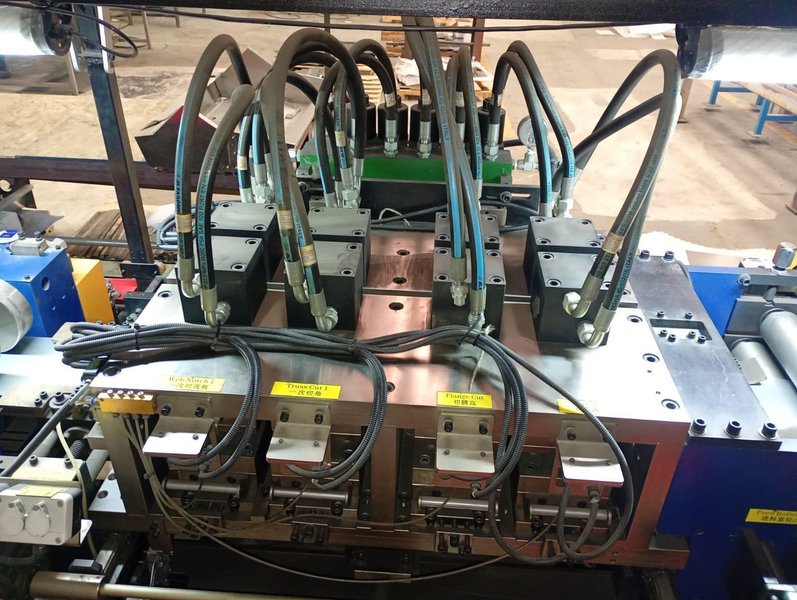

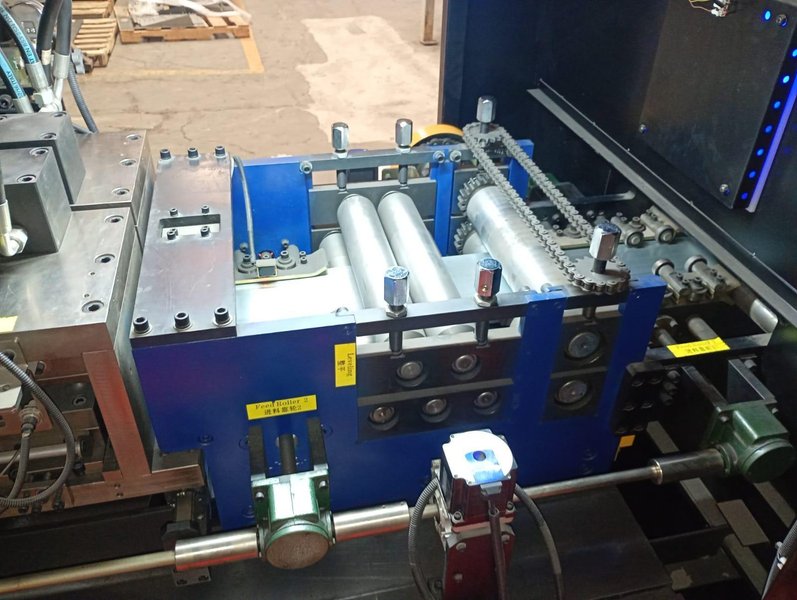

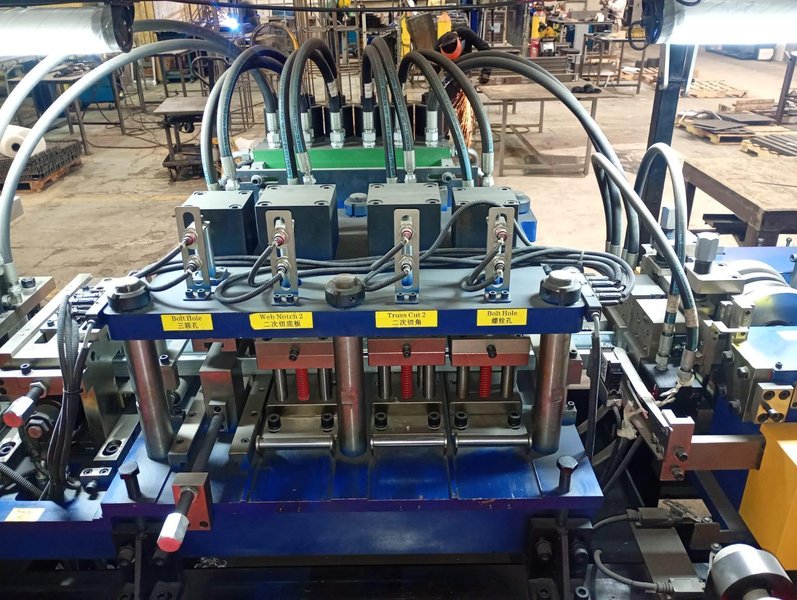

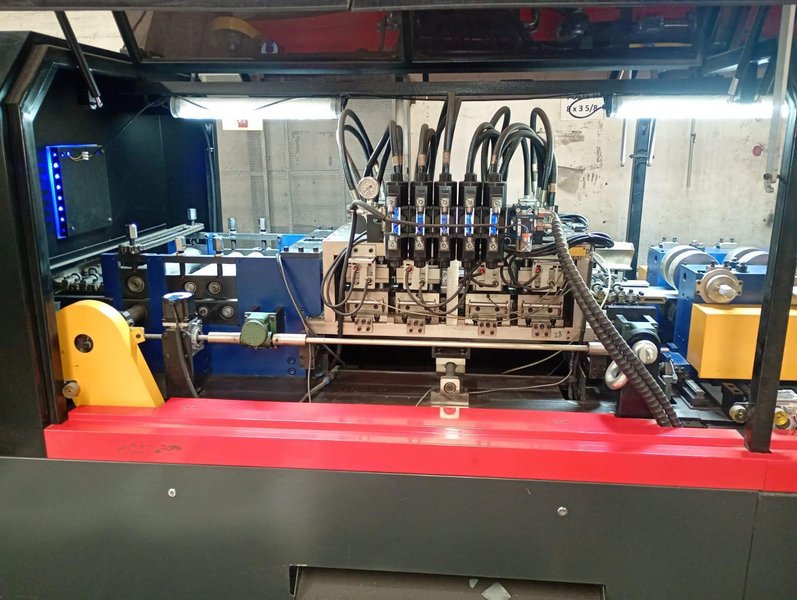

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,PLC Control System LG-R1 Hydraulic Decoiler Leveling Device Pre-punching Device Roll Forming System Post-Punching Device Cutting Device Outlet Table Safety Guard Covers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
