40" x .0002" HUNTER FOIL ROLLING MILL
Brand
Category
Model
Not specified
Stock #
116713
Year
Not specified
Condition
Not specified
Location
Not specified
|

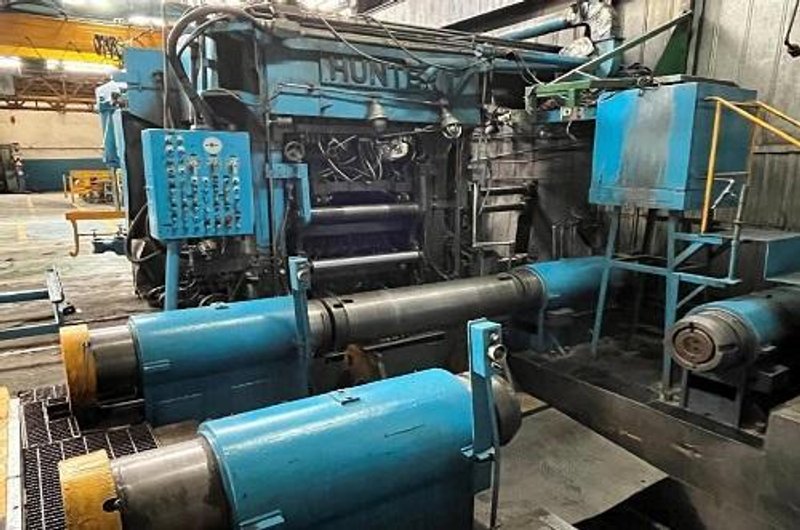

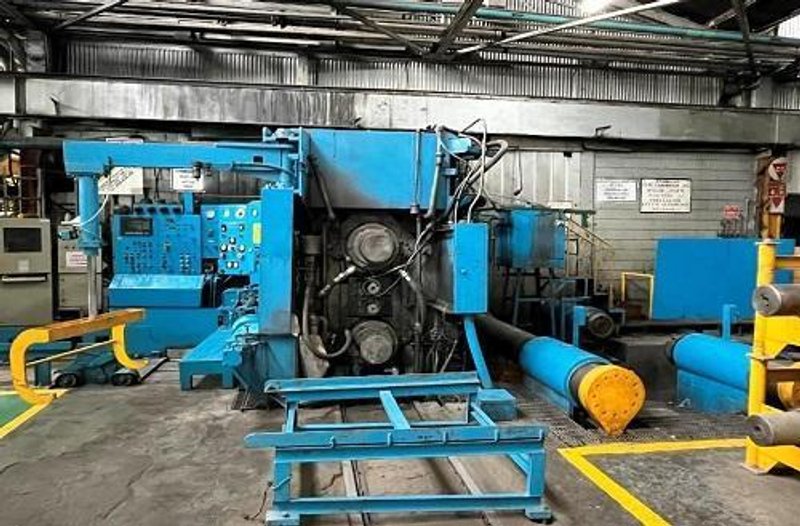

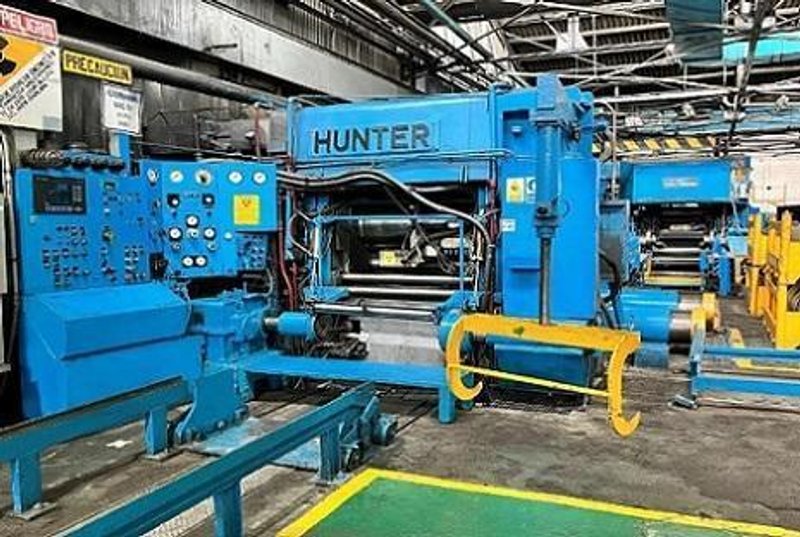

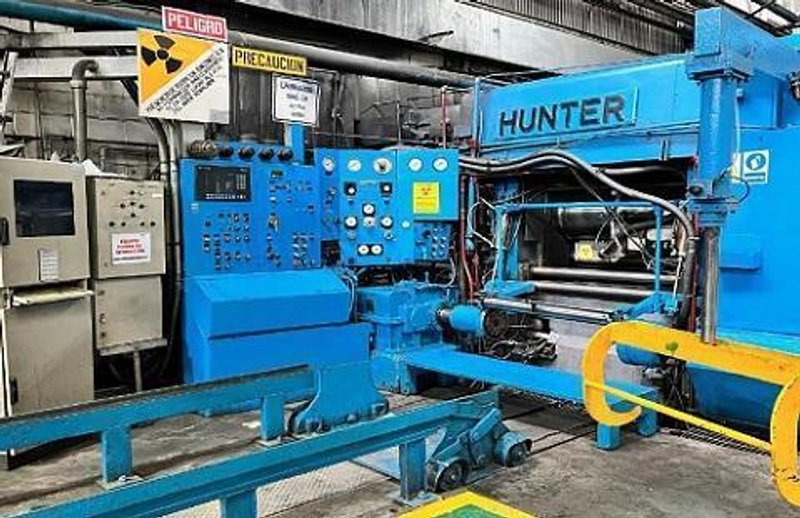

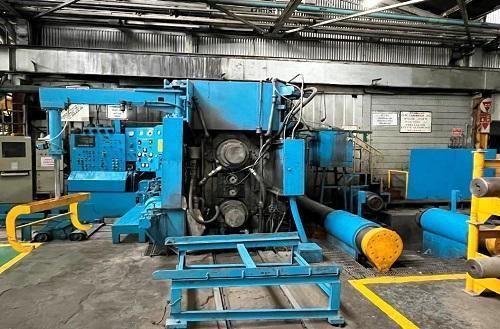

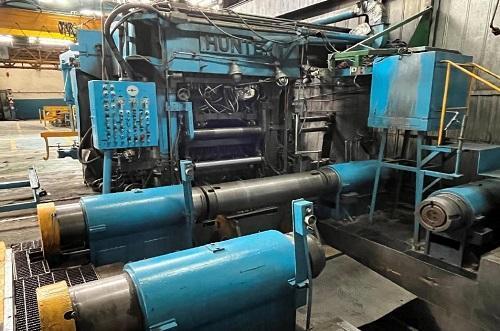

40" X .0002" HUNTER FOIL ROLLING MILL
9" (228MM) X 22" (559MM) X 40" (1016MM)
MANUFACTURER: HUNTER
TECHNICAL SPECIFICATIONS:
WIDTH: 457MM - 1016MM
ENTRY THICKNESS: 0.38MM
EXIT MAX/MIN THICKNESS: 0.3MM/ 2MM X 0.007MM
LINE SPEED: 730 MPM MAX
MAX COIL WEIGHT: 2000 KG.
MILL DATA:
WORK ROLL FACE: 1016MM
WORK ROLLS DIAMETER: 228 MM
BACK-UP ROLLS DIAMETER: 559MM
223.7 KW MOTOR DRIVE
UNCOILER DATA:
COIL ID: 270MM/400MM
COIL OD: 914MM
UNCOILER 1: 1 X 18.6 KW MOTOR DRIVE
UNCOILER 2: 1 X 18.6 KW MOTOR DRIVE
RECOILER DATA:
COIL ID: 270MM
COIL OD: 914MM
2 X 14.9 KW MOTOR DRIVE
CONTROL SYSTEM H BY FATA / SIEMENS (NEEDS TO BE UPDATED)
NDC X RAY THICKNESS MEASUREMENT (NEEDS TO BE UPDATED)
COMPLETE HYDRAULICS, CONTROLS & ELECTRIC (NEEDS TO BE UPDATED)
MORGOIL LUBRICATION SYSTEM
ENTRY & EXIT COIL RACK
EDGE TRIMMER
AVAILABLE ROLLS & SPARE PARTS
STEEL CORES
COOLANT SYSTEM
INSTALLED
|
