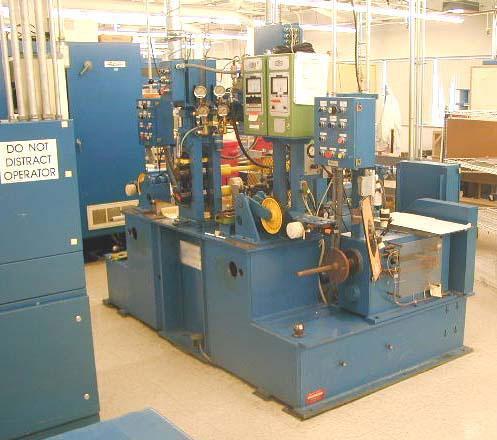

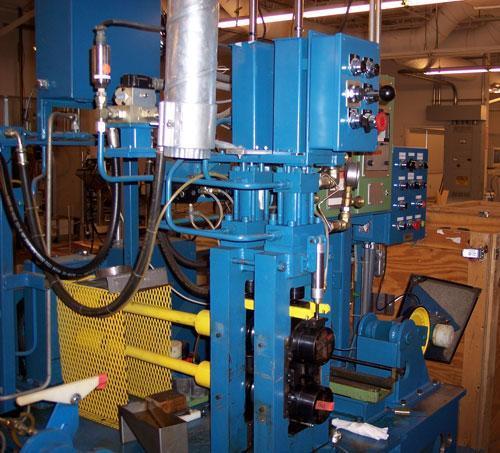

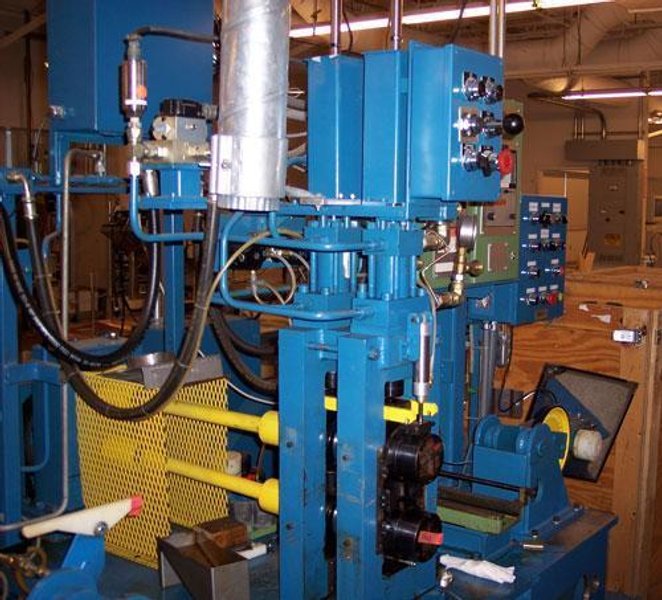

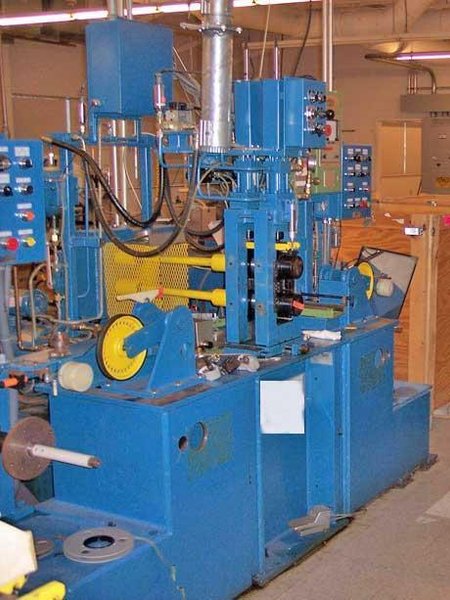

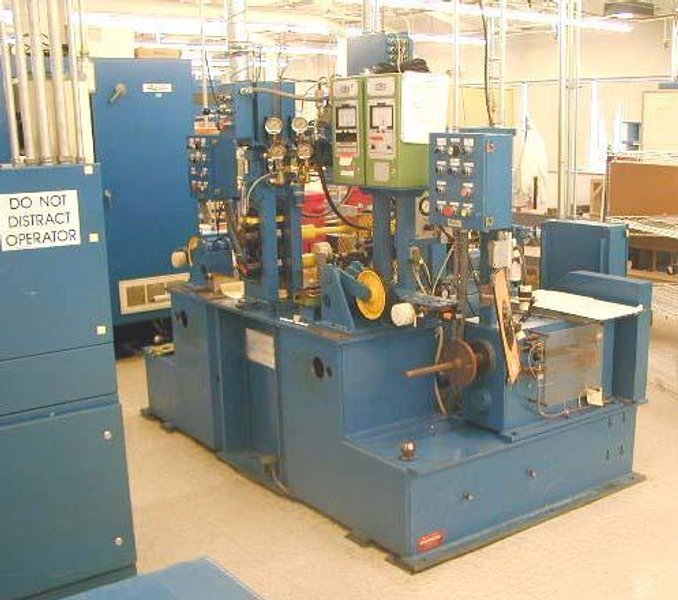

(Used) 13/16" (20.7mm) x 4"(101mm) x 2" (50.8mm) BHS-TORIN 2/4 HI
 Rolling Mill

 MACHINE #13989

 SPECIFICATIONS

 MANUFACTURER:            BHS-TORIN (U.S.A.)

 TYPE: 13/16" (20.7mm) x 4" (101mm) x 2" (50mm) 2 HI/4HI REVERSING ROLLING
 MILL WITH A CLOSED LOOP AGC SYSTEM, HYDRAULIC SCREWDOWNS AND TRAVERSING
 WINDERS ON BOTH ENTRY AND EXIT SIDES

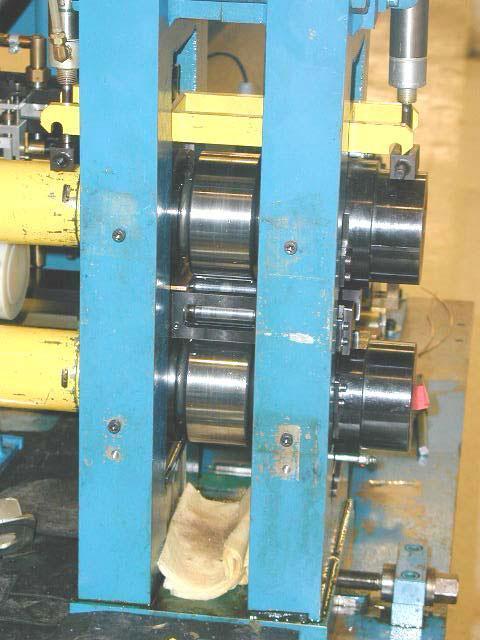

 WORK ROLL SIZE
 - DIAMETER:                  .815" (20.7mm)
 - ROLL FACE:                 2" (51mm)

 BACK-UP ROLL SIZE
 - DIAMETER:                  4" (102mm)
 - ROLL FACE:                 2" (51mm)

 ROLL MATERIAL:               STEEL
 THICKNESS RANGE:       FOR SILVER-BASED SUPERCONDUCTOR WIRE
 FINISHED THICKNESS:          .006" (0.152mm) TO .020" (0.5mm)
                          (BASED ON A WIDTH OF 0.20" (5mm)

 SCREWDOWN TYPE:              HYDRAULIC WITH AGC
 CYLINDER FEEDBACK:           SONY MAGNASCALE TRANSDUCERS

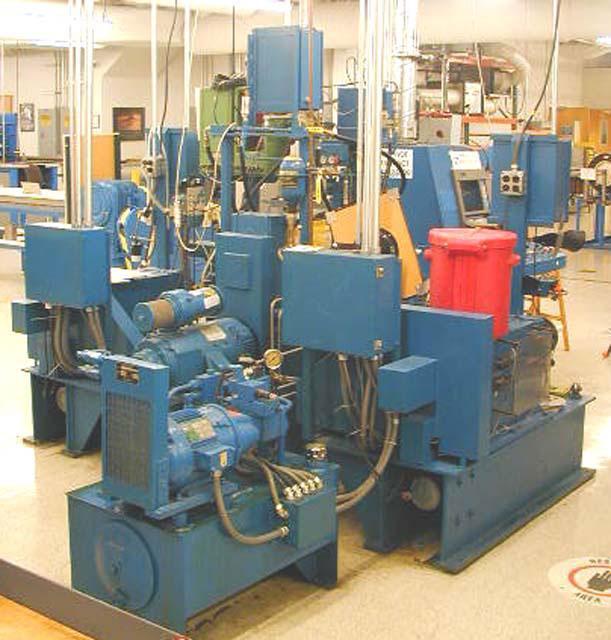

 HYDRAULICS:              MILLER FLUID POWER POWER UNIT AND CYLINDERS
                          1 1/2 HP (1.1 KW) 1150 RPM MOTOR CONSTANT TORQUE

 MILL DRIVE MOTOR:        10 HP 1750/2300 RPM DC CONSTANT TORQUE

 MILL SPEED:
 - AS USED:               30-600 FPM (9-182m/min)
 - FIELD WEEKENED:        UP TO 800 FPM (243m/min)

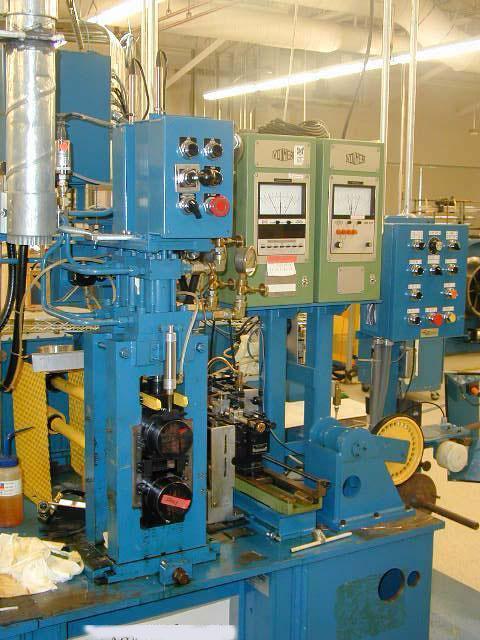

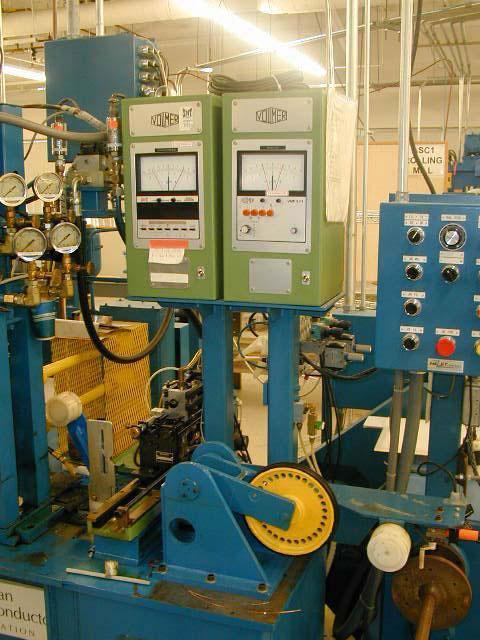

 GAUGES:                  (ONE) VOLLMER WIDTH AND THICKNESS GAUGE
 - MODEL:                 VMF 3-90

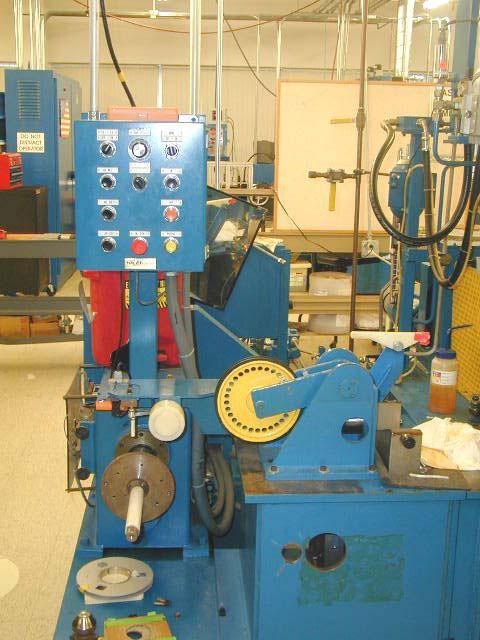

 WINDERS
 - SHAFT DIAMETER:        1" (25mm)
 - FACE WIDTH:            10" (250mm)
 - FLANGE DIAMETER:       7" (178mm) WITH DRIVING PINS

 - TYPE TRAVERSE:         SERVO MOTOR
 - TRAVERSE MOTOR:        2 HP 1750 RPM
 - TRAVERSE WIDTH:        APPROXIMATELY 8" (203mm)

 MILL IS EQUIPPED WITH LOAD CELLS/BILLY ROLL ASSEMBLIES ON BOTH ENTRY AND EXIT
 SIDES FOR TENSION FEED BACK AS WELL AS 3 1/4" (83mm) GUIDE WHEELS AFTER THE
 BILLY ROLLS. MILLS IS ALSO EQUIPPED WITH AIR OPERATED ROLL LIFTERS.

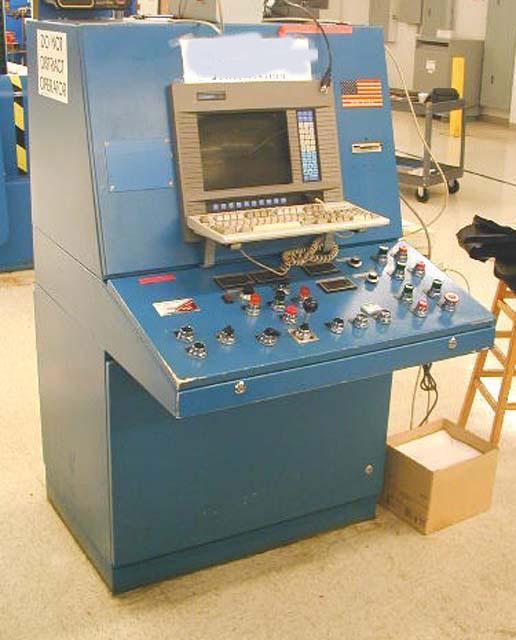

 DRIVE SYSTEM:            HALEY CONTROLS SCR DRIVE SYSTEM WITH MITSUBISHI PLC

  ** Temporary Specifications Subject to Revisions**

  ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

  ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
