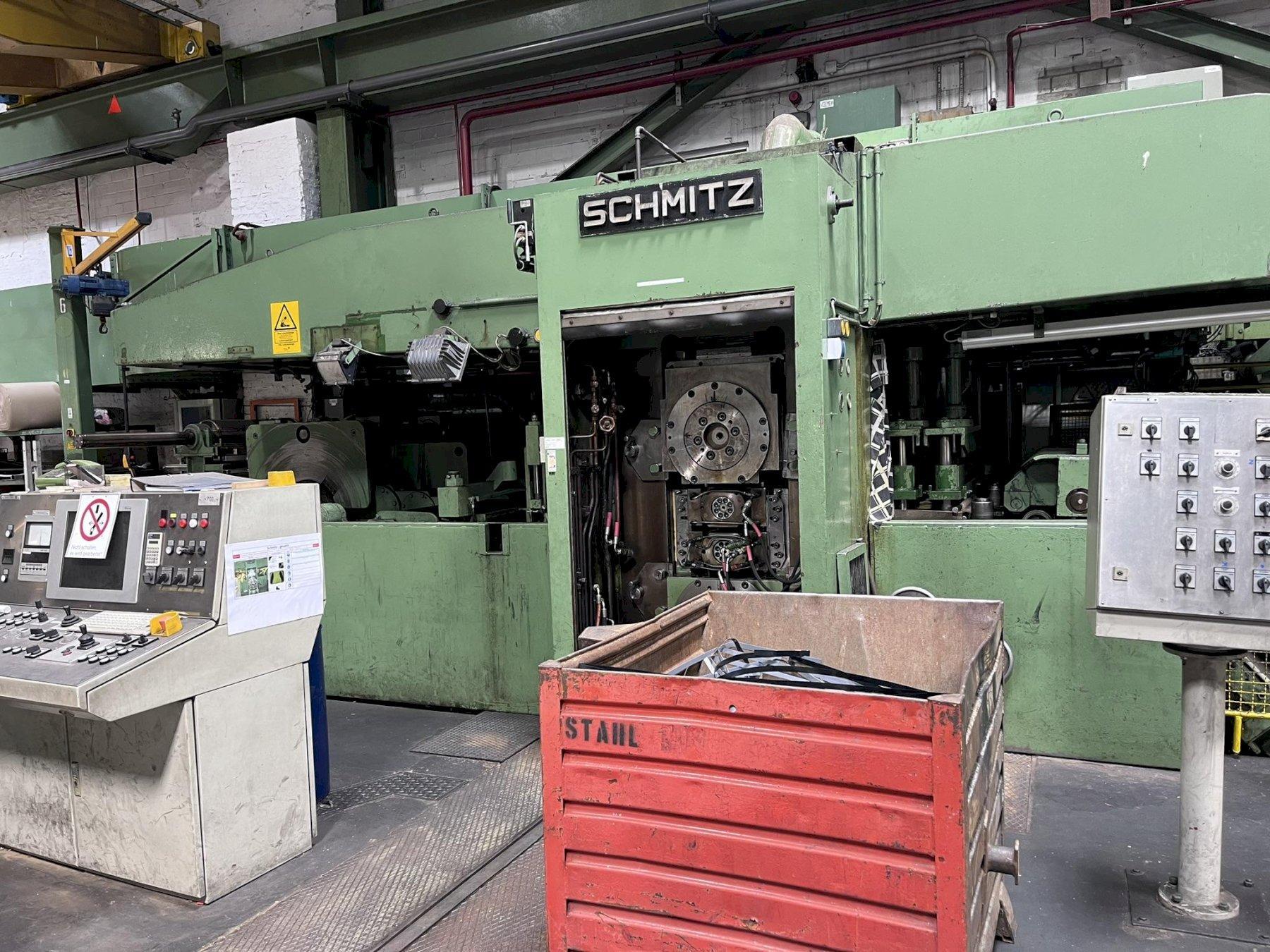

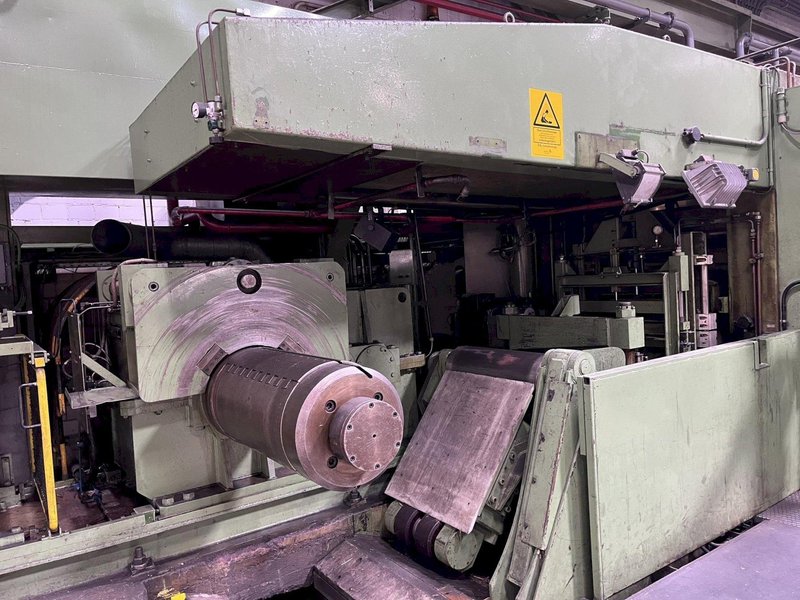

230MM X 500MM X 650MM SCHMITZ 2HI-4HI ROLLING MILL
Brand
Category
Model
Not specified
Stock #
116548
Year
Not specified
Condition
Used
Location
Not specifiedGermany
|
YEAR OF MFG- 1979, REFURBISHED/UPGRADED- 2002, 2021
MATERIAL PRODUCED………… STAINLESS STEEL, NICKEL ALLOYS
DIRECTION ……………………….. RIGHT TO LEFT
MATERIAL STRIP WIDTH….…... 250mm – 650mm
MATERIAL STRIP THICKNESS…0.05mm – 1.50mm
COIL WEIGHT (MAX) ENTRY & EXIT: 10 TON
COIL I.D……………………………..400mm / 500mm LEAFS
COIL O.D………………………..…. 2000mm
LINE SPEED…………………….…. TO BE DETERMINED
ROLL DIMENSIONS
4 HI WORK ROLL………………… 230mm – 182mm
4 HI BACK UP ROLL//2 HI WORK ROLL: 500mm – 450mm
ROLL COUNT (TO BE CONFIRMED)
4 HI WORK ROLLS / CHOCKS…40 / 4 SETS
4 HI BACK UP ROLLS/2 HI WORK ROLLS / CHOCKS: 12 / 2 SETS
COIL CAR, HYDRAULIC OPERATION
LINE CONFIGURATION & SPECIFICATIONS

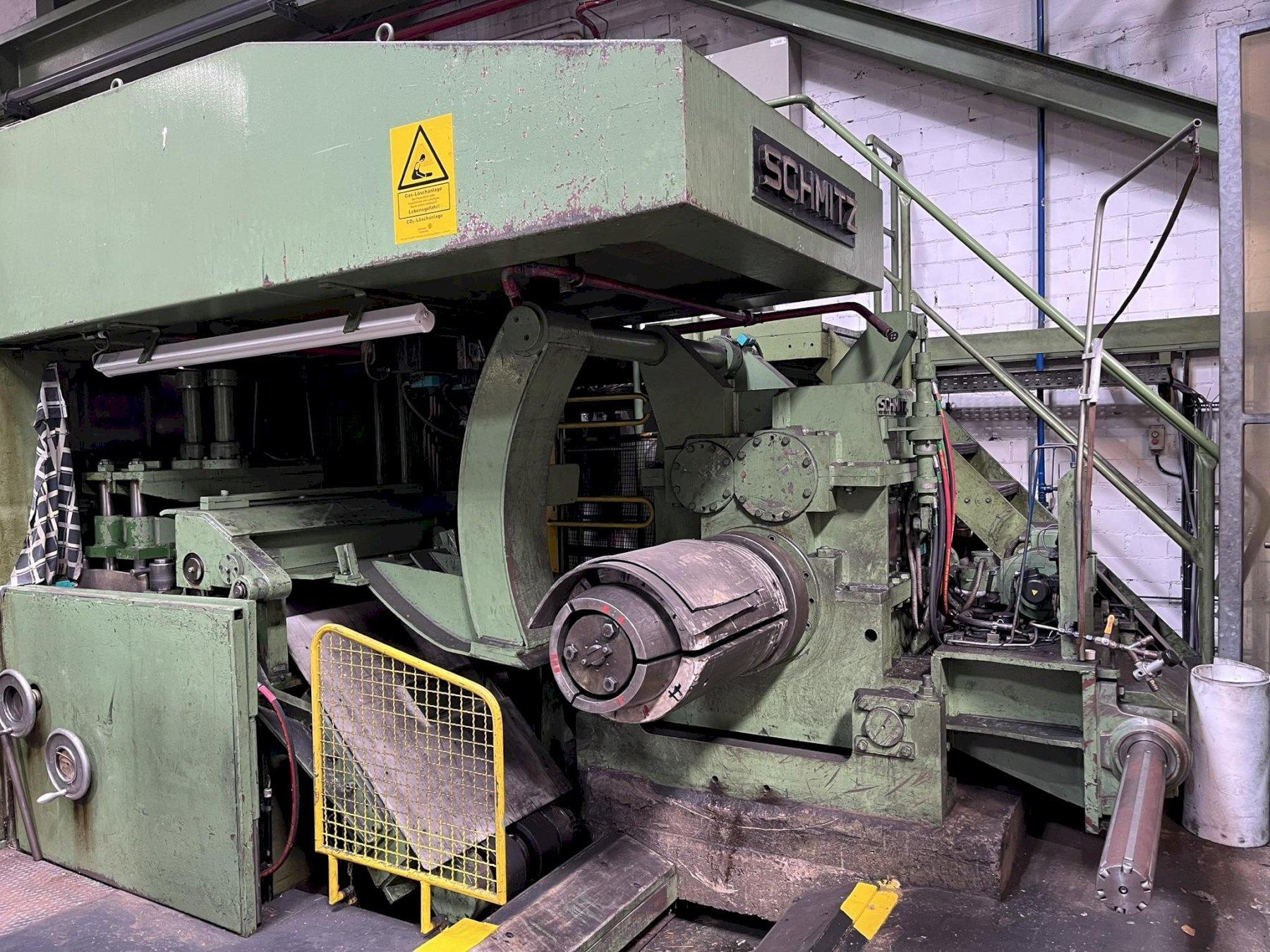

UNCOILER
MAIN MOTOR………………………110 KW, DC, 400 VOLT, 400-1800 RPM
PAPER WINDER
COIL OPENER PEELER TABLE
HYDRAULIC EXPANSION, TRAVERSE, COIL SNUB ARM
COIL CAR, HYDRAULICALLY OPERATED

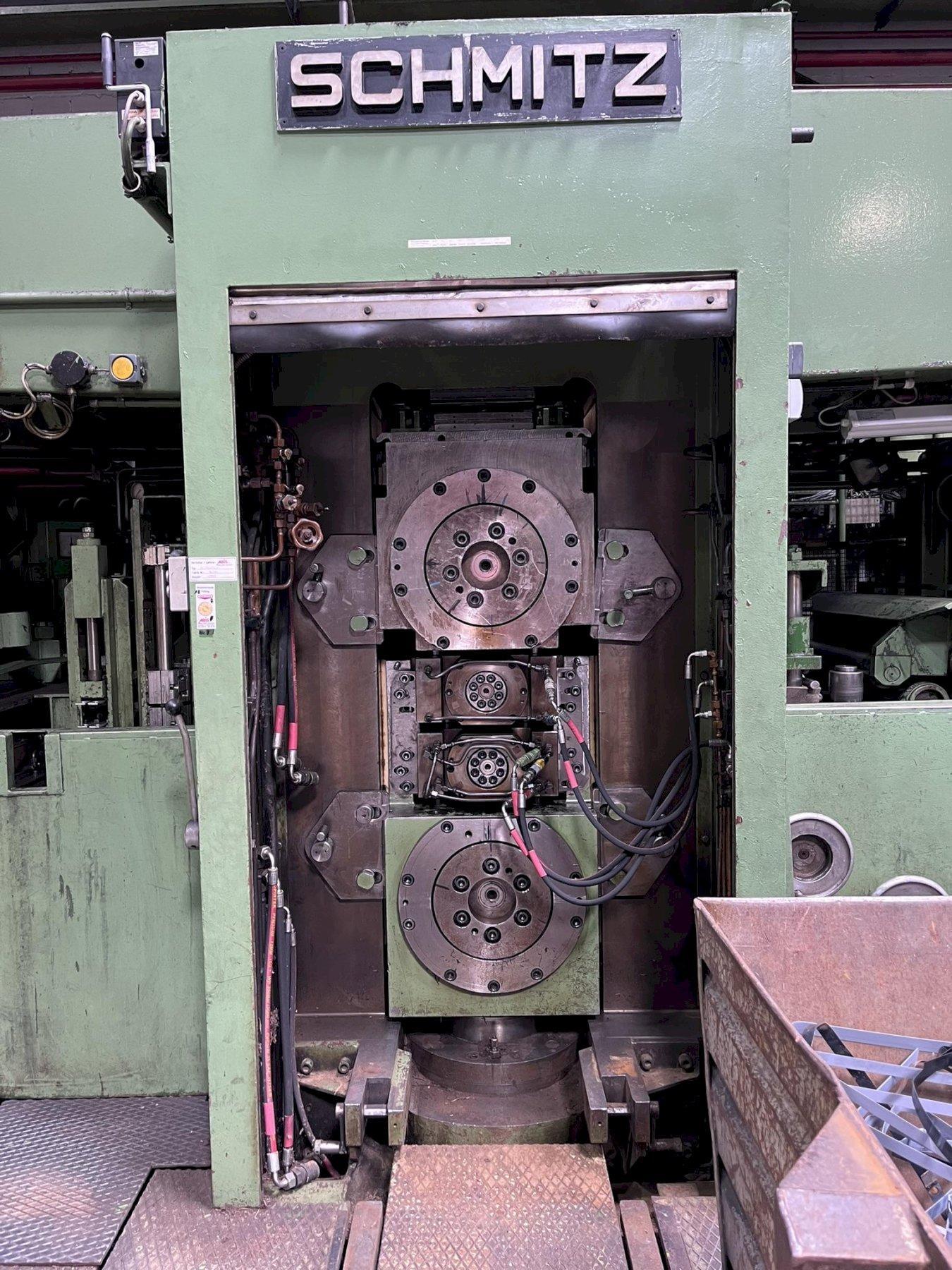

MILL HOUSING
MAIN MILL MOTOR…… ………… 400 KW, DC, 400 VOLT, 0-600-1320 RPM
SEALED ROLLER BEARINGS

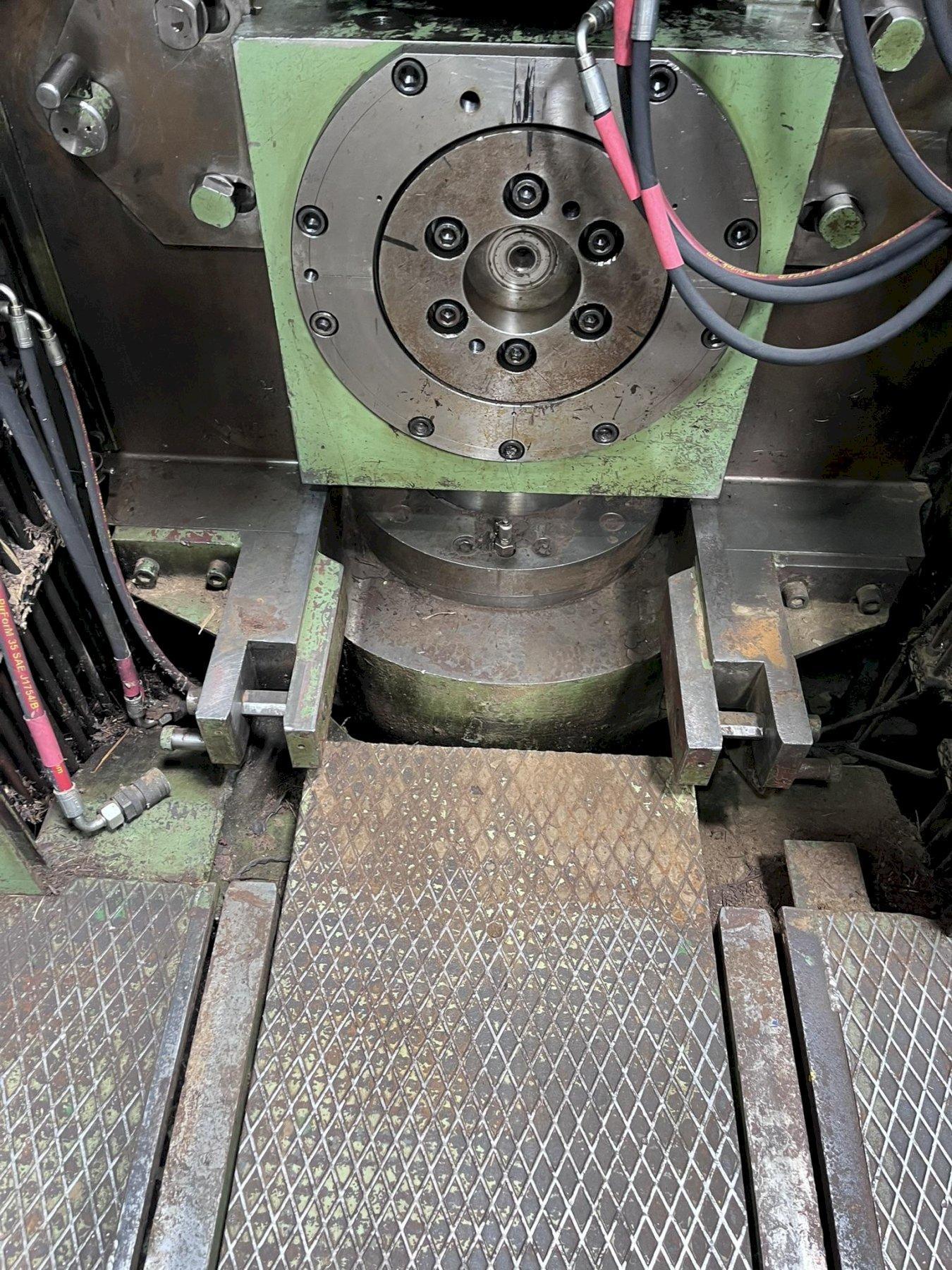

HYDRAULIC SCREW ADJUSTMENT: BOTTOM CYLINDER
PASS LINE ………………………….850mm

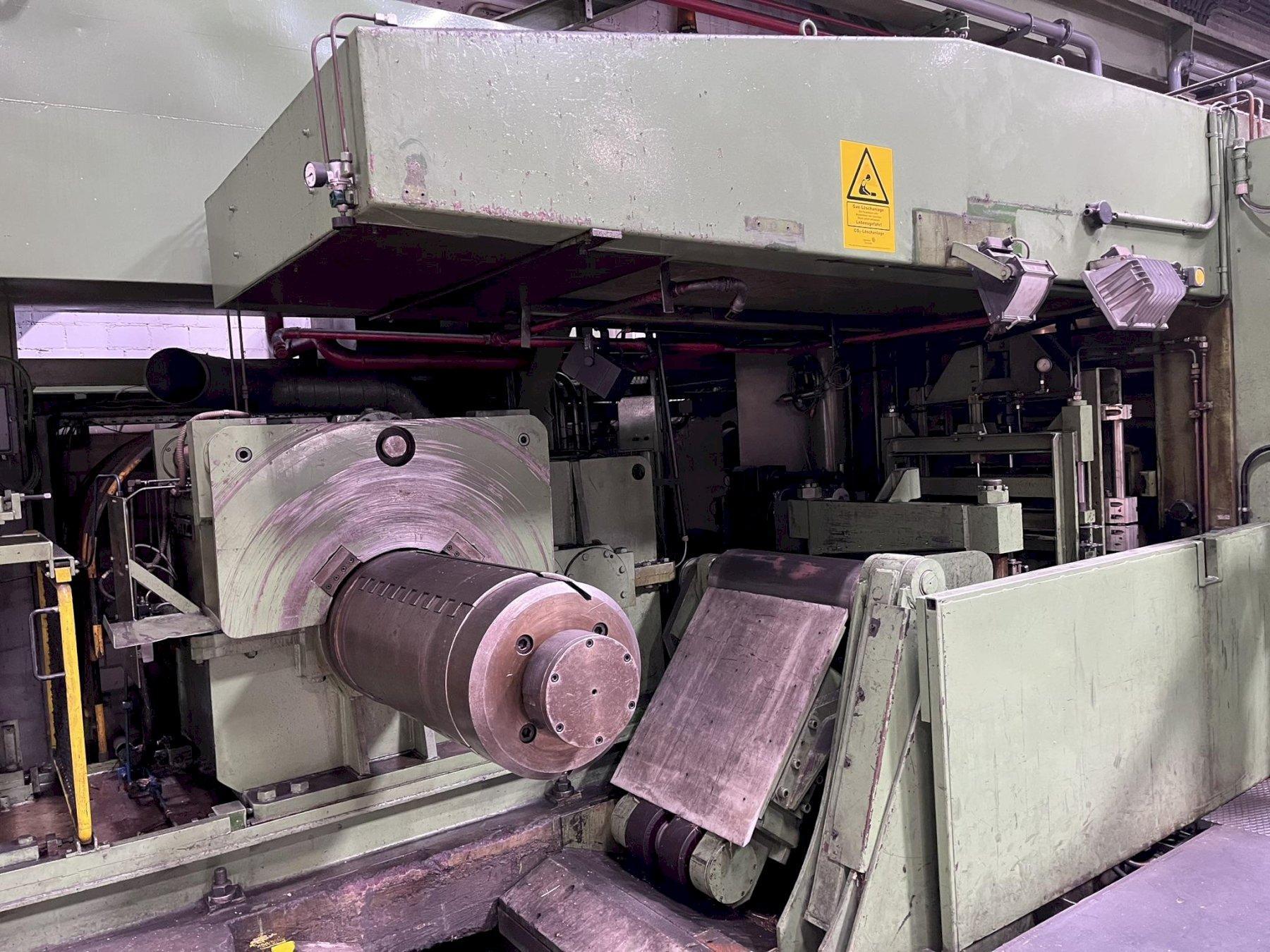

RECOILER
MANDREL DIAMETER………….. 400mm / 500MM LEAFS
MAIN MOTOR……………………..165KW, DC 400 VOLT, 400-1440 RPM
PUSH OFF PLATE………………..HYDRAULIC OPERATION
COIL CAR
CONTROLS
VOLLMER EXIT THICKNESS GAUGE, VFM 2000

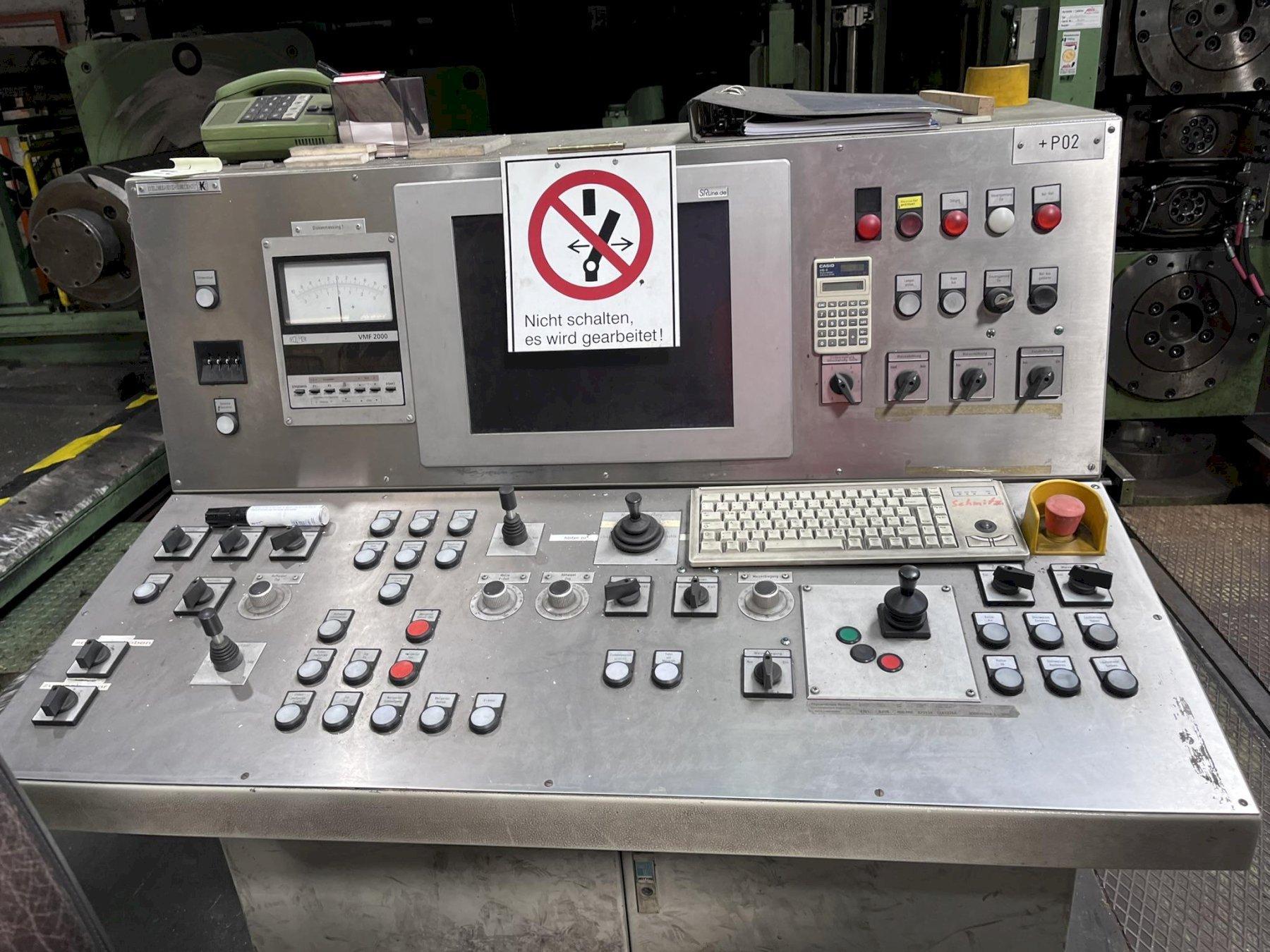

OPERATOR’S PULPIT CONTROL PANEL
MISCELLANEOUS

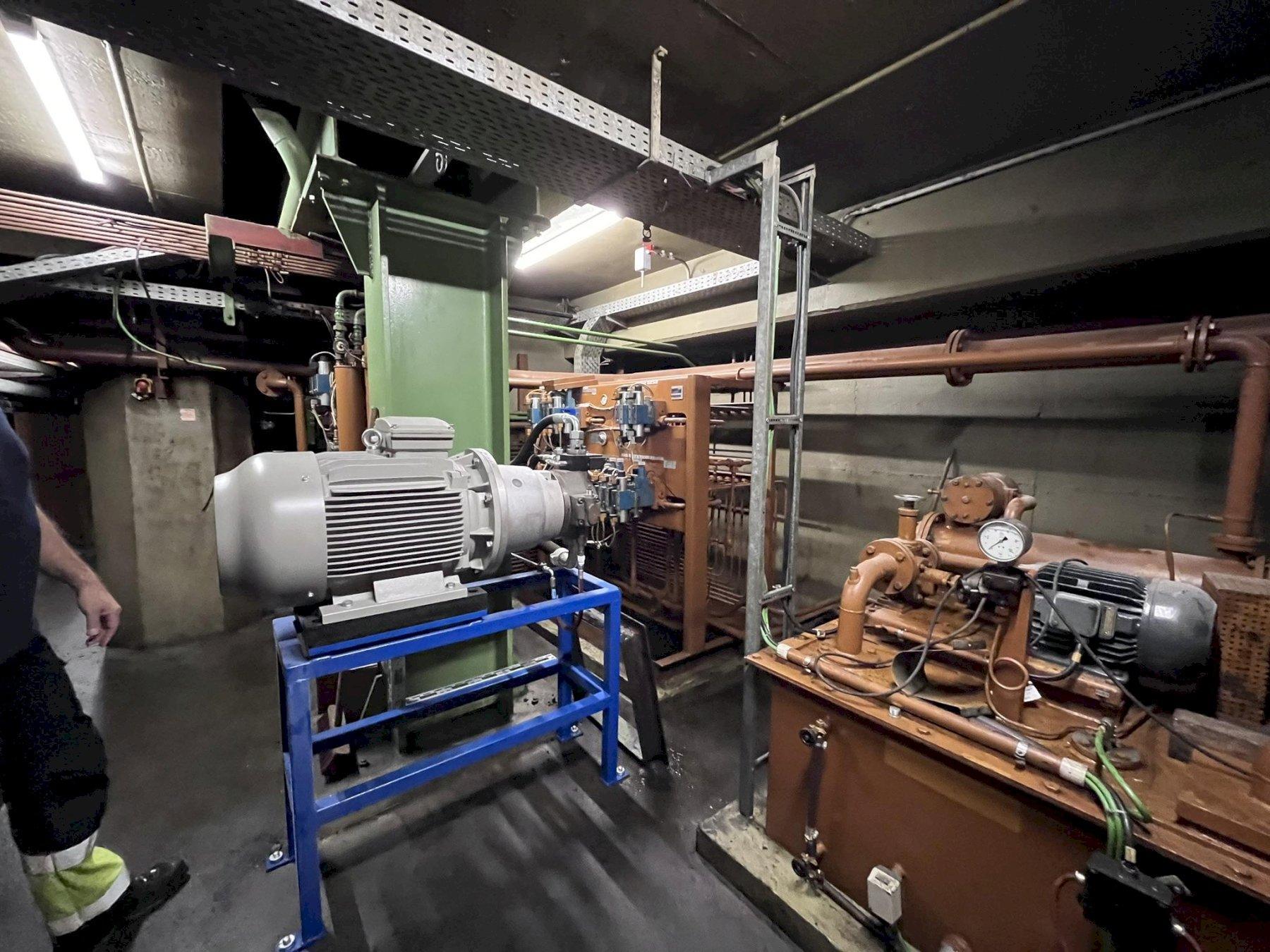

OIL CELLAR. VALVE STANDS, TANKS
EXHAUST HOOD VENTILATION SYSTEM
|
