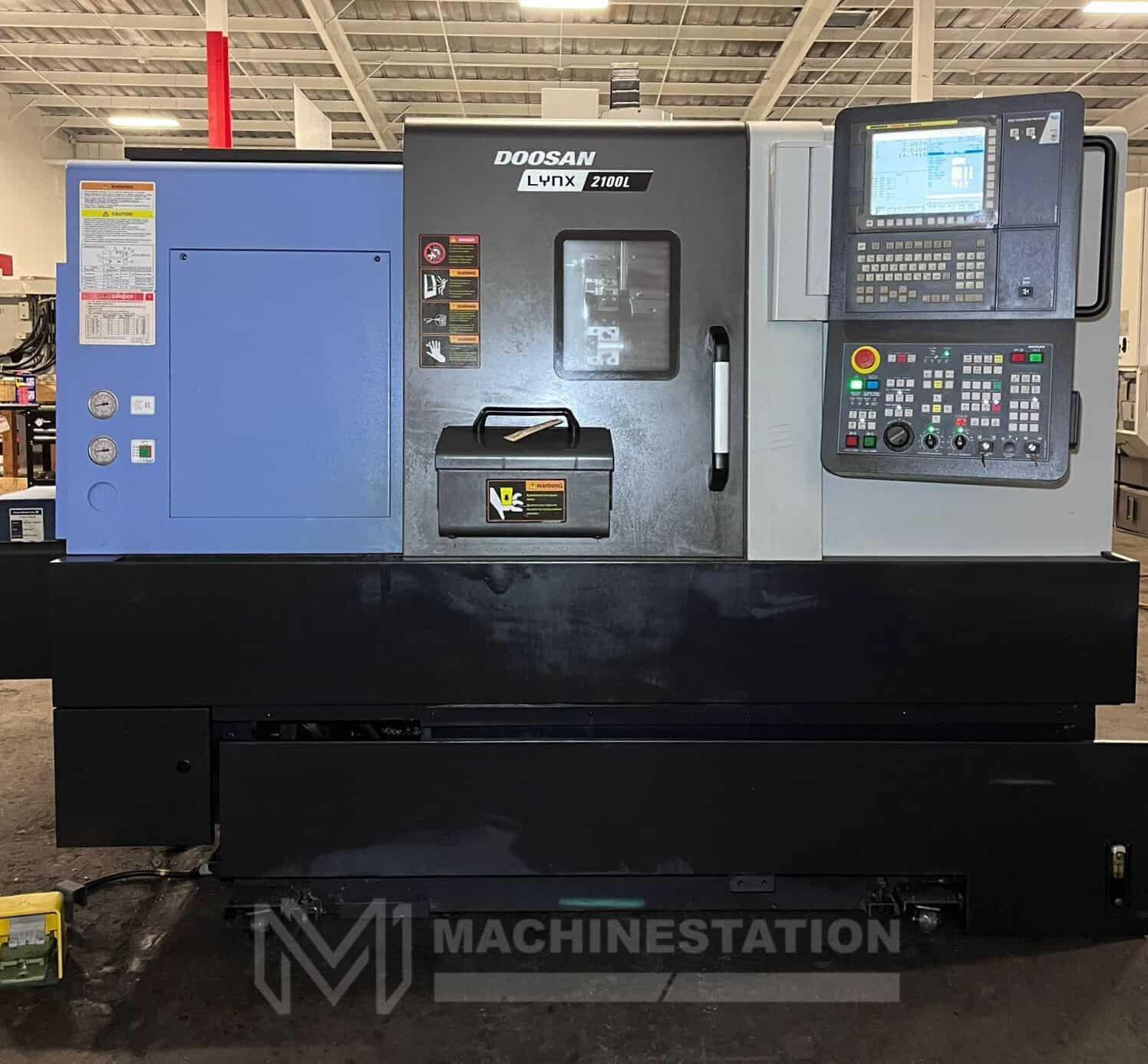

Description Additional information *All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*Make:DoosanModel:Lynx 2100LBYear:2019Condition:Used – Excellent Equipped With:Fanuc i series CNC Control8″ 3-Jaw Chuck12 Station Automatic TurretProgrammable TailstockTool PresetterPCMCIA Card InterfaceUSB PortFoot SwitchCoolant SystemManuals(5) Boring Tool Holders are Mounted on Turret (As shown in the images) Capacity:Max Turning Diameter: 13.77″Max Turning Length: 21.65″Max Bar Capacity: 2.55″Swing Over Bed: 23.60″Swing Over saddle: 15.70″ Travels:X Axis Travel: 8.07″Z Axis Travel: 22.04″Rapid Traverse X Axis: 1181 IPMRapid Traverse Z Axis: 1417 IPM Spindle:Spindle Nose: A2-6Spindle Bore: 3.0″Spindle Speed: 4500 RPMSpindle Motor: 20 HP Turret:Turret Capacity: 12 StationsTurret Index Time: 0.15 SecondMax OD Tool Size: 1.0″ x 1.0″Tool Holders Type: BMT Tailstock: Quill Diameter: 2.56″Quill Travel: 3.15″Taper Size: MT#4 General:Power: 24.21 kva, 220v / 3-PhaseOverall Dimensions: 101″ x 63″ x 67″ High Approx.Weight: 6,503 lbs. Approx. Show More Show LessModelLynx 2100LBCategoriesCNC Lathes & Turning CentersMakeDoosan
