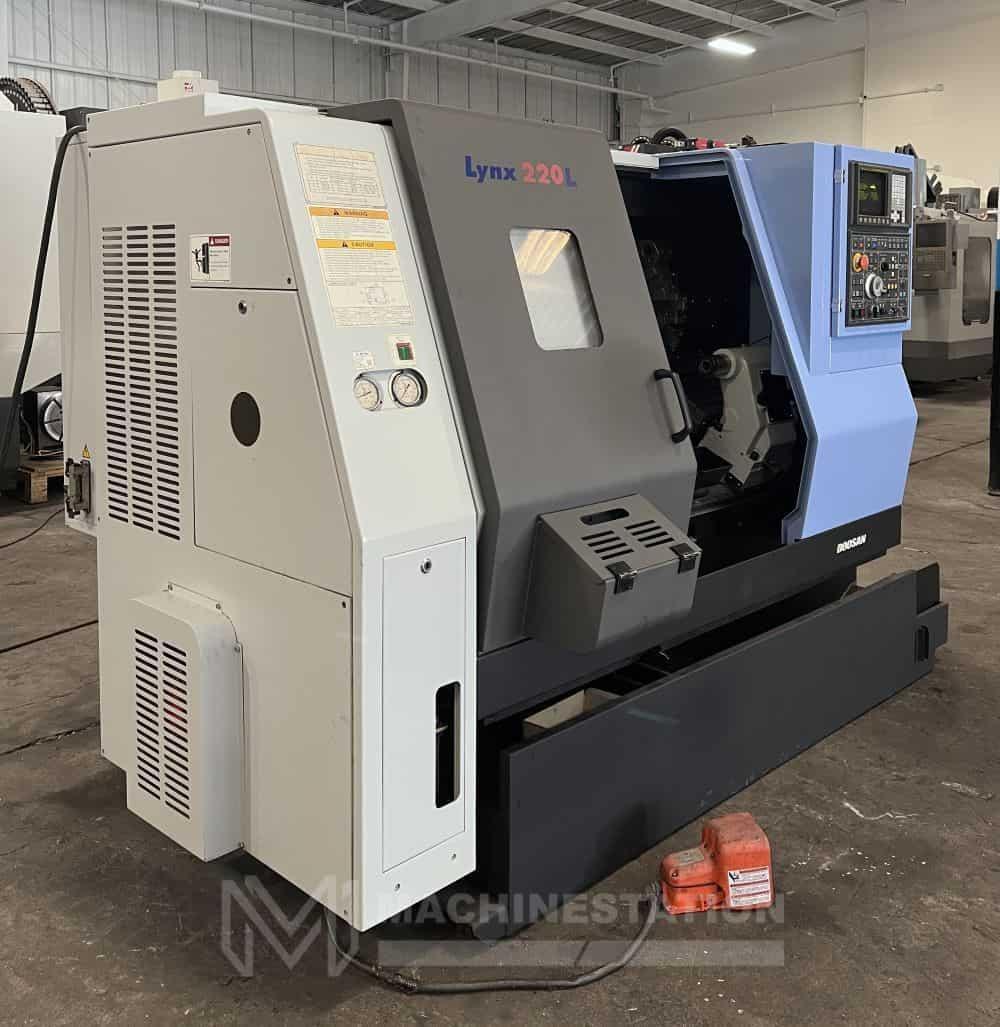

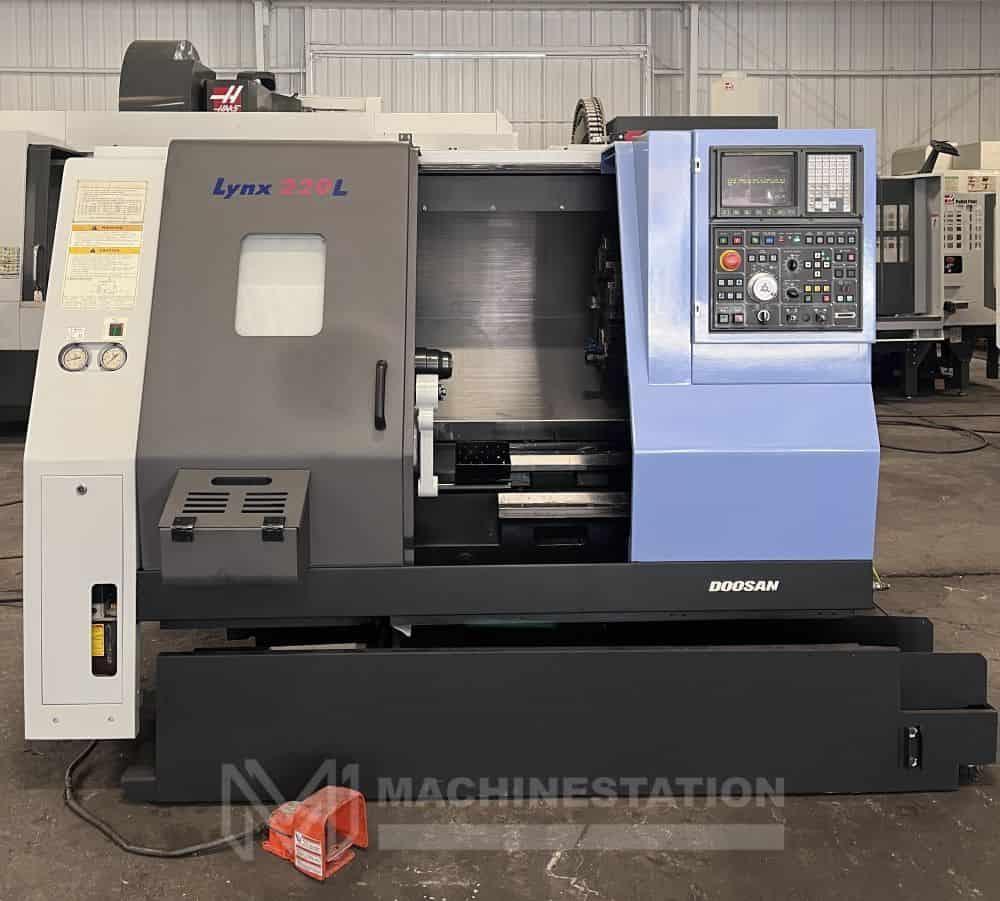

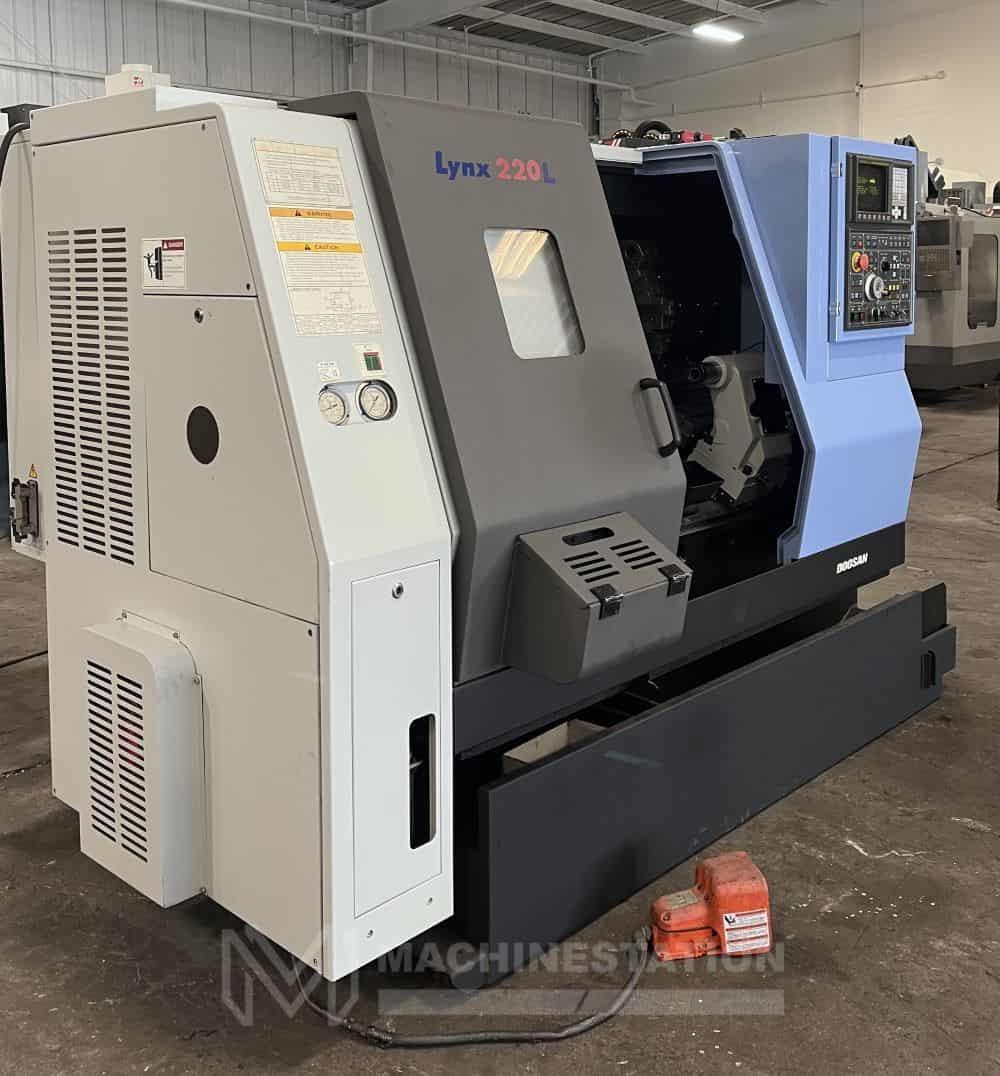

Doosan Lynx 220LC CNC Turning Center – Lathe

Doosan Lynx 220LC CNC Turning Center – Lathe

Brand

DOOSAN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Doosan
Model:	LYNX 220LC
Year:	2006

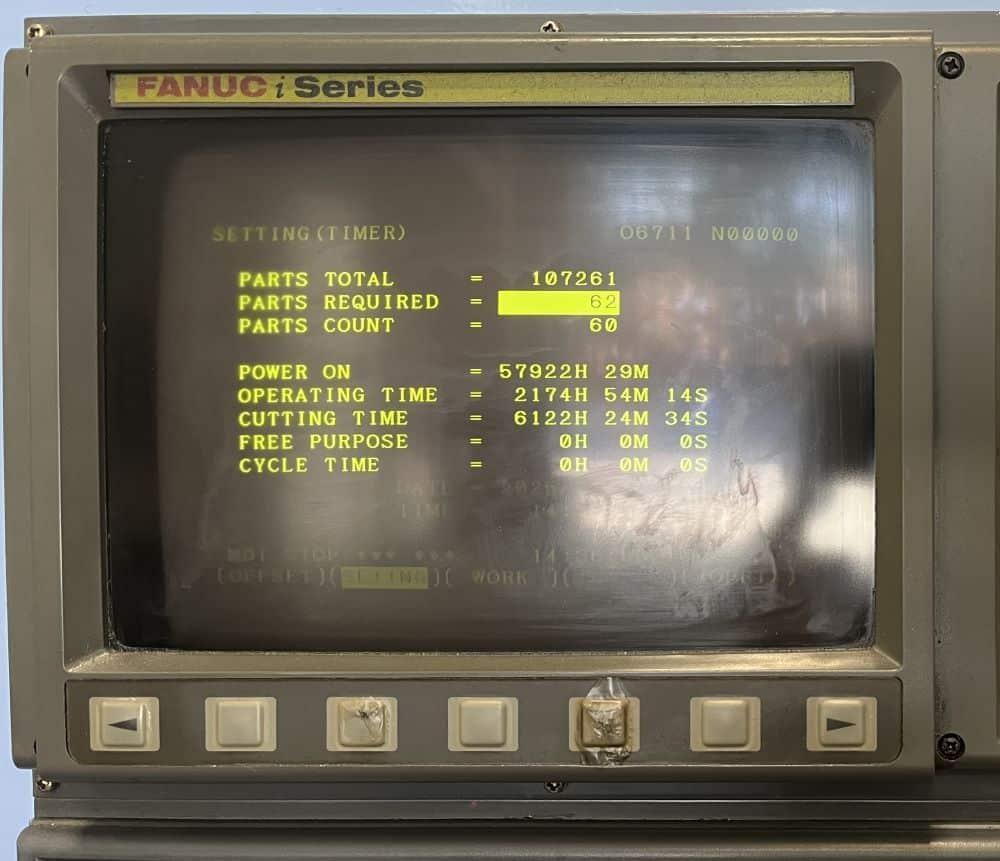

Cutting Time:	6,122 Hours

Equipped With:

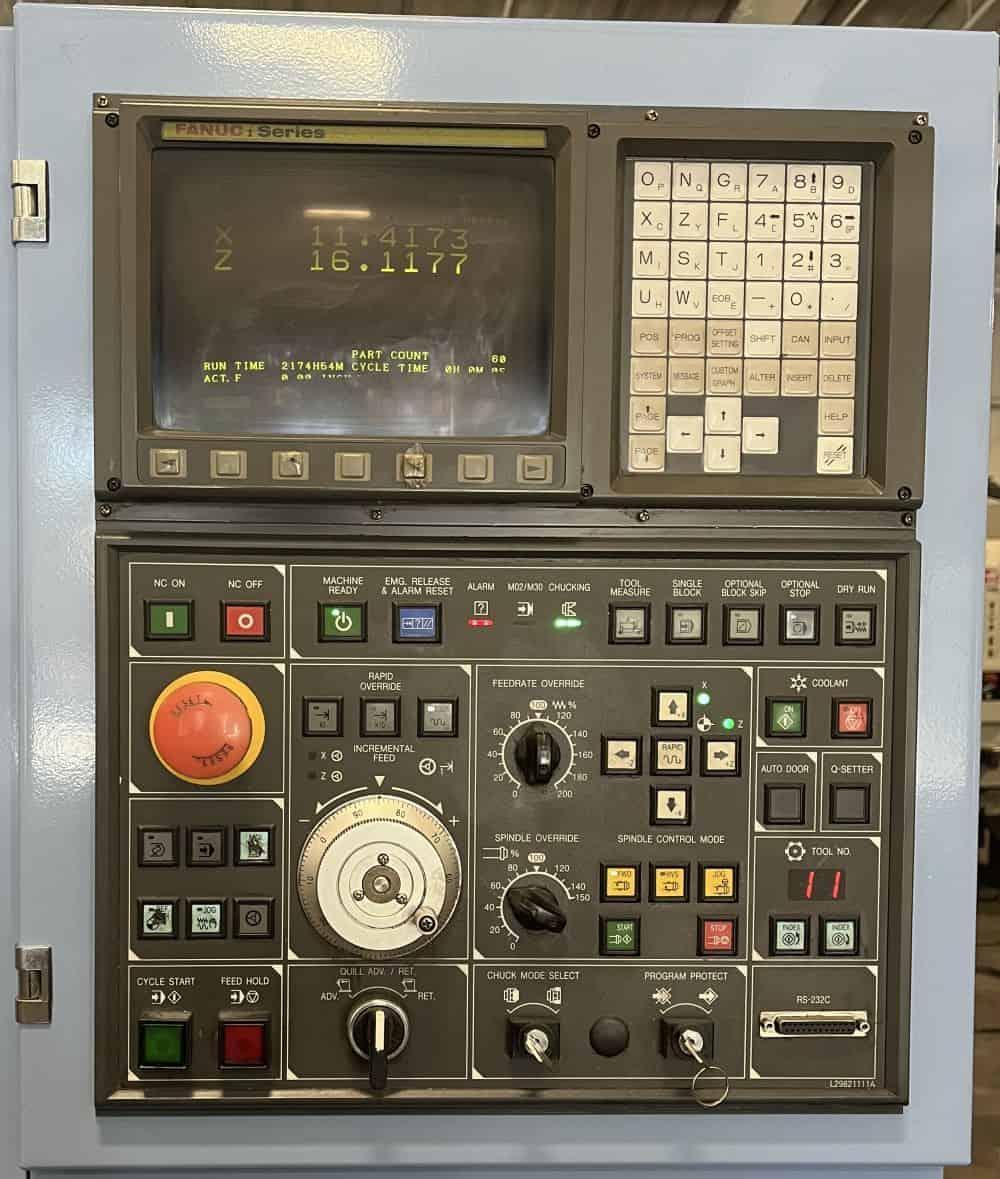

Fanuc i Series CNC Control
3.0″ Big Bore, Long Bed Lathe
Collet Chuck (Capable 8″ Chuck)

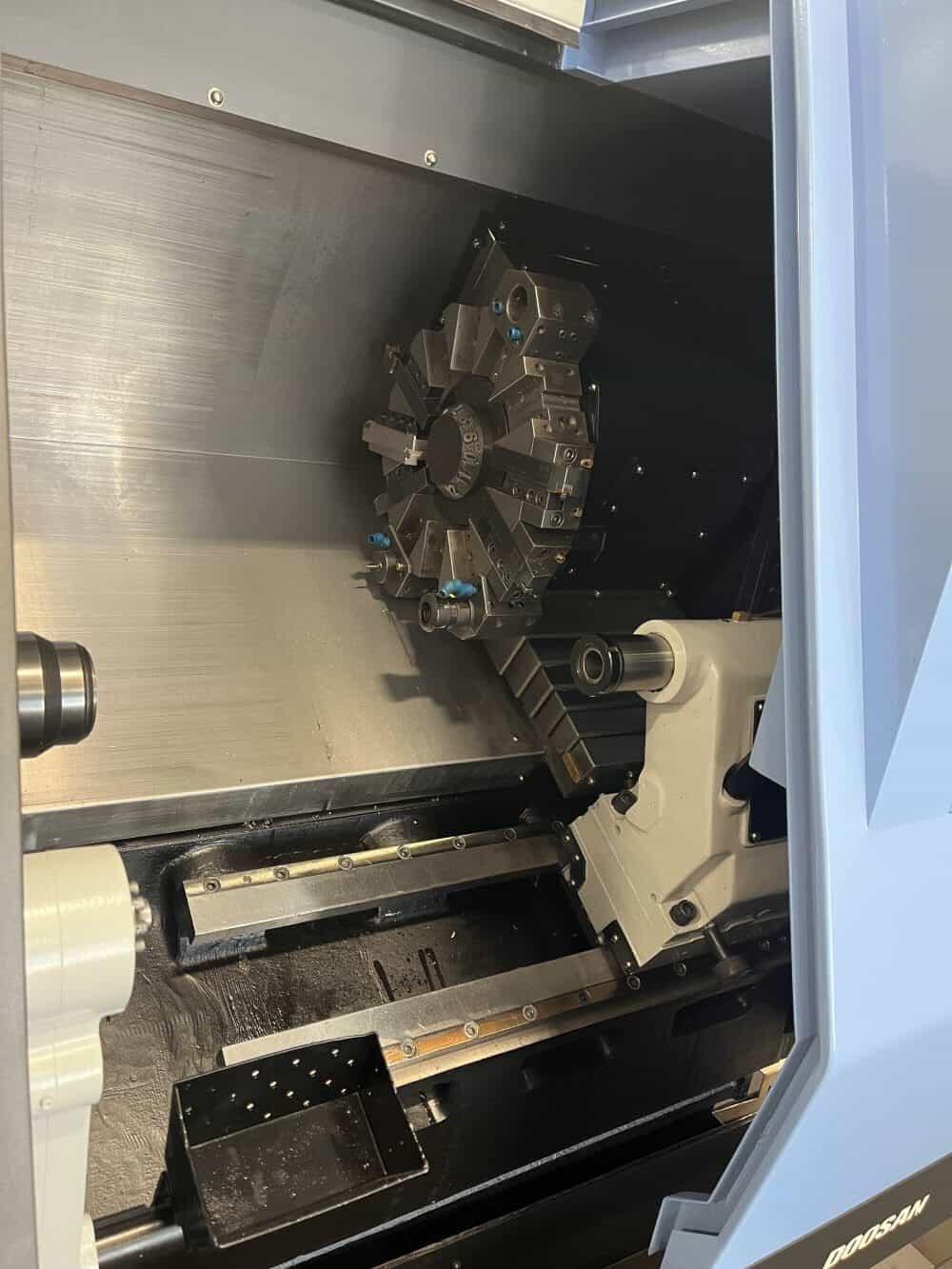

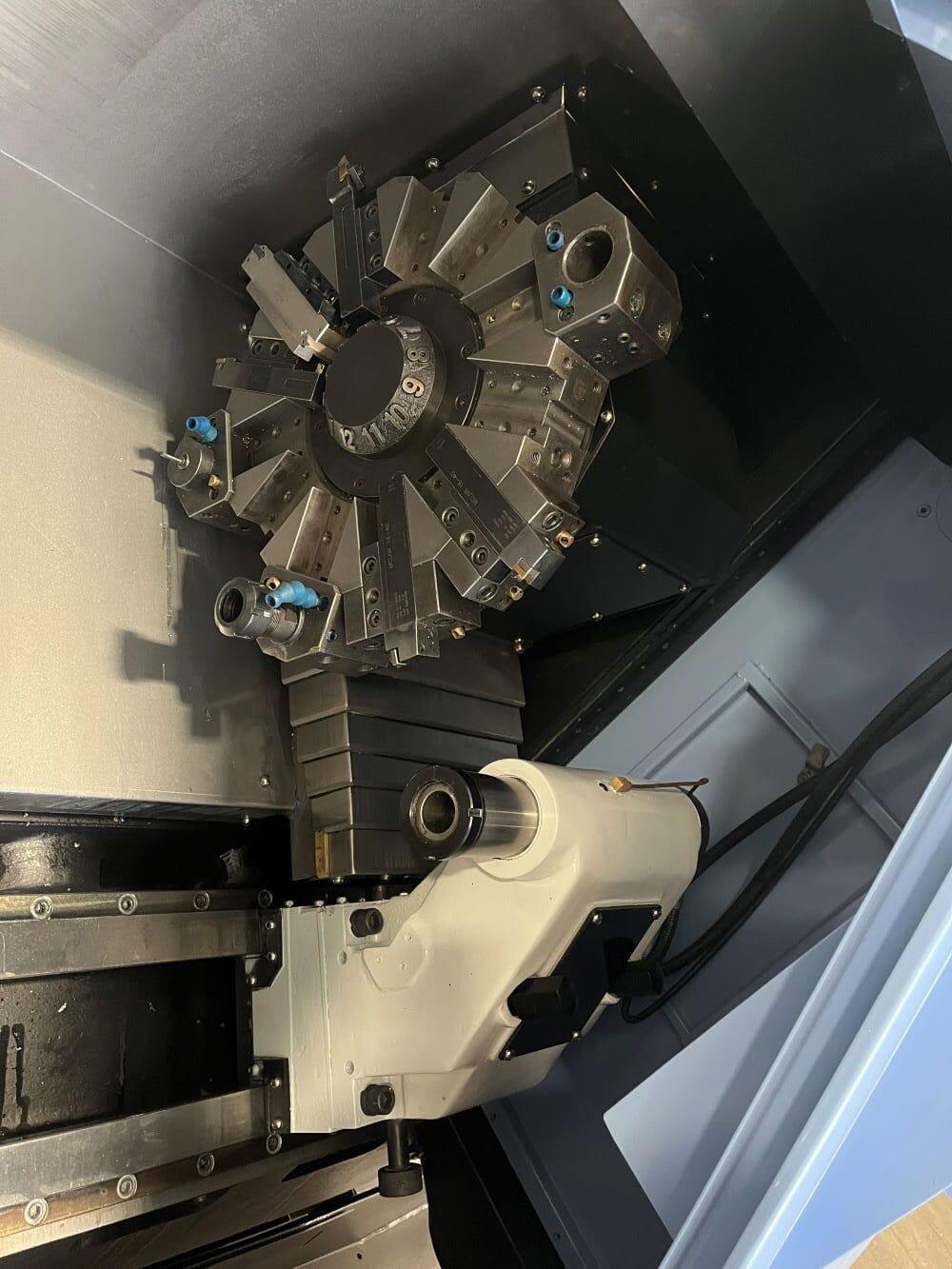

12 Station Turret
Hydraulic Tailstock
Tool Presetter
Part Catcher
RS-232 Port
Coolant System
Foot Switch
(3) Boring Tool Holders (5) Turning Tools are Mounted on Turret (As shown in the images)

Capacity:
Max Turning Diameter : 12.6″
Max Swing Over Bed : 20.1″
Max Swing Over Saddle : 11.4″
Max Turning Length: 20.7″
Max Bar Capacity : 2.55″
Distance Between Center: 24″

Travels:
X Axis Travel : 6.9″
Z1 Axis Travel : 21.7″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.0″
Spindle Speed: 4000 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.11 Second
Tool Holders Type: BMT

Tailstock:
Tailstock Body Travel: 13″
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 23.68 kva
Machine Dimensions: 92.3″ x 63″ x 63″ High
Machine Weight: 7,716 lbs Approx.

No files or videos to display
