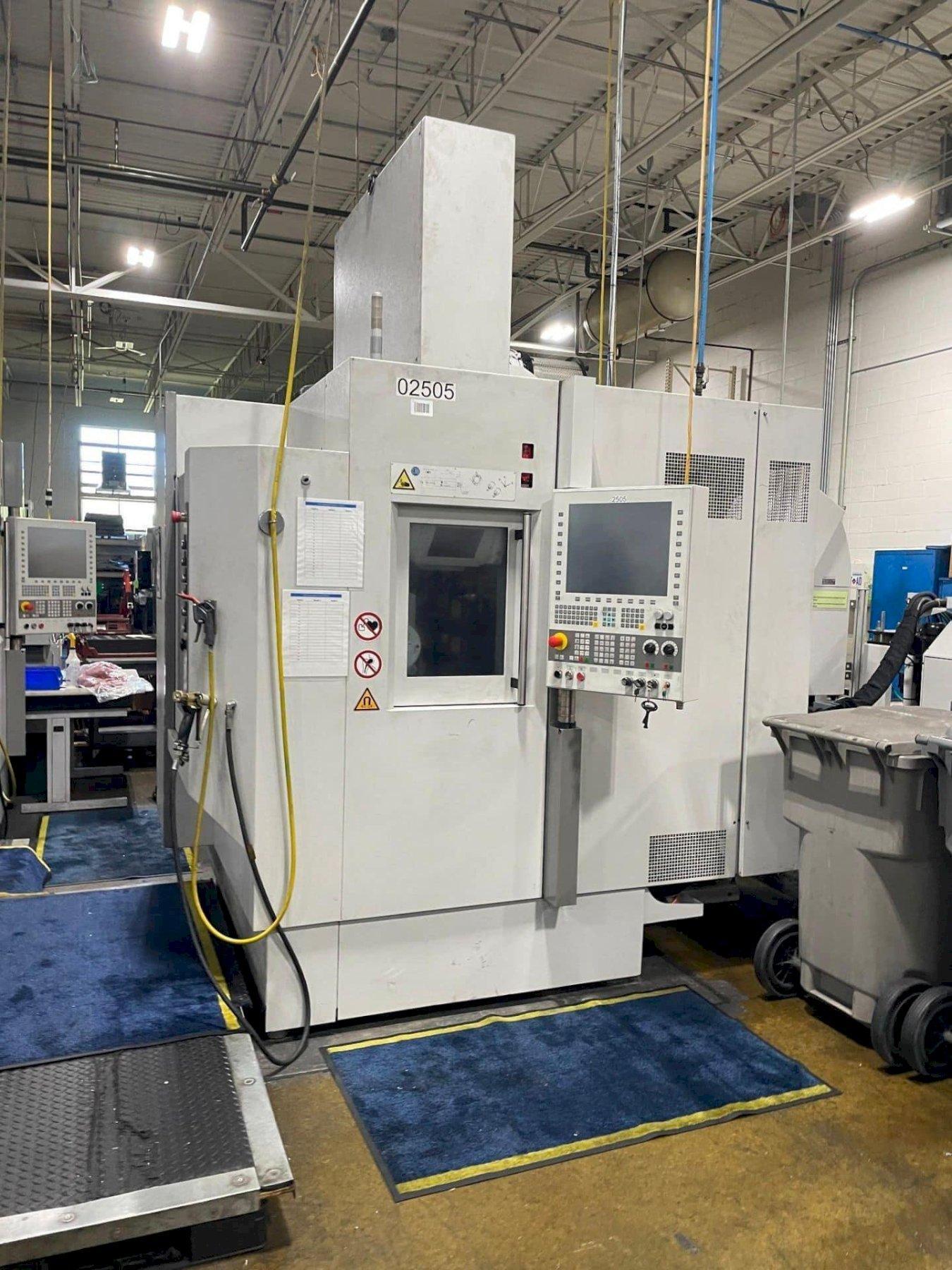

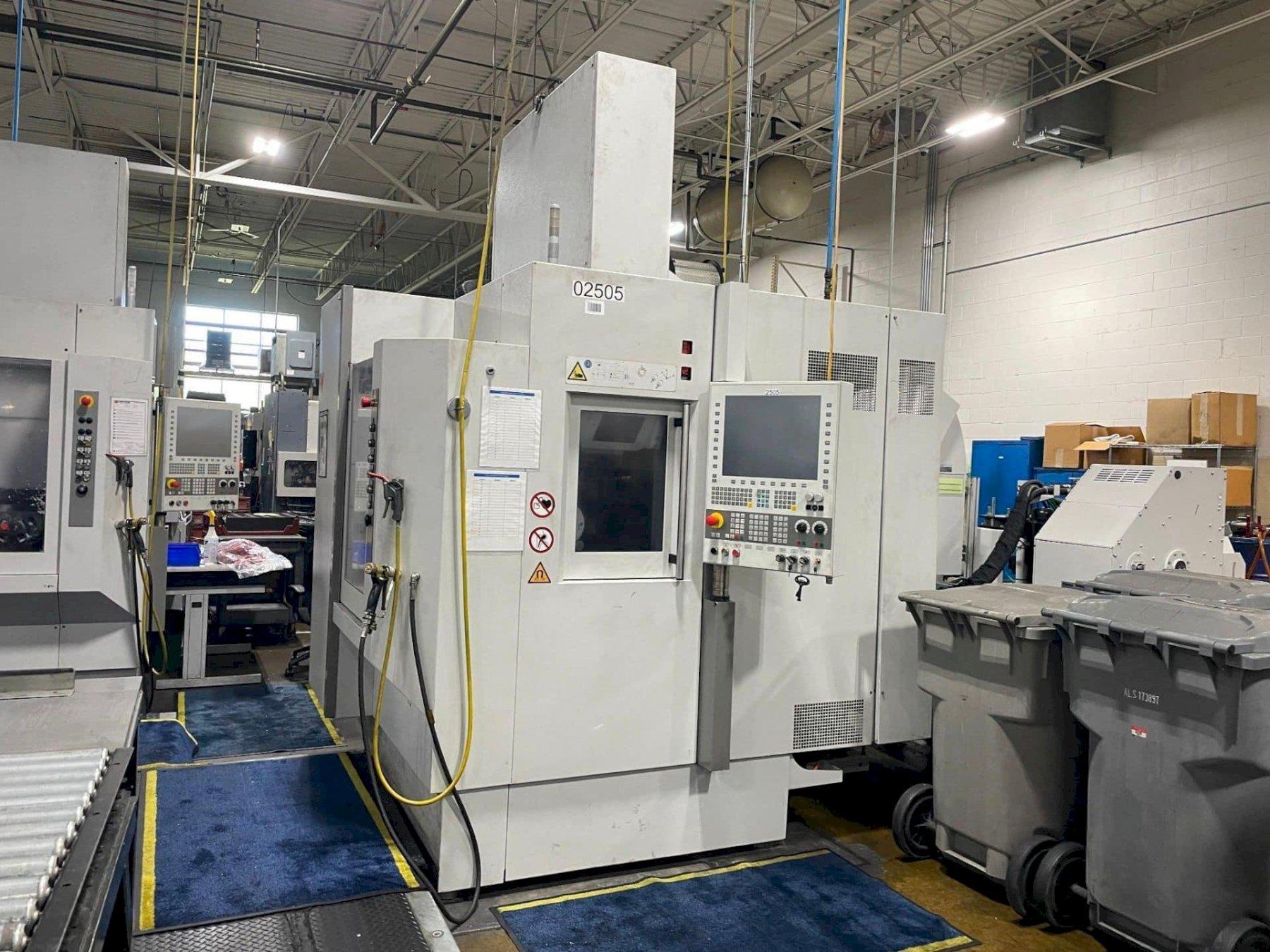

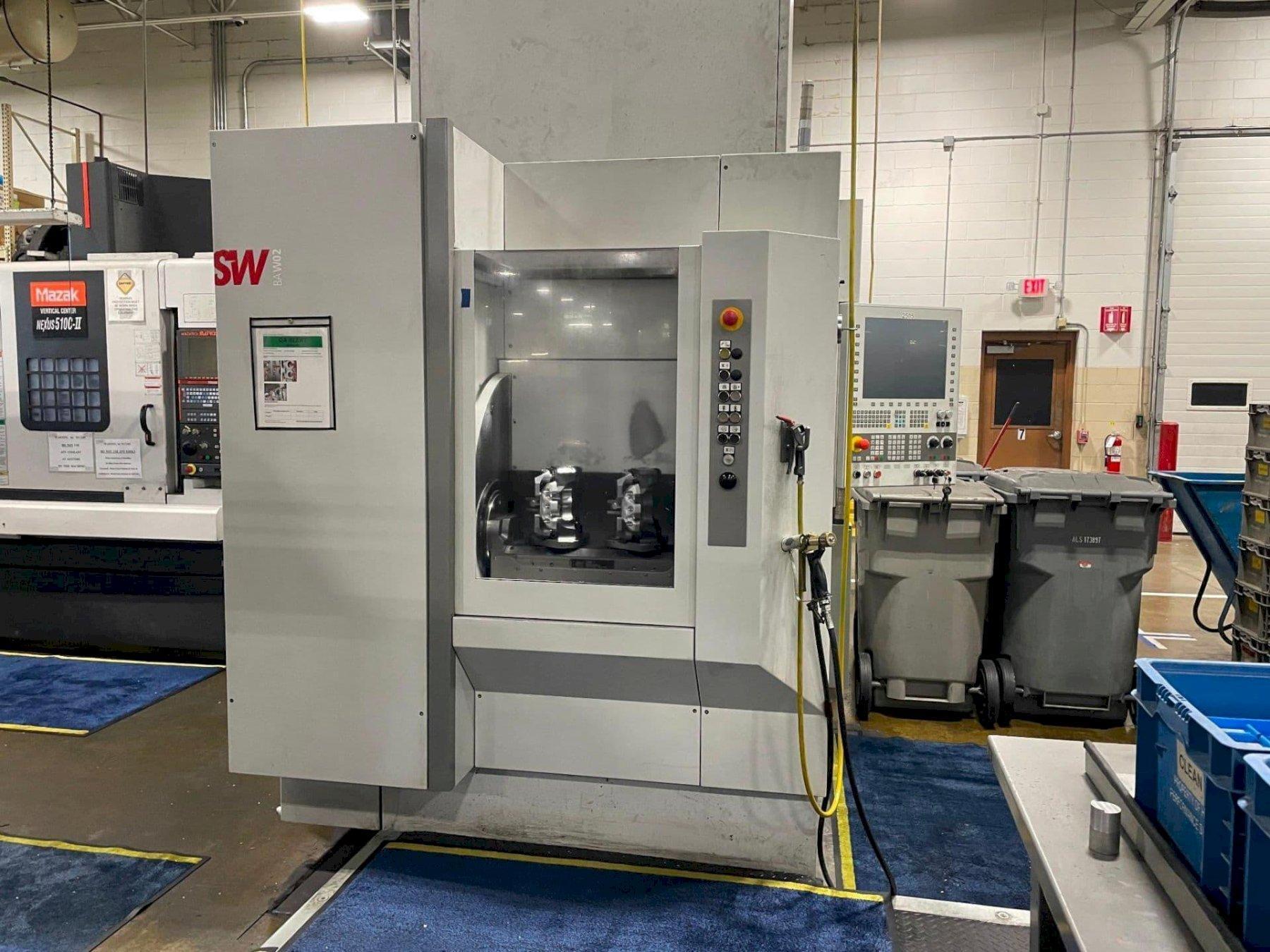

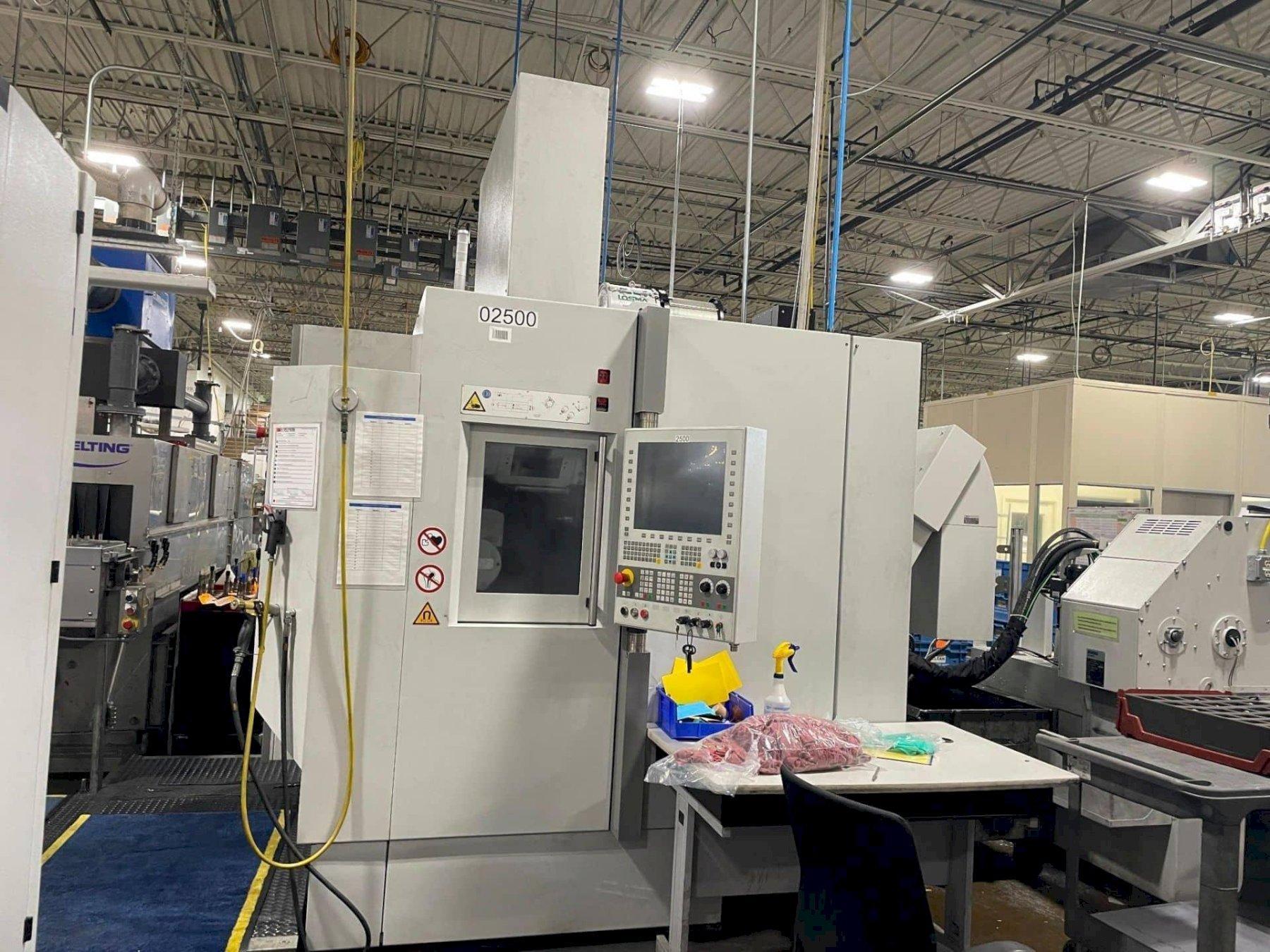

SW BA W02-22 Horizontal Machining Center, 2016

X-Axis: 7.87″ Y-Axis: 13.78″ (20.67″ with toolchange position) Z-Axis: 11.81″ Spindle Distance: 9.84″ Spindle Taper: HSK-A40 Spindle Speed: 25,000 RPM

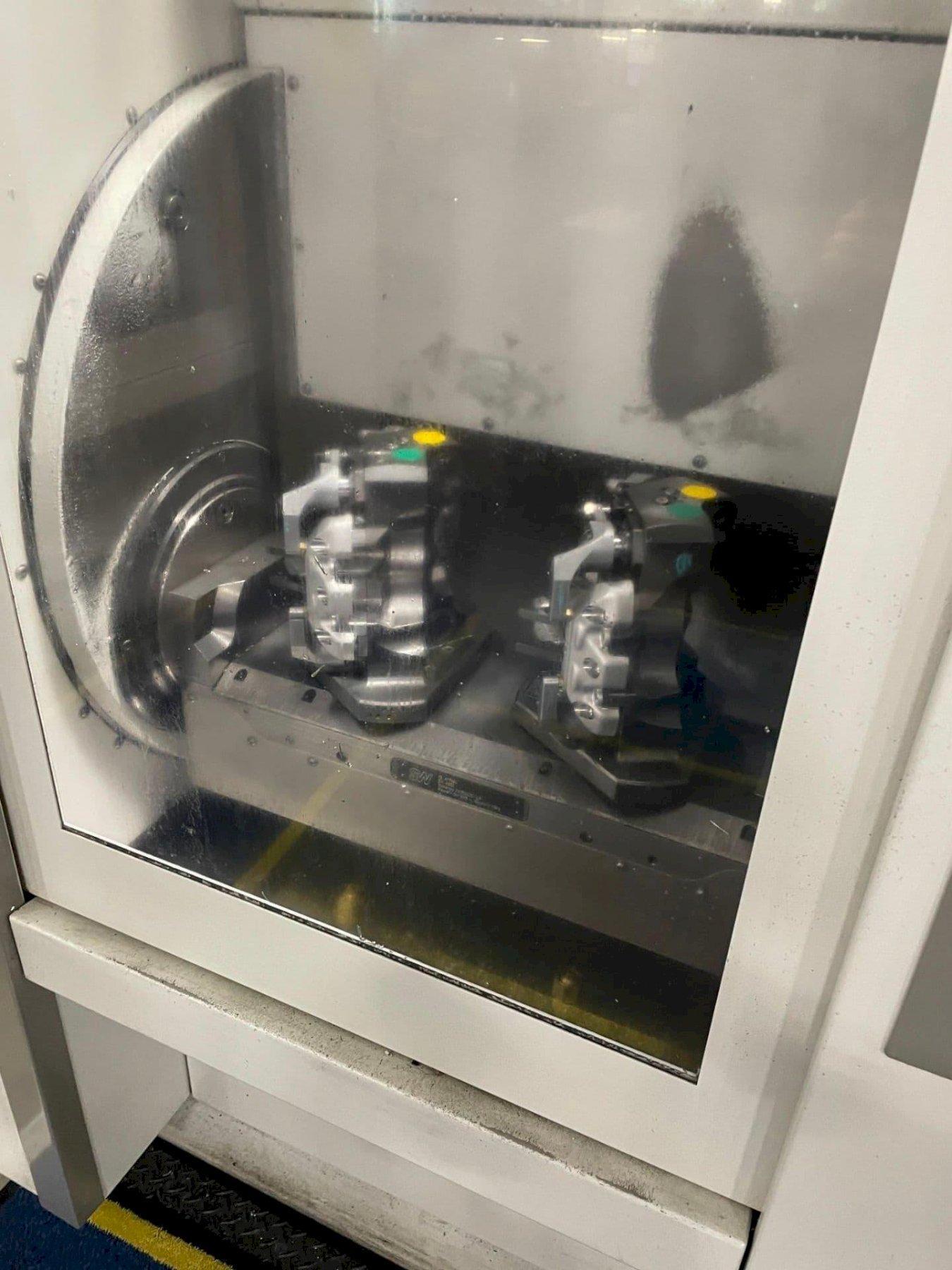

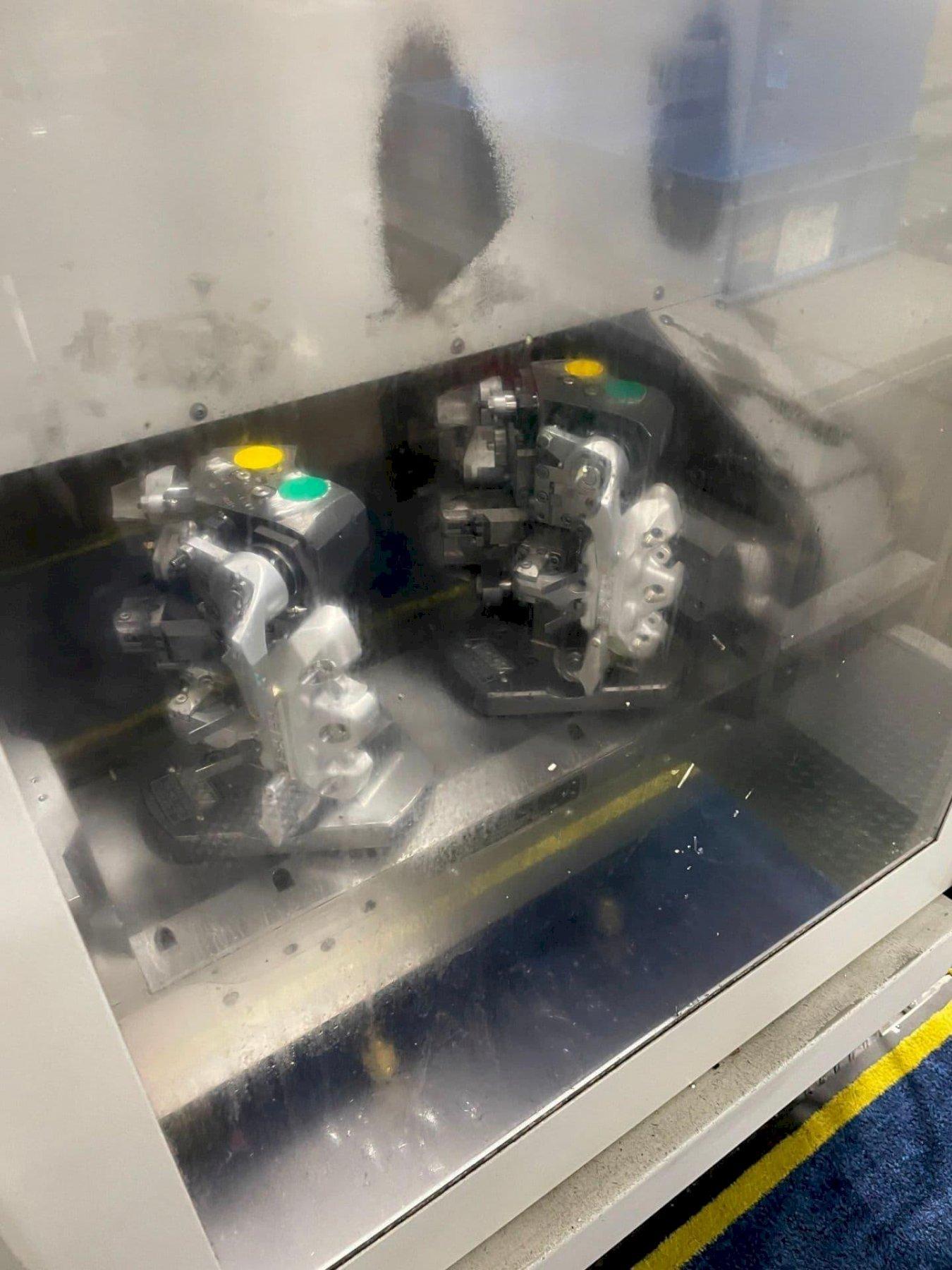

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Swivel Carrier / Counterbearing: Equipped with crown gear, swivel time 0/180° approx. 2.25 s A- and U-Axis: Prepared for mounting a fixture plate, up to max Ø 16.73″ x 24.80″ Drive System: Torque motor Load Capacity: 2 x 352.74 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speed Range: A- and U-Axis: 1 – 100 RPM C- and W-Axis: 2 satellites

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Toolchange: Chip-to-Chip Time: Approx. 1.75 s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight / Dimensions: Total Weight: Approx. 13,889 lbs Transport Dimensions (W x H x L): 75.59″ x 92.52″ x 100.39″ Machine Installed (W x H x L): 125.98″ x 114.17″ x 204.72″

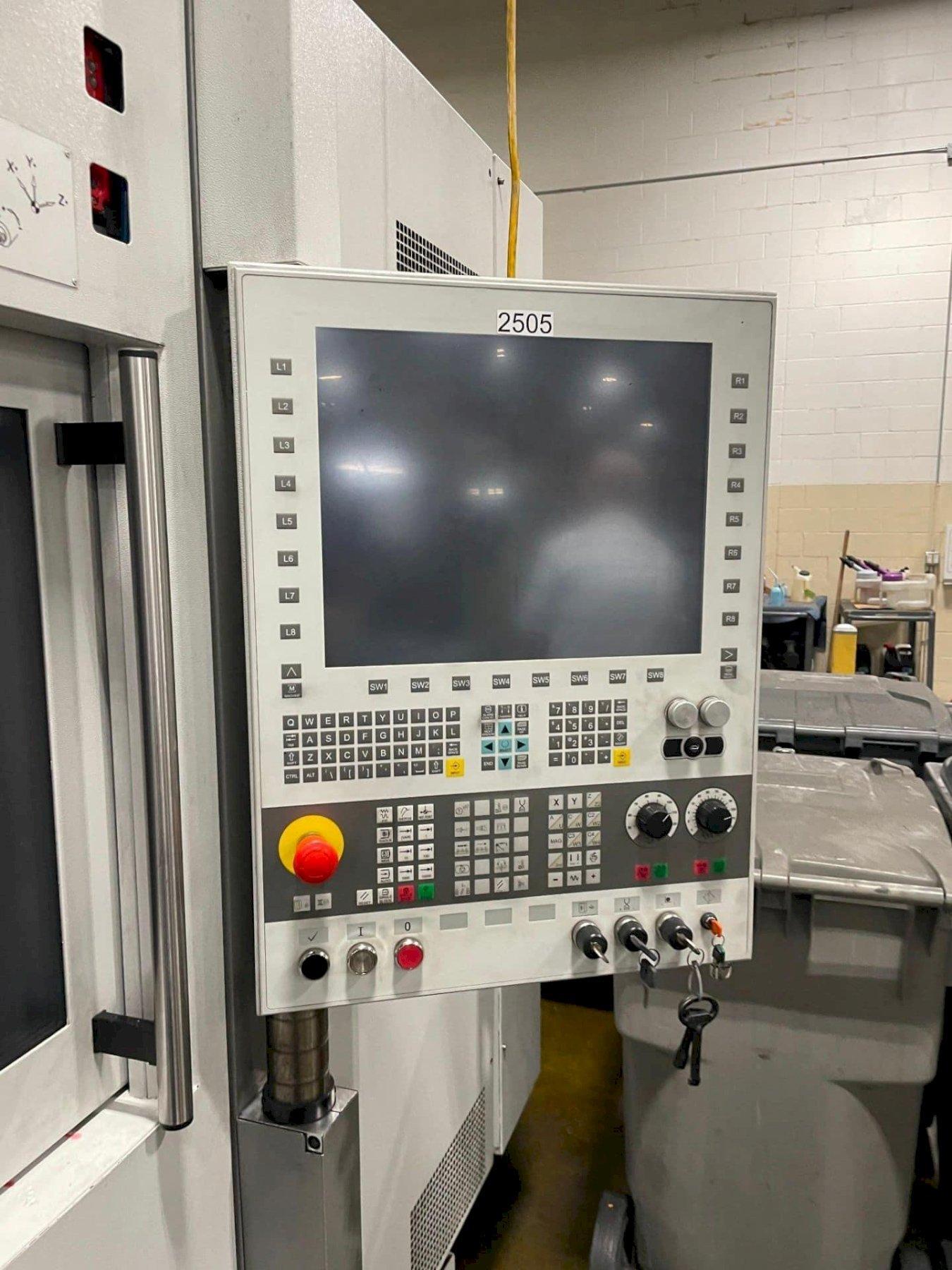

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Connected Load: Operating Voltage: 3 x 400 Volt, 50 Hz, TN-S/TN-C network Total Connected Load: 41 kVA Mean Air Consumption: 14.12 cubic feet per minute (80 psi) Control: Siemens Sinumerik 840D SL

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
