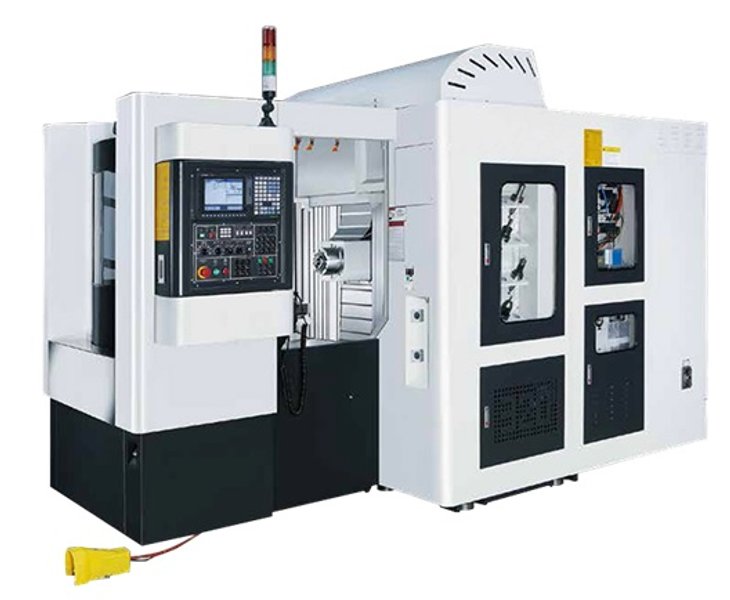

The KENT USA KHC-320 Compact CNC Horizontal Machining Center combines proven machine design with advance technology in control and manufacturing.  Reliability and performance makes these a favorite among demanding job shops and in-house production alike.  The one-piece machine casting base with traveling column design provides a solid foundation for high volume small parts precision machining.  The direct driven spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.

OUTSTANDING FEATURES:

• Compact space saving design with dual 320 x 320 mm (12.5” x 12.5”) Pallets
• Servo driven automatic pallet changer for fast 7 seconds pallet change time
• 24 tools Dual Arm Swing-type ATC with fast 1.2 second tool change time
• Convenient tool storage built-in on side of machine enhances operator efficiency
• Column traveling design for X/Y/Z Axes with high precision Linear guide ways

Direct driven spindle design offers greater static/dynamic load stiffness with less vibration and noise for better surface finish and longer tool life.  An optional “built-in” type spindle is available for 25,000 and higher RPM applications.

The compact space saving design with enclosed back and side guarding helps to comply with industrial safety regulations.  Chain type chip conveyor and chip cart for easy and convenient maintenance without impacting production cycle times.

SPECIFICATIONS:

TRAVEL:

X axis..............................................................    400 mm (15.7 inch)

Y axis..............................................................    350 mm (13.7 inch)

Z axis..............................................................    350 mm (13.7 inch)

Spindle nose to table center (Z)....................    100 ~ 450 mm (3.9 ~ 17.7 inch)

Spindle center to table center (Y).................    50 ~ 500 mm (1.9 ~ 19.6 inch)

Maximum work piece swing diameter.........    ø 320 mm (ø 12.5 inch)

TABLE:

Table (Pallet) size (Qty 2)..............................    320 x 320 mm (12.5 x 12.5 inch)

Table (Pallet) load capacity...........................    300 kg (661 lb)

Table minimum index....................................    0.001˚

Pallet change time.........................................    7 seconds

Number of pallets..........................................    2

SPINDLE:

Spindle taper..................................................    CAT-40 (BT-40 avail opt)

Spindle speed.................................................    10,000 rpm

Spindle drive type..........................................    Direct drive

Spindle motor (cont/30min)..........................    5.5/7.5 kW (7.5/10 hp)

FEED RATE:

Rapid feed rate..............................................    48 m/min (1889 in/min)

Cutting feed rate...........................................    10 m/min (394 in/min)

Ball screw diameter......................................    ø 40 mm (ø 1.57 inch)

Guide way size (X/Y/Z)...................................    45/35/35 mm (1.77/1.38/1.38 inch)

AUTOMATIC TOOL CHANGER:

Magazine capacity (arm-type)......................    24 tools

Tool diameter max........................................    85 mm (3.3 inch)

Tool diameter max without adjacent tools...    115 mm (4.5 inch)

Tool length max.............................................    200 mm (7.87 inch)

Tool weight max............................................    7 kg (15.4 lb)

Tool to tool time............................................    1.2 seconds

UTILITY:

Electrical power required..............................    220V / 3PH / 40A

Coolant tank size............................................    220 L (58 gallon)

DIMENSION:

Machine dimension (LxWxH)

........................

3.5 x 2.52 x 2.5 m (11.5 x 8.3 x 8.2 feet)

STANDARD EQUIPMENT:

• Fanuc 0i-MD CNC control with 8.4” Color LCD
• Fanuc High Torque Servo Spindle/Axis motors and Digital drives system
• 10,000 rpm direct driven spindle with spindle oil refrigeration system
• Spindle Air Blast system and Spindle Coolant Ring chip flush system
• Dual 320 x 320 mm (12.5” x 12.5”) Pallets Automatic Pallet Changer (APC)
• High capacity coolant system with chip flush and chain type chip conveyor system
• Air gun and Coolant wash down spray gun
• 3 color status indicator tower light
• 24 tools dual arm swing type ATC
• Auto lubrication system with piston distributor and low pressure detection
• Portable MPG jog hand wheel
• Electric cabinet heat exchanger cooler

•


•


• Factory Installed Options*:

•

  TSC20              Through-Spindle Coolant System (20bar/300psi)

  FX2000            Oil/Mist Collector (300 cfm)

  ECABAC           Electric cabinet AC Cooler unit

  TFR10              Multi-tap Transformer (440~480V primary to 220V, 10KVA)

  VS10                Voltage stabilizer 10KVA, 208~240V

  AUTODR          Auto Door Option

  ROINTF            Robot/Automation Interface Option

  OMP40TS        Renishaw wireless part probe + tool setter
                          (OMP40-2 + OTS + OMI-2T system)

  REN-IT             Renishaw installation and training

  FDMP              Fanuc Die/Mold HSM package
                          (AICC-II 200 BLA, Nano-smoothing, Bell-type Acc/Dec)
