1999 HITACHI SEIKI HS630 WITH RGV | Machining Centers, Horizontal

HS630 Specifications:
Machine Travel  X                                 33.5" Travel
Machine Travel Y                                 31.5" Travel
Machine Travel Z 33.5" Travel
Main Motor(15min.cont)                          40 /30 HP
4th Axis Rotation                                 360.000 Deg. Full 4th indexing/2,640lbs
Spindle Speed                                         100-10,000RPM
Spindle Taper                                          Cat 50
Coolant trough spindle
Main Motor(15min.cont)                            40 /30 HP
ATC 120 tool position
Rapid Traverse                                           1,772 IPM
Feed Rate                                                  .01-1772 IPM

Equipped With:
* Seiki Seicos ∑16m Machine #2    Seiki Seicos ∑10m Machine #1
* 10,000 RPM
* 120 Tool ATC
* Renishaw Probe
* Chip Conveyor
*Color CRT With Graphics
* Coordinate System Rotation
* Expanded Memory  on Machine #2 only
* Rigid Tapping
*Tool Length And broken tool Detection
*Block Skip
*16 pallets

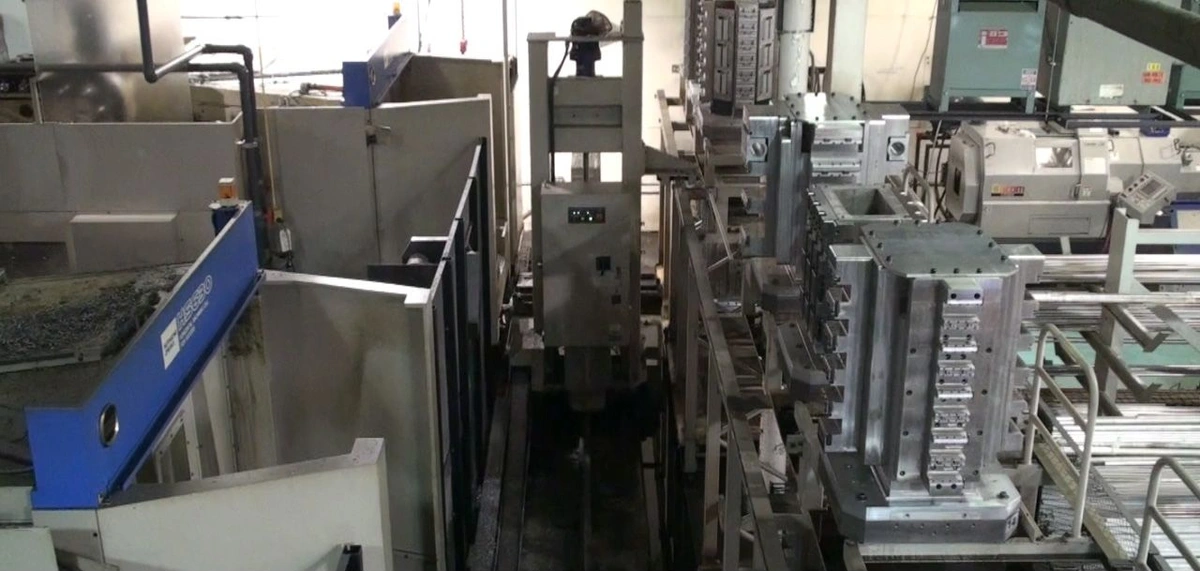

*Pallet loader RGV
*Cell Controller
