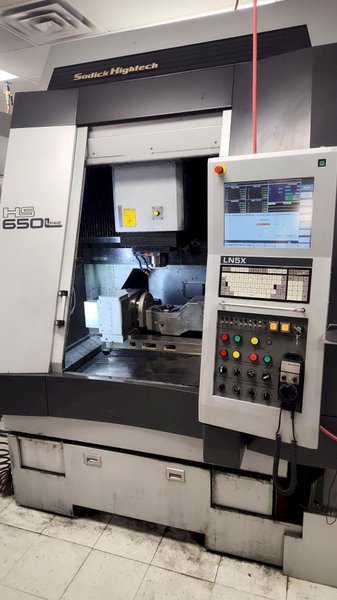

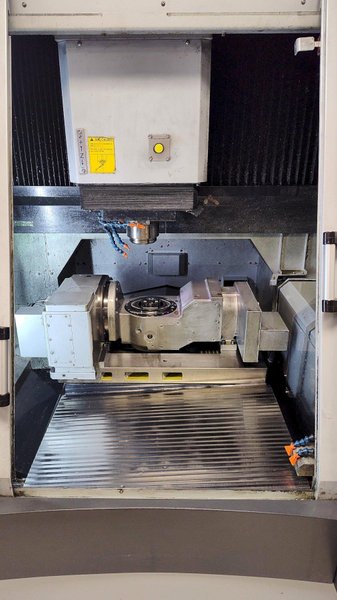

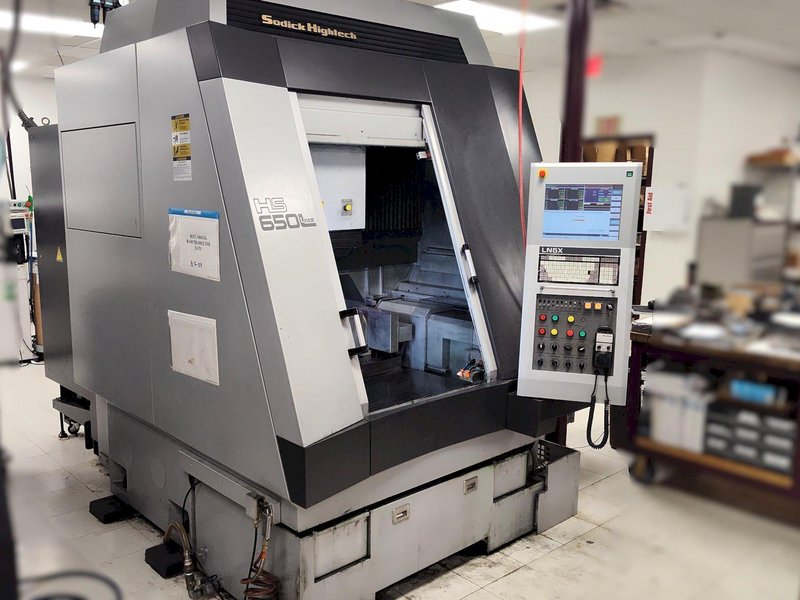

SODICK High Tech HS650L High Speed 5-Axis Vertical Machining Center 2008 equipped with Sodick HighTech, HS650 Linear, Sodick LN5X control, 675mm x 500mm x 300mm travels, 3285 Hours of run time, 40,000 RPM Spindle, HSK E32, 16 tool carousel, Renishaw Probe, Bloom Laser Tool Setter
Brand
Category
Model
HS650L
Stock #
6915
Year
2008
Condition
Not specified
Location
California

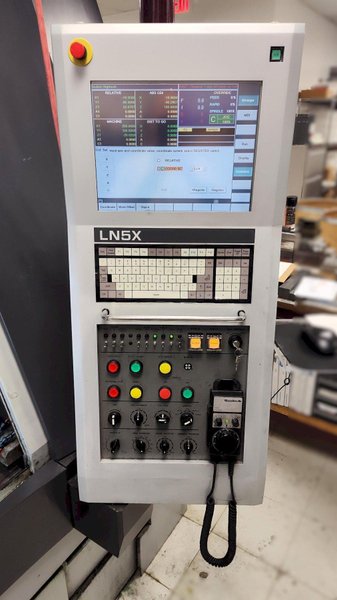

| Type Of CNC Control | LN5X |
| # Axis | 5 |
| X-Axis Travel | 24.41 inches |
| Y-Axis Travel | 19.69 inches |
| Z-Axis Travel | 11.81 inches |
| Maximum Tool Diameter | .236” |
| Table Size | 29.53” x 19.69” |
| Table To Spindle Distance | 5.91” x 17.72” |
| Max Table Load | 330.7 pounds |
| Dimensions (W X D X H) | 71.85” x 121.26” x 100.0” |
| Weight | 17637 pounds |
|
SoDick High Tech HS650L High Speed 5-Axis Vertical Machining Center 2008 equipped with Sodick HighTech, HS650 Linear, Sodick LN5X control, 675mm x 500mm x 300mm travels, 3285 Hours of run time, 40,000 RPM Spindle, HSK E32, 16 tool carousel, Renishaw Probe, Bloom Laser Tool Setter
|
|
