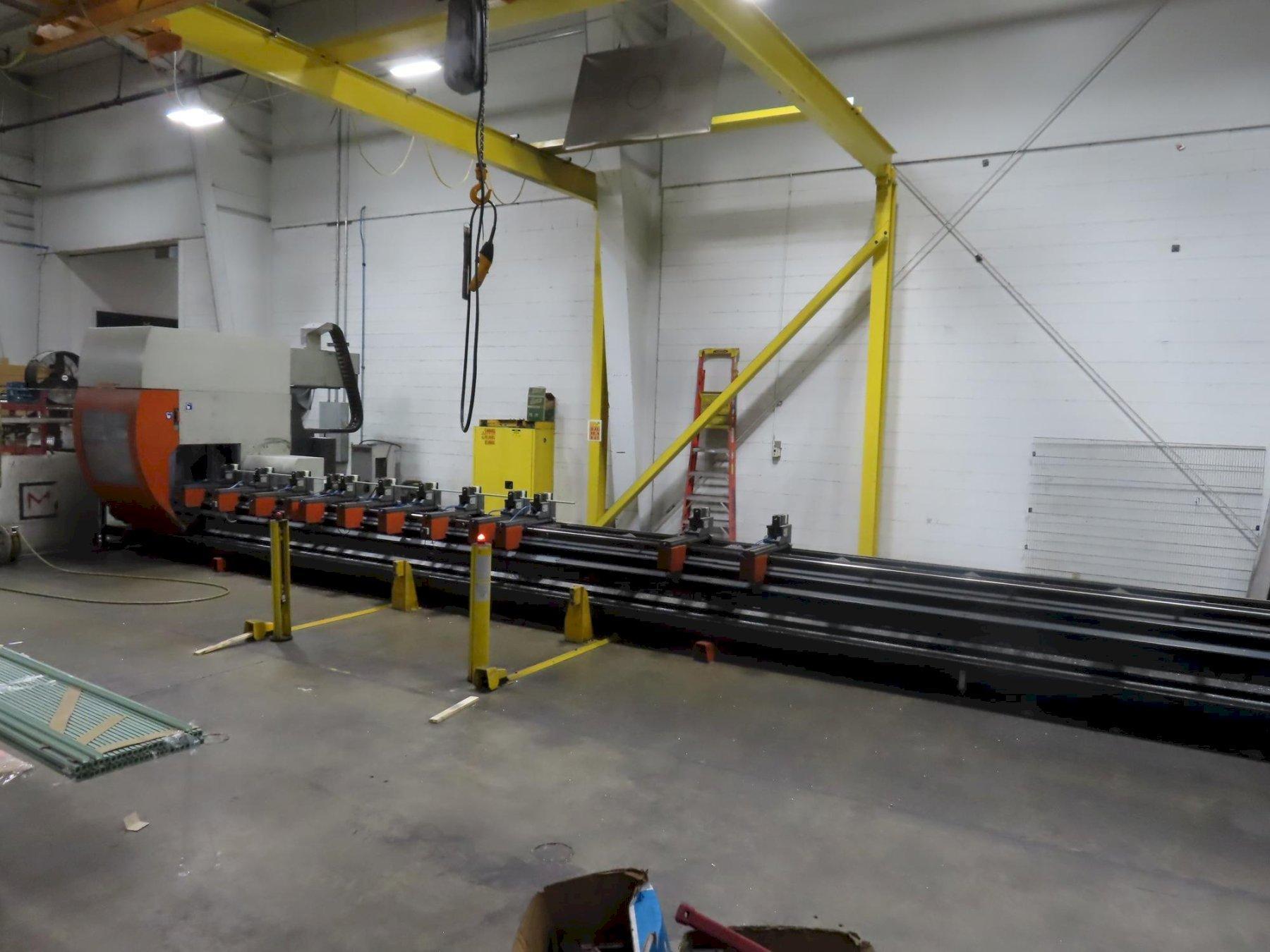

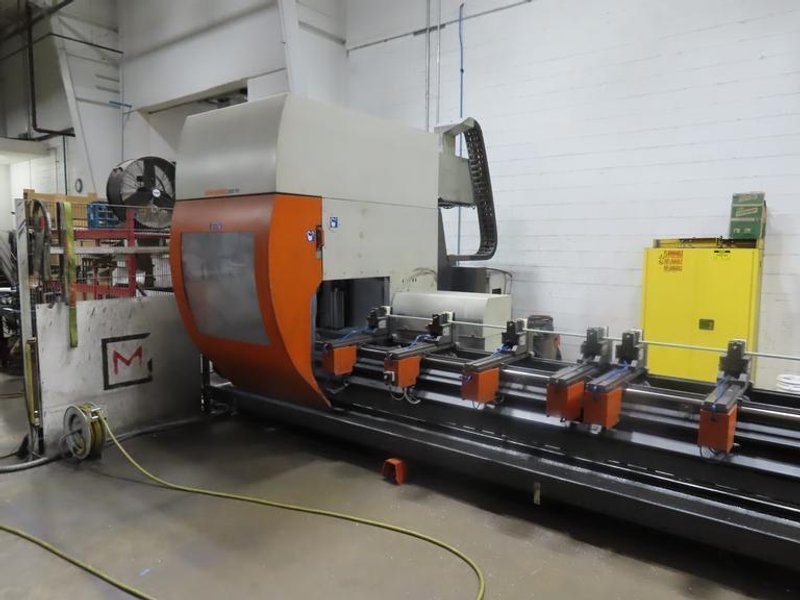

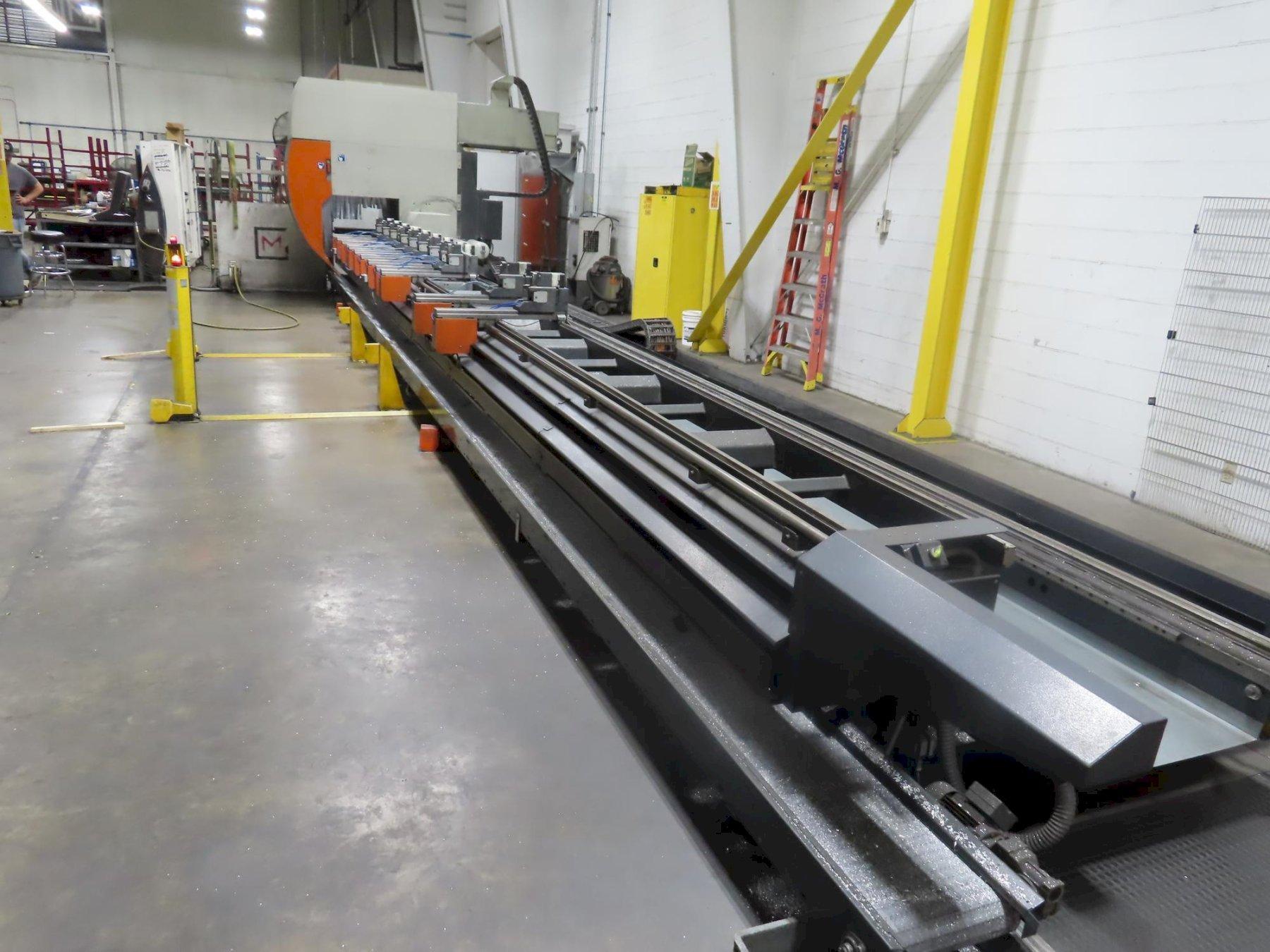

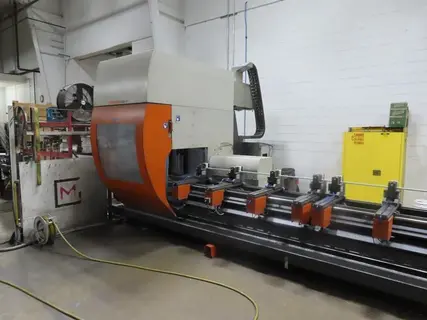

Elumatec SBZ 5-axis CNC Profile Machining Center, 5-Axis CNC Control, 10.3M / 33.8' X-Axis Travel, 20-ATC, 500mm Blade, 24,000 RPM
Brand
Category
Model
SBZ 151
Stock #
C1001
Year
2015
Condition
Not specified
Location
Not specified
|

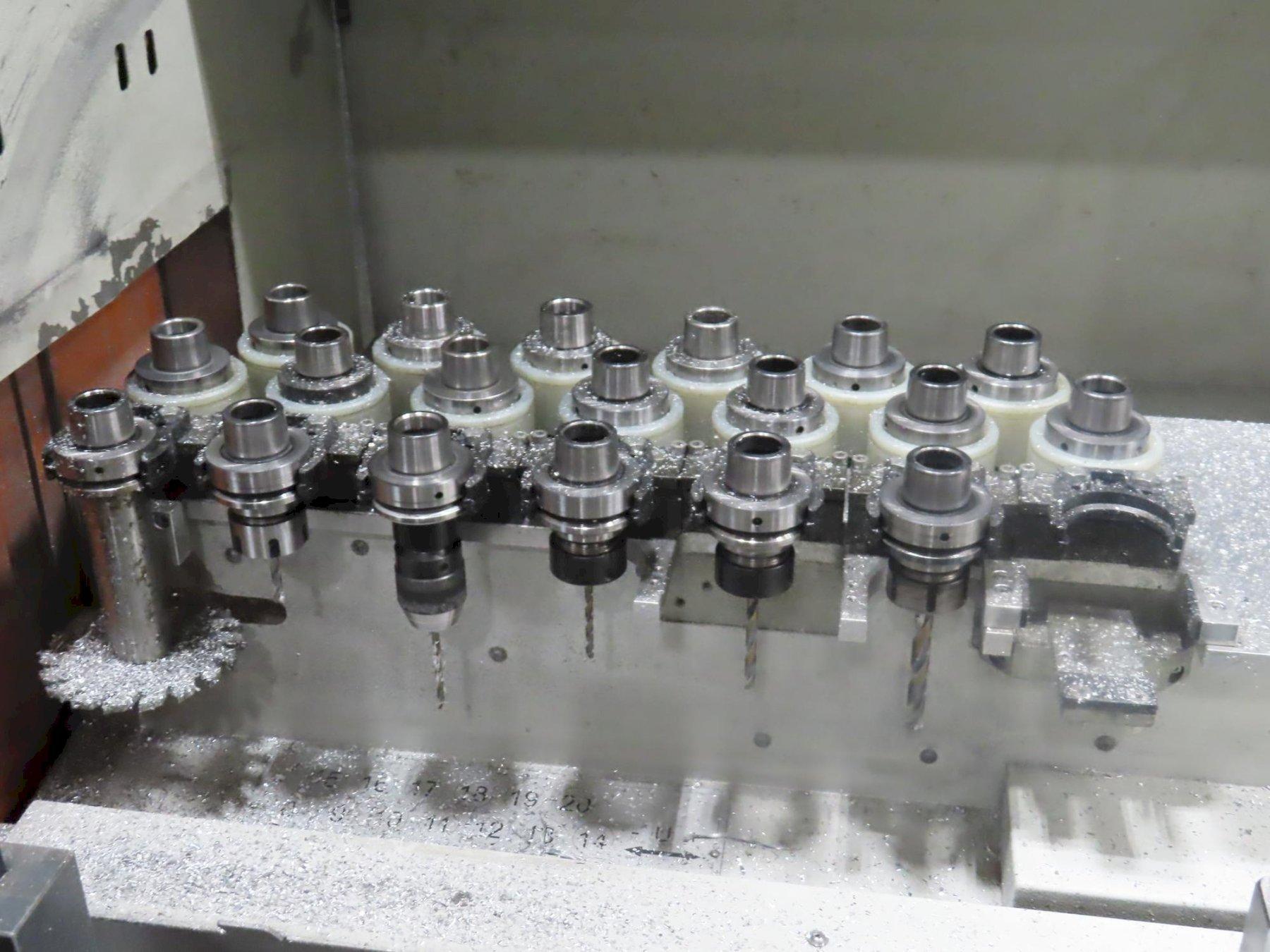

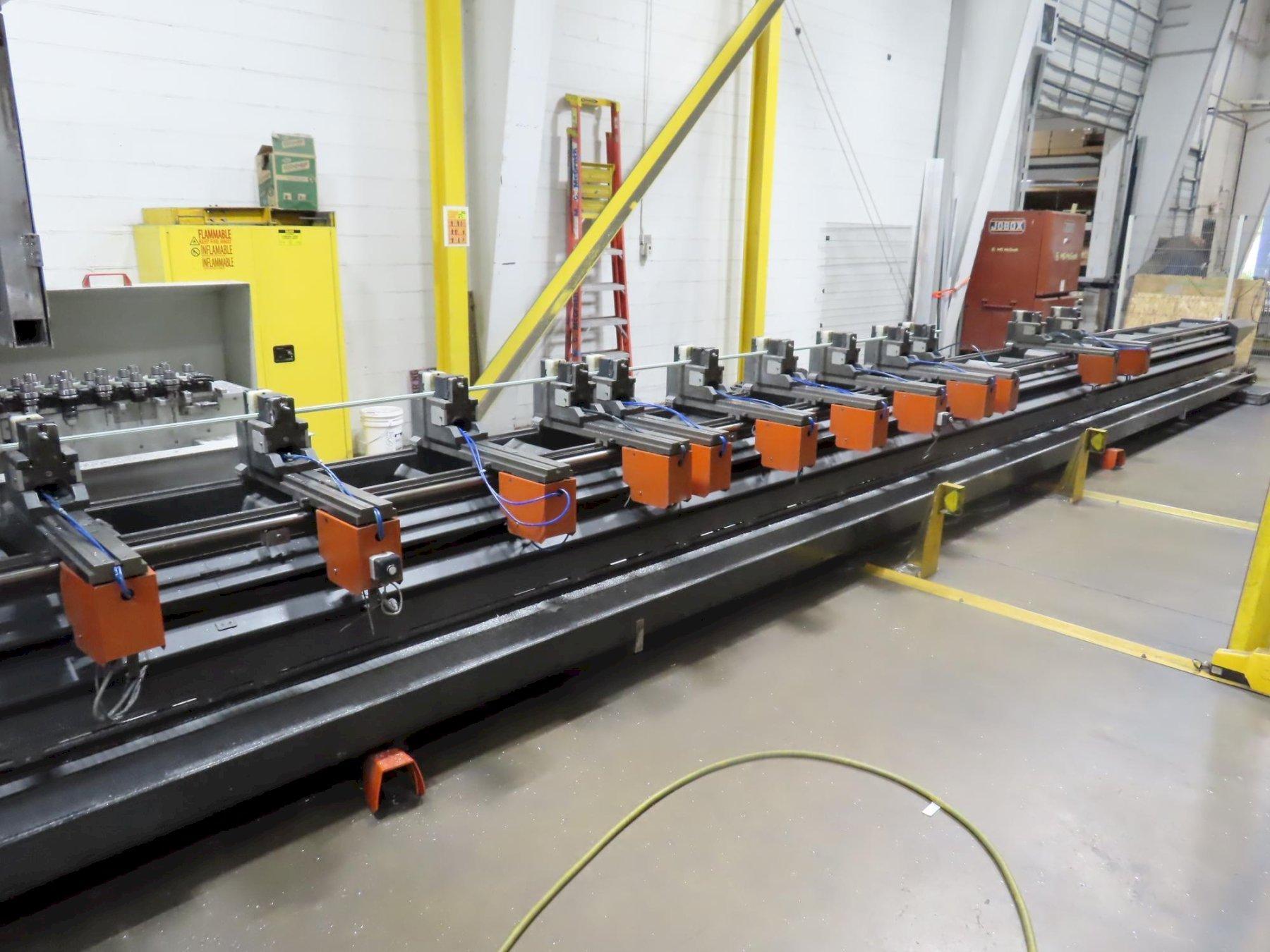

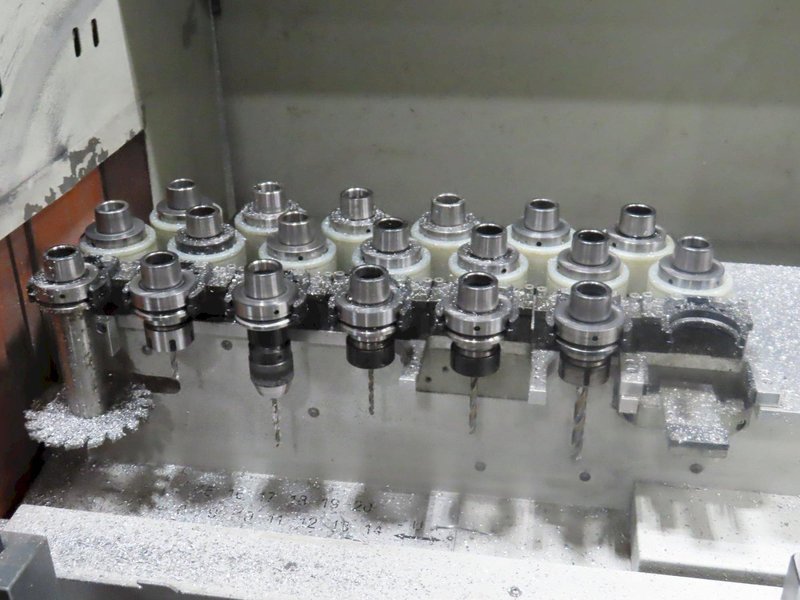

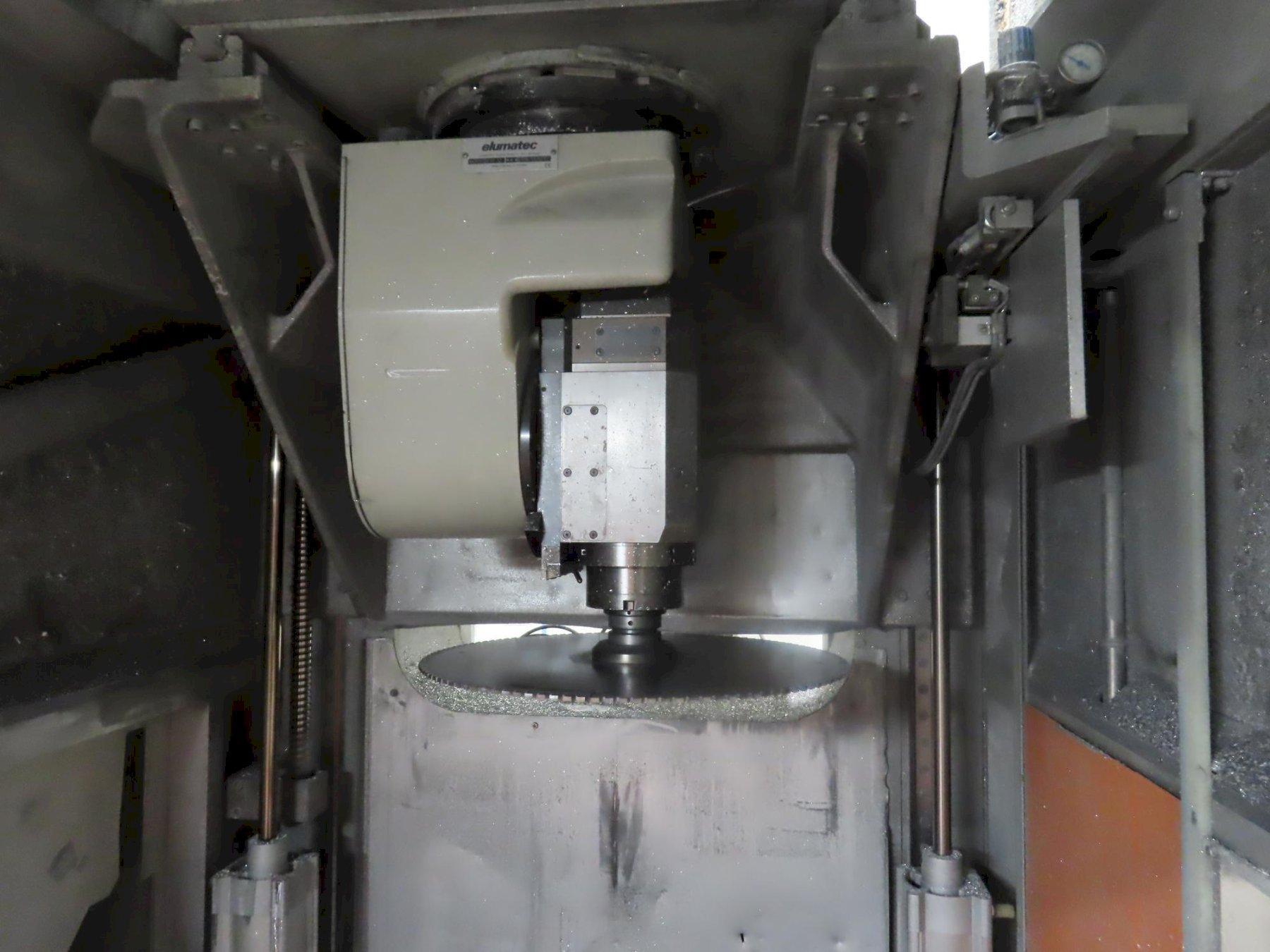

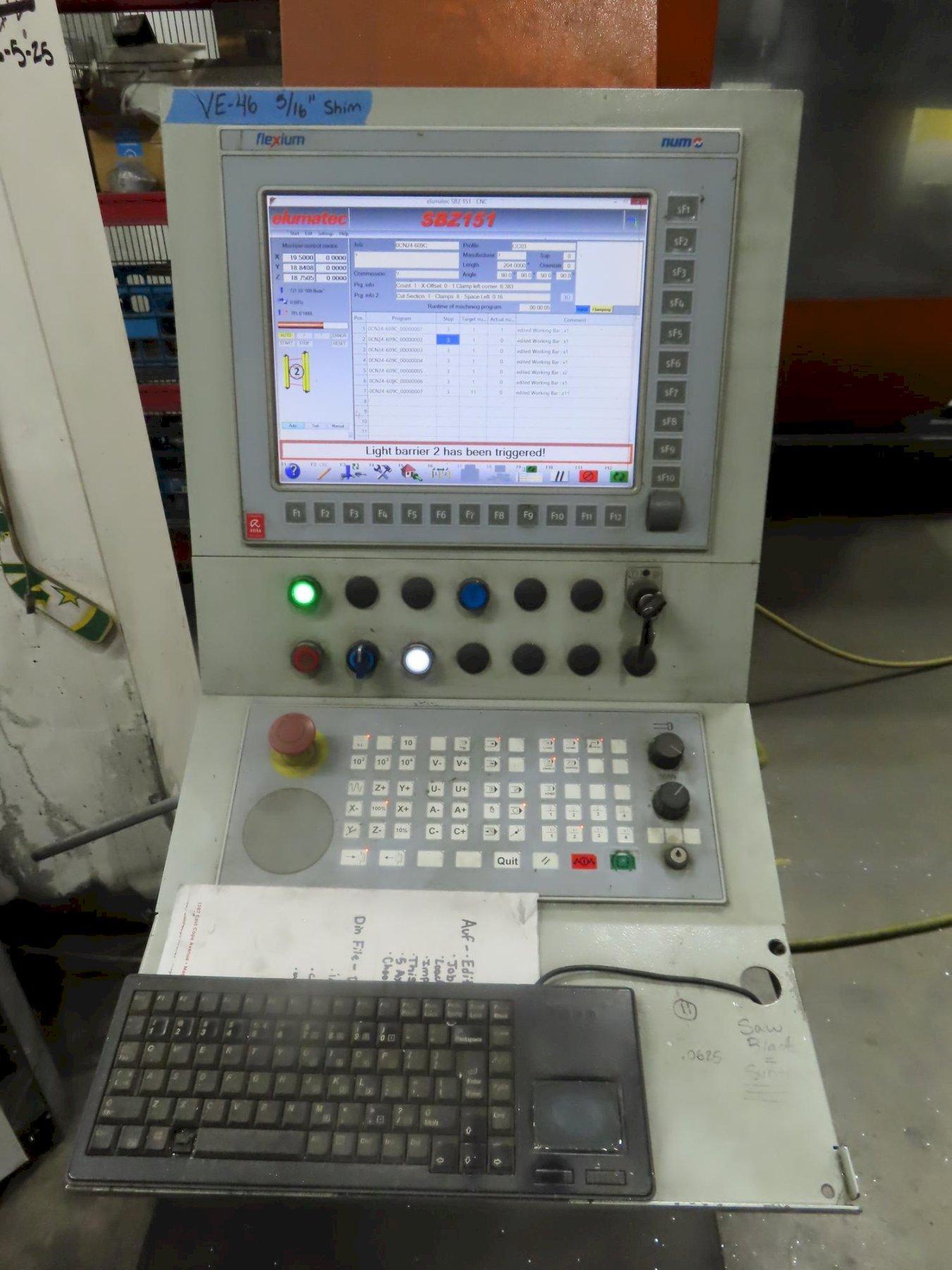

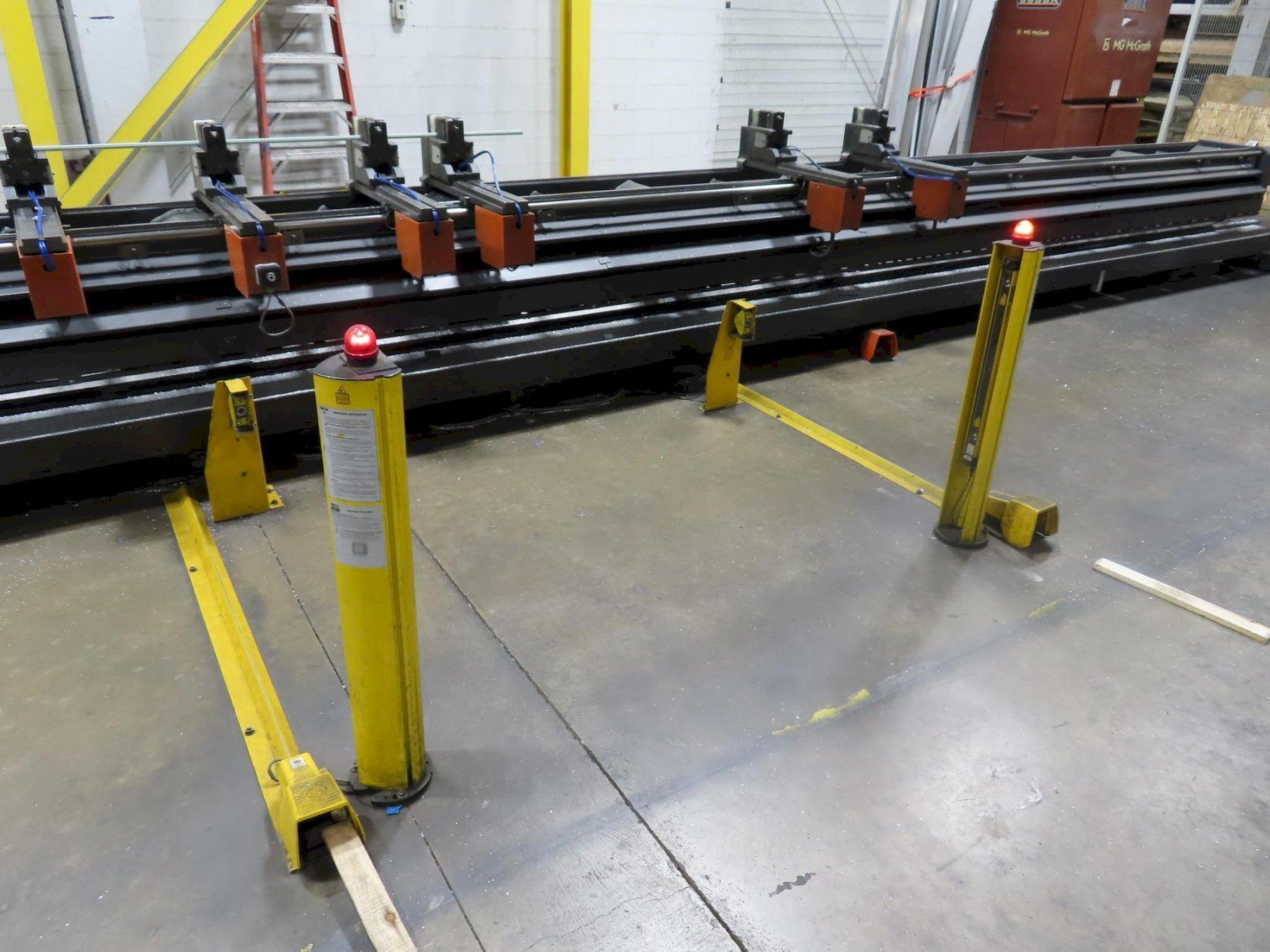

Control: NUM Flexium Machine Travels X/Y/Z: 405.5" / 45.3" / 28.1" A-Axis Pivoting Angle: +/- 110° (for a 400 mm saw blade) or +/- 100° (for a 500 mm saw blade) C-Axis Pivoting Angle: +/- 182° Saw Blade Holder: 400mm or 500mm Saw Blade Spindle Speeds: 24,000 RPM Spindle Taper: HSK-63F Tool Changer Capacity: 20 Tools Spindle Drive: 26.8 HP Description: The Elumatec SBZ 151 is a high-performance 5-axis CNC profile machining center designed for the efficient processing of aluminum and thin-walled steel profiles. Featuring a 10.3-meter (33.8 ft.) machining bed, the machine provides exceptional flexibility for manufacturing curtain wall, storefront, window, door, and architectural extrusion components. All routing, drilling, tapping, thread milling, notching, and sawing operations are performed with the profile stationary, helping protect finished surfaces while maintaining outstanding accuracy and productivity. Equipped With: 5-Axis CNC Control (Windows Platform) (12) Pneumatic Clamps, Two-Sectional Clamping System, (2ea) Pneumatic Material Stops, Tecognition of Clamp Positions and Independent Clamp Positioning, Safety Cover and Photo Electric Barrier for Operator Protection, Pulse Spray Mist Coolant System, Chip Collection Tray, Air Conditioning Unit, Hand-Held Mobile Control with Start/Stop Switch and Feed Control, HSK63F Spindle Taper, 24,000 RPM, Spindle Chiller, Automatic Length Measuring on Both Side with Z-Stroke, Tapping w/o Compensation, Saw Blade Holder w/500mm Saw Blade, Angle Router Head HSK-F63: ER 20 Working From Below, EluCad Deluxe, 3D Import with Autom, feature recognition from Step File, Chip Collection Conveyor Belt (10.3m), Step-Up Transformer Electrics: 400 Volt, 3 Phase. |
