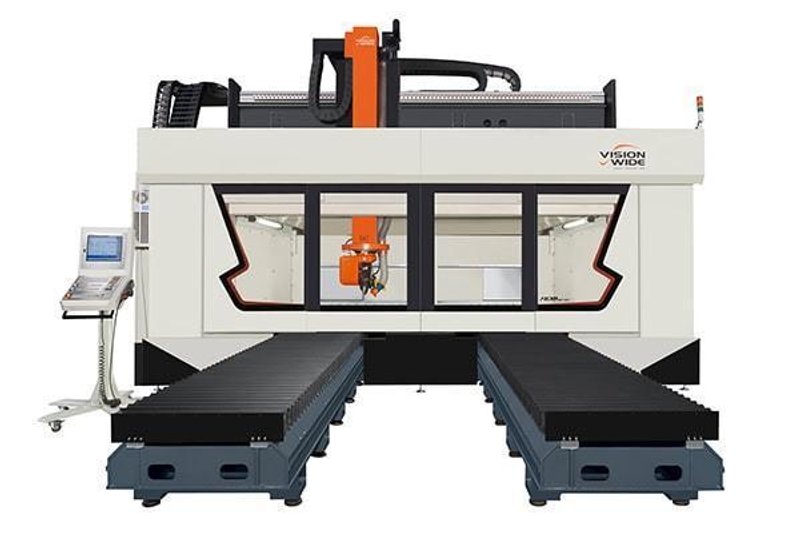

Vision Wide ADM-3350, 120″ x 195″ Table, 5 Axis Composite Material Machining Center, 2026 – NEW MACHINE, Siemens One Controller, At Factory Ready For Immediate Shipment

Travels X-Axis: 128″ Y-Axis: 195″ Z-Axis: 47″ B-Axis: +120º/-120º C-Axis: ±270º

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Distance Between Columns: 237″ Distance From Spindle Nose To Table: 13″ – 60″ High-Speed Spindle Max Speed: 20,000 RPM Power: 30 HP Taper: HSK-A63

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work Table Table Size: 195″ x 118″ Max Load: 6,600 lbs Table Height Above Floor: 3.94″ T-Slots: 12 T-Slot Width: 1.10″ T-Slot Spacing: 9.84″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed Rates Rapid Traverse (X/Y/Z): 1,575 IPM Cutting Feed (X/Y/Z): 1,181 IPM Rapid B/C Rotation: 4,320º/min Feed B/C Rotation: 2,160º/min Acceleration: 10.5 ft/sec sq

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Footprint: 492.1″ x 590.6″ x 275.6″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Seimens ONE CNC Control 24 ATC B-Axis Swivel Milling Head C-Axis Rotary Table Blum Tool Measurement System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
