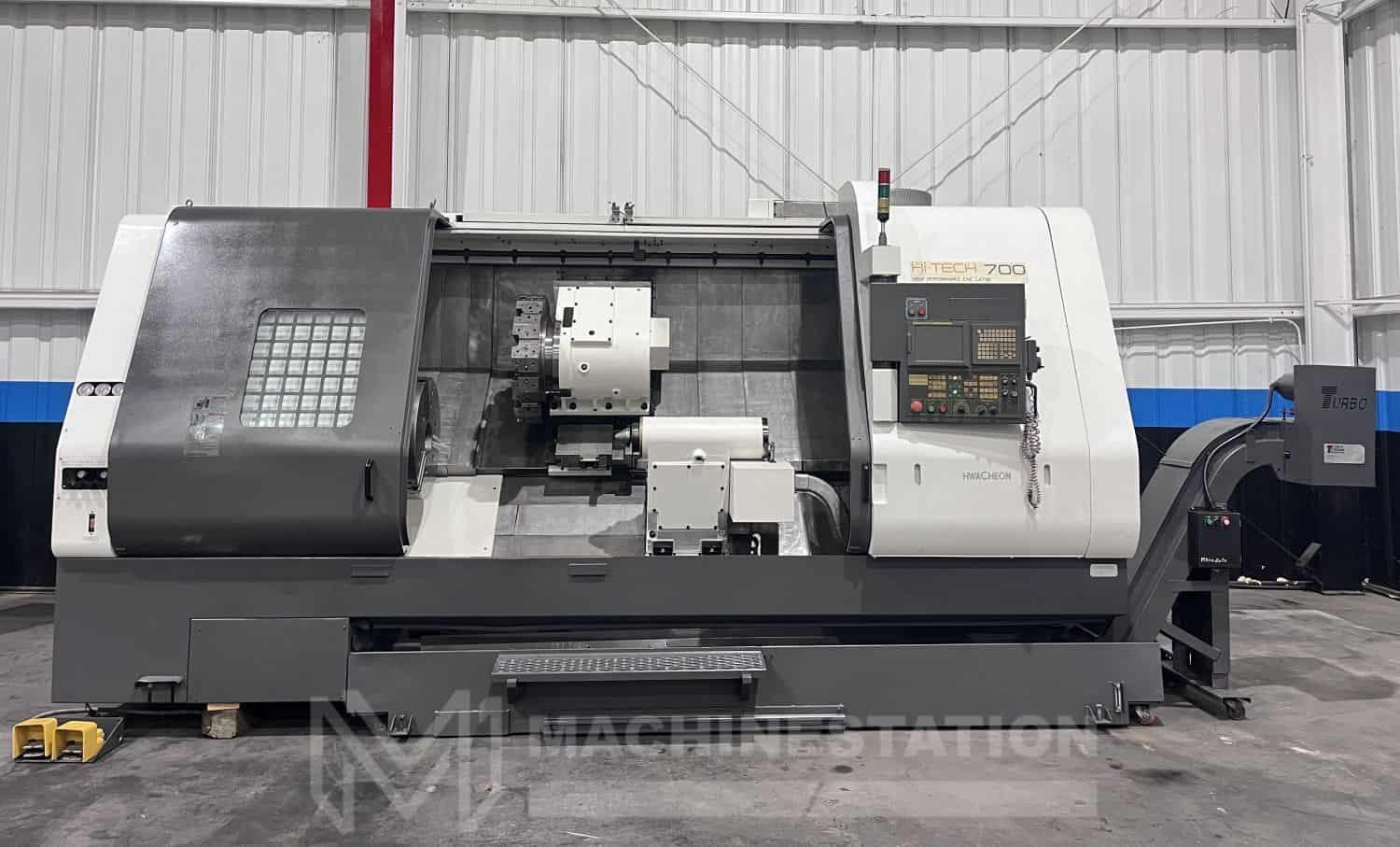

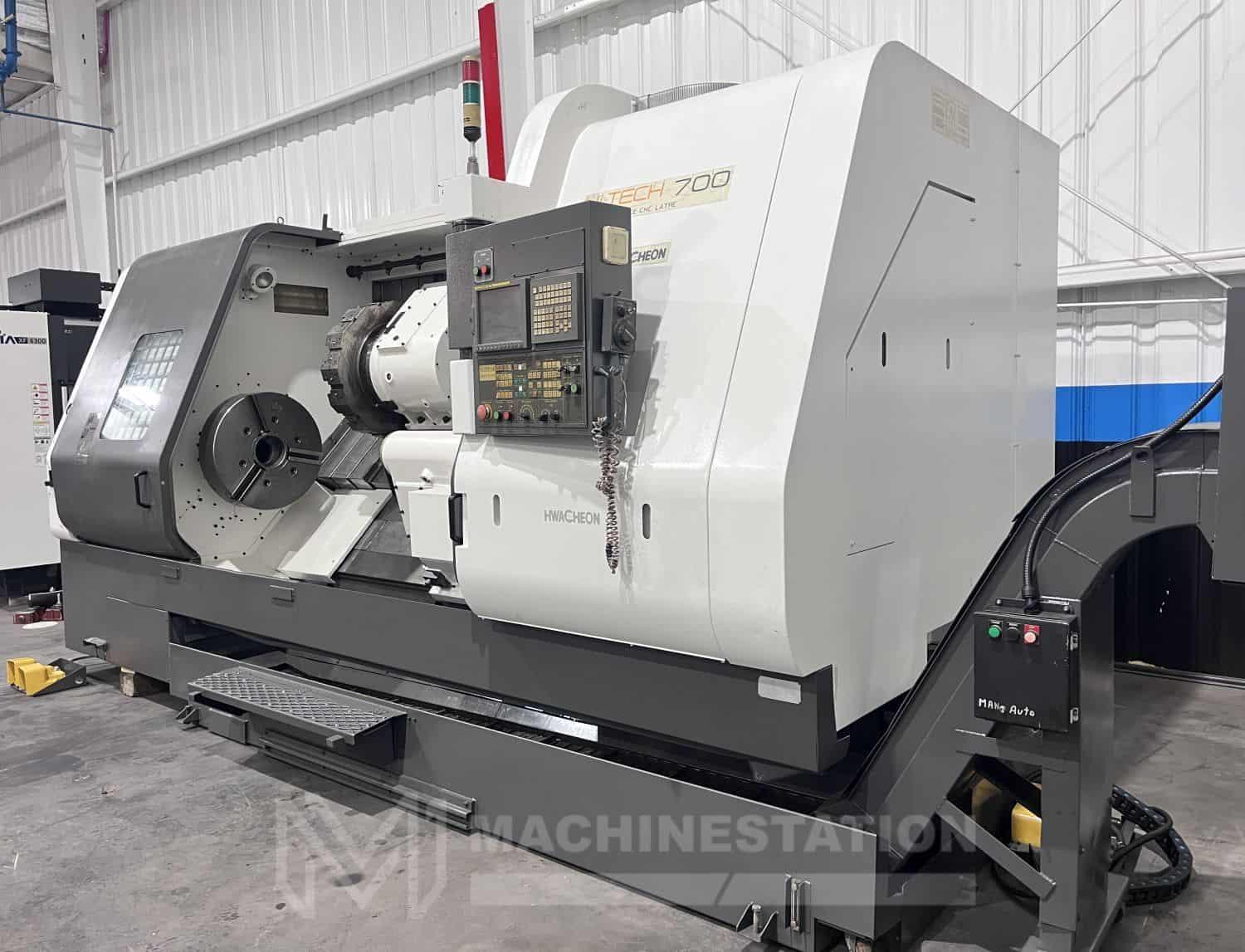

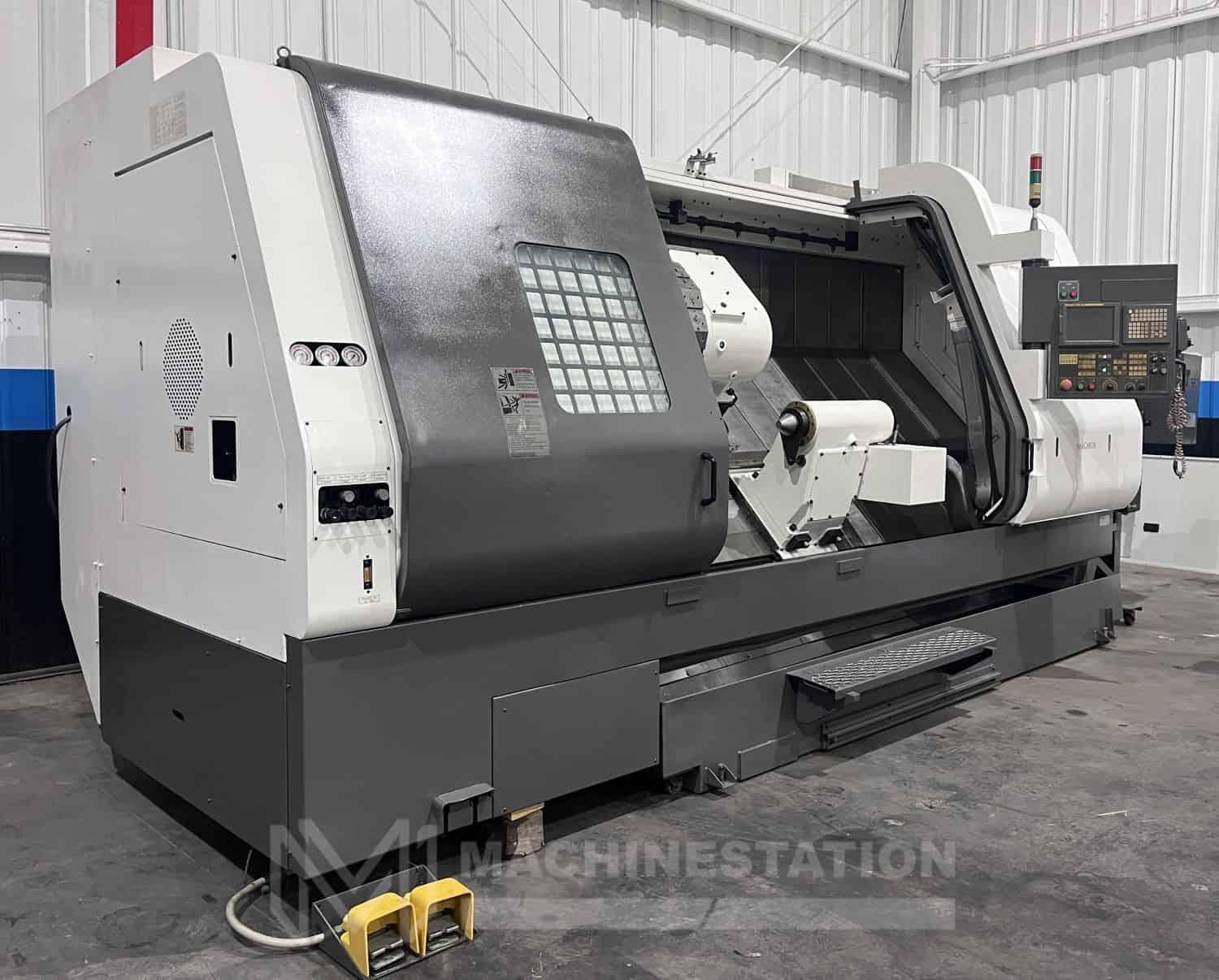

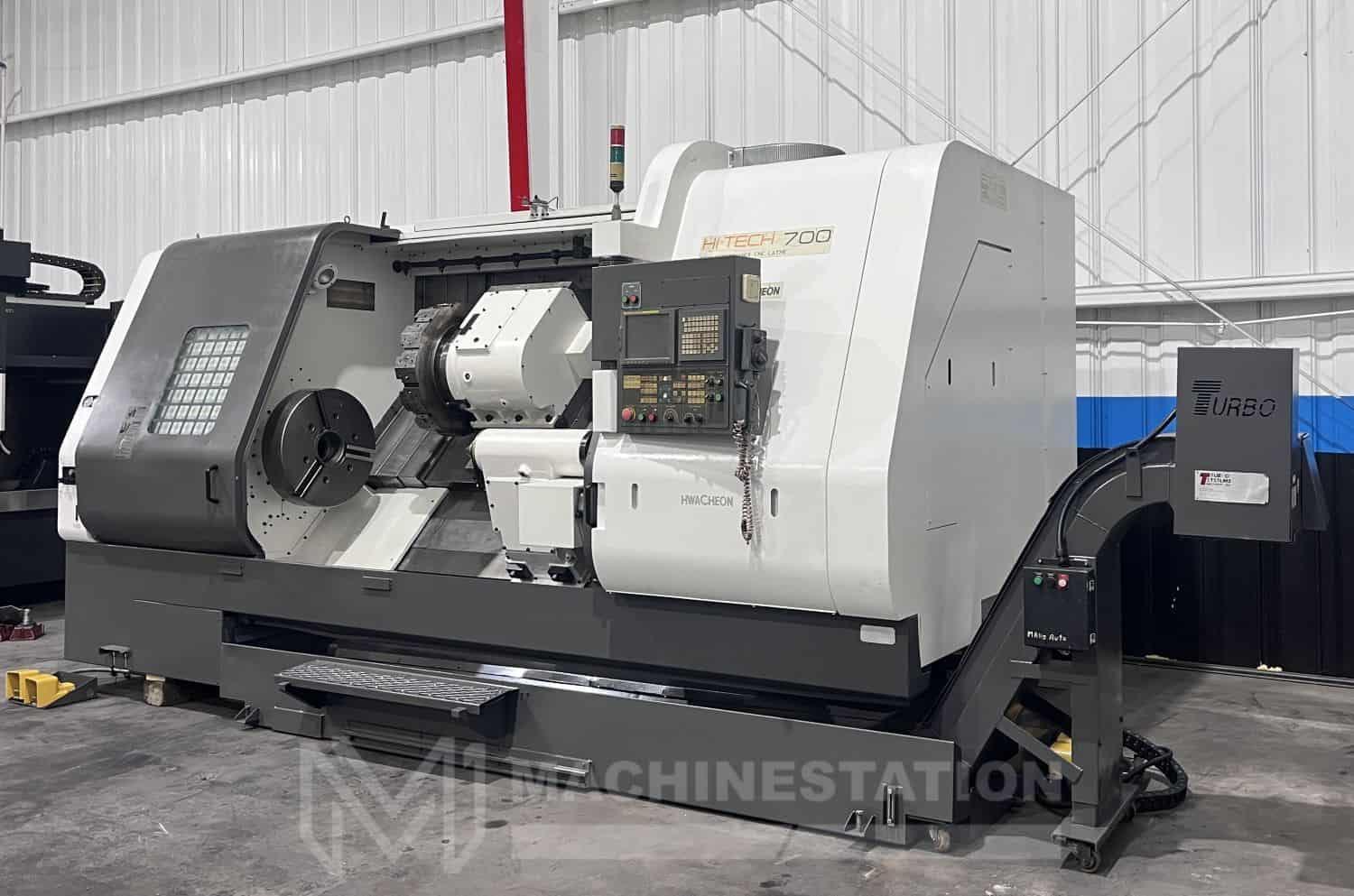

Hwacheon Hi-Tech 700 CNC Turning Center – Lathe

Brand
HWACHEON
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Make:HwacheonModel:Hi-Tech 700
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Hwacheon
Model:Hi-Tech 700
Year:2006
Condition:Used – Good



Equipped With:

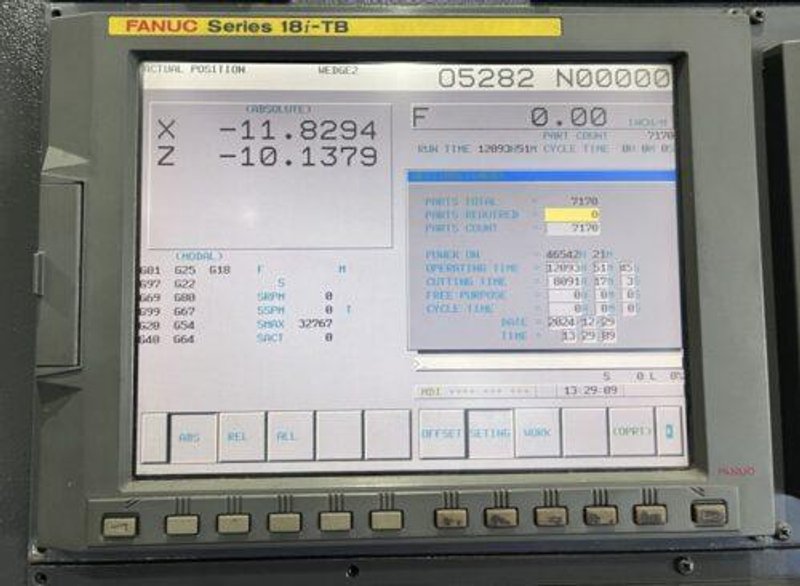

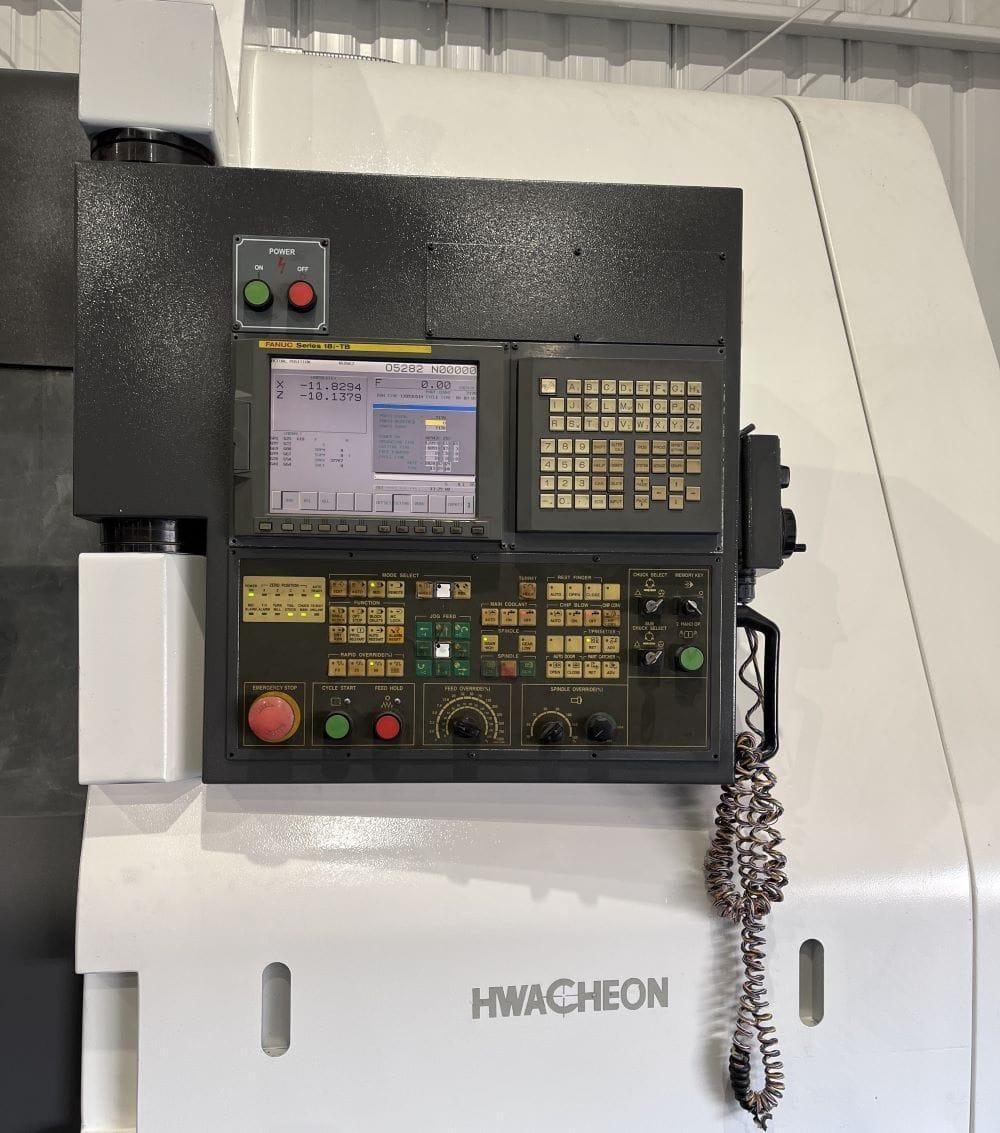

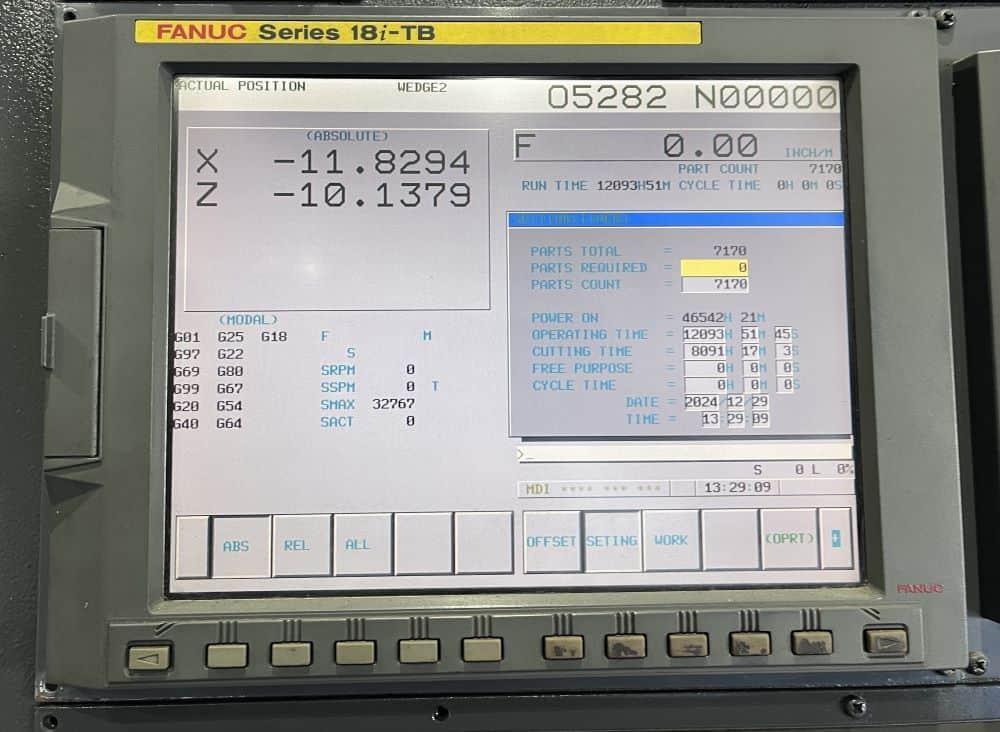

Fanuc 18i-TB CNC Control
Long Bed Box Way Machine

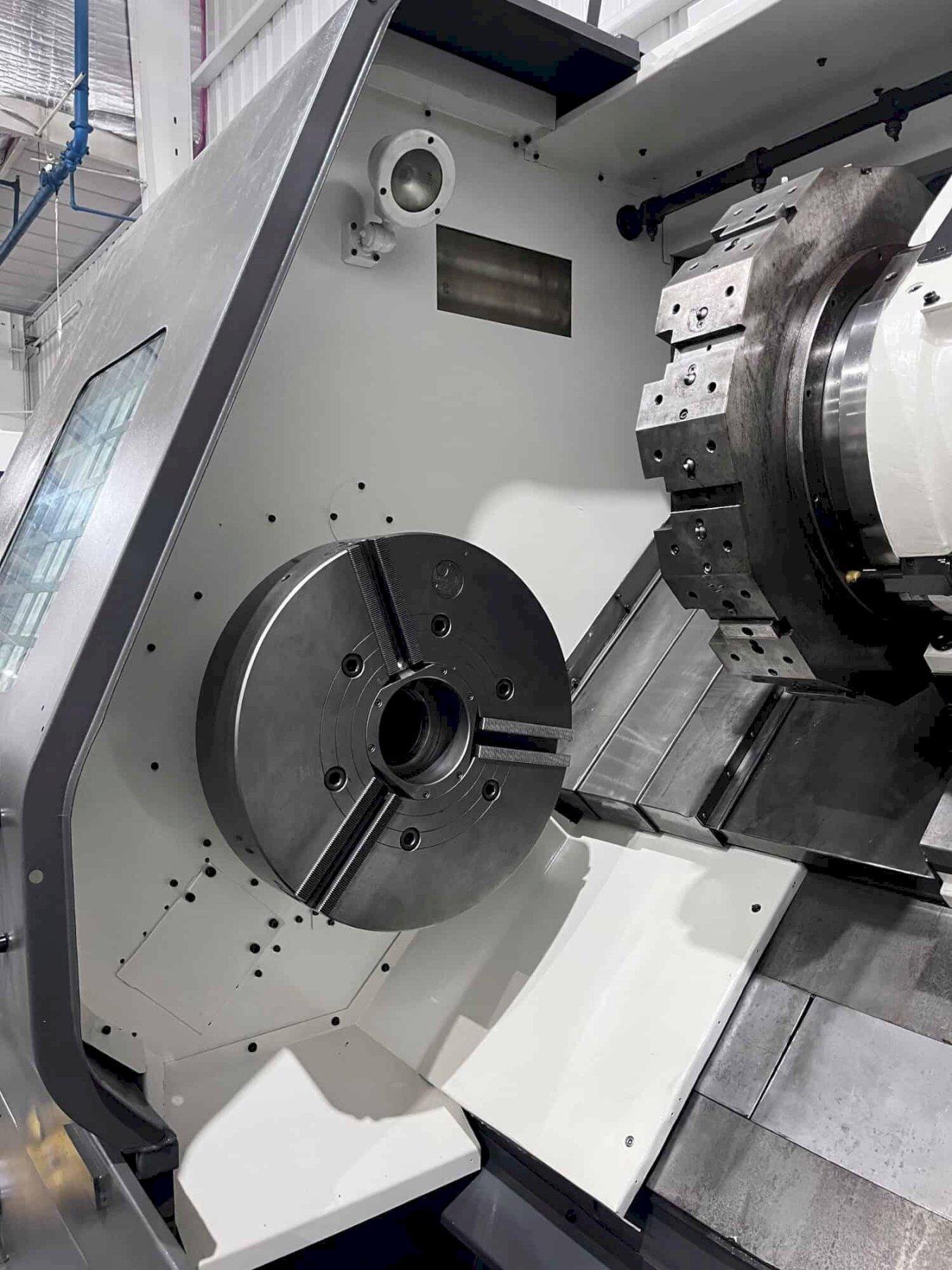

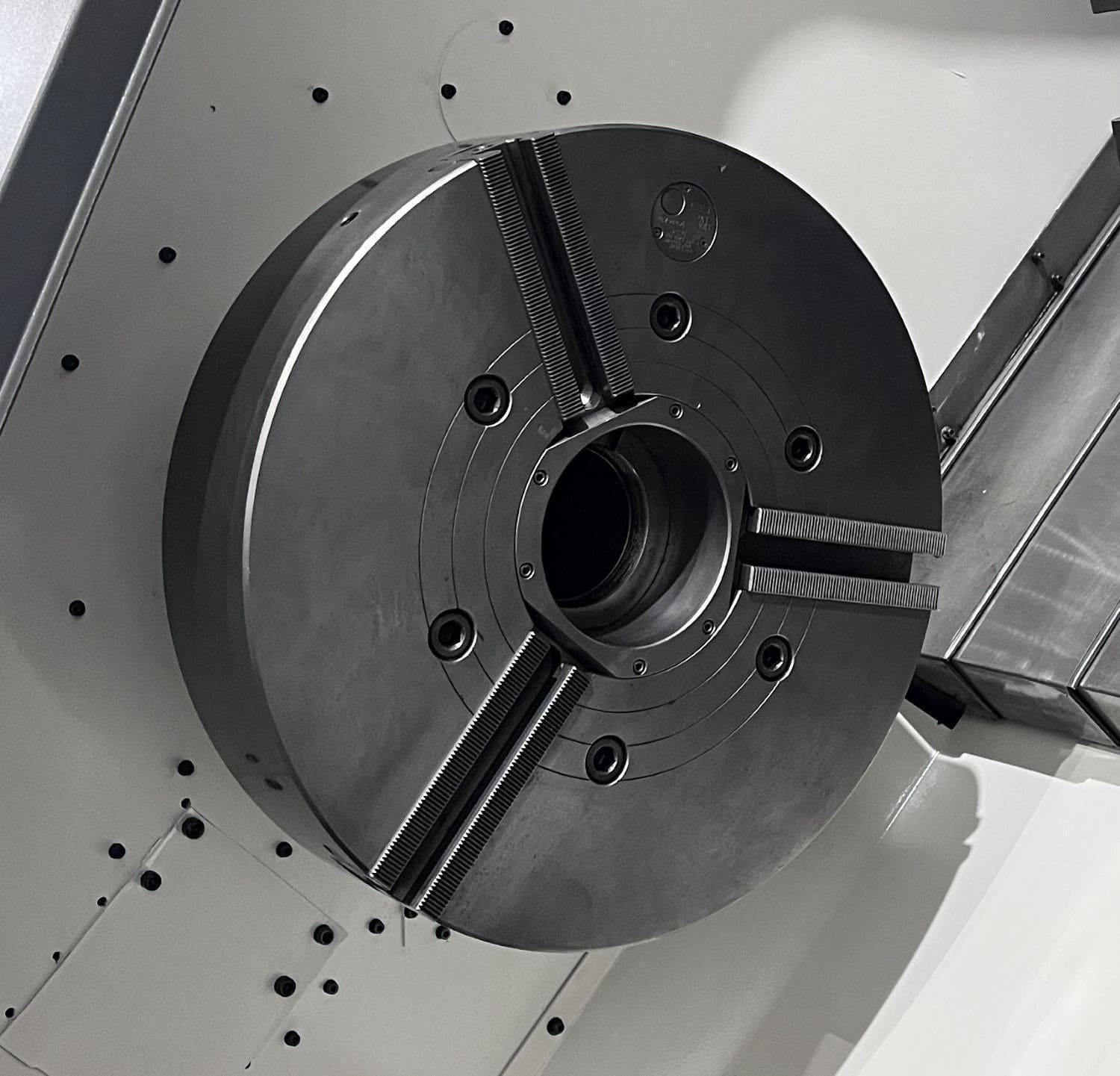

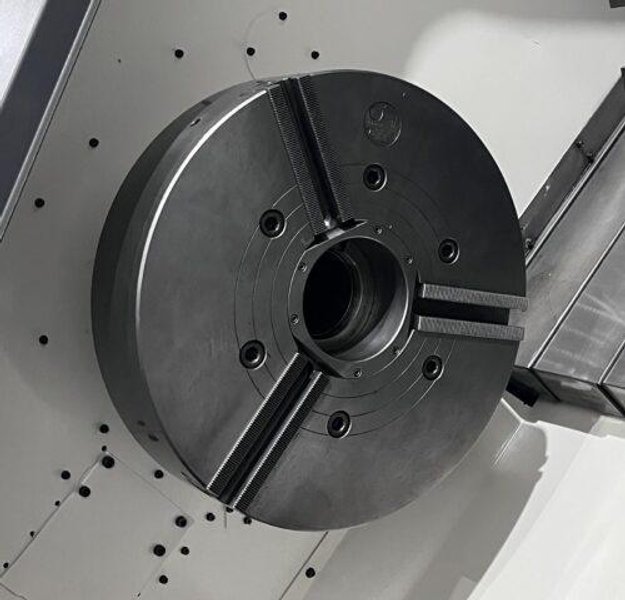

24″ 3-Jaw Hydraulic Chuck
5.20″ Big Bore, A2-11 Spindle

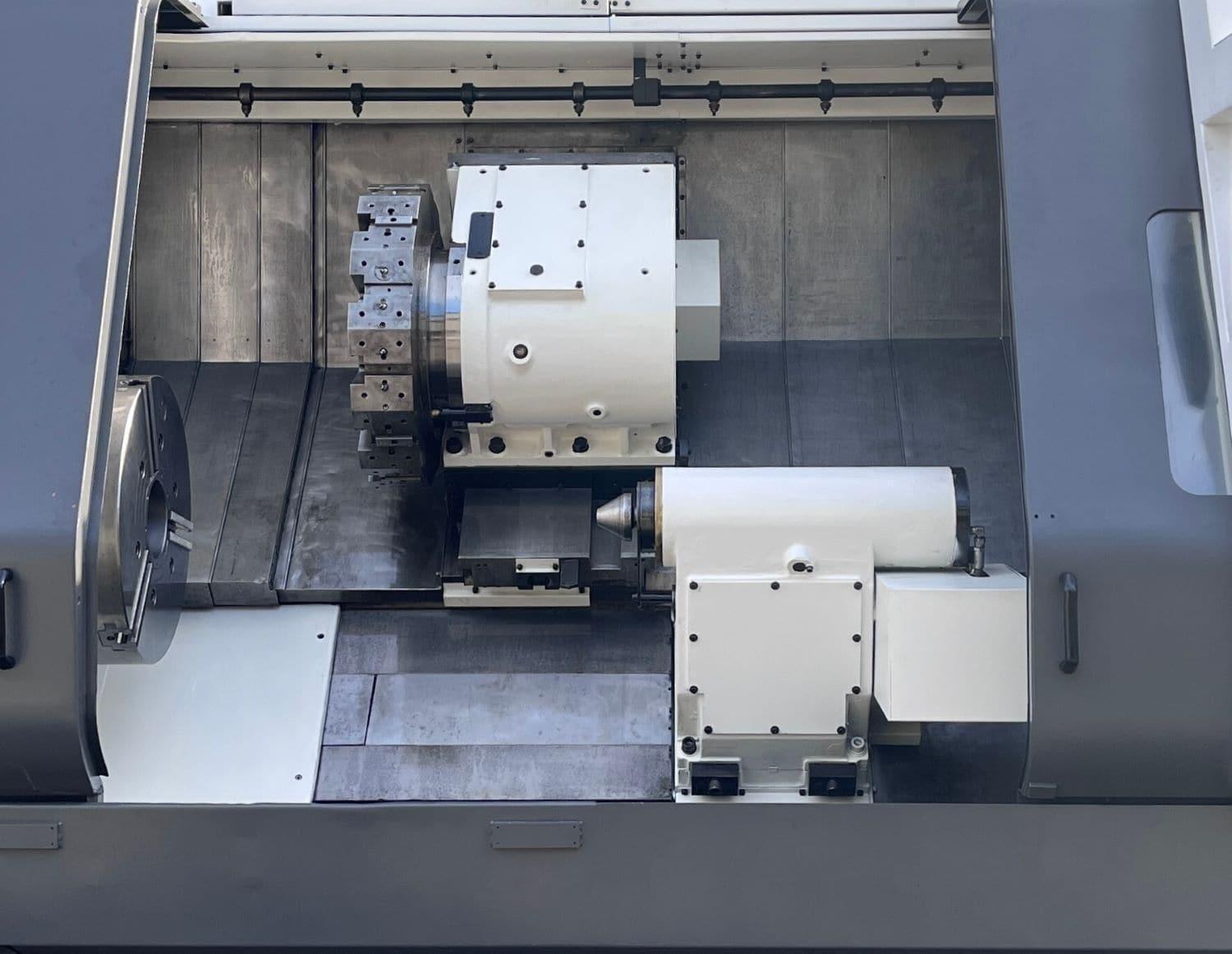

12 Station Automatic Turret
50 HP High Torque Spindle
High Precision Geared Head Spindle for powerful Torque

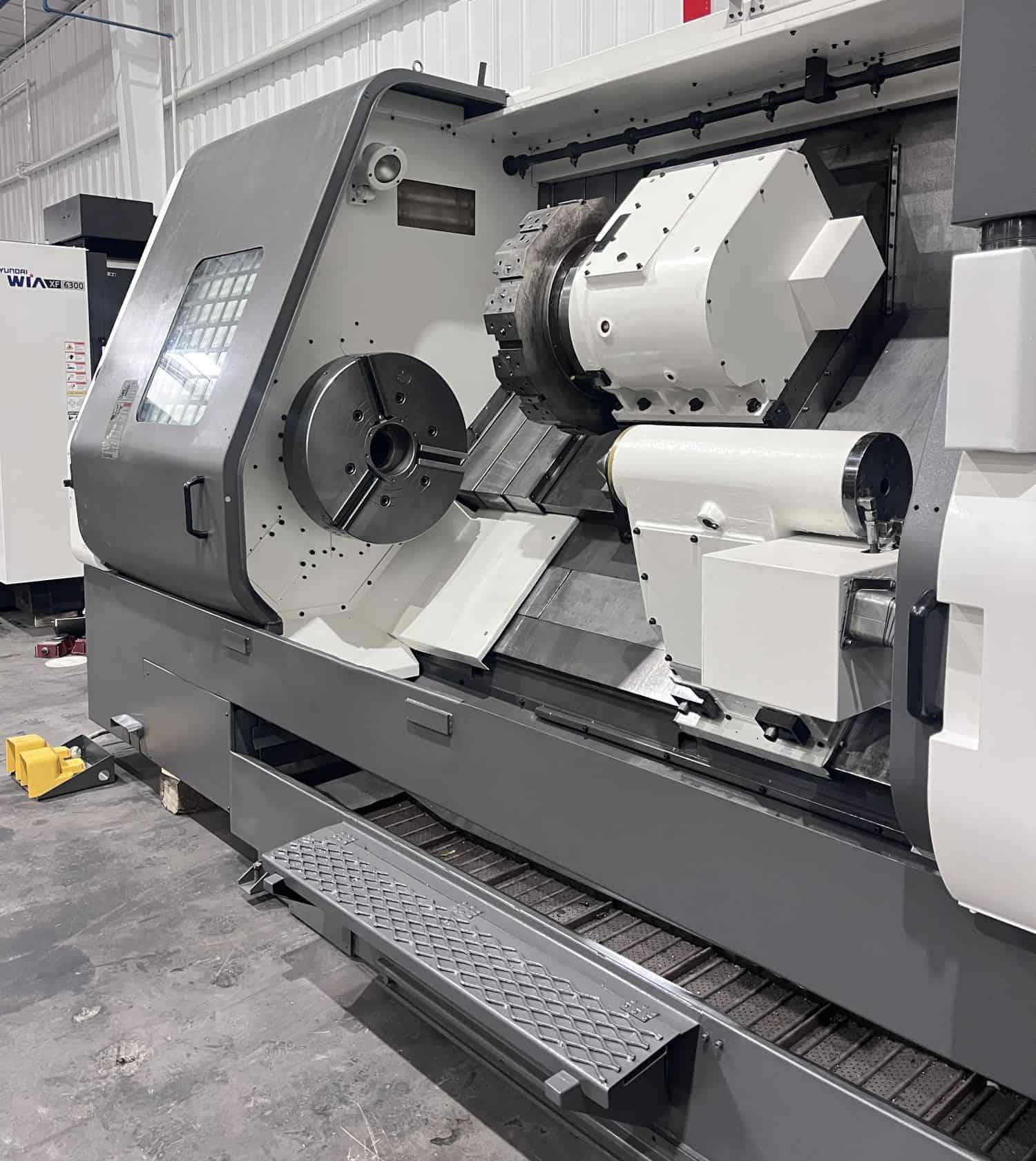

Hydraulic Tailstock and Power Quill
PCMCIA Card Interface
Coolant System
Chip conveyor
Foot Switches



Capacity:
Max Turning Diameter: 27.56″
Max Turning Length: 78.74″
Max Bar Capacity: 4.90″
Max Swing Over Bed: 35.43″
Distance Between Centers: 80.00″



Travel:
X Axis Travel: 15.16″
Z Axis Travel: 81.5″
Rapid Traverse X Axis: 708 IPM
Rapid Traverse Z Axis: 708 IPM



Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.20″
Spindle Speed: 0 – 1800 RPM
Spindle Motor: 50 HP



Turret:
Capacity: 12 Stations
Turret Index Time: 0.4 Second



Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Dia.: 5.90″
Tailstock Quill Travel: 5.90″



General:
Power: 220v / 75 kva / 3-Phase
Overall Dimensions: 200″ x 90″ x 100″ High Approx.
Weight: 33070 lbs. Approx.
