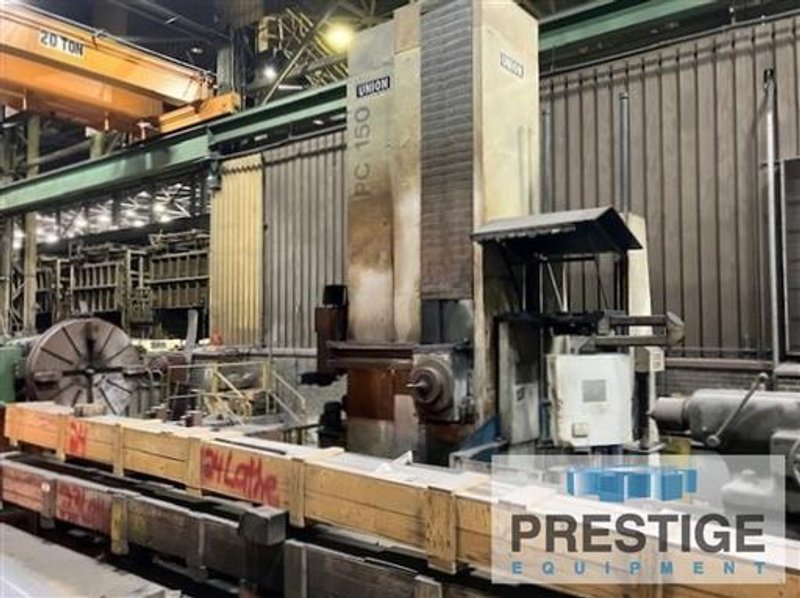

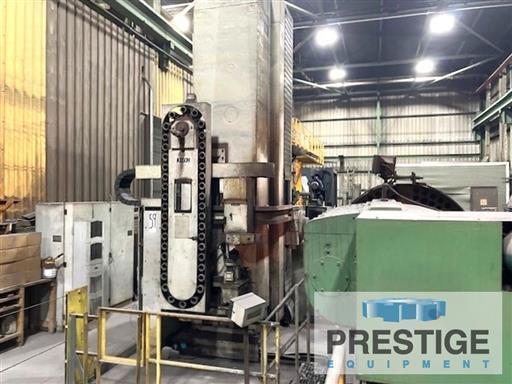

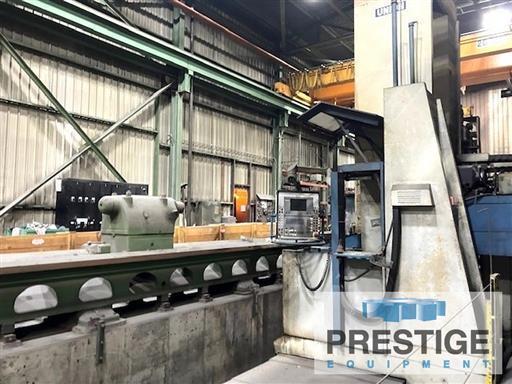

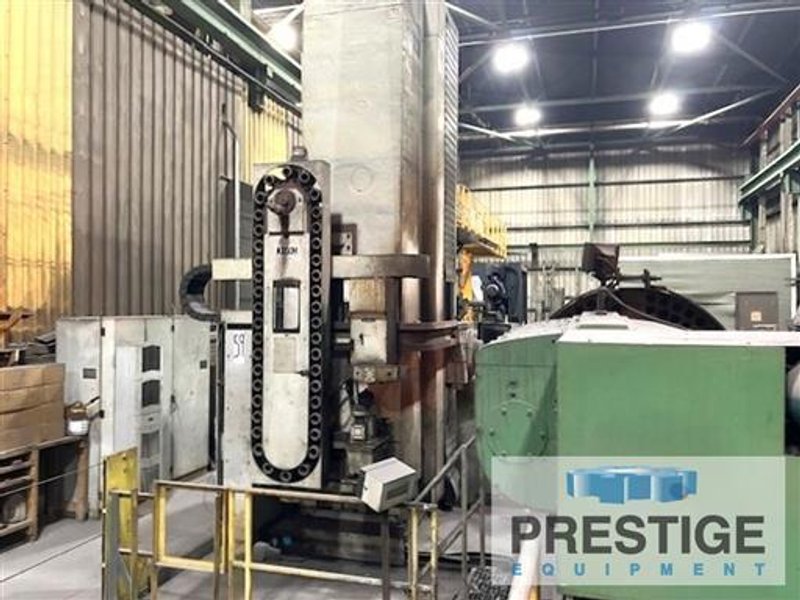

Union PC 150 5.9" Travelling Column CNC Horizontal Boring Mill

SPECIFICATIONS:
Spindle Diameter 5.90"
Taper In Spindle #50 ISO
Vertical Head Travel, Y-Axis 137.79"
Column Infeed Travel, X-Axis 393.37"
Spindle Travel, Z-Axis 31.5"
Column Infeed, W-Axis 29.5"
Spindle Speeds, Inf. Variable 5-2800 RPM
Speed Ranges 2
Feeds: X,Y,Z,W Axes 0-236.22 IPM
Maximum Feed Power X,Z,W Axes 25 KN
Maximum Feed Power Y Axis 16-25 KN
Feed Rate X,Y,Z,W Axes 0-236.22"
Rapid Feed Rate X,Y,Z,W Axes 590.55 IPM
Main Cutting Force 30 KN
Maximum Spindle Torque 2.500 Nm
Spindle Motor 50 HP/ 67 HP



Equipped With:

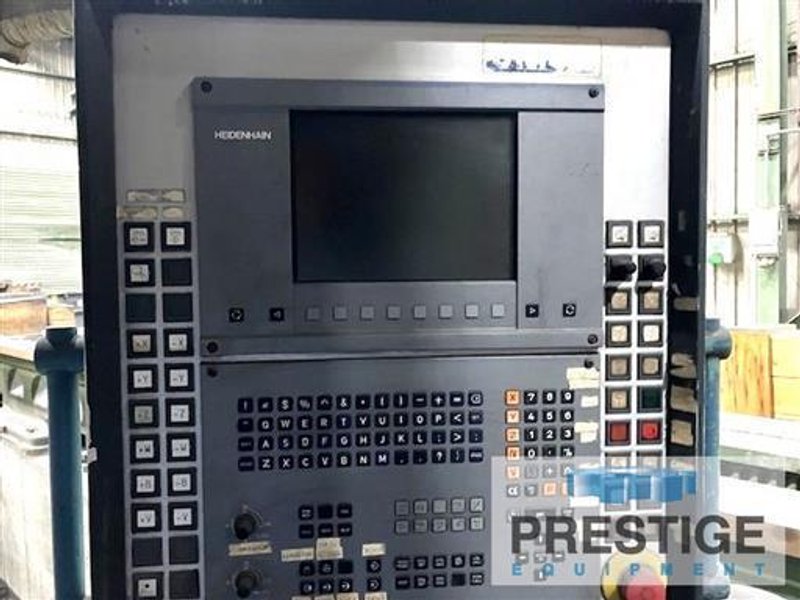

HEIDENHAIN iTNC 430 CNC Control
Remote Pendant
Coolant Thru Spindle 3 BAR
Elevating Operators Platform
Telescoping Steel Way Covers On Bedways
Steel Way Covers on Column
Full Length Chip Conveyor
