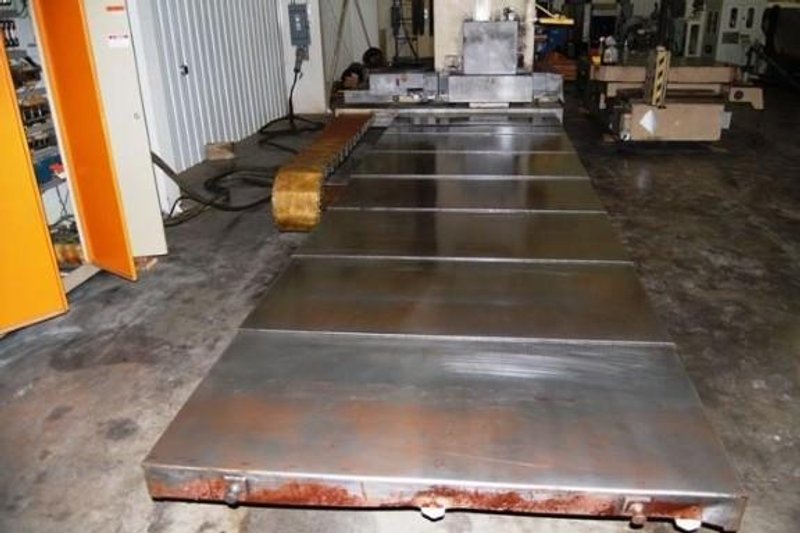

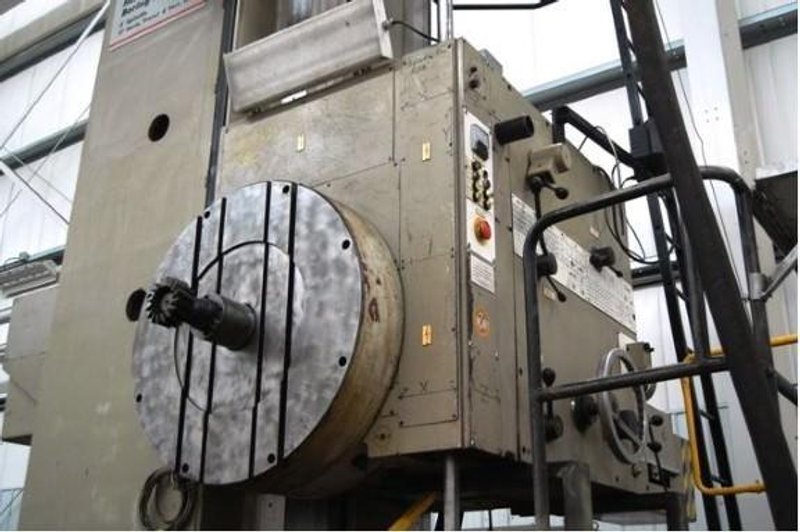

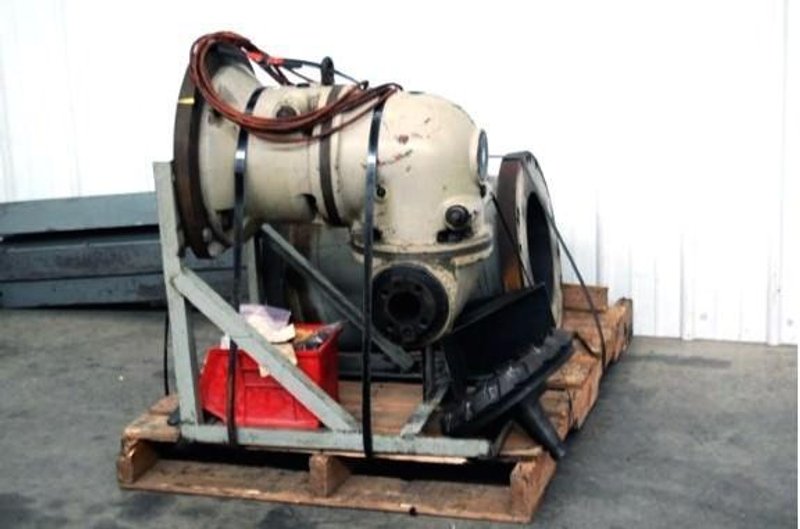

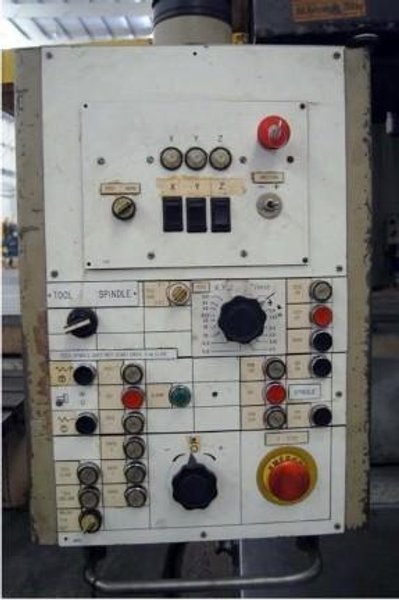

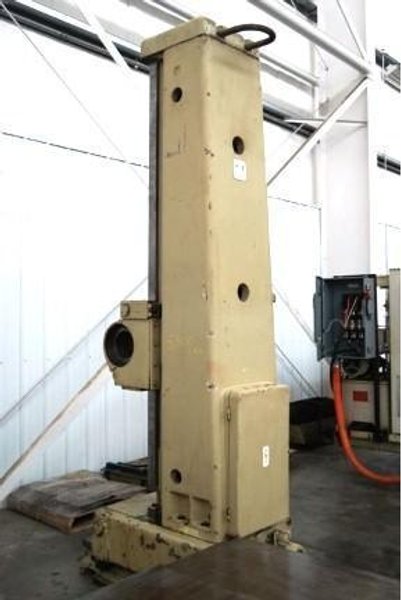

CAPACITY: Column Longitudinal Travel 18' 3" Column Travel Rack & Pinion Driven Head Vertical Travel 98" Head Vertical Travel Driven by Ball Screw & Fanuc Servo Motor Column Cross Travel 15.7" Column Cross Travel Driven by Ball Screw & Fanuc Servo Motor Spindle Travel 39" (27) Spindle Speeds 4.5 to 900 RPM Spindle Taper #50 with Power Draw Bolt Facing Plate Diameter 34" (covers the facing head) Facing Head Diameter 30.9" Diameter (18) Facing Head Speed 4.5 to 180 RPM Facing Head Travel 12.59" Spindle Feeds .03 to 48 MM Per Rev., & .0016 to 2.00 TPR (36) Feeds to Head & Column (L,W,H) .024 to 78.7 IPM Equipped With: Rapid Traverse Facing Head Universal Right Angle Milling Head with 24-1/2" Long Extension Tailstock with 78" Power Vertical Travel & 39" Power Longitudinal Travel on the Base 3-Axis Acu Rite DRO: Head Vertical Travel, Column Cross Travel & Spindle Travel Pendant Control Sliding Metal Way Covers on the Bed Wedge Type Leveling Pads All Hard Ways Spindle Drive Motor: 18.5 KW, 3/60/480V Note: In 1989 Upgraded Ball Screws & Fanuc Servo Drive to the Head Vertical Travel & the Column Transverse Travel. SHIPPING SIZES: Bed & Column Base, (L,W,H) 35' x 104" x 40" Bed & Column Base 27,000 Lbs. Head, (L,W,H) 128" x 49" x 51" Head 11,000 Lbs. Column, (L,W,H) 13' x 48" x 68" Column 12,500 Lbs. Tailstock, (L,W,H) 92" x 36" x 124" Tailstock 5,500 Lbs. Right Angle Attach. & Exten. (L,W,H) 4' x 40" x 40" Right Angle Attach. & Extension 1,250 Lbs. Overall Machine Assembled 35' x 170" x 221" Note: In 1989 Upgraded Ball screws & Fanuc Servo Drive to the Head Vertical Travel & the Column Transverse Travel. Currently we believe there are 2 Fanuc control cards that are NOT functional and thus the machine control does not boot up and that makes the machine not operational. When the machine did work it worked fine. This is NOT a cnc machine. It still uses the manual pendant for operational control. |
