2002 UNION KCX 130 | Boring Mills, Horizontal, Floor Type

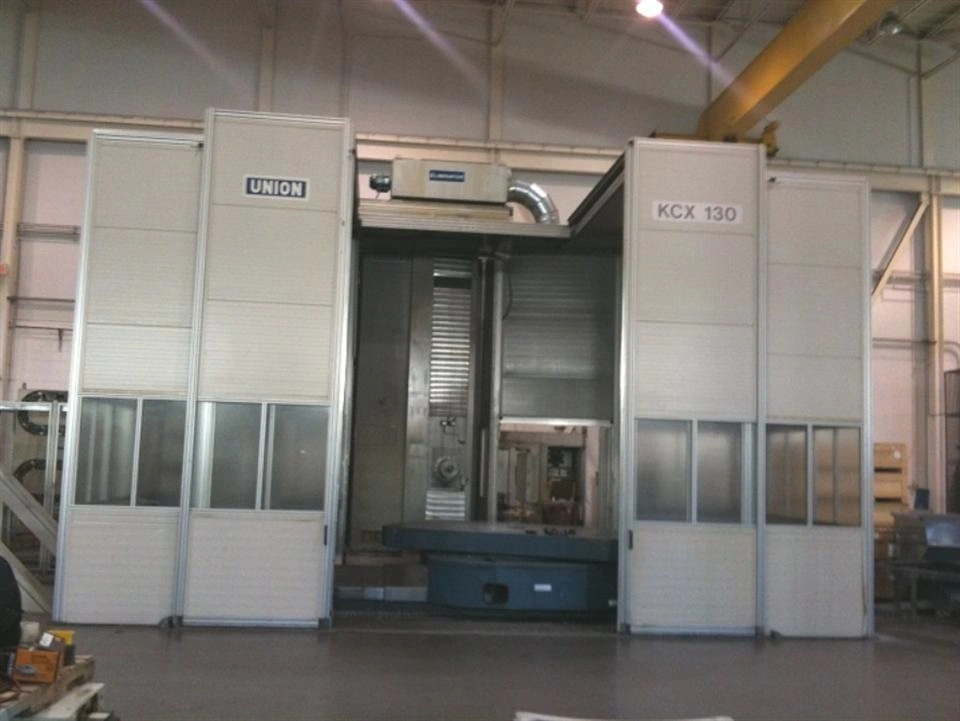

5" UNION KCX 130 CNC TABLE TYPE HORIZONTAL BORING MILL,

New: 2002

Manufacturer: UNION

Model: KCX130

Year: 2002

Spindle Diameter................................­... 5.11"

Table Size....................................­..... 100" x 80"

Table Load Capacity................................ 80,000 LBS

Table Cross Travel (X-Axis)........................ 157"

Spindle-Head Vertical Travel (Y-Axis).............. 118.1"

Spindle (Quill) Travel (Z-Axis)...................... 29.52"

Saddle Longitudinal Travel (W-Axis)................ 60"

Spindle Taper...................................­... #50 CAT

Spindle Horsepower(30 min/cont).................... 60 HP

Spindle Speeds (Infinite in 4 ranges).............. 6 to 6000 RPM

Feeds Rates All Axis....................................­....... 0 - 590 IPM

Electrics...............................­........... 240/460/3/50

Approximate Machine Dimensions..................... 296" x 328"

Approximate Machine Height......................... 202"

Weight (approx.) 73,000 Lbs

EQUIPPED WITH:

Heidenhain TNC426 CNC Control, 8 Gig Memory, Ethernet Connection

120 Station Automatic Tool Changer

80" x 100" Full Contouring Rotary Table (360,000 Positions)

Heavy Duty Cat-50 Spindle, (4) Gear Ranges

Thru-Spindle Coolant

Dual Chip Conveyors

Full Enclosure

Coolant Tank With Filter System

Used In All Aluminum Machining Shop
