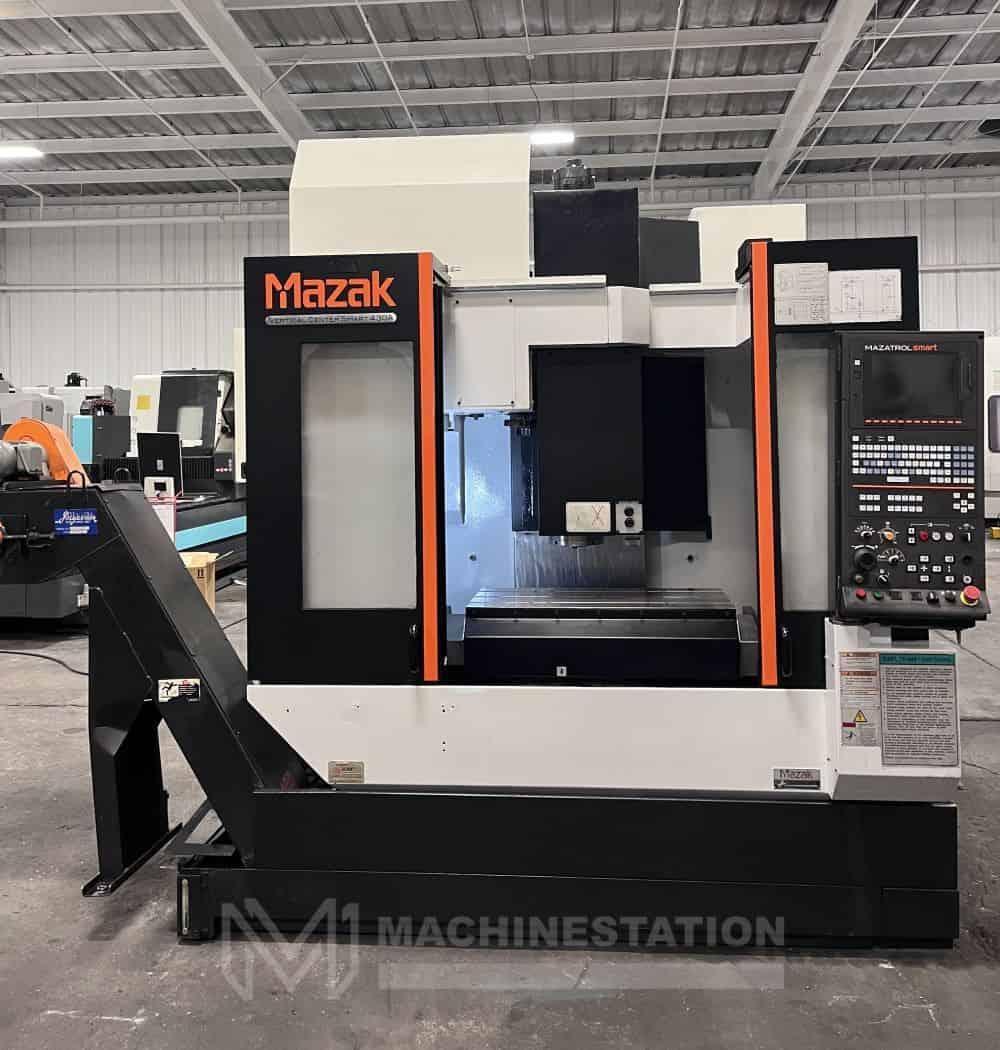

Mazak VCS-430A CNC Vertical Machining Center

Mazak VCS-430A CNC Vertical Machining Center

Brand

MAZAK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mazak
Model:	VCS-430A
Year:	2011
Condition:	Used – Good

Key Features of the Mazak VCS-430A:

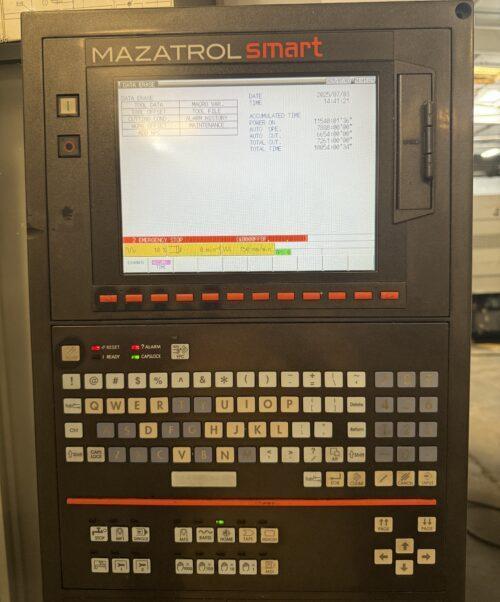

Mazatrol Smart CNC Control
12,000 RPM High-Speed Spindle
30 Station Automatic Tool Changer
25 HP High Torque Spindle
1654 IPM Fast Rapid Traverse
Through Spindle Coolant – 300 psi
36.22″ Front Door Open
Rigid Tapping
Spindle Orientation
Coolant System
Chip Conveyor
Automatic Lubrication System
Books & Manuals
Leveling Pads

Travel:

X-Axis: 22.05″
Y-Axis: 16.93″
Z-Axis: 20.08″
Rapid Traverse Rates: 1654 Inch Per Minute
Cutting Feedrates: 987 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

Table:

Length: 35.43″
Width: 16.93″
Number of Std T-Slots: 3
Max Weight on Table: 1102 lbs

Spindle:

Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:

Capacity: 30 Tools
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.25″ – 4.93″
Max Tool Length: 13.78″
Tool Changing Time: 1.3 Seconds

General:

Air Required: 100 psi 4 scfm
Power: 220v / 35 kva / 3-Phase
Overall Dimensions: 103″ x 81″ x 109″ High
Weight: 10,600 lbs Approx.
