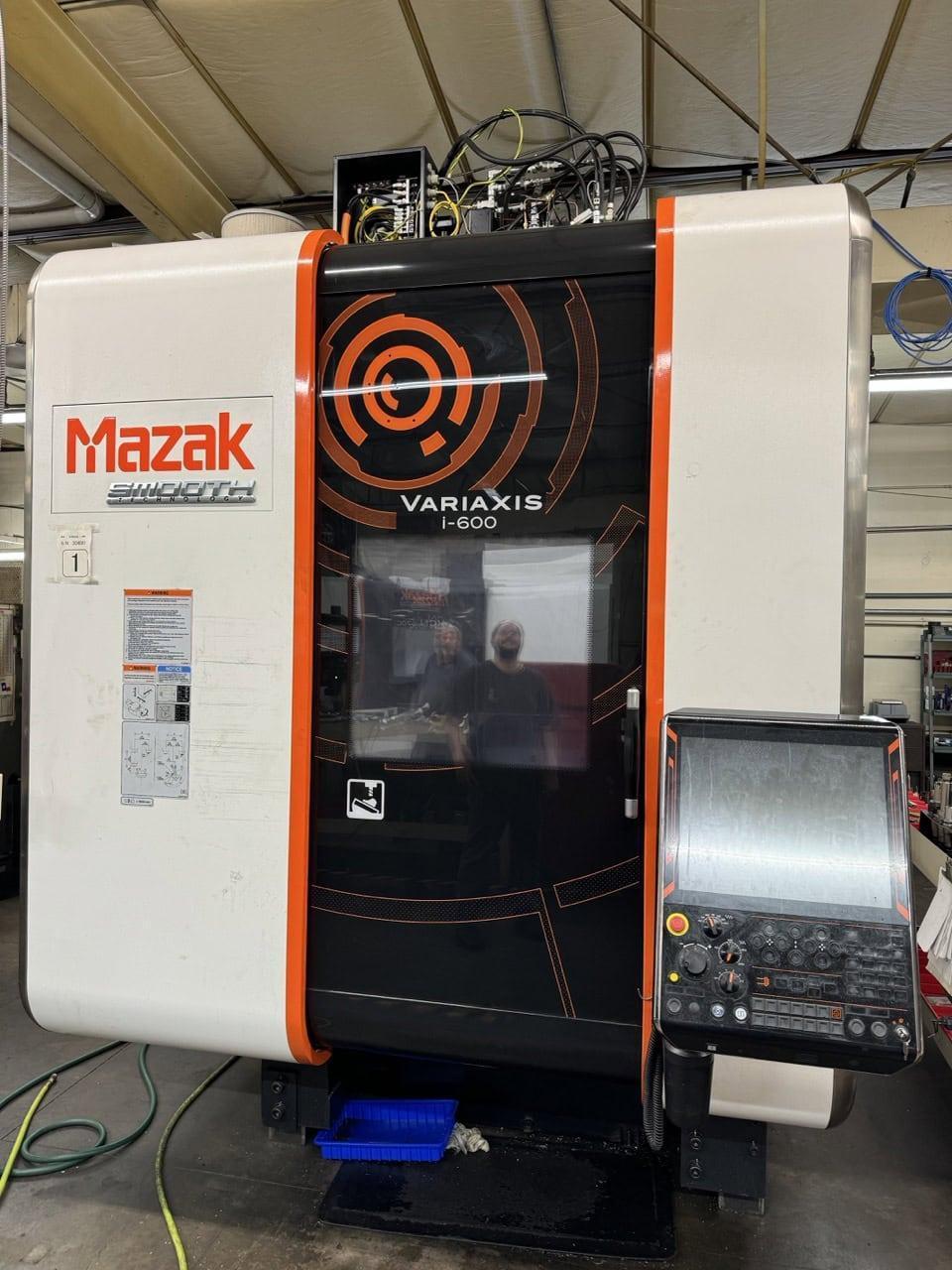

Mazak VARIAXIS i-600 VMC, 2020 – CAT-40, Coolant Thru Spindle

Axis Travels & Table X-Axis Travel: 20.08″ Y-Axis Travel: 35.83″ Z-Axis Travel: 20.08″ Table Diameter: 23.62″ Max Workpiece Size: 27.56″ diameter × 17.72″ height Weight: 28,889 Lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle & Tooling Spindle Taper: CAT 40 Spindle Speed: 18,000 rpm Spindle Power: 30 hp Tool Magazine Capacity: 40 tools

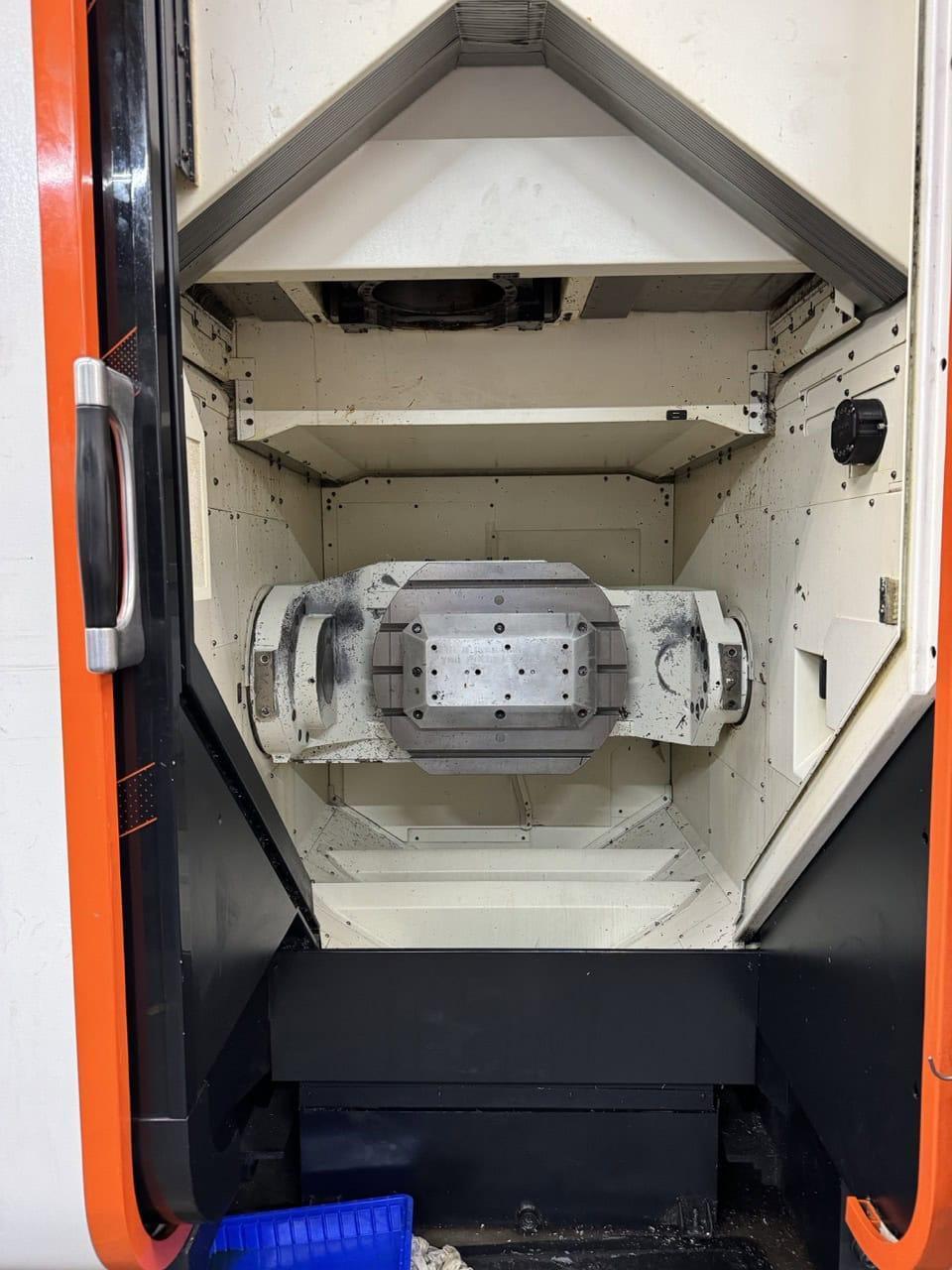

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotary Axes A-Axis Tilt: ±160° C-Axis Rotation: 360° continuous

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Thru Spindle Coolant Thru Spindle Blast 1000 PSI Programmable TSC Renishaw Probe Ready

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
