Mazak VC 500C CNC Vertical Machining Center – 2020 Mill

Mazak VC 500C CNC Vertical Machining Center – 2020 Mill

Name: Used MAZAK VC 500C For Sale 112845
Brand: MAZAK
SKU: 112845

Brand

MAZAK

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112845
Make:	Mazak
Model No.:	VC 500C
Year of Manufacture:	2020
Condition:	Used – Excellent

Equipped With:

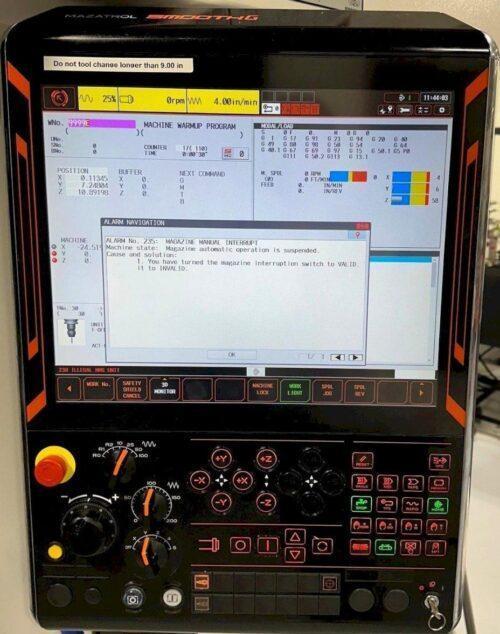

Mazatrol SmoothG CNC Control
12,000 RPM High Speed Spindle
Renishaw Probing System (Probe Included)
Tool Presetter
Through Spindle Coolant
30 Station Automatic tool changer
25 HP High Torque Spindle
CAT-40 Taper Spindle
Rigid Tapping
Coolant System

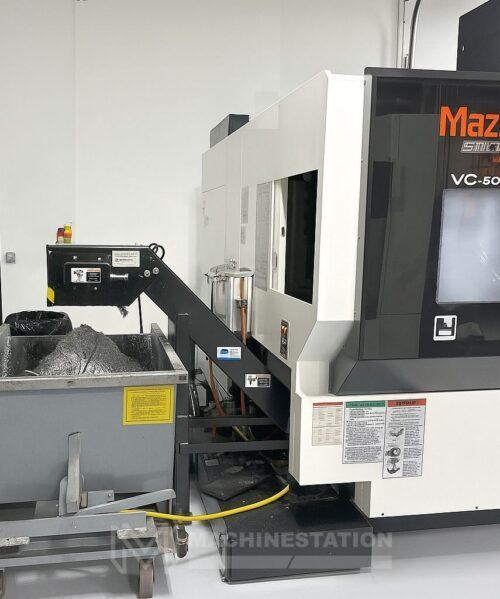

Chip Conveyor

Travels:
X-Axis: 39.37″
Y-Axis: 19.88″
Z-Axis: 20.07″
Rapid Traverse Rates Axis: 1181 IPM
Spindle Nose to Table (Min.- Max.): 1.57″ – 21.65″

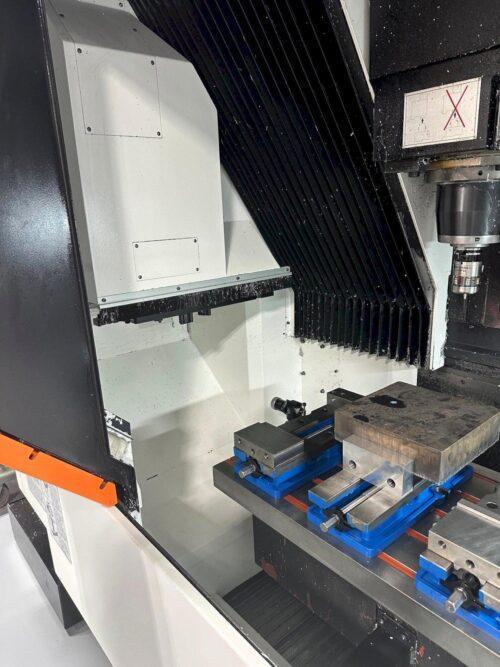

Table:
Length: 41.33″
Width: 19.69″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1300 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Dia: 3.15″
Max Tool Length: 10.23″

General:
Air Required: 80 psi, 4 scfm

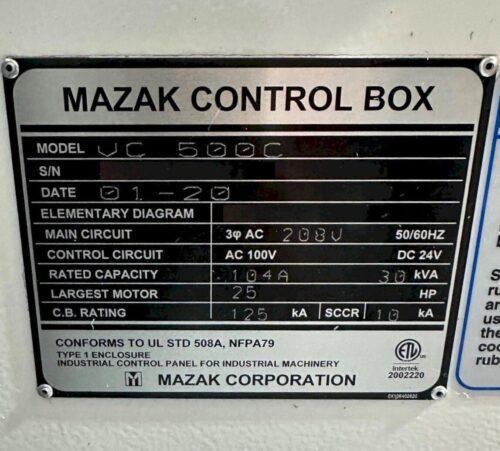

Power: 208v / 30 kva / 3-Phase / 50/60 Htz
Overall Dimensions: 108.27″ x 125″ x 131.81″ High
Weight: 14,000 lbs Approx.

No files or videos to display
