1999 LEADWELL LTC-30BPL | Lathes, Bar, CNC

Brand
LEADWELL
Category
Lathes & Turning Machines
Type
Lathes, Bar, CNC
Model
LTC-30BPL
Stock #
33760
Year
1999
Condition
Not specified

Location

Not specified
REQUEST FINANCING

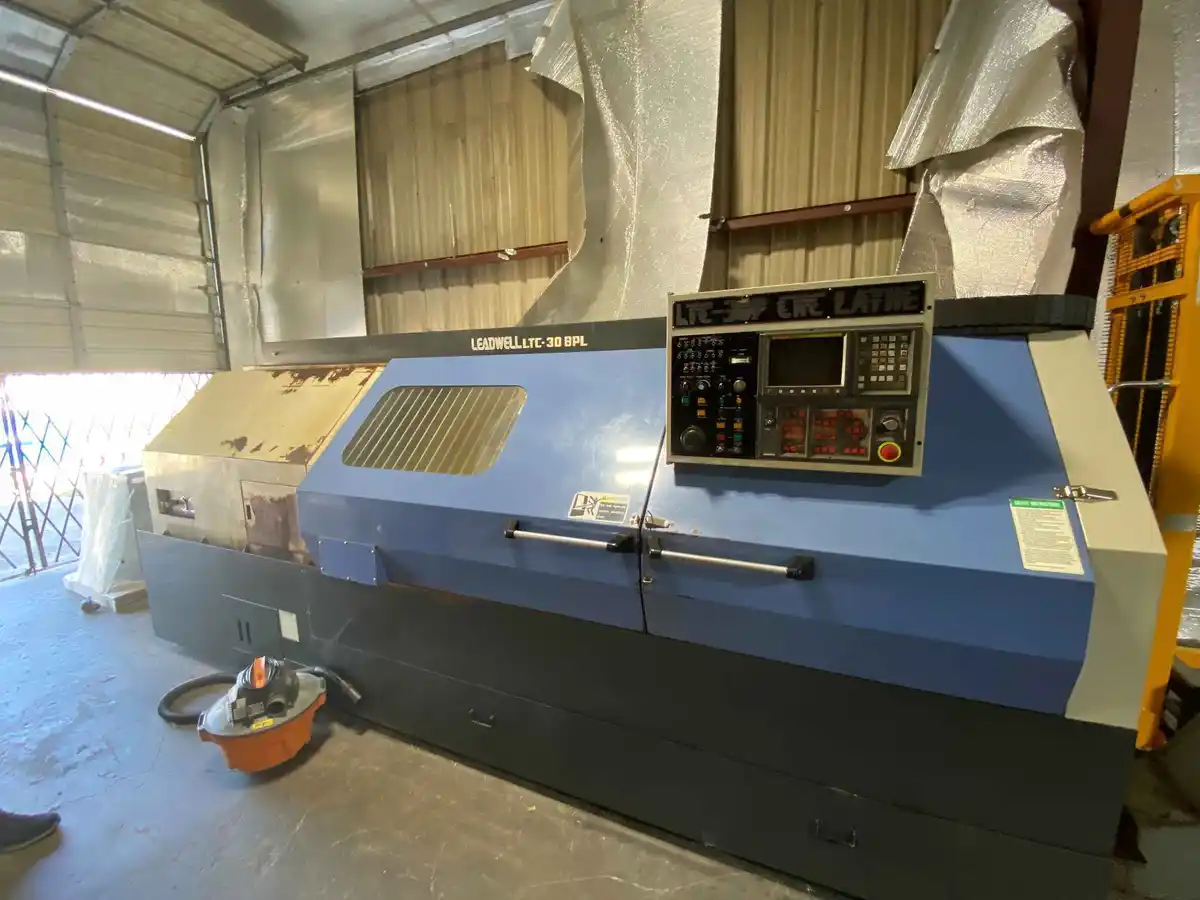

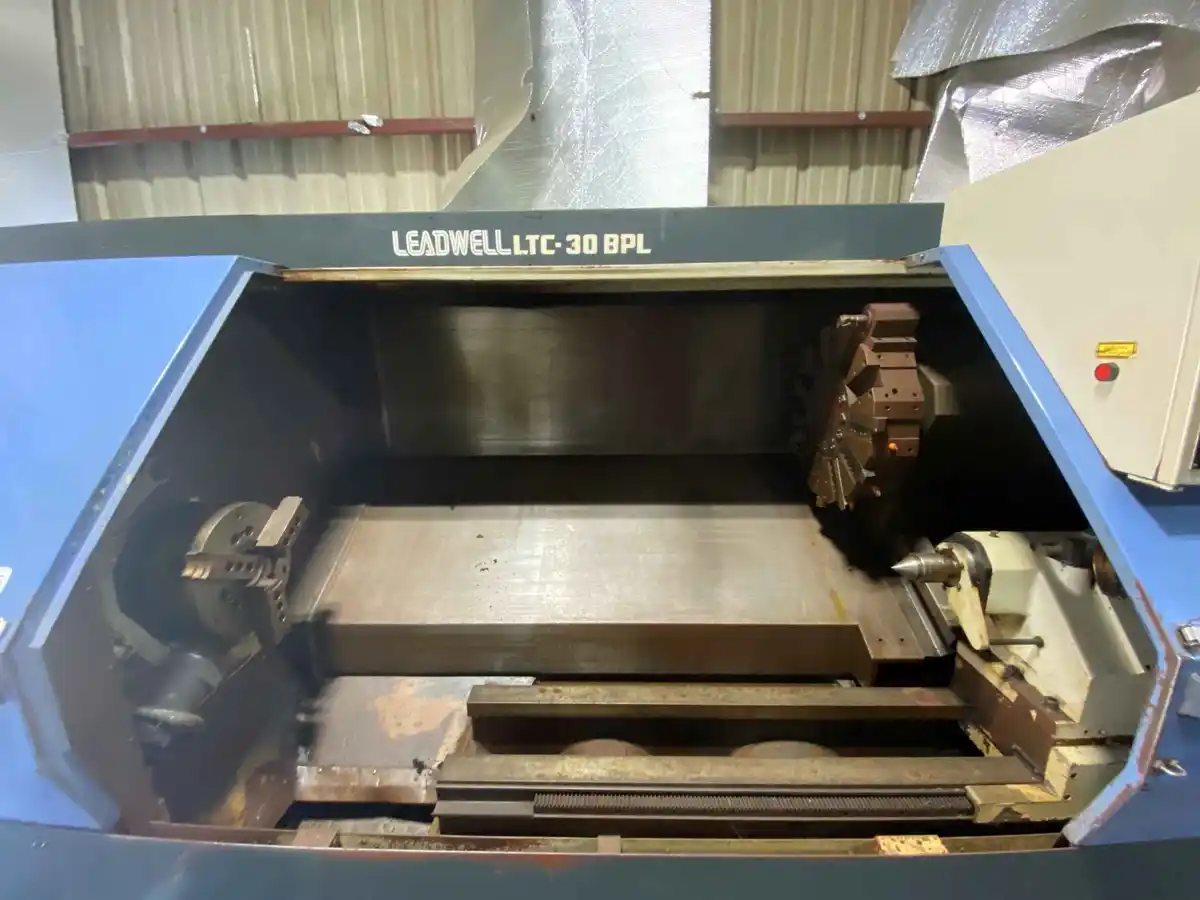

1999 Leadwell LTC-30BPL Long Bed CNC Lathe - w/ Tailstock, Chip Conveyor

Chuck Size12"304.8 mm

Leadwell LTC-30BPL Long Bed CNC Lathe
New: 1999

Specifications:
Swing Over Bed: 25.6"
Distance Between Centers: 40.0"
Max. Machining Diameter: 18.9"
Max. Machining Length: 54"
Chuck: Hydraulic 3-Jaw 12″
X-axis Travel: 10.4"
Z-axis Travel: 60"
Spindle Speed: 2500 Rpm
Bar Capacity: 3"
Spindle Nose: A2-8
# Of Tool Positions: 12
Rapid Feed Rate: X-axis: 393 Ipm
Rapid Feed Rate: Z-axis: 472 Ipm
Tail Stock Quill Diameter: 4.33″ (5MT)
Tailstock Quill Stroke: 4.92″
Main Motor: 35 Hp

Equipped With:

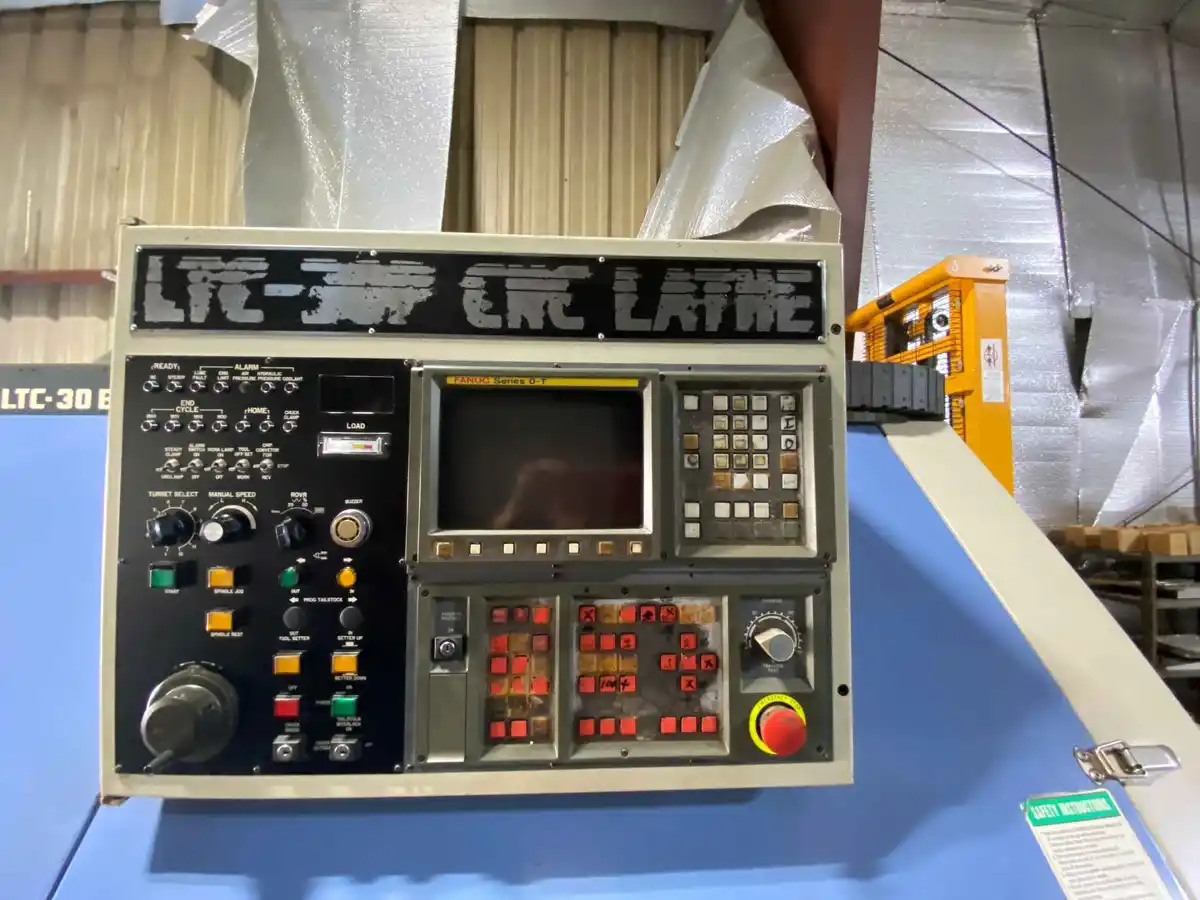

Fanuc OT Control
Tailstock
Tool Setter
Chip Conveyor
Long Bed
