1999 HITACHI SEIKI HT23J | CNC & N/C Controls

1999 HITACHI SEIKI HT23J | CNC & N/C Controls

Brand

HITACHI SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

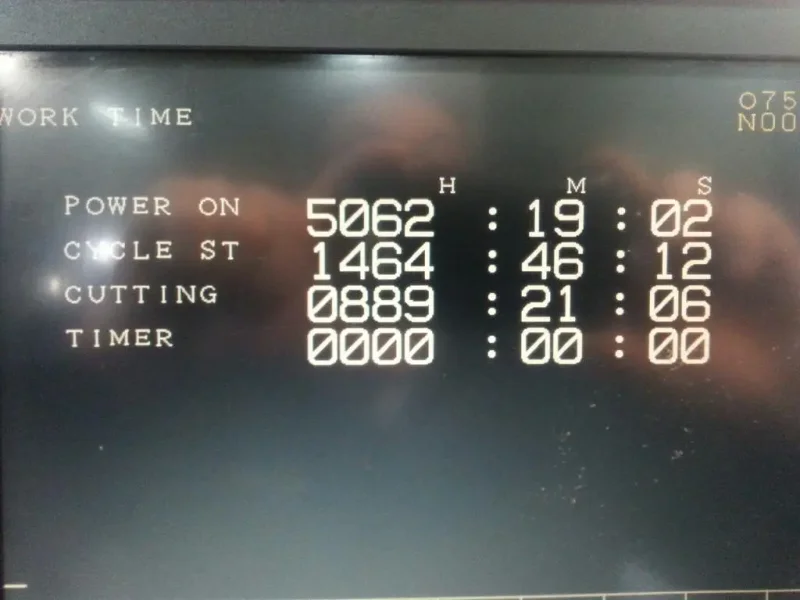

Hitachi Seiki HT23J, 1998, 17.7" Swing, 10" Chuck, 13" Dia, 24" Length, 4K RPM, 2.6" Bar Cap, Seicos J300L Ctrl, Tailstock, Low Hours!

Specifications

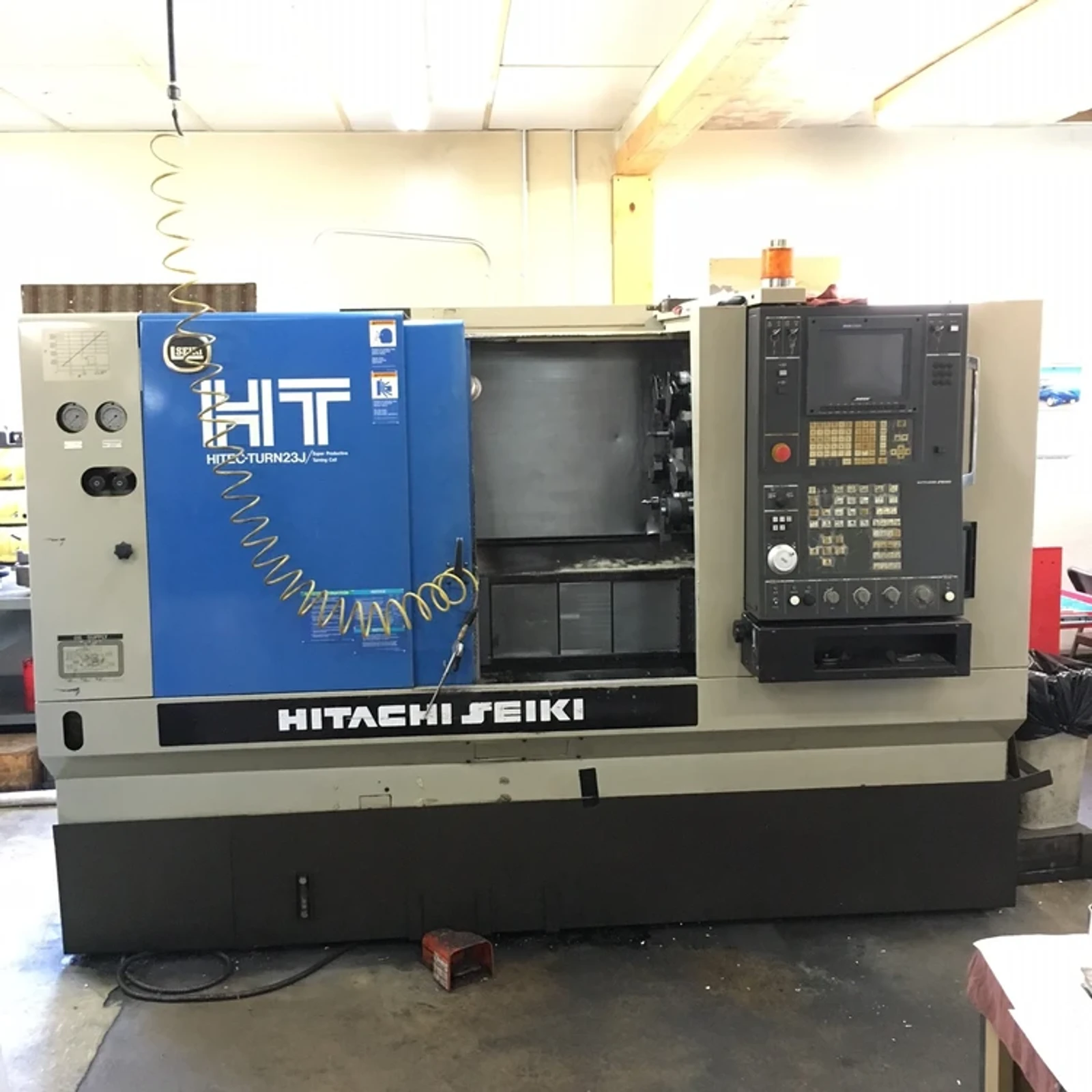

Hitachi Seiki HT23J CNC Turning Center
New: 1999

Specifications:
Swing Over Bed: 17.7"
Chuck Diameter: 10"
Max. Machining Diameter: 13.38"
Max Machining Length: 23.6"
Bar Capacity: 2.6"
X-Axis Travel: 9"
Z-Axis Travel: 24.8"
Spindle Speed: 30-4000 RPM
Spindle Nose: A2-8
Diameter of Spindle Thru Hole: 3"

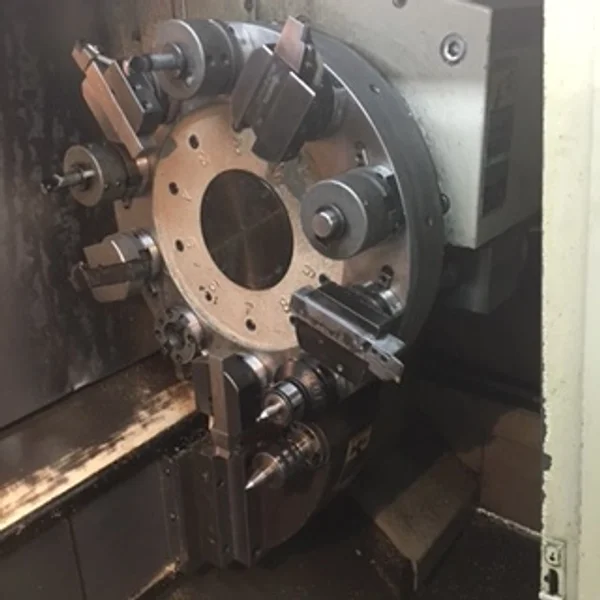

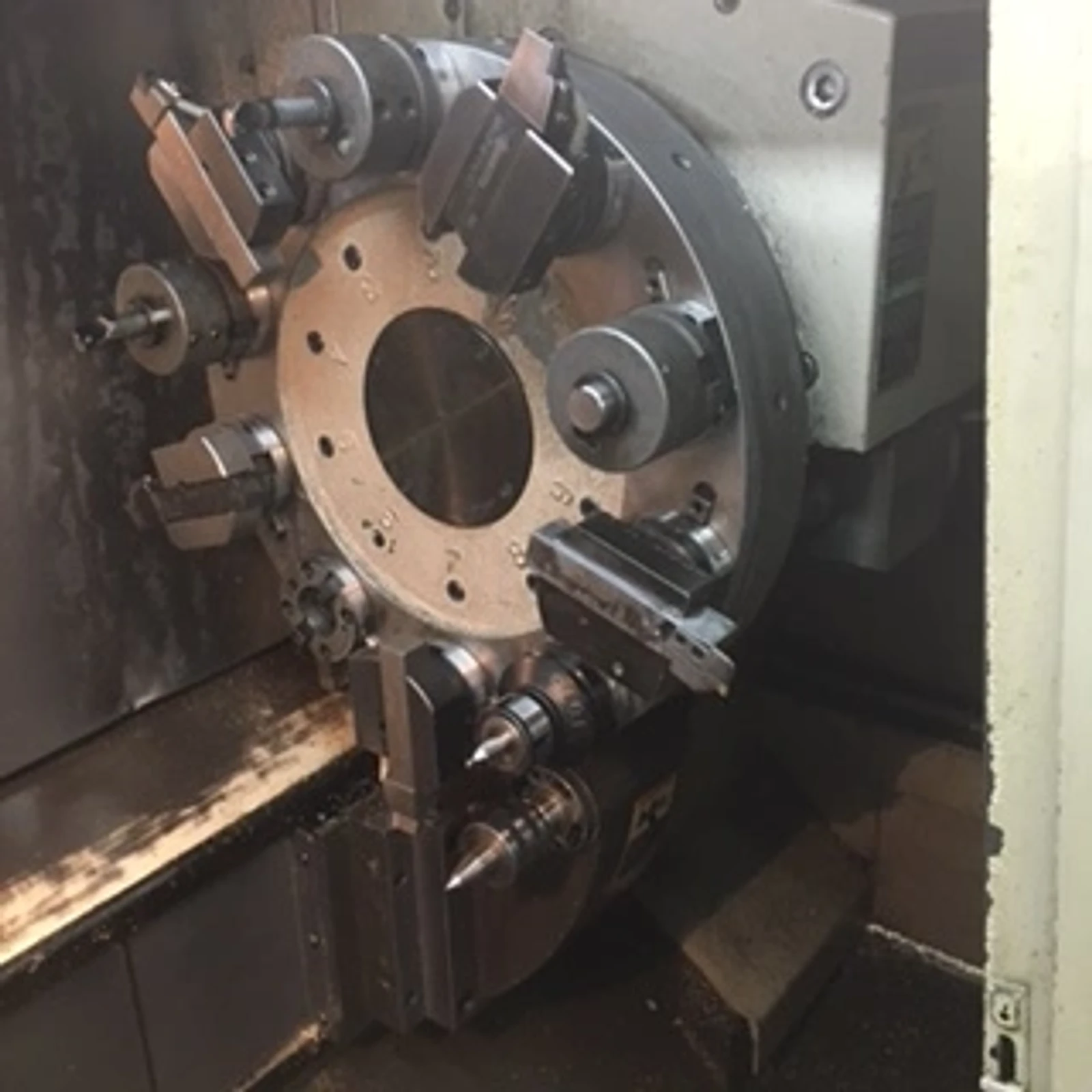

Type of Turret: 10 Pos. KV
Shank Square of Square Bit: 1"
Shank Dia. of Boring Bar: 1.5"
Rapid Traverse X/Z: 1181 IPM
Tailstock Taper: MT#5
Tailstock Stroke: 20.4"
Method of Tailstock Travel: Power Operation
Spindle Motor: 20 HP
Approx Weight: 10,560 Lbs

Equipped With:
-Seicos J300L Multi Control (Yasnac)
-10" 3-Jaw Hydraulic chuck
-Toolsetter
-10 Position KV Turret
-Tailstock
-All Available Toolholders and Manuals

No files or videos to display
