2011 Trumpf TruPulse 62 with ILT 1000 Laser Workstation & Laserex 400i Fume Extraction System

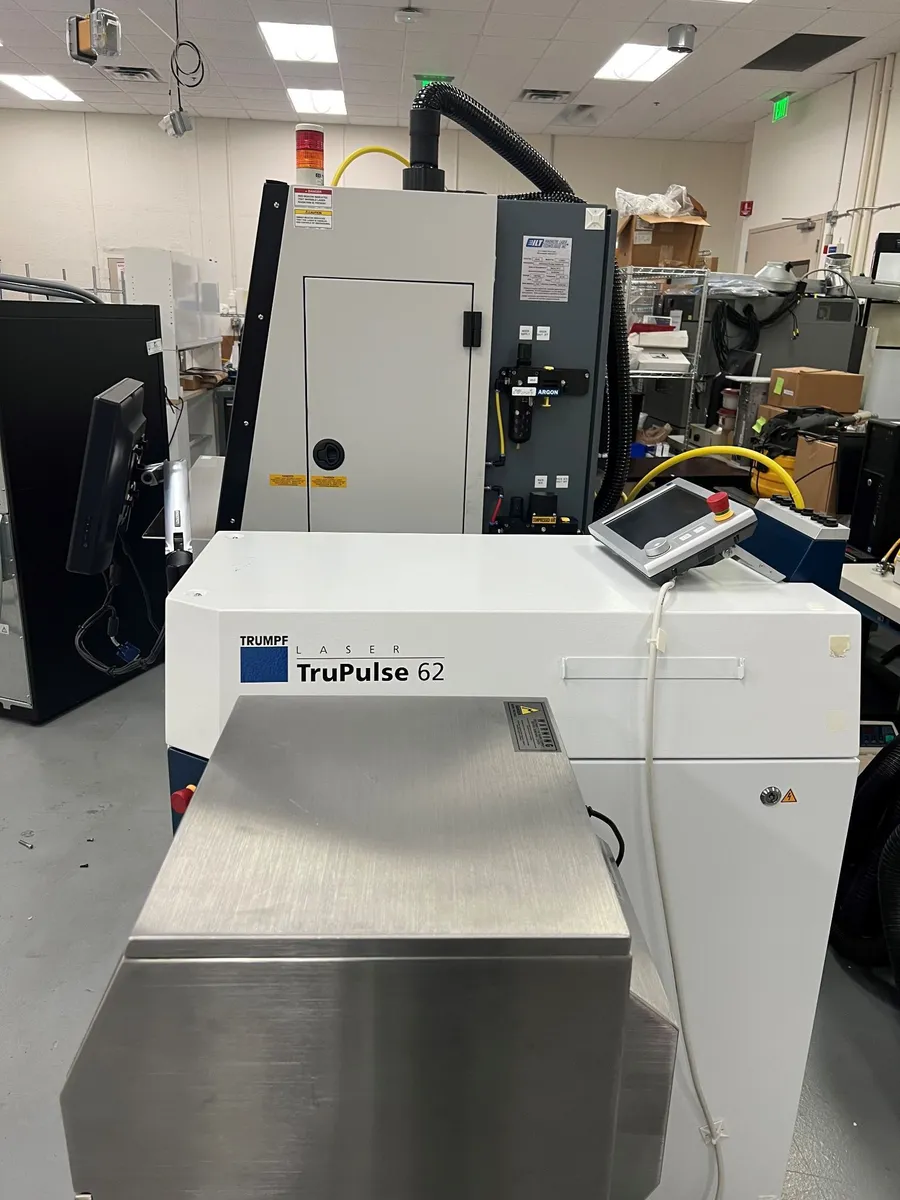

The Trumpf TruPulse 62 is a pulsed solid-state laser specifically designed for efficient spot and seam welding—especially beneficial in thermally sensitive applications—using short, high-energy light pulses. It belongs to Trumpf's TruPulse family, which offers a range of pulsed lasers optimized for industrial processes requiring precision and reliability.

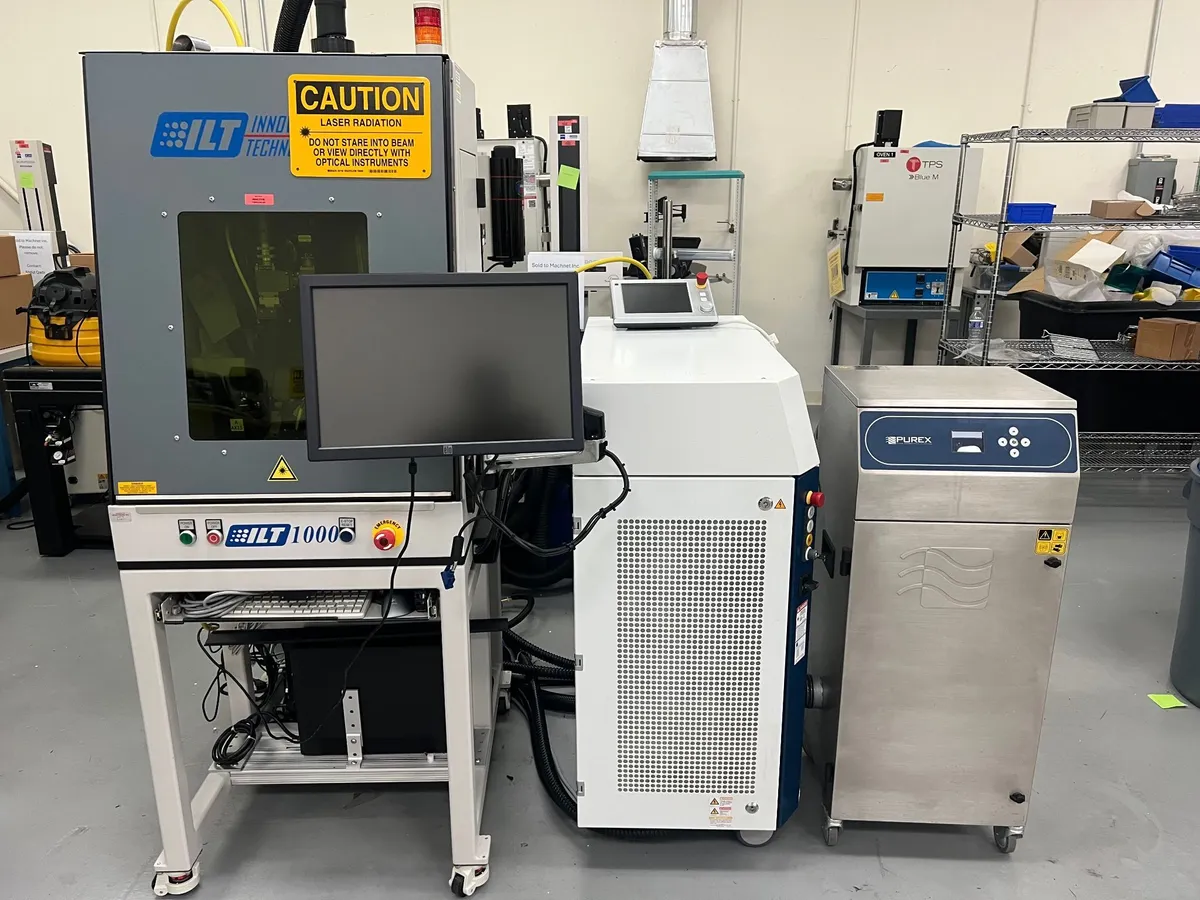

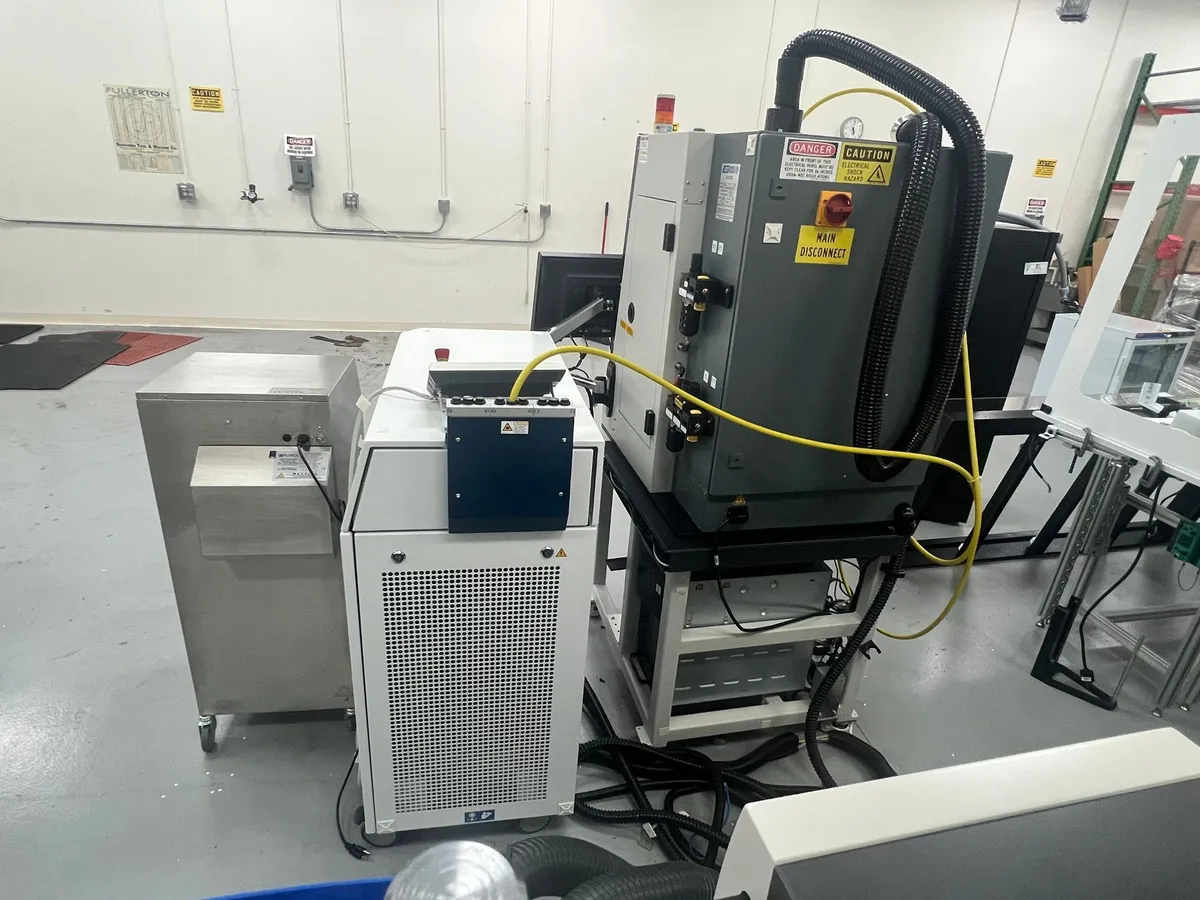

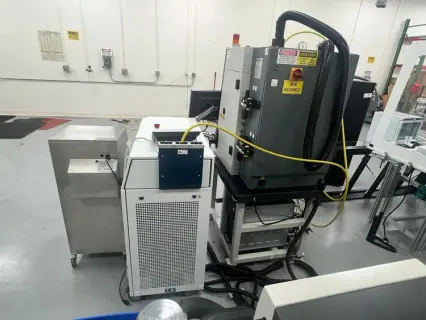

Full System Includes a ILT Laser Station & Laserex 400i Fume Extraction System

Technical specifications for the TruPulse 62:
Laser Power at Workpiece: 60 W / 65 W
Max. Peak Pulse Power: 3 kW / 5 kW
Beam Quality: 8 mm·mrad
Wavelength: 1064 nm
Pulse Duration: 0.2 ms – 50 ms
Max. Pulse Repetition Frequency: 909 Hz
Max. Pulse Energy: 20 J / 50 J
Min. Laser Light Cable Diameter: 200 μm
Protection Class: IP22 / IP54
Dimensions (W x H x D): 980 x 1220 x 505 mm

Laserex 400i / Purex 400i Fume Extraction System Key Features
Automatic electronic flow control: Maintains constant extraction rate, even as filters block.
Adjustable airflow via clear and informative digital display/touch screen.
HEPA filtration: Removes 99.997% of particles down to 0.3 microns.
Activated carbon filtration: For hazardous gases and fumes.
