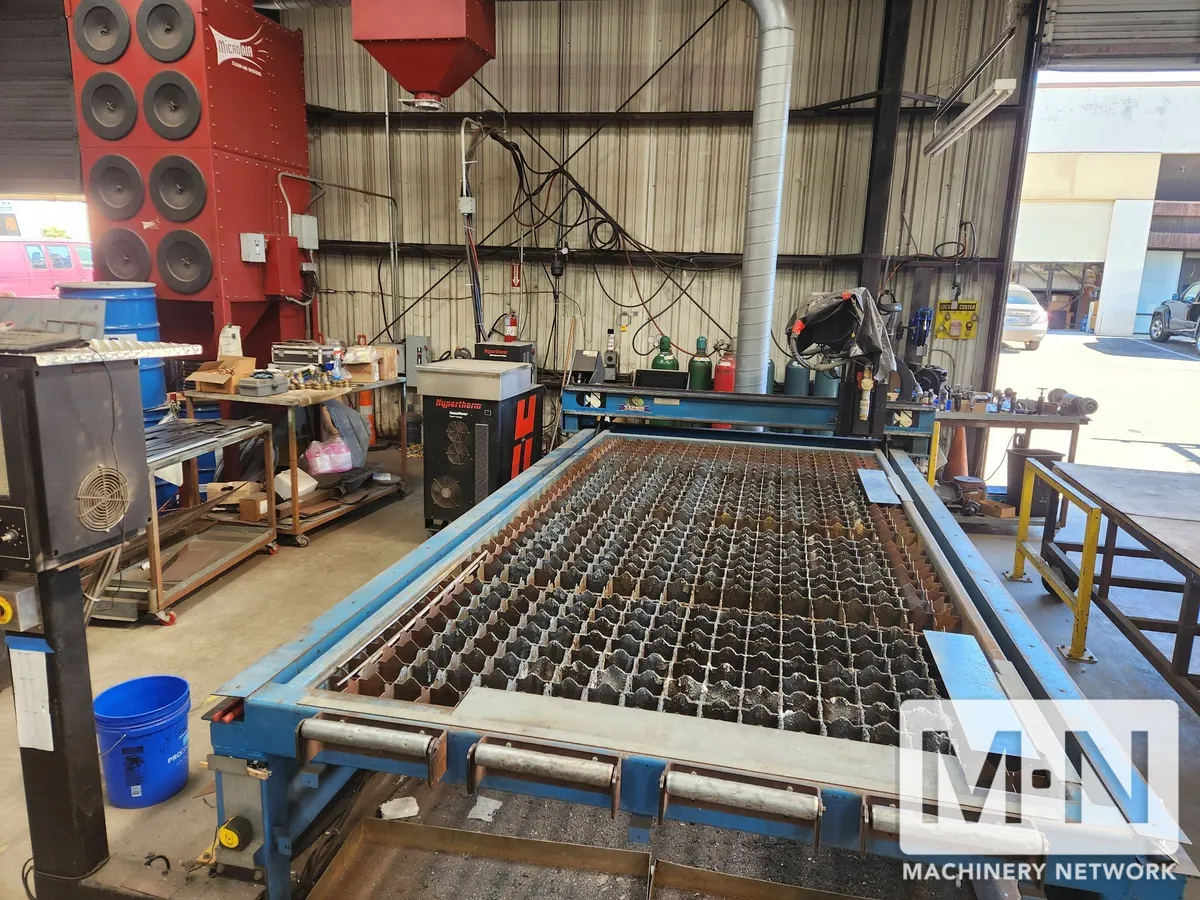

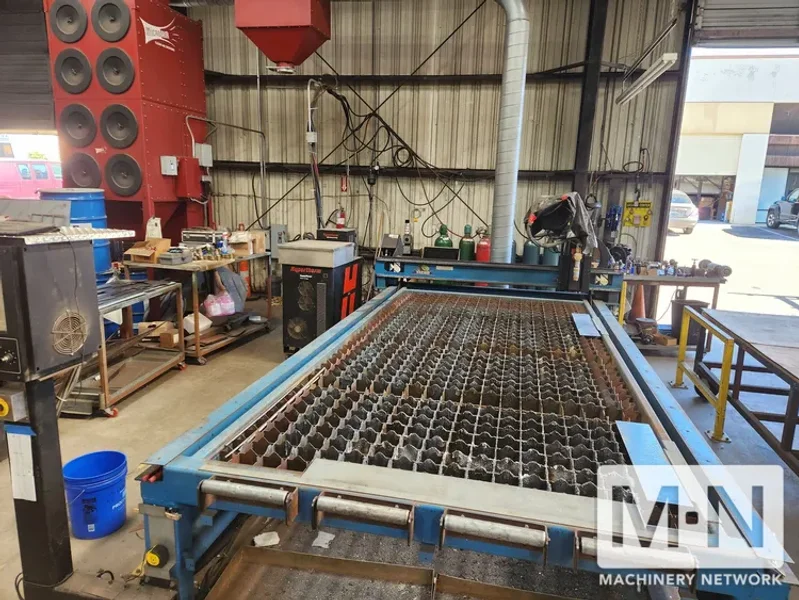

130 AMP HYPERTHERM EDGE PRO TI CNC PLASMA CUTTER

Dual side drive. This makes it cut really square as long as the limit switches are set right. I calibrate them about twice a year.

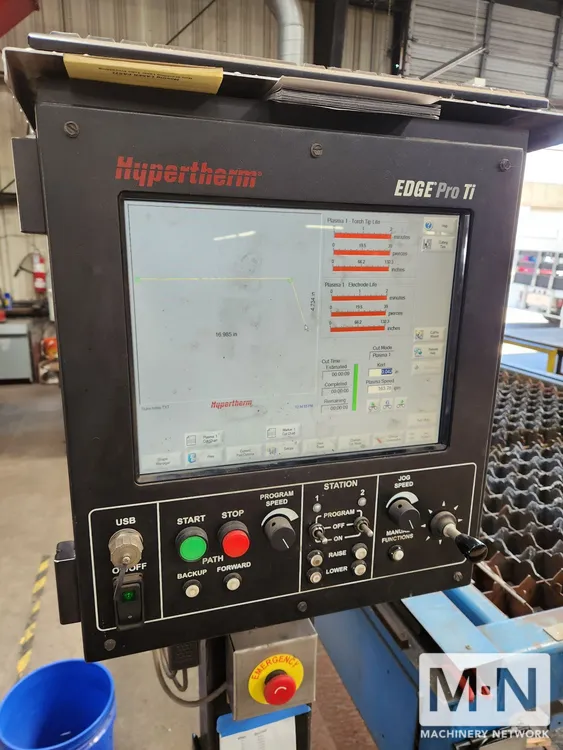

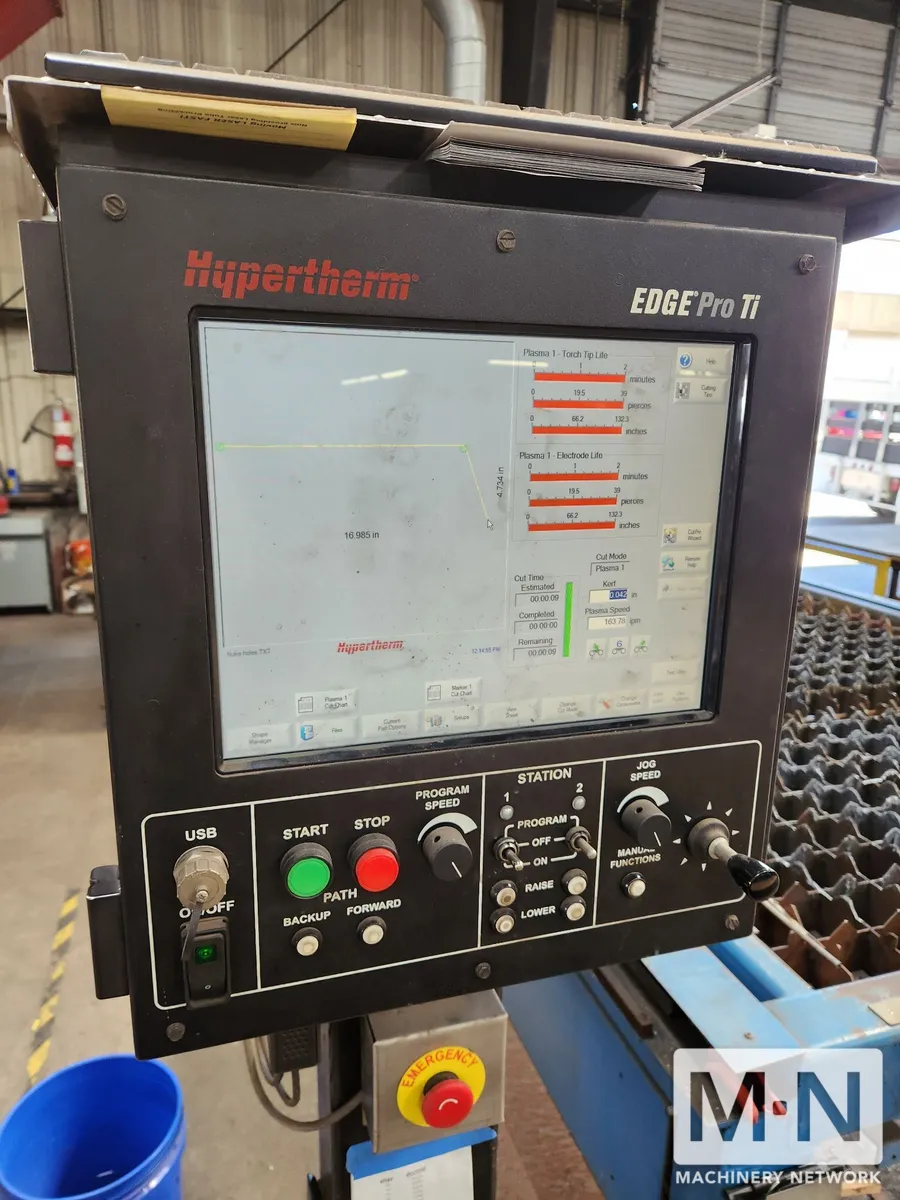

Upgrade: EdgeTi touch screen controller, ArcGlide height control, drive motors, gas metering console, XD power supply and XD Torch. Basically all new electronics. The upgrade made a huge boost to performance and cut quality.

Holes are decent, but not bolt quality. Edge quality is very good across the board.

480V 3-phase. Transformer included to go from 208V up to 480V.

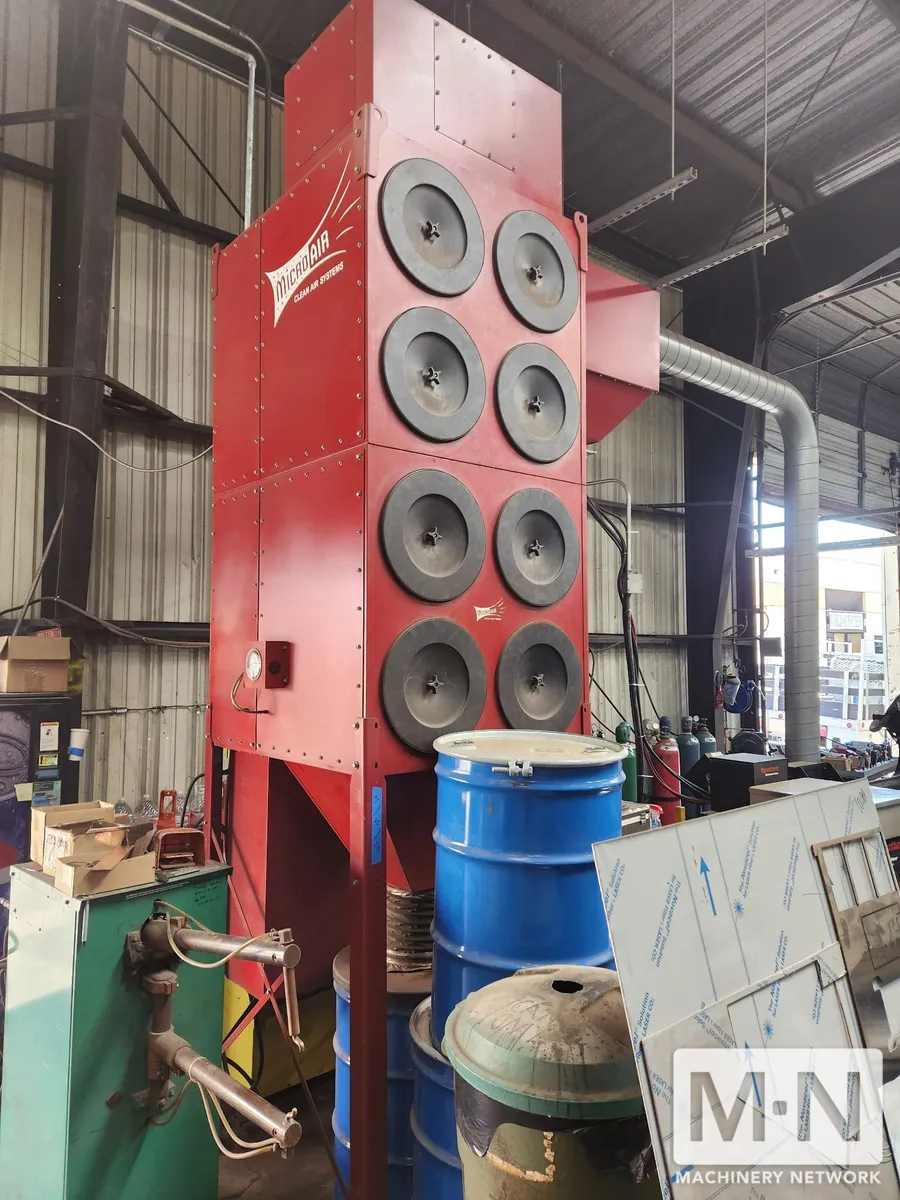

The nicest feature of the table is the downdraft. It's one-of-a-kind. The collection bucket follows the torch so the fumes are almost completely removed even though the table is open on top. Most downdraft tables are zoned and you have to cover the open area in order to suck up the fumes.

All maintained perfectly. Stored indoors. Lightly used. The plasma worked really well when I was cutting mostly steel and aluminum. It puts too much heat into the stainless thin parts I'm making now. I miss the plasma for plate cutting. It was so nice. My new laser demands high quality steel to cut properly.
