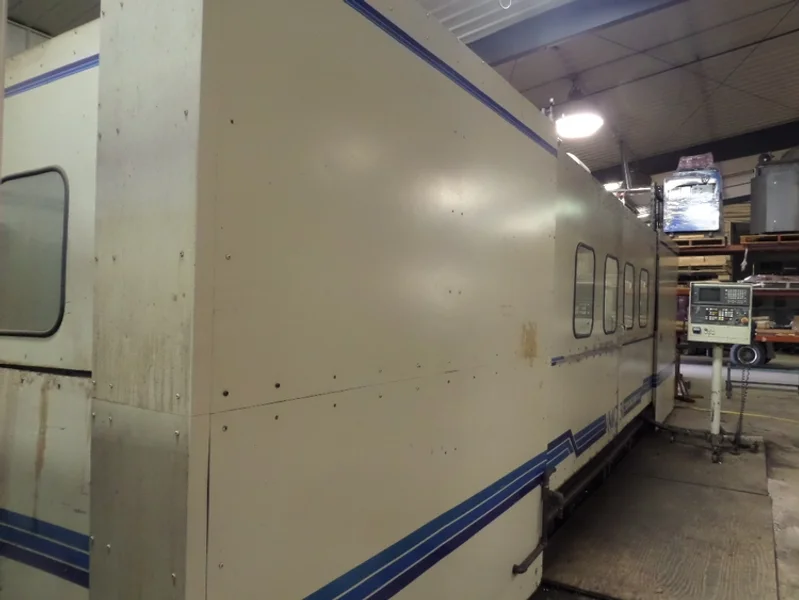

1996 KOMO VMC 50/160 | Machining Centers, Vertical

Brand
KOMO
Category
Machining Centers
Type
Vertical Machining Centers
Model
VMC 50/160
Stock #
32401
Year
1996
Condition
Not specified

Location

Not specified

Overview

Type:
Machining Centers, Vertical
Manufacturer:
KOMO
Model:
VMC 50/160
Year:
1996
Stock #:
32401

Description

Komo VMC 50/160, 160"x32"x32", 3500RPM, CAT50, Fanuc 16MB, Coolant Thru Spindle

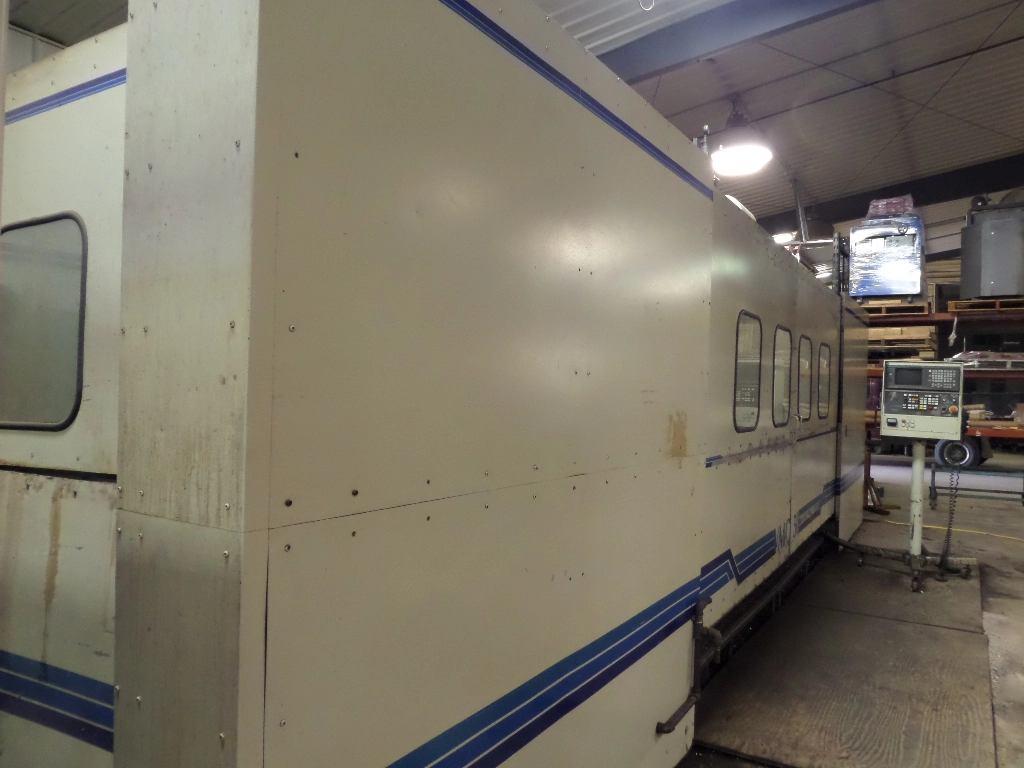

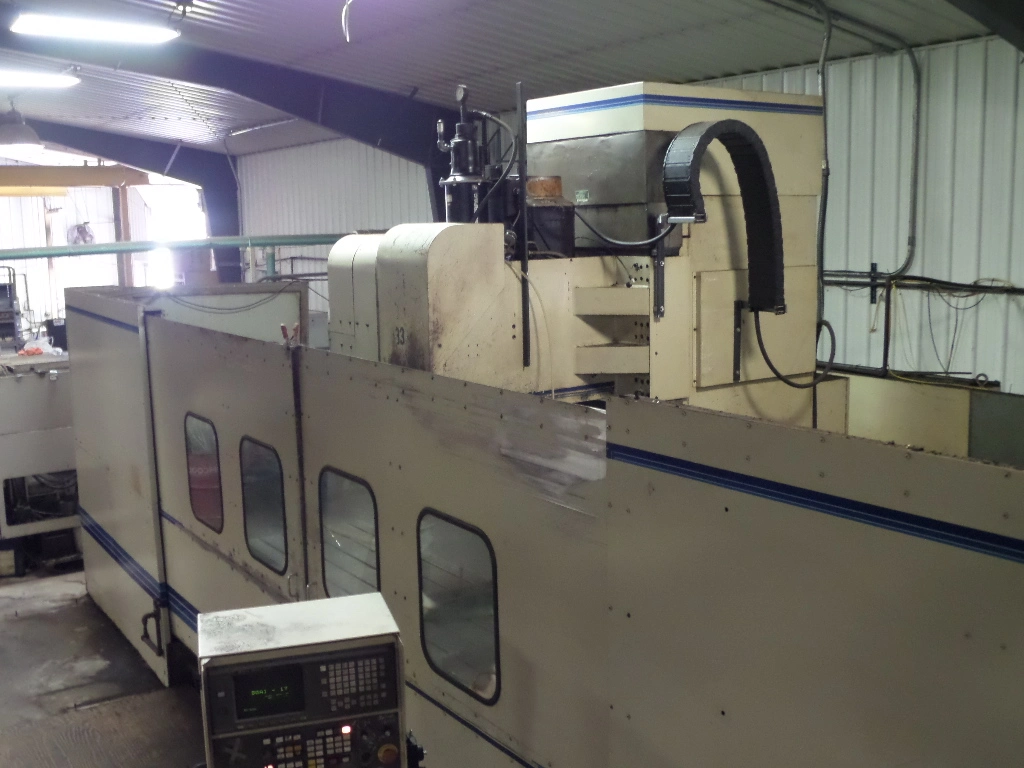

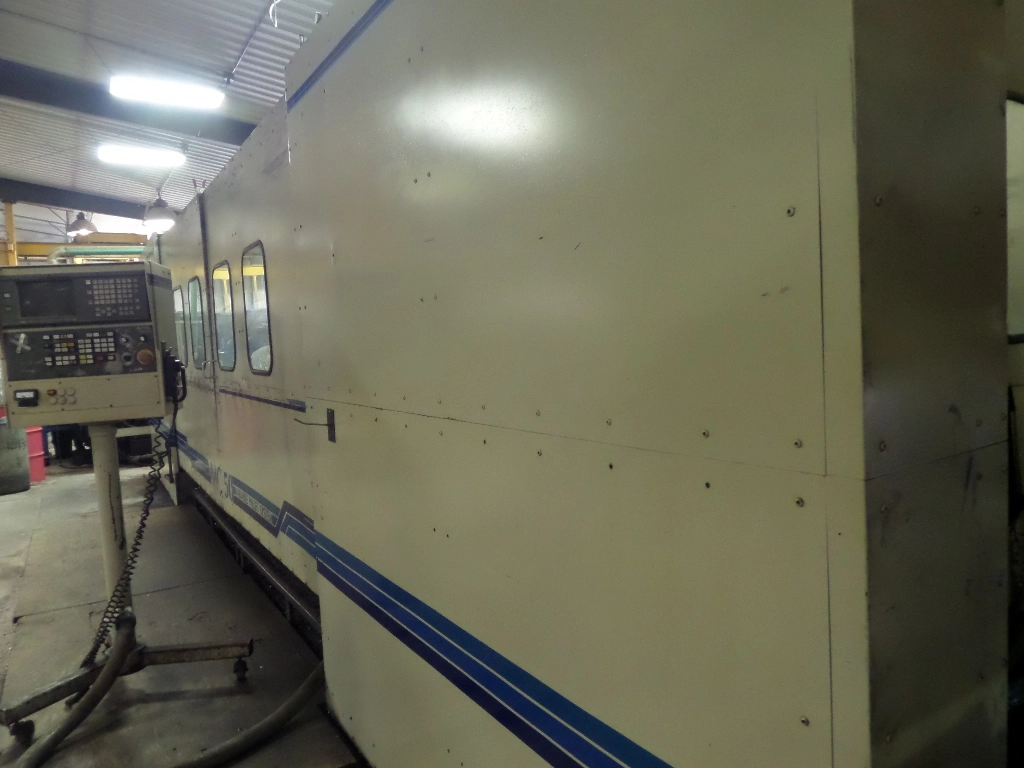

Komo VMC 50/160 CNC Vertical Machining Center

New: 1996

Specifications:

X-Axis Travel: 160"

Y-Axis Travel:   32"

Z-Axis Travel: 32"

Axis Traverse Rates: X, 600 IPM; Y, 600 IPM; Z, 600 IPM

Max Cutting Feed Rate: 250 IPM

Table Load Capacity: Unlimited (table does not move)

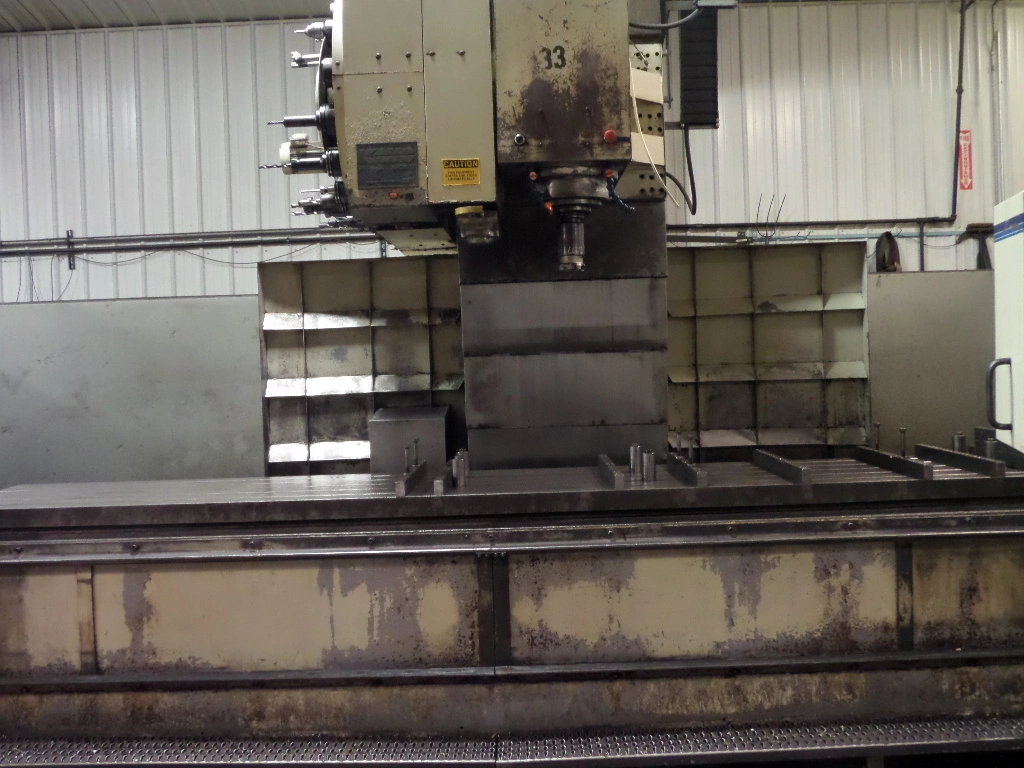

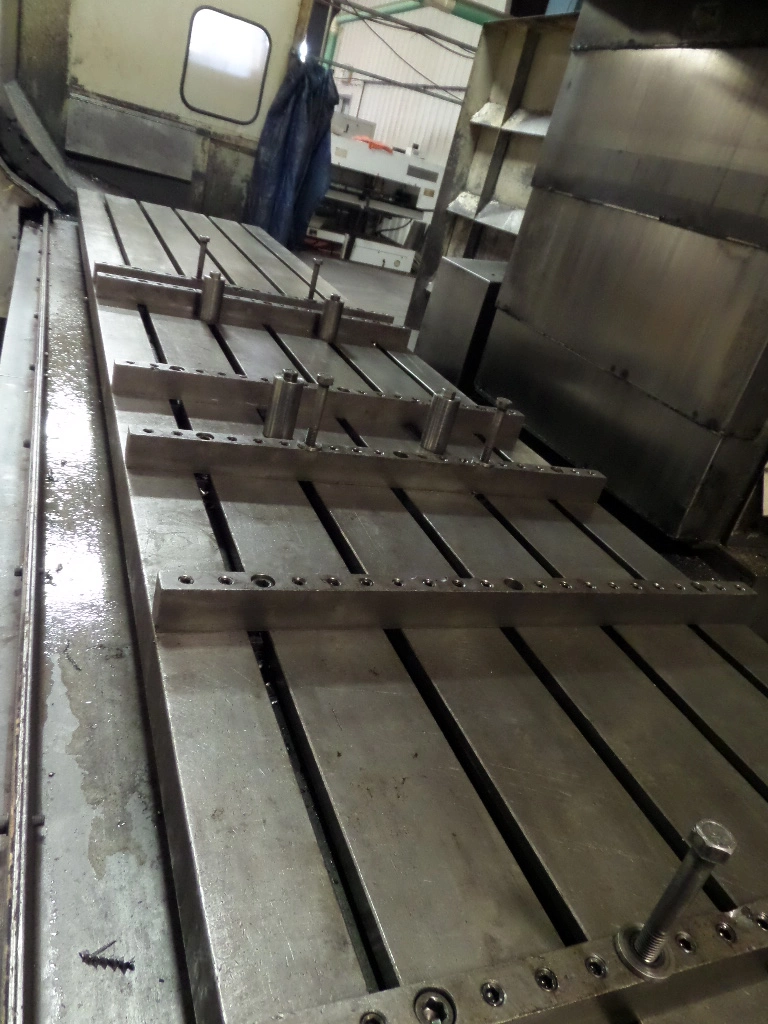

Table Dimensions: 160" x 32"

Spindle Speed: 0-3500

Spindle Motor: 25/30 HP

Spindle Taper: CAT 50 Taper

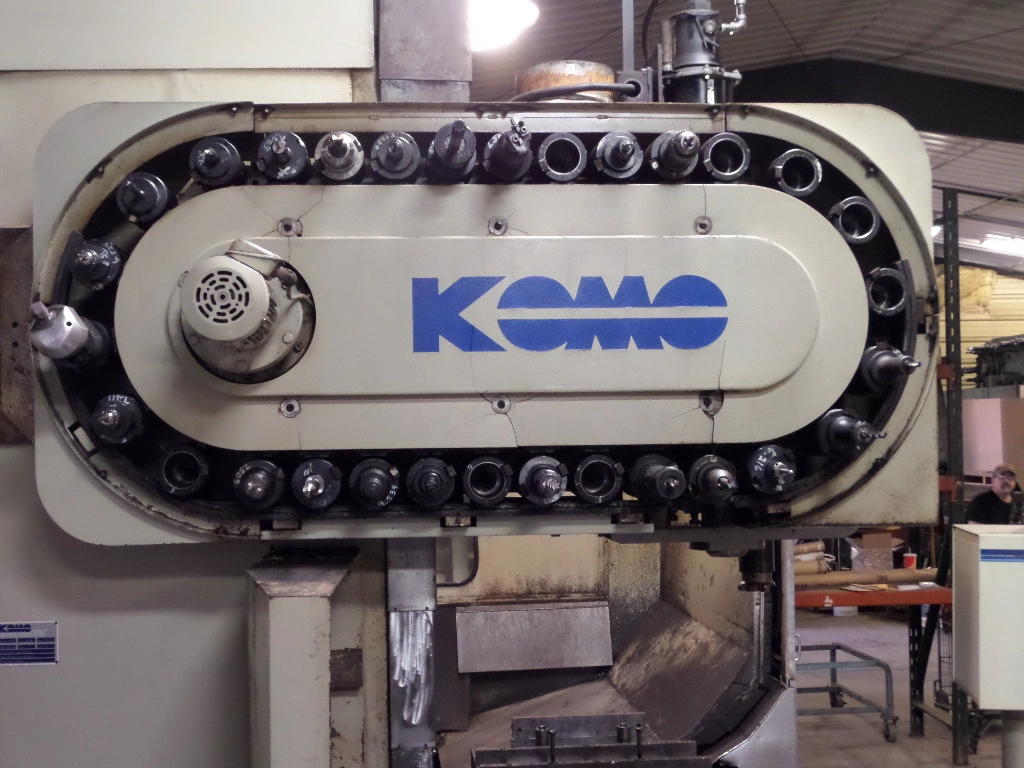

Tool Positions: 30 ATC (random access)

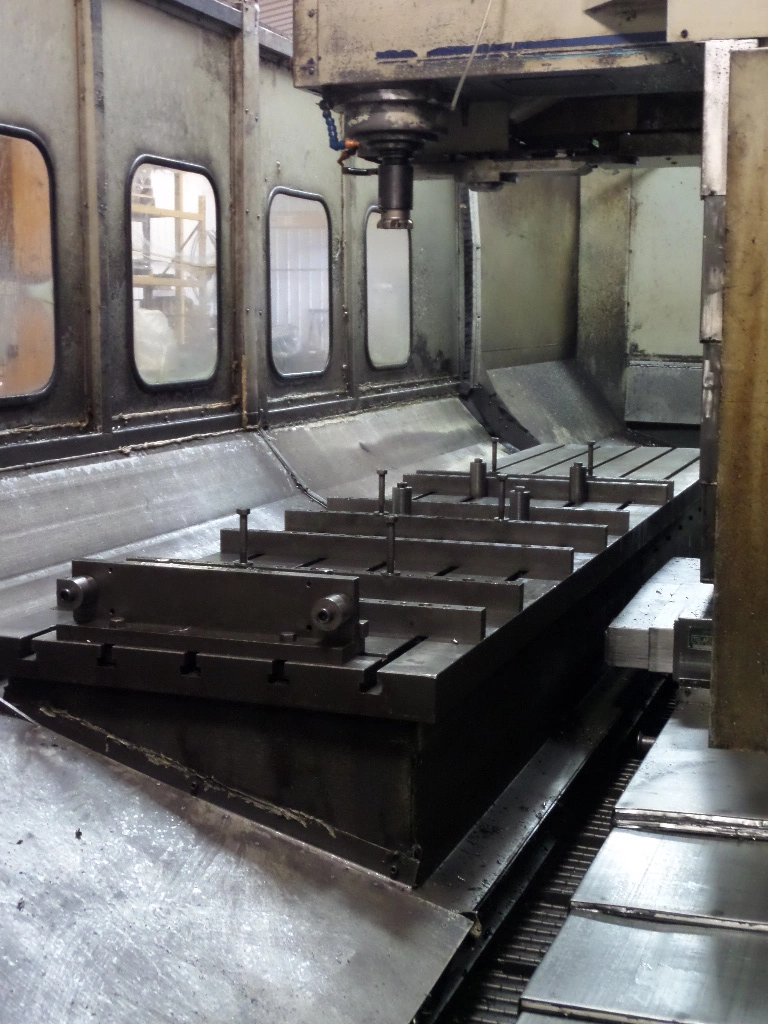

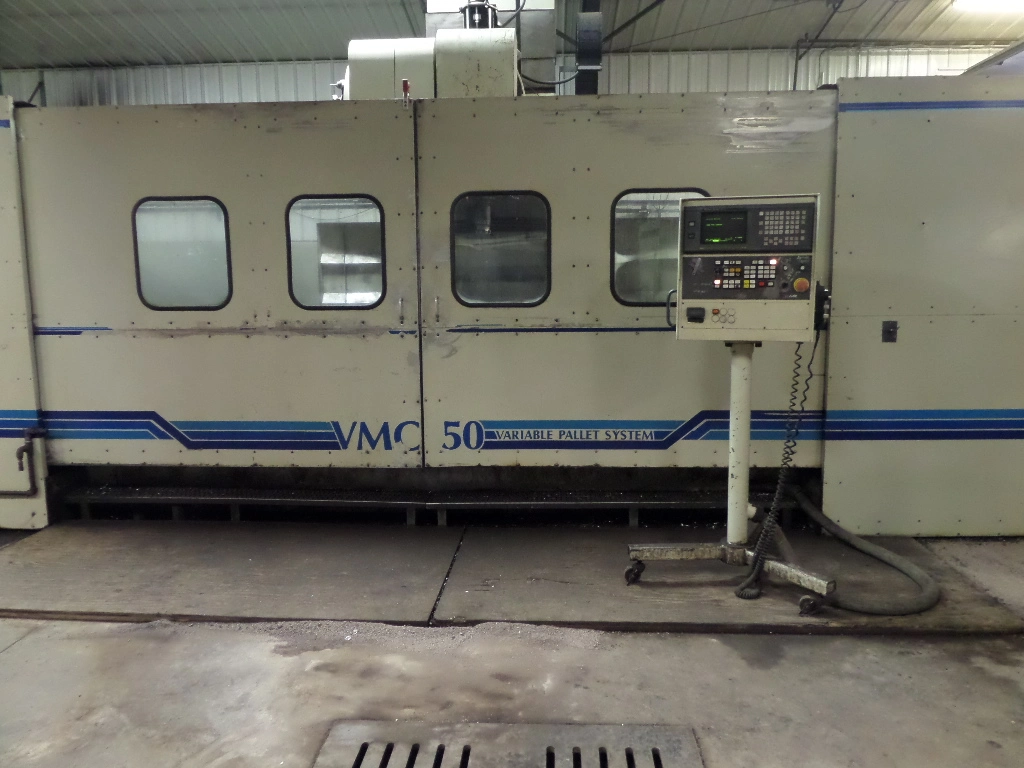

Variable pallet system: up to 4 user defined machining areas.

Electrics: 208v 3ph 60hz

Equipped with:

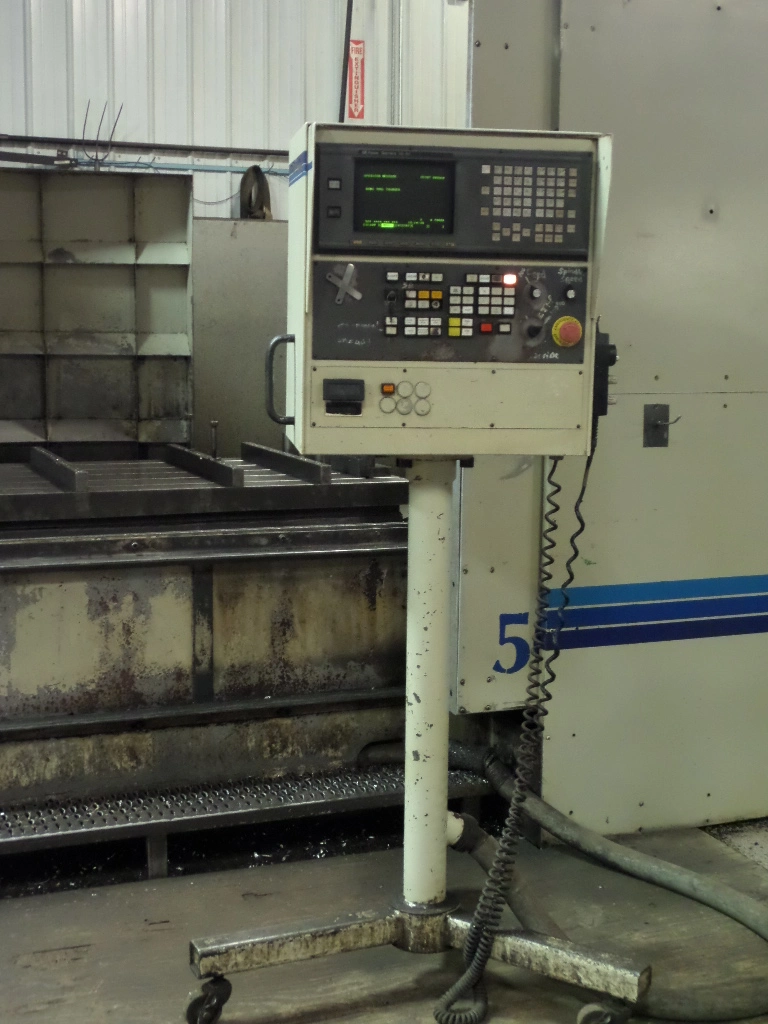

 Fanuc 16 MB Control

 400 tool offsets

 Kurt Vices and tooling cart

 Remote pulse generator (Hand wheel control on a cord)

 Through Spindle Coolant, 300 PSI

 Jet Pulser Pump for coolant thru spindle

 Coolant Tank Capacity: 60 Gallons, 35 GPM, 25 PSI

 Machine Dimensions: 358"L-R x 144"F-B x 140"H by my book

 Approximate Weight: 63,000 lbs.
