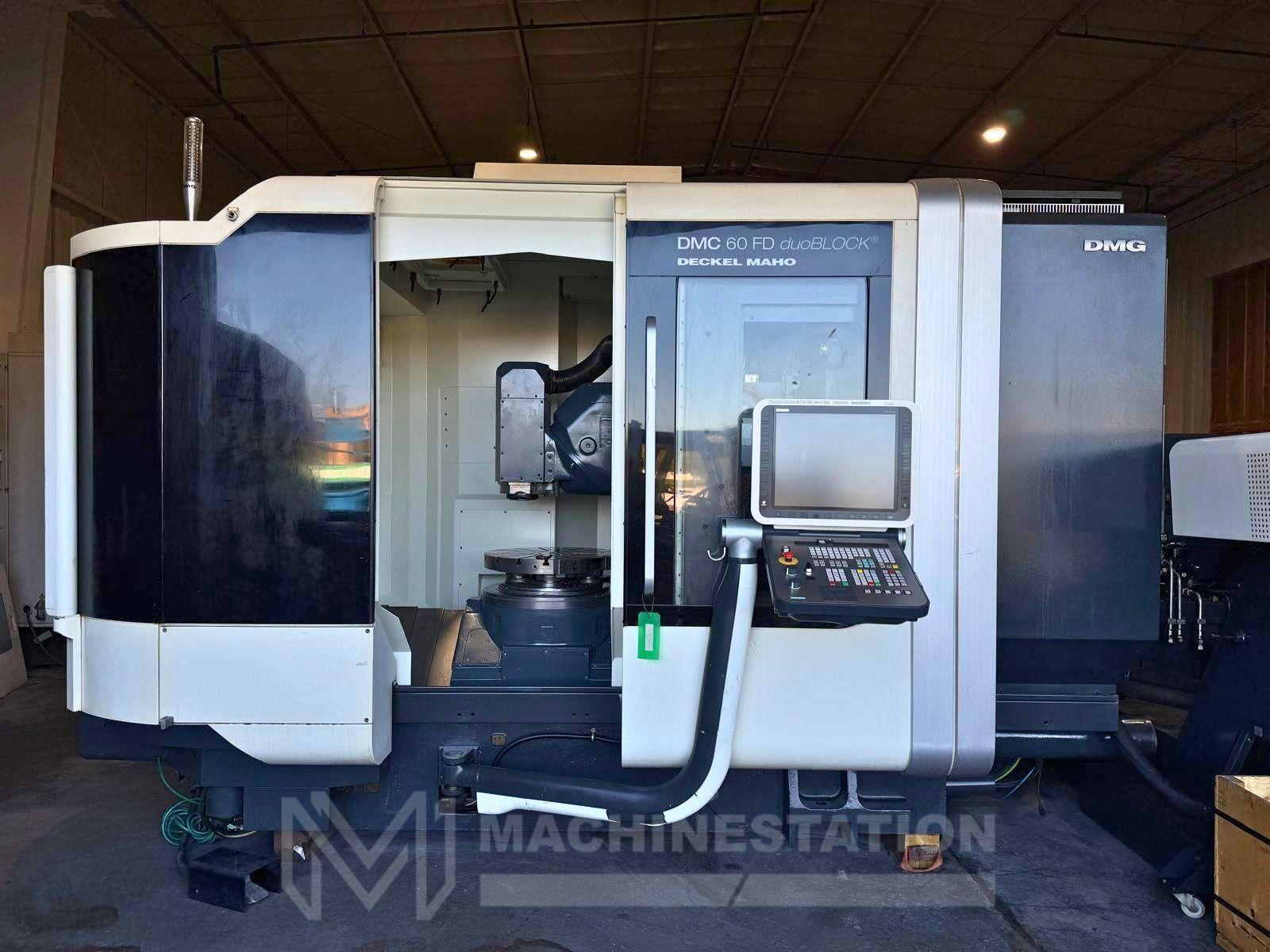

DMG DMC 60 FD duoBLOCK 5 Axis Machining Center – APC, Milling & Turning Capability

DMG DMC 60 FD duoBLOCK 5 Axis Machining Center – APC, Milling & Turning Capability

Name: DMG DMC 60 FD duoBLOCK 5 Axis Machining Center – APC, Milling & Turning Capability
Brand: UNKNOWN
SKU: 113596
Availability: InStock

Brand

UNKNOWN

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	DMG
Model No.:	DMC 60 FD duoBLOCK
Year of Manufacture:	2012

Equipped With:
Siemens 840D DMG ERGOline CNC Control
Twin Pallet Automatic Pallet Changer
Full 5-Axis Simultaneous Machining
1200 RPM Turn-mill table (FD)
Integrated B-Axis Milling Head
12,000 RPM HSK-A63 Taper Spindle
60 Station Automatic Tool Changer
Through Spindle Coolant
Rigid Tapping
Spindle Orientation
Coolant Tank
Chip Conveyor
Books & Manuals
Levelling Pads

Travels:
X Axis: 23.62 inch
Y Axis: 27.56 inch
Z Axis: 23.62 inch
B Axis: -30° To +180°
C Axis: 360° Continuous

Table:
Number of Pallets: 2
Table Diameter: 24.80 inch
Maximum Table Load: 1,102 lbs
Table Speed (Turning Mode): 1,200 RPM
Maximum Workpiece Diameter: 27.56 inch
Maximum Workpiece Height: 33.46 inch
