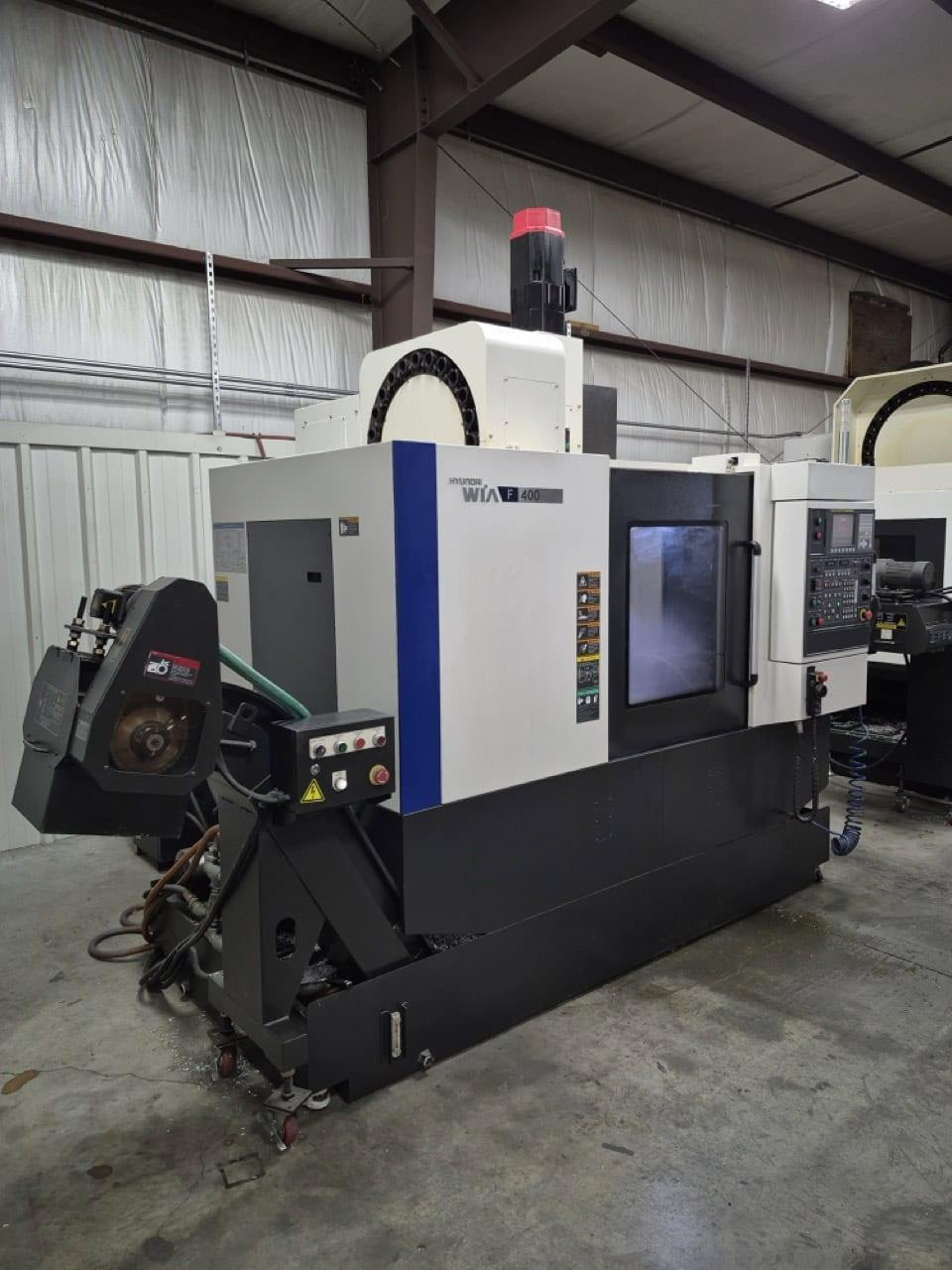

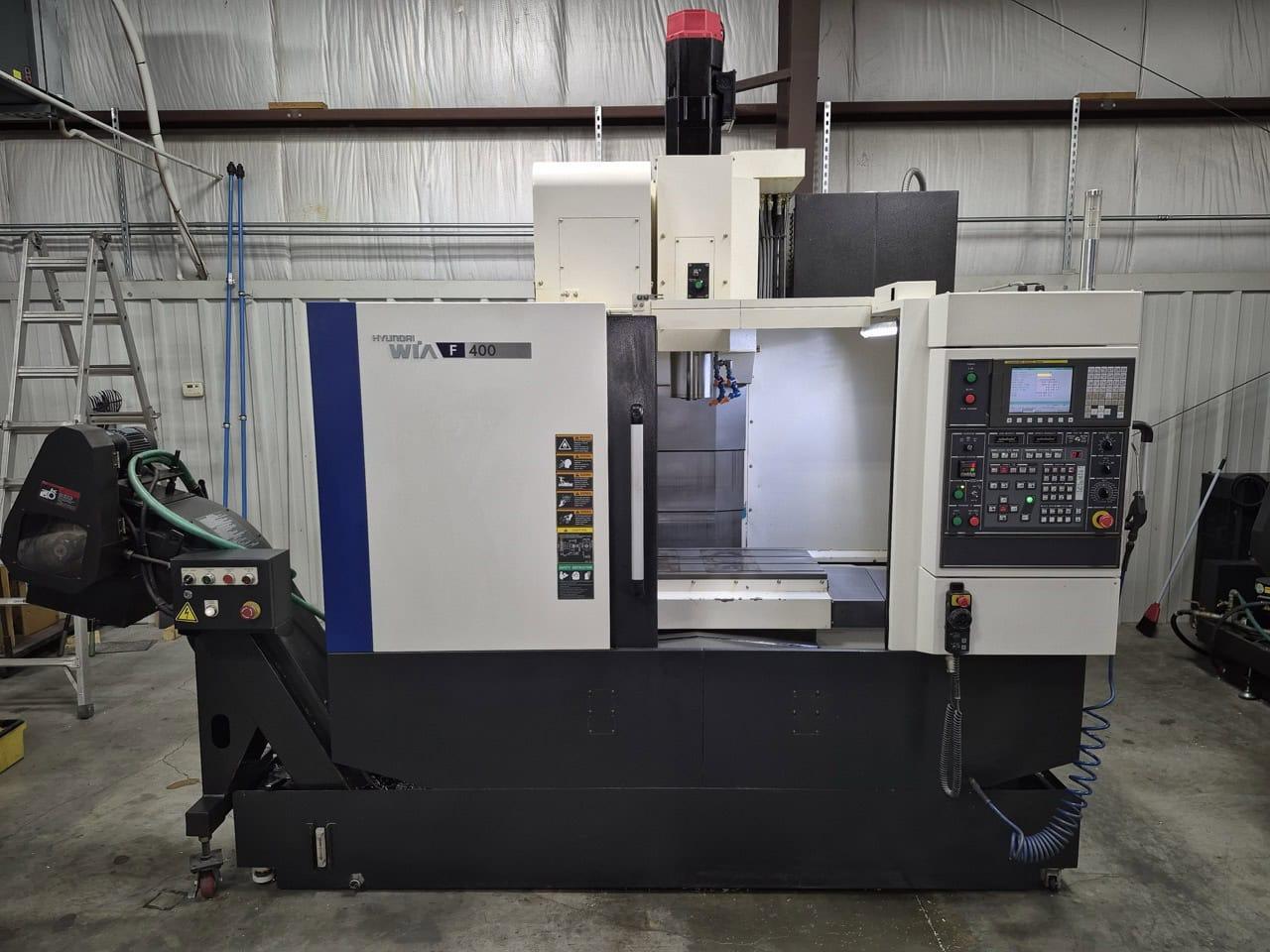

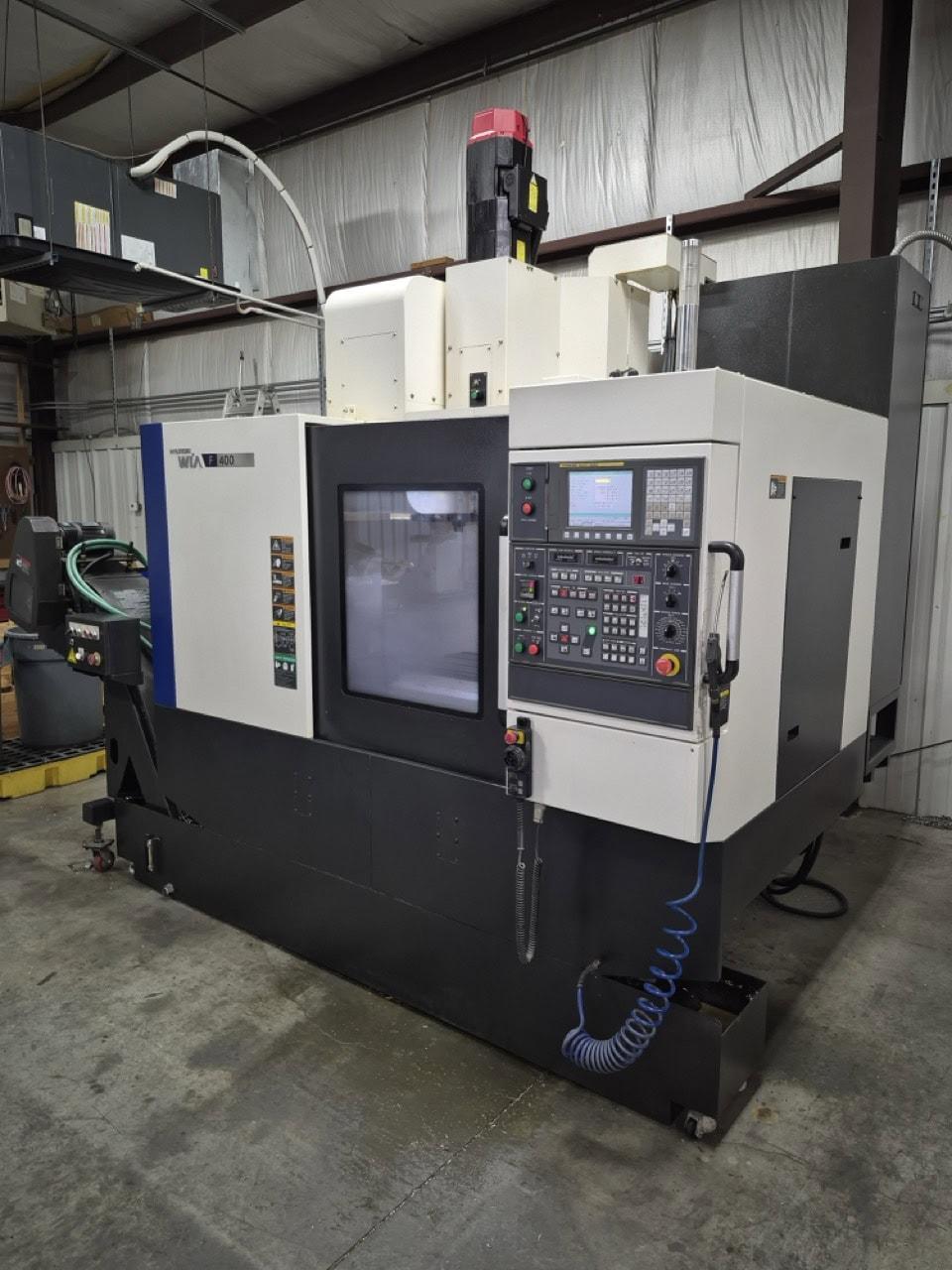

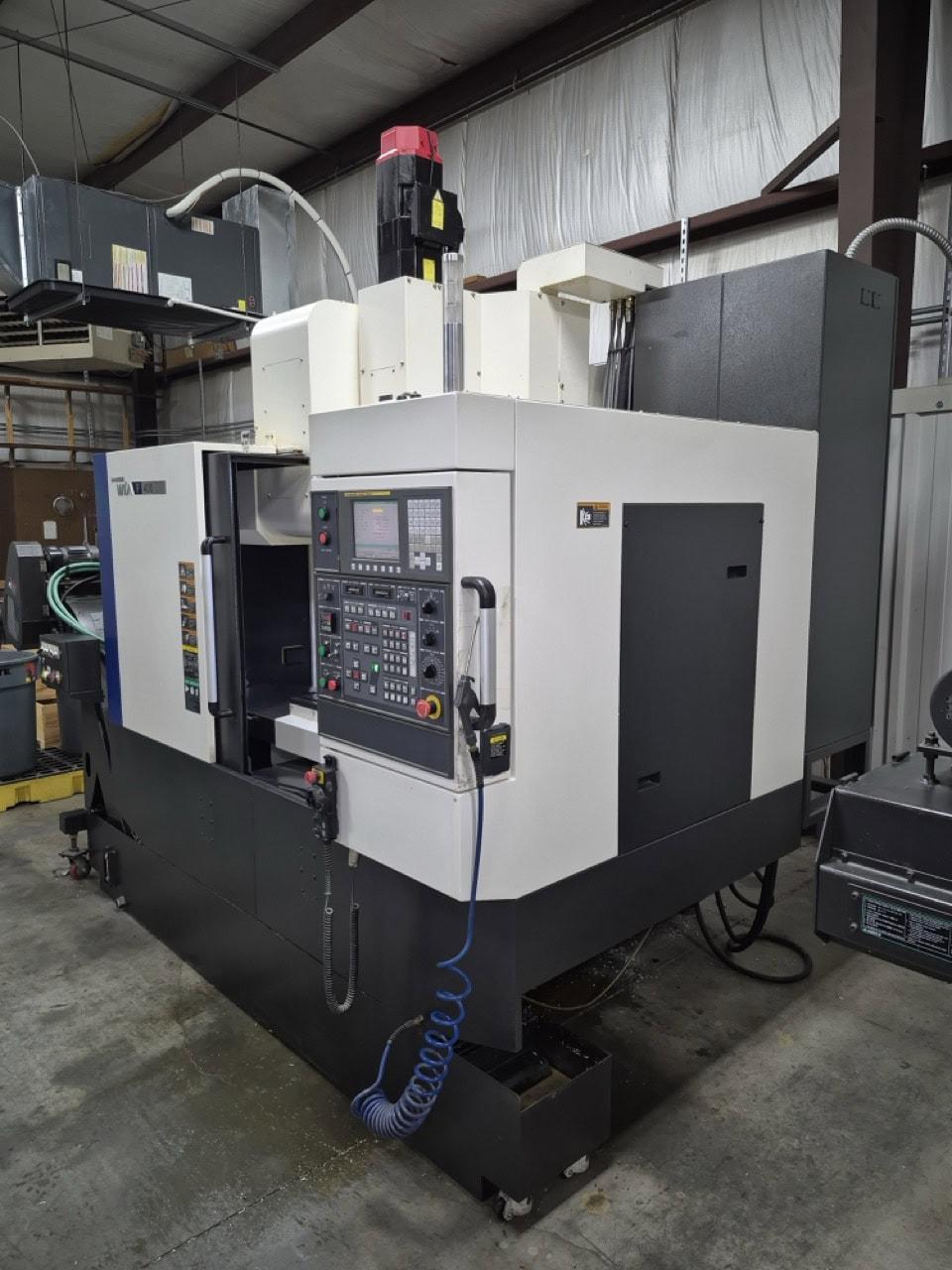

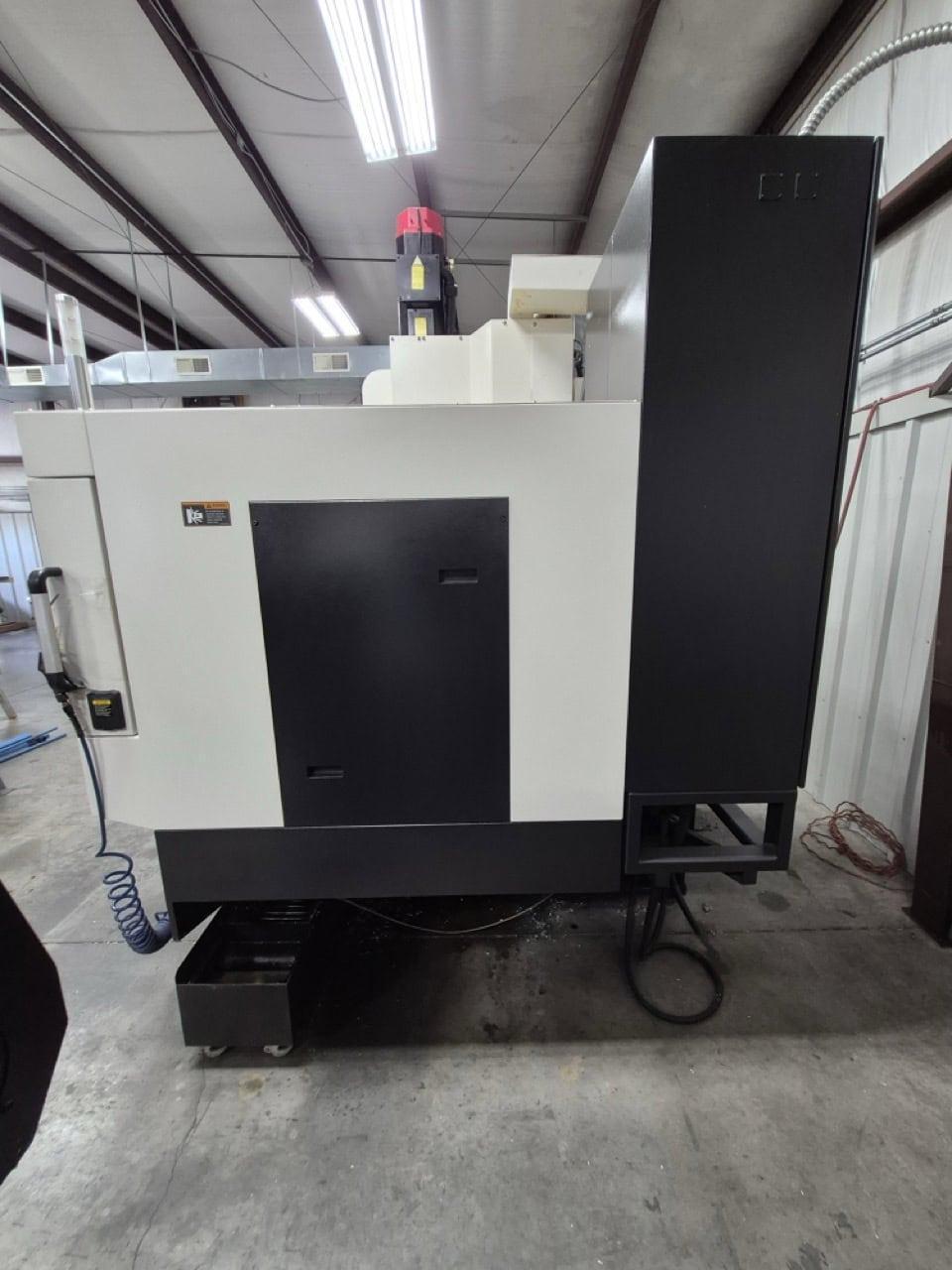

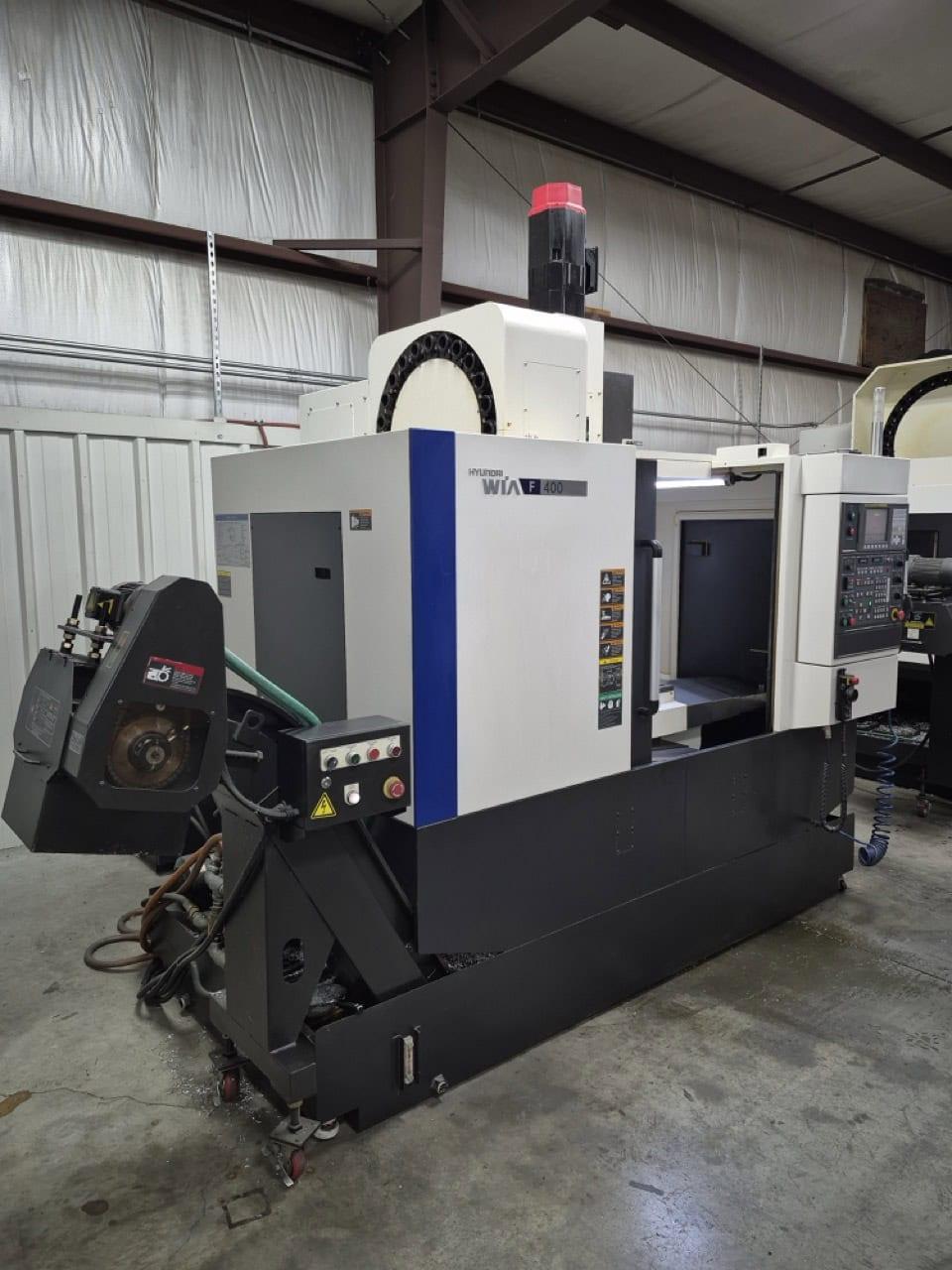

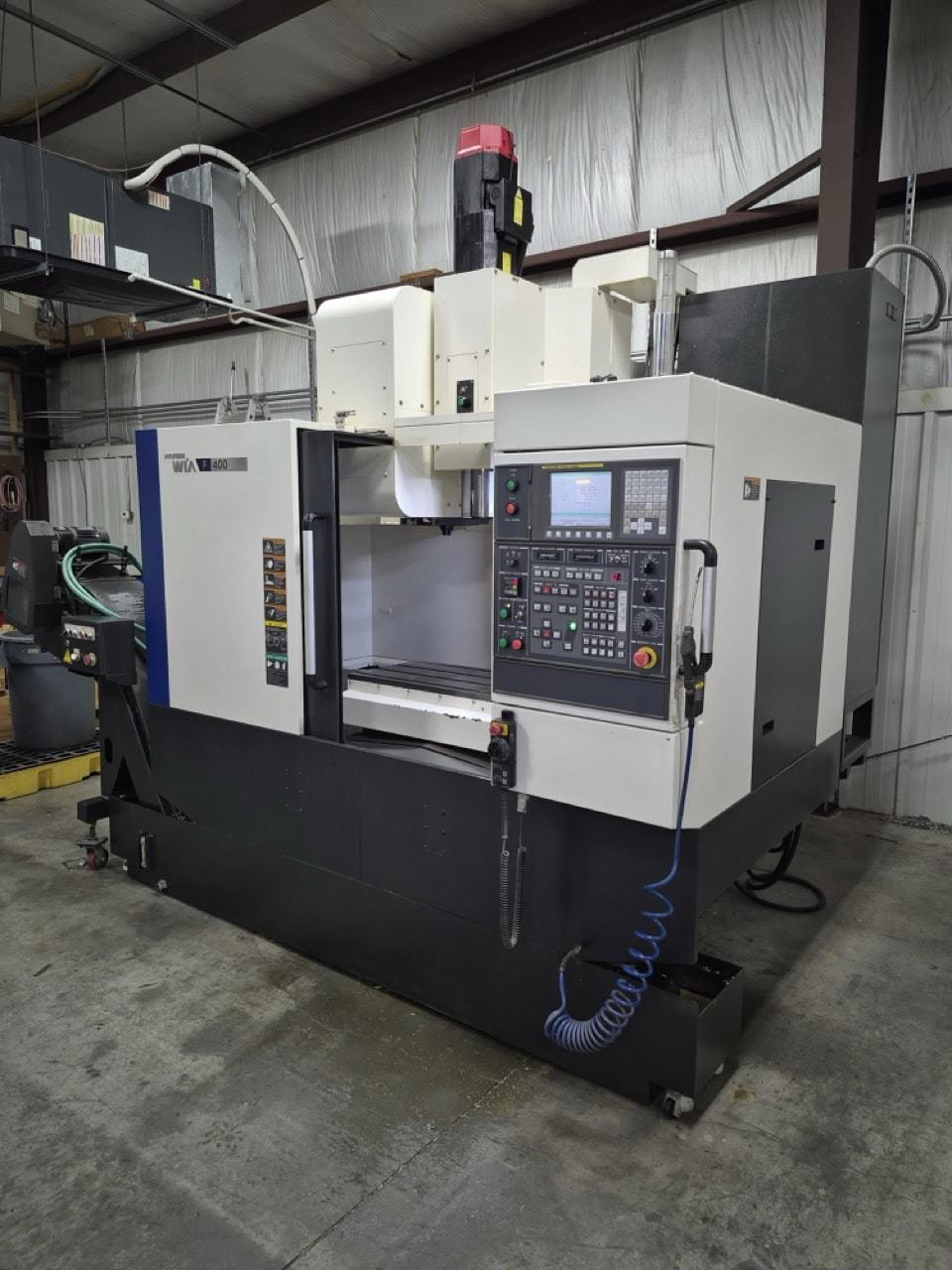

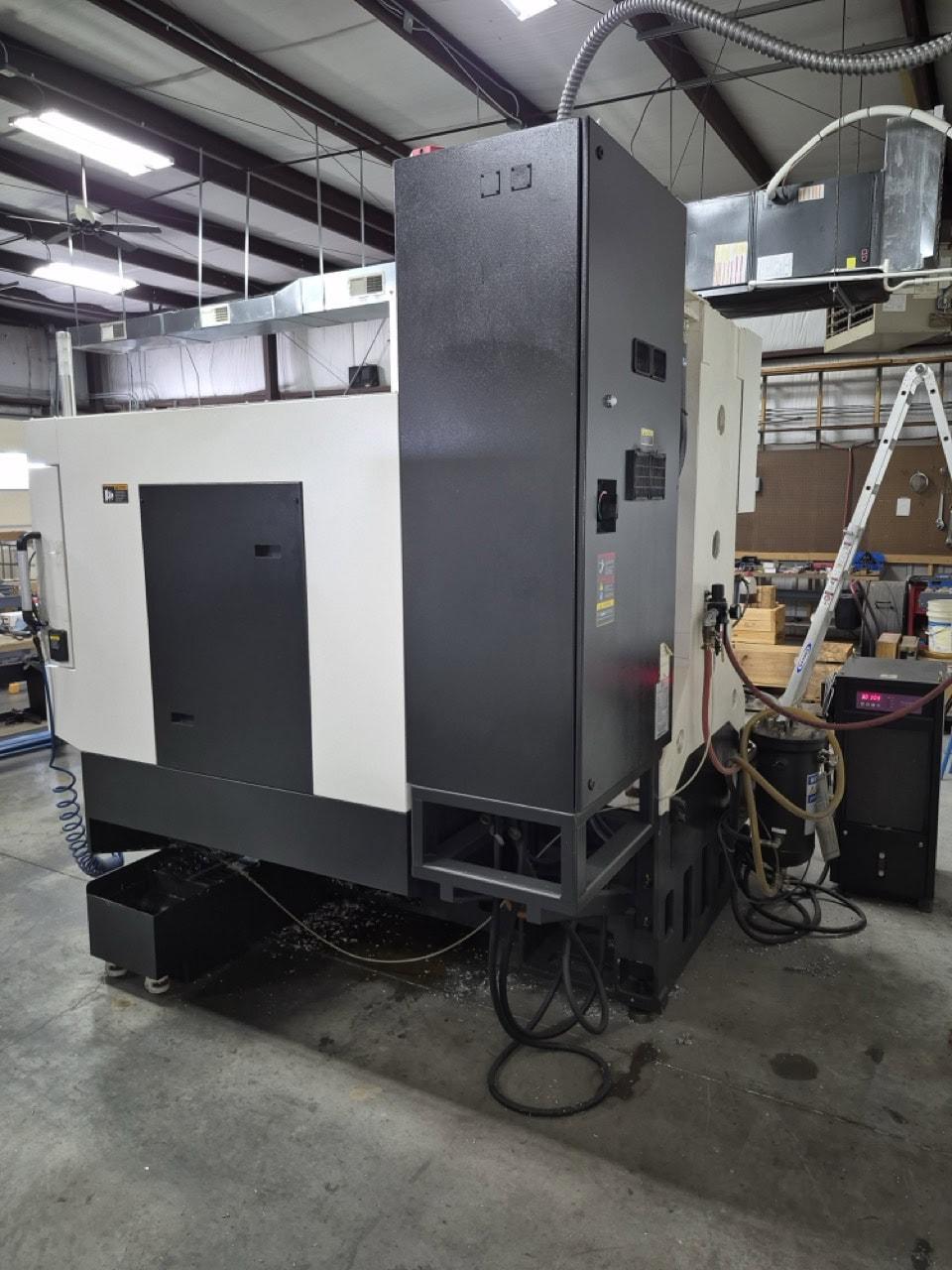

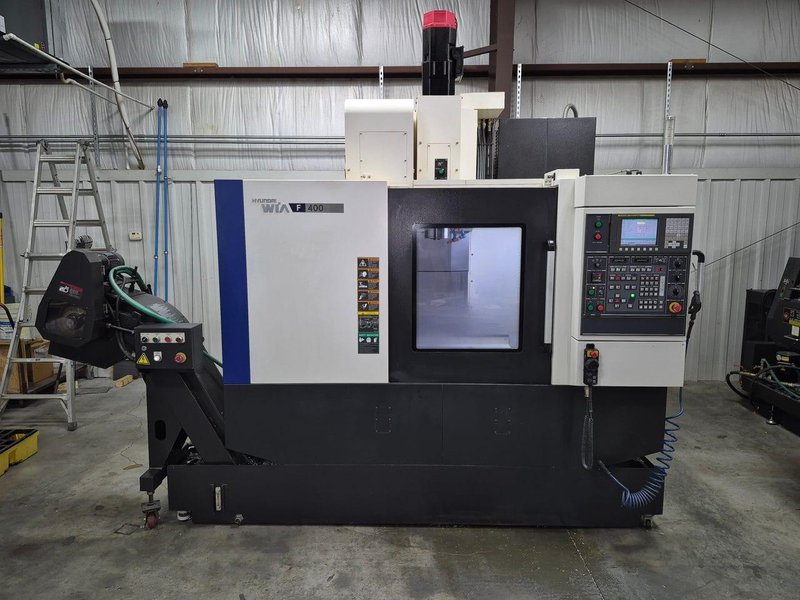

Hyundai Wia F400 CNC Vertical Machining Center, 2012 – Fanuc Control, 12,000 RPM
Brand
Category
Model
F 400
Stock #
573569
Year
2012
Condition
Not specified
Location
Not specified
|
X-Axis Travel: 31.5″
Y-Axis Travel: 18.1″
Z-Axis Travel: 20.5″
Table Size: 39.4″ x 18.1″
Spindle Nose to Table (Min.- Max.): 5.1″ – 25.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1323 lbs
Rapid Traverse Rates X, Y, Z Axis: 1260 IPM
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 20 HP
Capacity: 24 Tools
Max Tool Weight: 17.6 lbs
Tool Changing Time: 1.3 Seconds

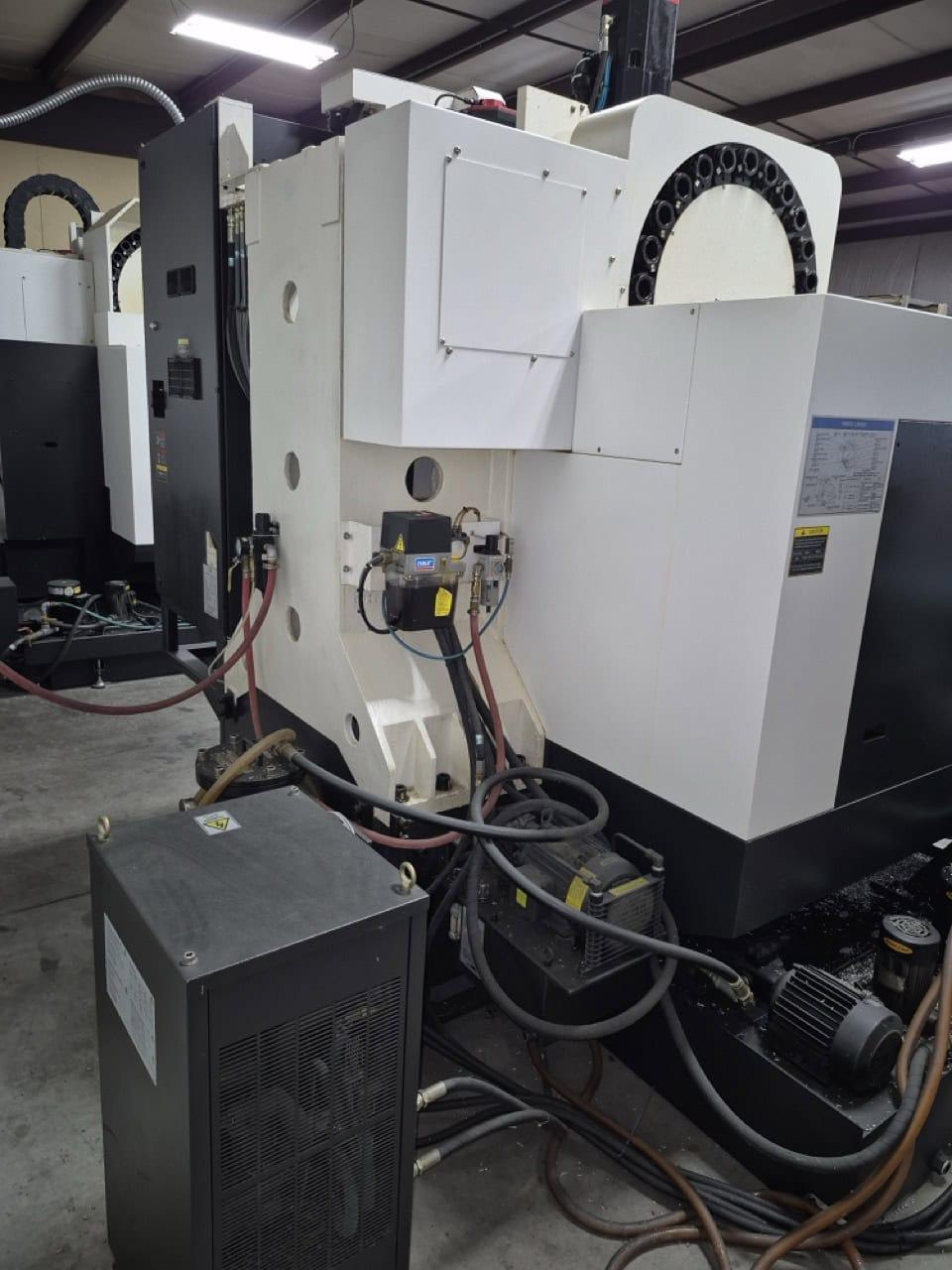

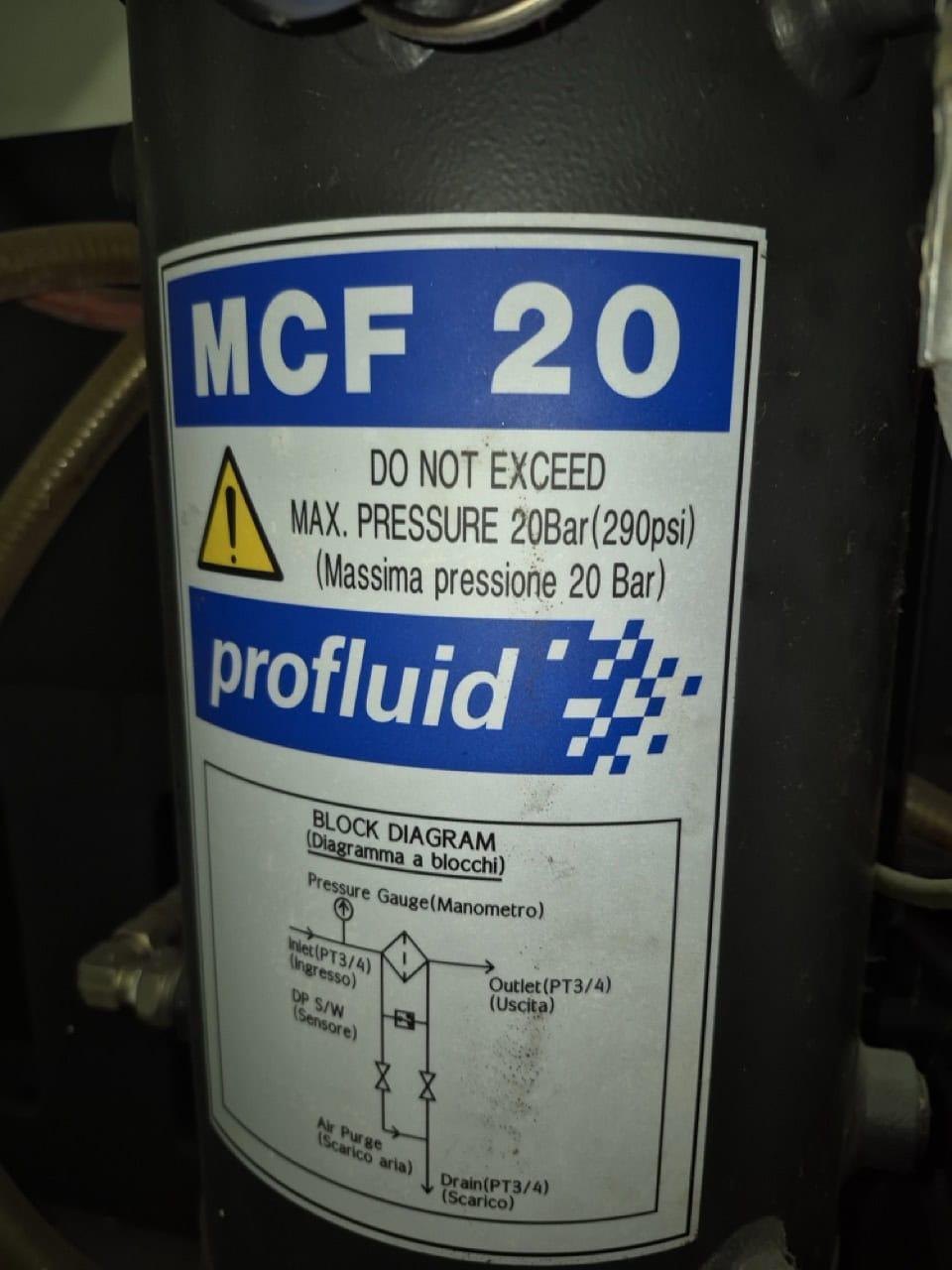

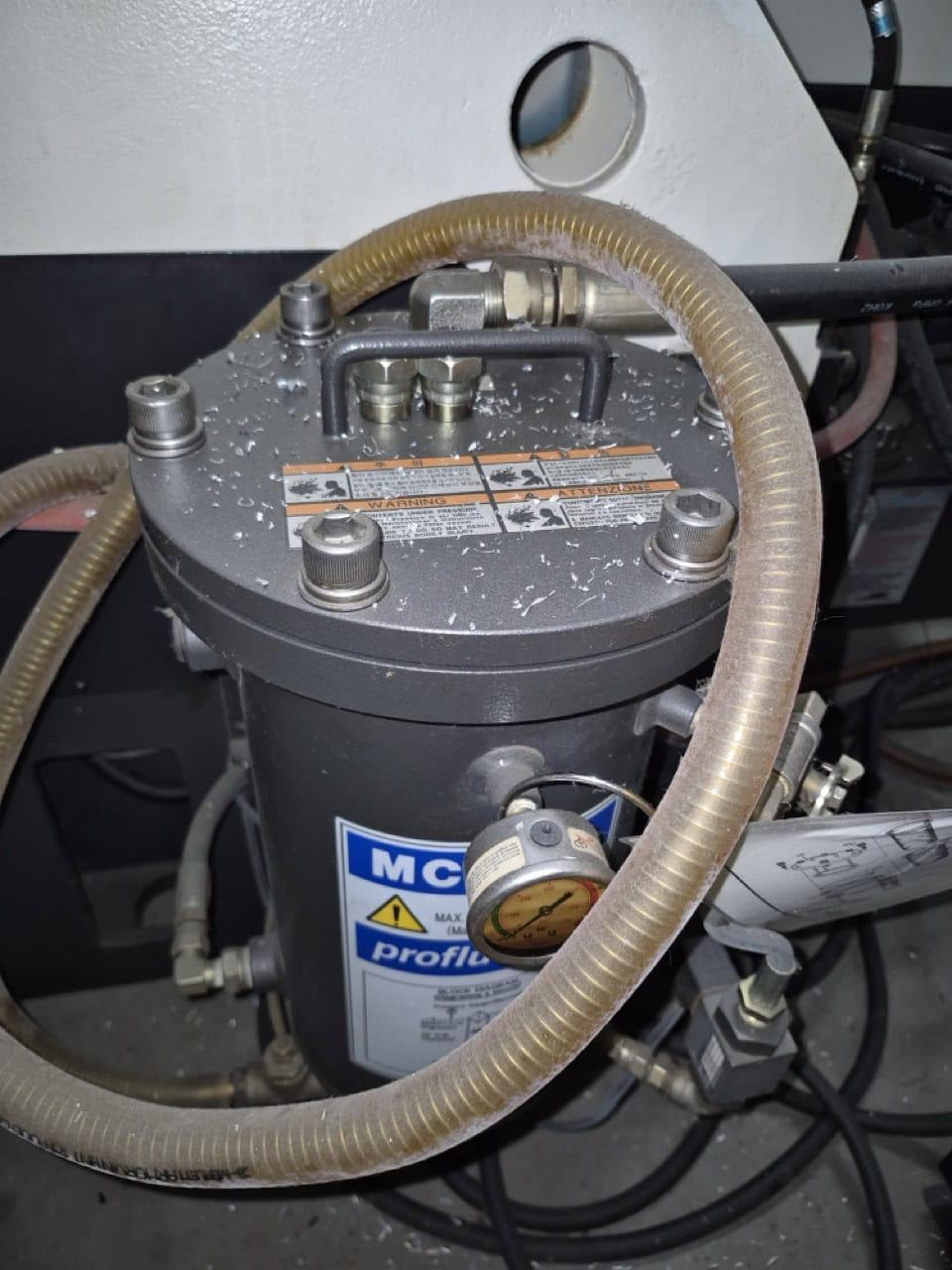

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc i Series CNC Control High Pressure Coolant system Chiller Manuals as Available All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
