2013 PRIMA POWER E5 | Punches, Turret

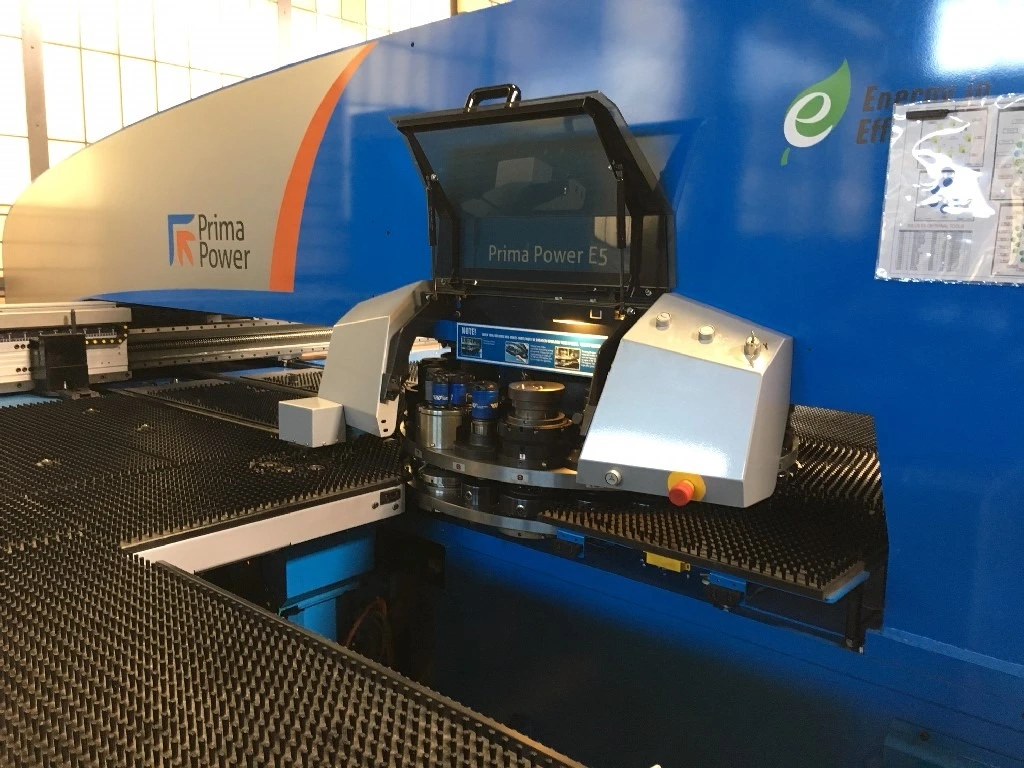

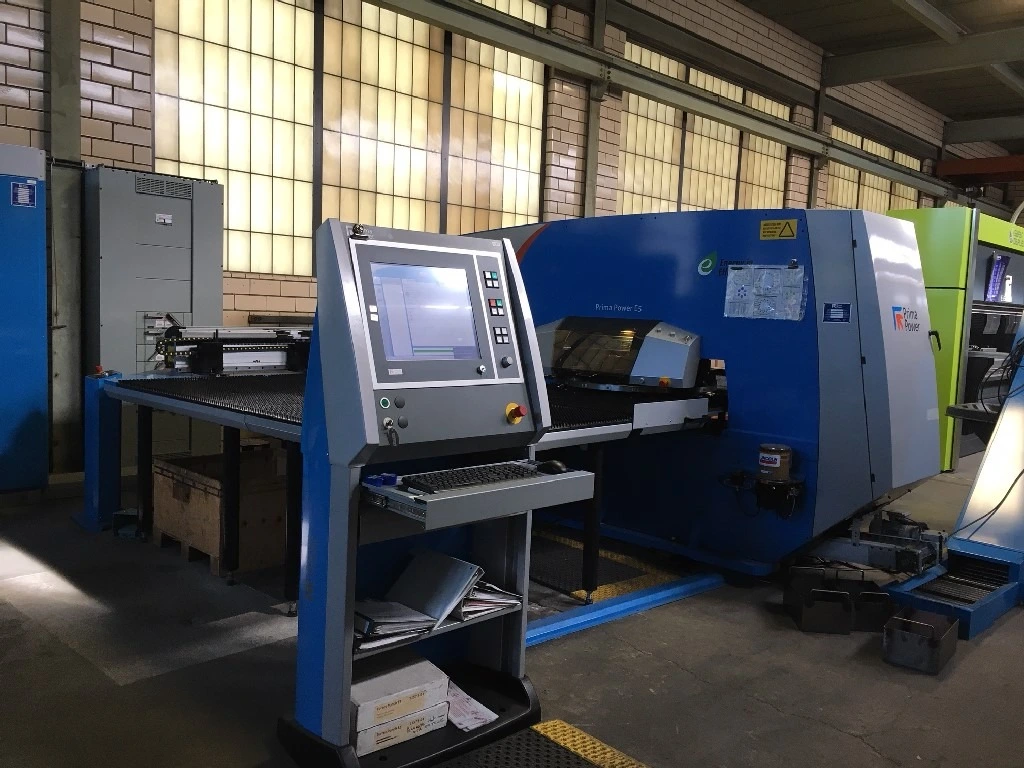

Prima Power E5 High Speed Servo Electric Turret Punch Press

New: 2013 - Under 700 Hours!

Specifications:

 -900 Hits Per Minute on 1" Centers

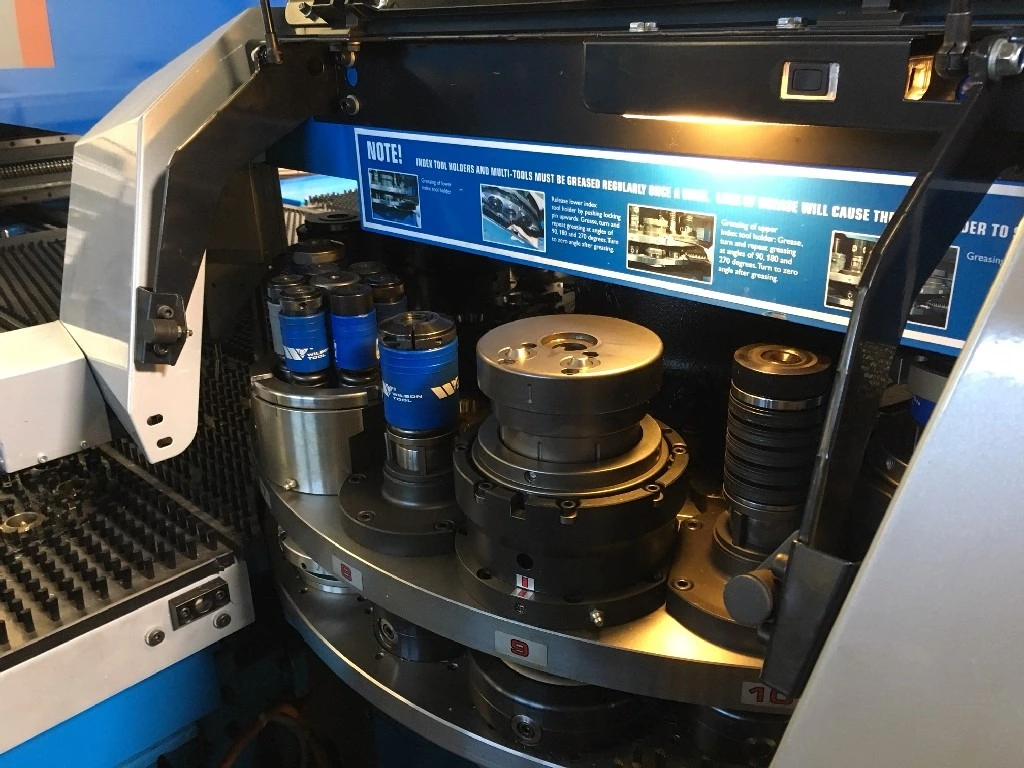

 -20 Station Thick Turret Tooling:

 -Programmable Sheet Clamps with Third Clamp

 -TU6L tapping - off turret tapping unit

 -Brush Table Tops

 -TULUS Graphical User Interface

 -Automatic Tool Lubrication System

 -Software Upgrade for using indexable multi-tools and 40 character letter Stamp Tool

 -Work Chute (19.7" x 19.7") with Part Detection System with PC1 part conveyor

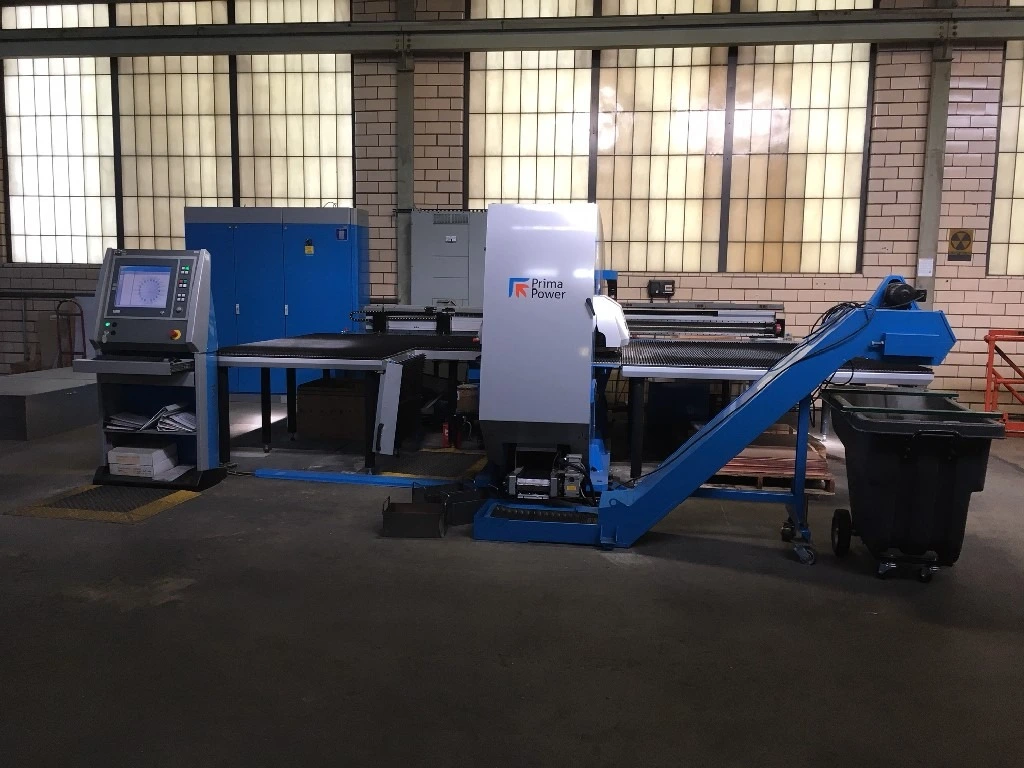

 -Vacuum Slug puller with Scrap conveyor system

 -Electric Cabinet Cooler

 -22 US Ton

 -Easy Loading with 4 pins

More details:

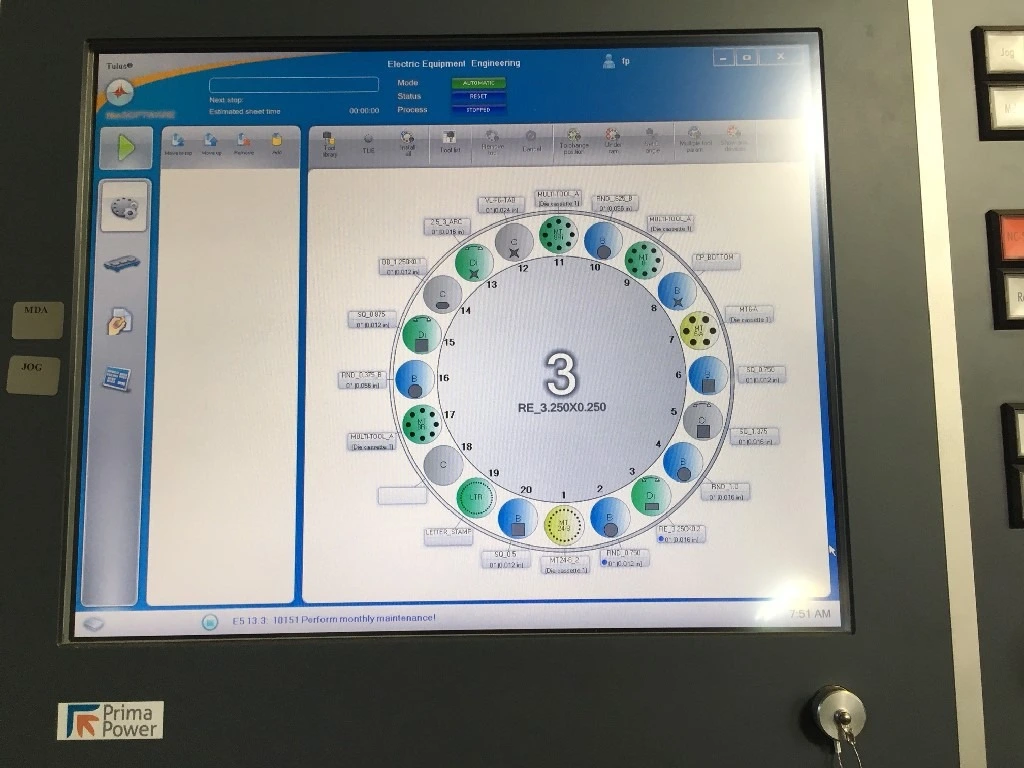

Tooling configuration as shown below, tools shown are offered with the Machine

Station Number Tool Type

1 MT24-8

2 B

3 Di

4 B

5 Ci

6 B

7 Di –(MT6A-135)

8 B

9 Di –(MT-8i)

10 B

11 Di – (MT8Ri)

12 C

13 Di

14 C

15 Di

16 B

17 Di-(MT8Ri)

18 C

19 Di

20 B

TU6 Tapping:

o 4-40

o 6-32

o 8-32

o 10-32

o 1/4-20

o 5/16-18
