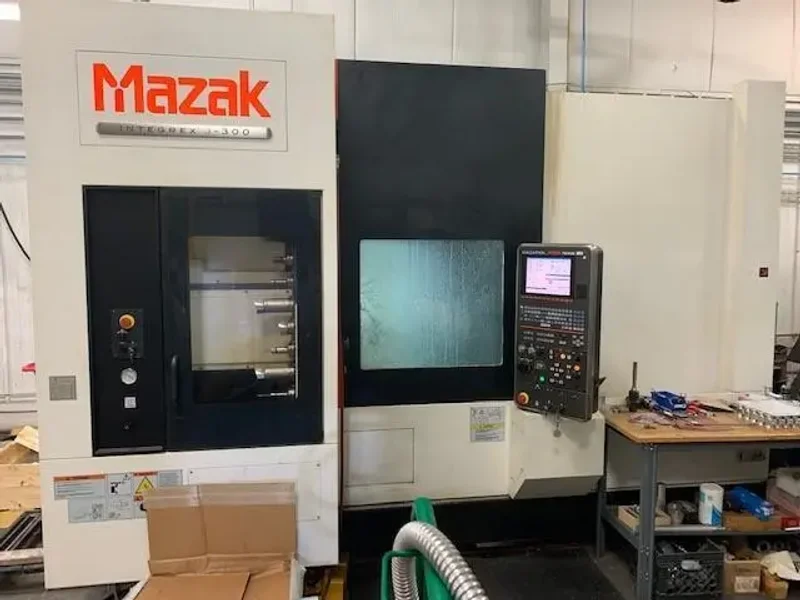

Mazak Integrex J-300 5-Axis CNC Turning Center
New: 2012

Specifications:

 Maximum Swing: 26.77"
 Max Cutting Diameter: 19.69"
 Max Cutting Length: 24.76"
 X-Axis Travels: 24.21"
 Y-Axis Travels: +/- 4.92"
 Z-Axis Travels: 27.36"
 B-Axis Tilt: 220 Degrees
 CAxis Spindle Rotation: 0.0001 Degree

 Spindle Nose: A2-8
 Spindle Bore: 3.54"
 Bar Capacity: 3.15"
 Spindle Speed: 4,000 RPM
 Spindle Motor: 20/25 HP
 Tool Changer: 20 Tool
 Milling Spindle Speed: 12,000 RPM
 Milling Spindle Motor: 30 HP
 Spindle Taper: MT #5
 Tailstock Travels: 40.39"

Equipped With:

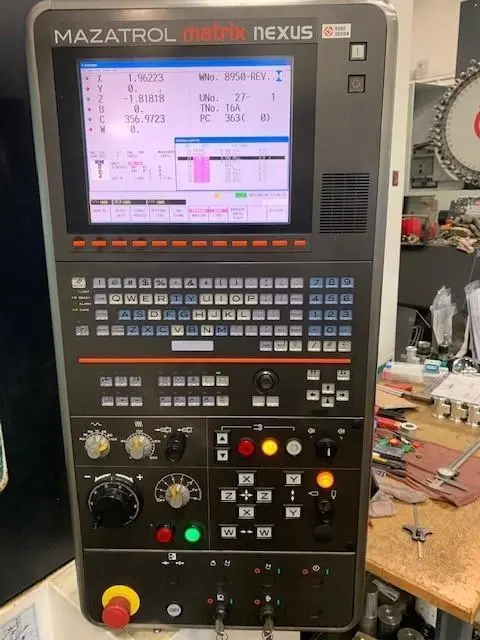

 Mazak Mazatrol Matrix Nexus Control
 10" 3-Jaw Hydraulic Chuck
 C-Axis Spindle Rotation
 Live Milling/Drilling Capability
 Y-Axis for Off-Center Machining
 B-Axis Pendulum Head
 Chip Conveyor
 Tailstock
 High Pressure Coolant
 Chip Conveyor
 Variable Offsets 600
 Spiral Programming
 Coordinate Rotation & Scaling

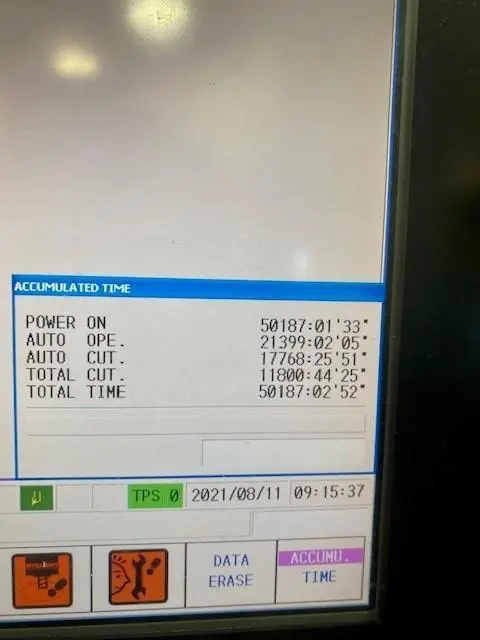

Total Cut Time: 11,800 Hours

Weight: 27,800 Lbs
