Okuma Simul Turn LU300-M Multi Axis CNC Turning Center

Brand
OKUMA
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Make:OkumaModel:Simul Turn LU300-M
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Okuma
Model:Simul Turn LU300-M
Year:2008
Condition:Used – Good



Equipped With:

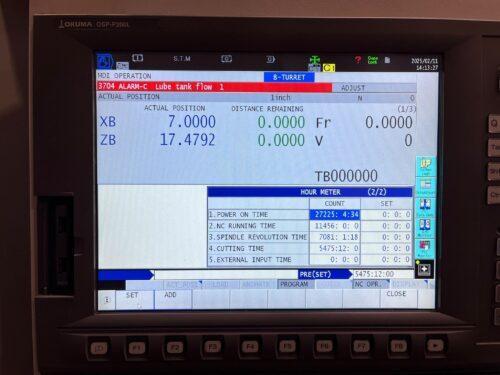

Okuma OSP-P200L CNC Control
12 Station Upper Live Tool Turret with Tool Holders
8 Station Lower Turret with Tool Holders
Servo Controlled Full C-Axis on Spindle
Collet Chuck (Capable 8″ to 10″ Chuck)
Rigid Tapping
Foot Operated Control for Chuck
Coolant System
Tool Pre-setter
Chip Conveyor
Tailstock
(2) Milling Tool Holders (14) Static Tool Holders (Equipped on Turrets as shown in the pictures)



Capacity:
Max Turning Diameter Upper Turret: 13.39″ ?
Max Turning Diameter Lower Turret: 8.66″
Max Swing Over Bed : 22.84″
Max Turning Length: 23.63″
Max Bar Capacity : 2.46″



Travels:
X1 Axis Travel Upper : 10.24″ ?
X2 Axis Travel Lower : 6.30″
Z1 Axis Travel Upper : 26.97″
Z2 Axis Travel Lower : 24.22″
C Axis: 360° (0.001°)



Feedrate:
X Axis: 984 IPM Rapid Traverse
Z Axis: 1181 IPM Rapid Traverse



Spindle:
Main Spindle Bore: 3.15″
Main Spindle Nose: A2-6
Main Spindle Speed: 50-5000 RPM
Main Spindle Power: 30 HP



Turret:
Upper Turret Capacity: 12 Stations
Lower Turret Capacity: 8 Stations
Live Tool Speed: 6,000 RPM
Live Tool Motor : 5 HP



Tailstock:
Tailstock Taper: MT-5
Quill Diameter: 3.54″
Quill Travel: 4.72″



General:
Power Source: AC 220v/480v / 3-Phase / 60 Hz
Power Requirement: 29.9 kva
Overall Dimensions: 116″ x 85″ x 83″ High
Weight: 14,960 lbs Approx.
No files or videos to display
