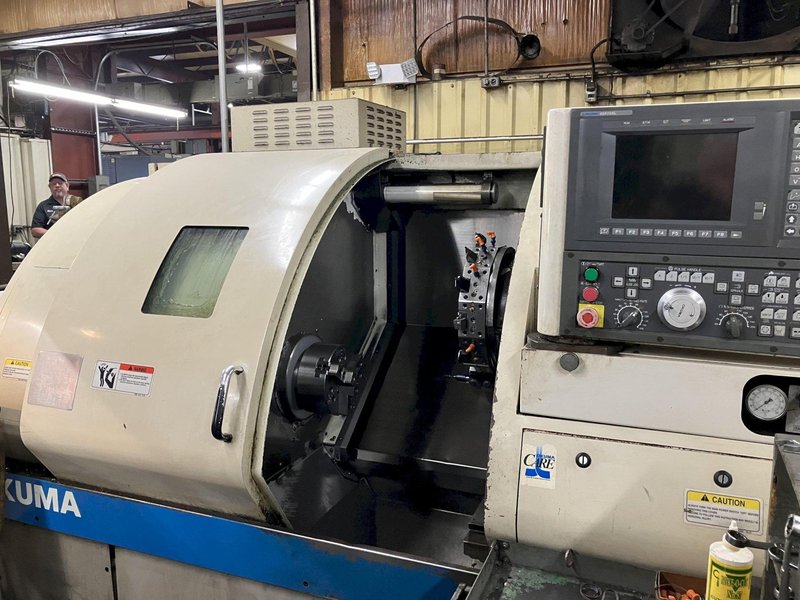

OKUMA CROWN 762SB CNC TURNING CENTER
Brand
Category
Type
Model
762SB
Stock #
Not specified
Year
2001
Condition
Good
Location
Michigan
|
Control OSP-700L/CRT
Swing.........................................................: 21.65"
Swing Over Cross Slide.................................: 15.75"
Maximum Machining Diameter........................: 10.63"
Distance Between Centers.............................: 24.47"
Spindle Speed: Minimum (RPM).....................: 65 rpm - 4,000 rpm
Bar Capacity................................................: 2.75"
Main Motor..................................................: 20 HP
Spindle Nose...............................................: A2-8
Number Of Turret Positions............................: 12
X-Axis Travel................................................: 7.28"
Z-Axis Travel................................................: 20.47"
Quill Stroke.................................................: 4.72"
Tailstock Quill Diameter.................................: 3.54"
Chuck Diameter............................................: 8" Kitagawa
Number of Jaws............................................: 3
Equipped With:
Chip Conveyor
Servo Turret
Tailstock w/Programmable Quill
Transformer
Turret Tool Holders |
