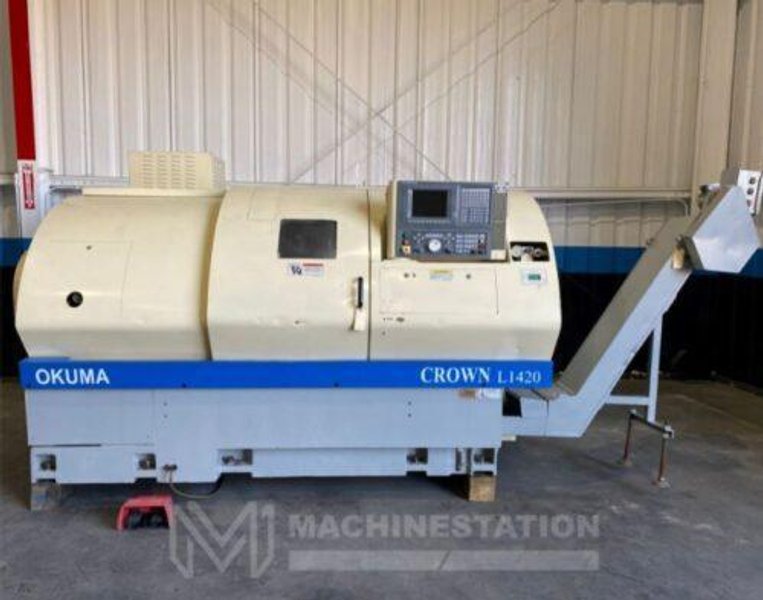

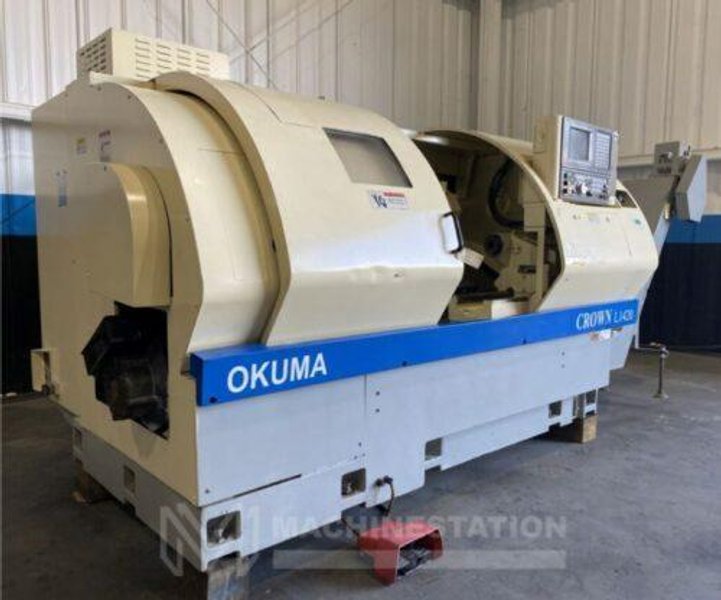

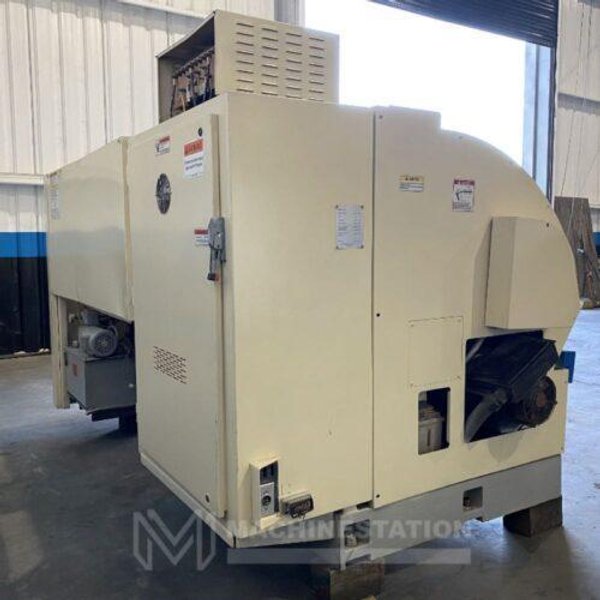

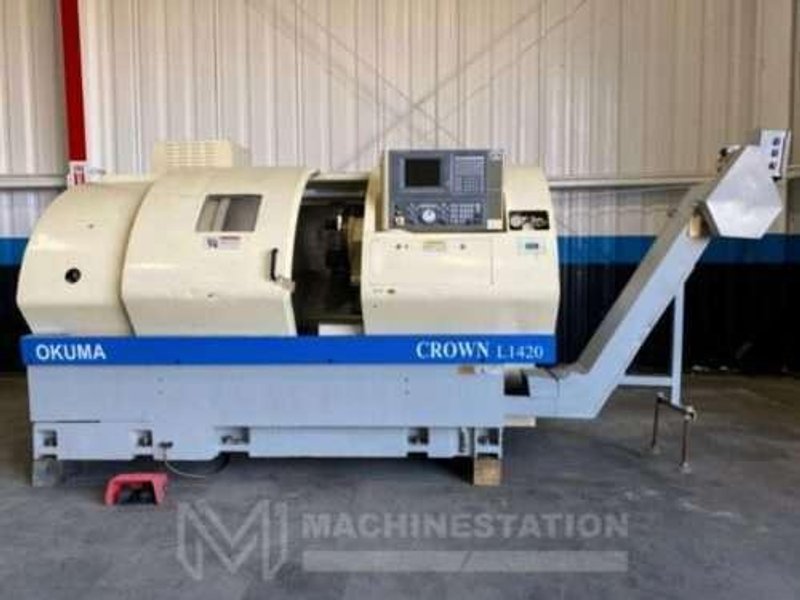

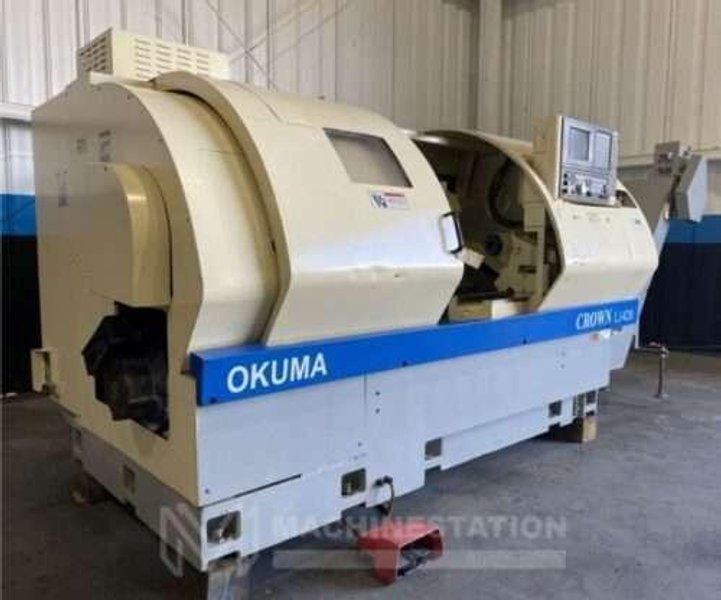

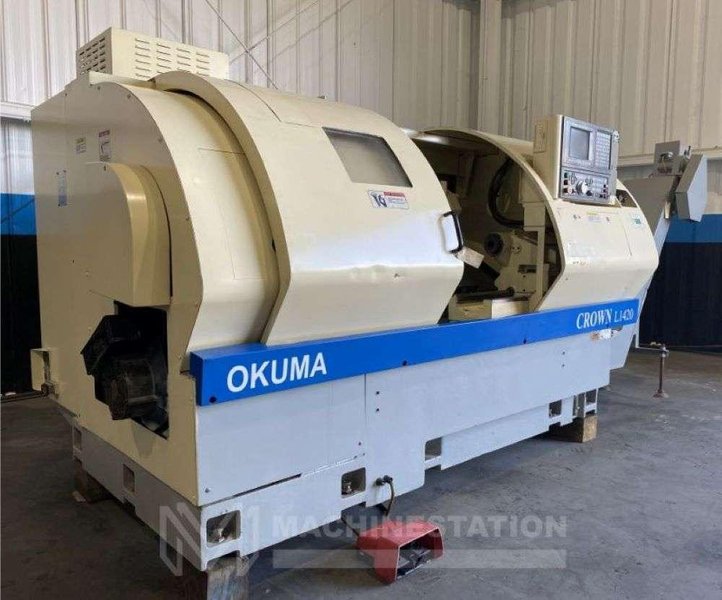

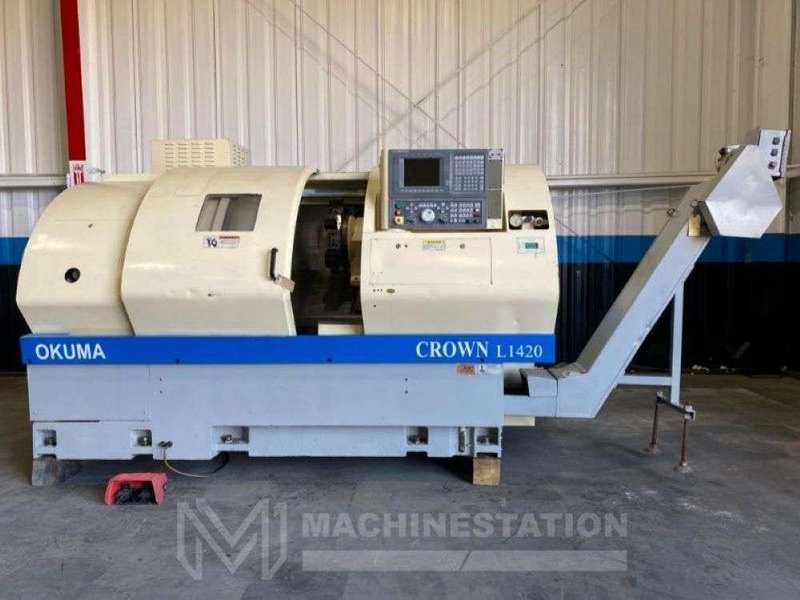

Okuma Crown L1420/650 CNC Turning Center

Okuma Crown L1420/650 CNC Turning Center

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	OKUMA
Model:	CROWN 769 L1410/650
Year:	2000
Condition:	Used – Good

Equipped With:

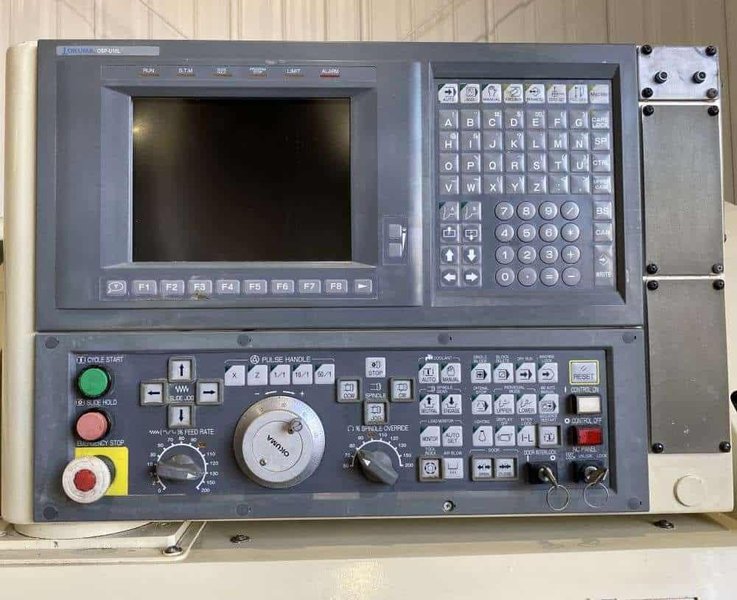

OSP-U10L CNC Control
One Touch IGF Programming

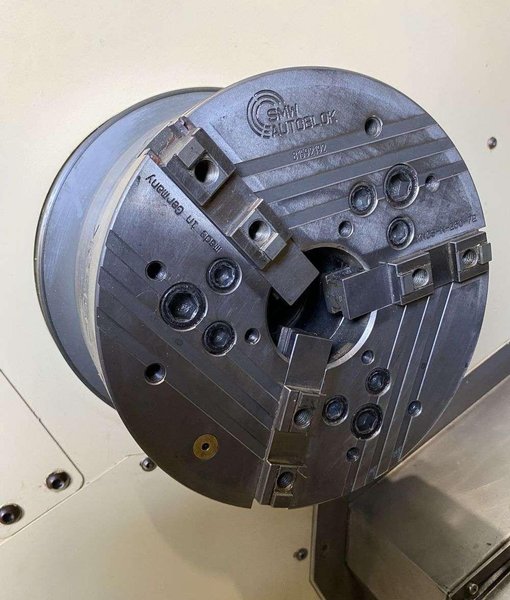

10″ Hydraulic Chuck (12″-15″ Capable)

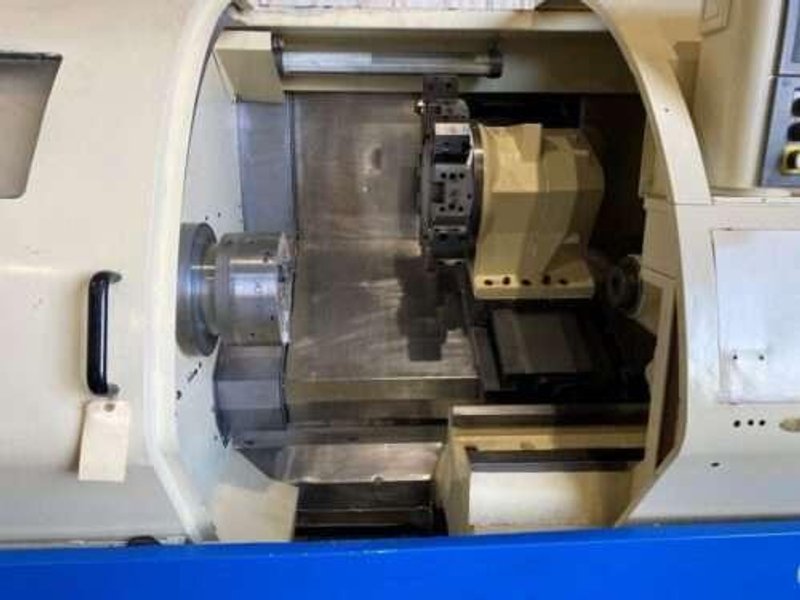

12-Station Turret
Floppy Drive

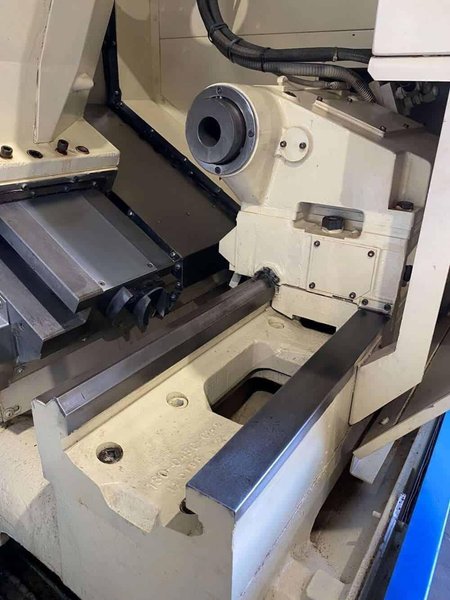

Hydraulic Tailstock with Power Quill

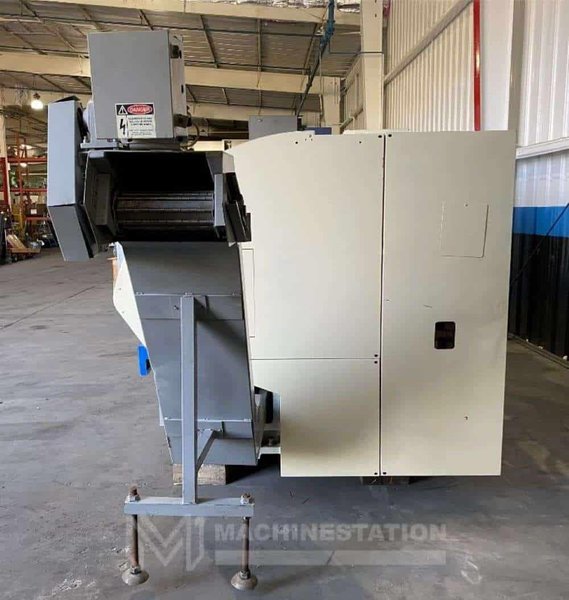

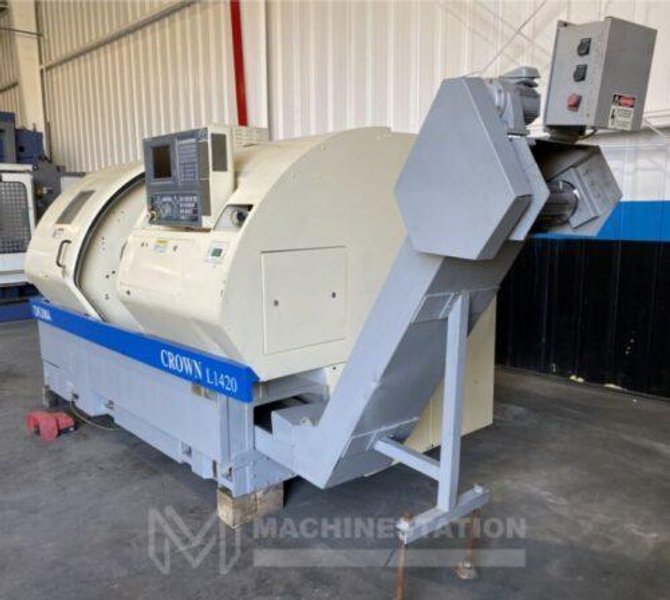

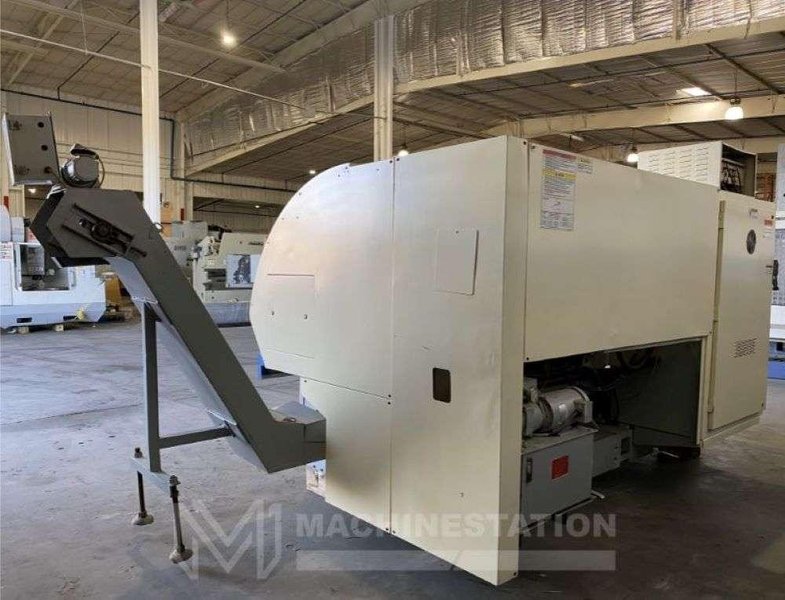

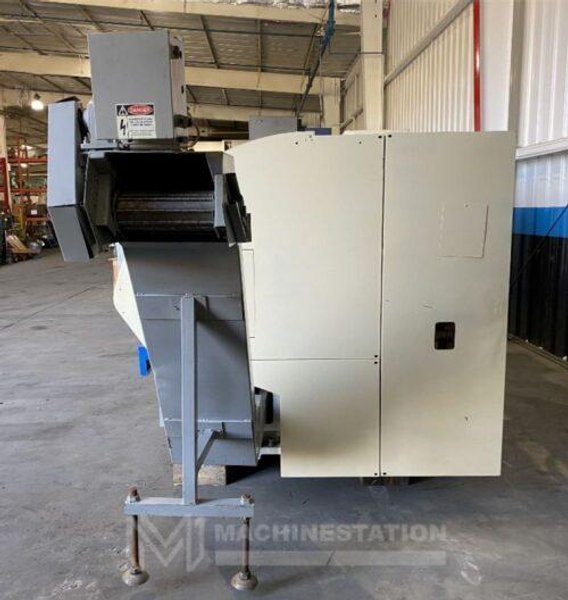

Chip Pan and Chip Conveyor
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock

Capacity:
Max Turning Diameter: 14.17″
Max Turning Length: 25.59″
Max Bar Capacity: 3.15″
Swing Over Slide: 18.9″
Swing Over Bed: 28″
Distance Between Centers: 26″

Travels:
X Axis Travel: 9.1″
Z Axis Travel: 25.59″
Rapid Traverse X Axis: 591 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.54″
Spindle Speed: 3500 RPM
Spindle Motor: 30 HP

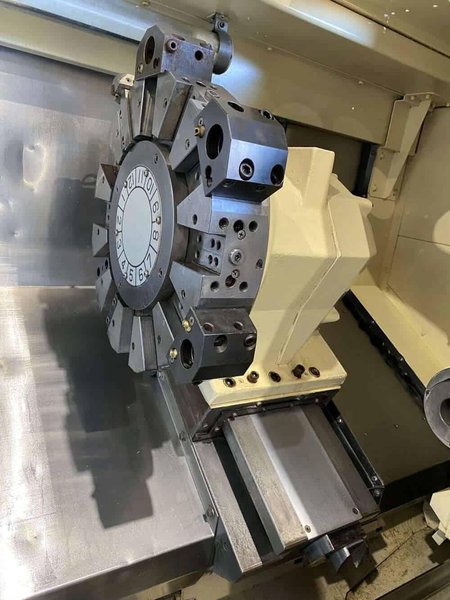

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second

Tailstock:
Tailstock Body Travel: 14.5″
Tailstock Quill Dia.: 3.94″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-5

General:

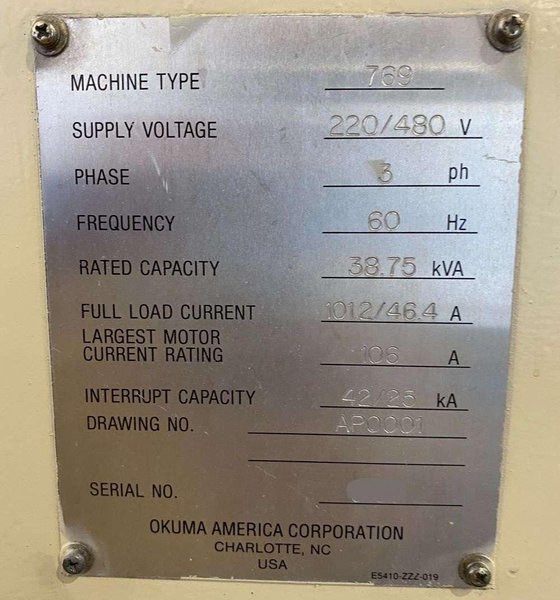

Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 38.75 kva
Overall Dimensions: 126″ x 68″ x 80″ High
Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
Weight : 13,500 lbs Approx.

No files or videos to display
