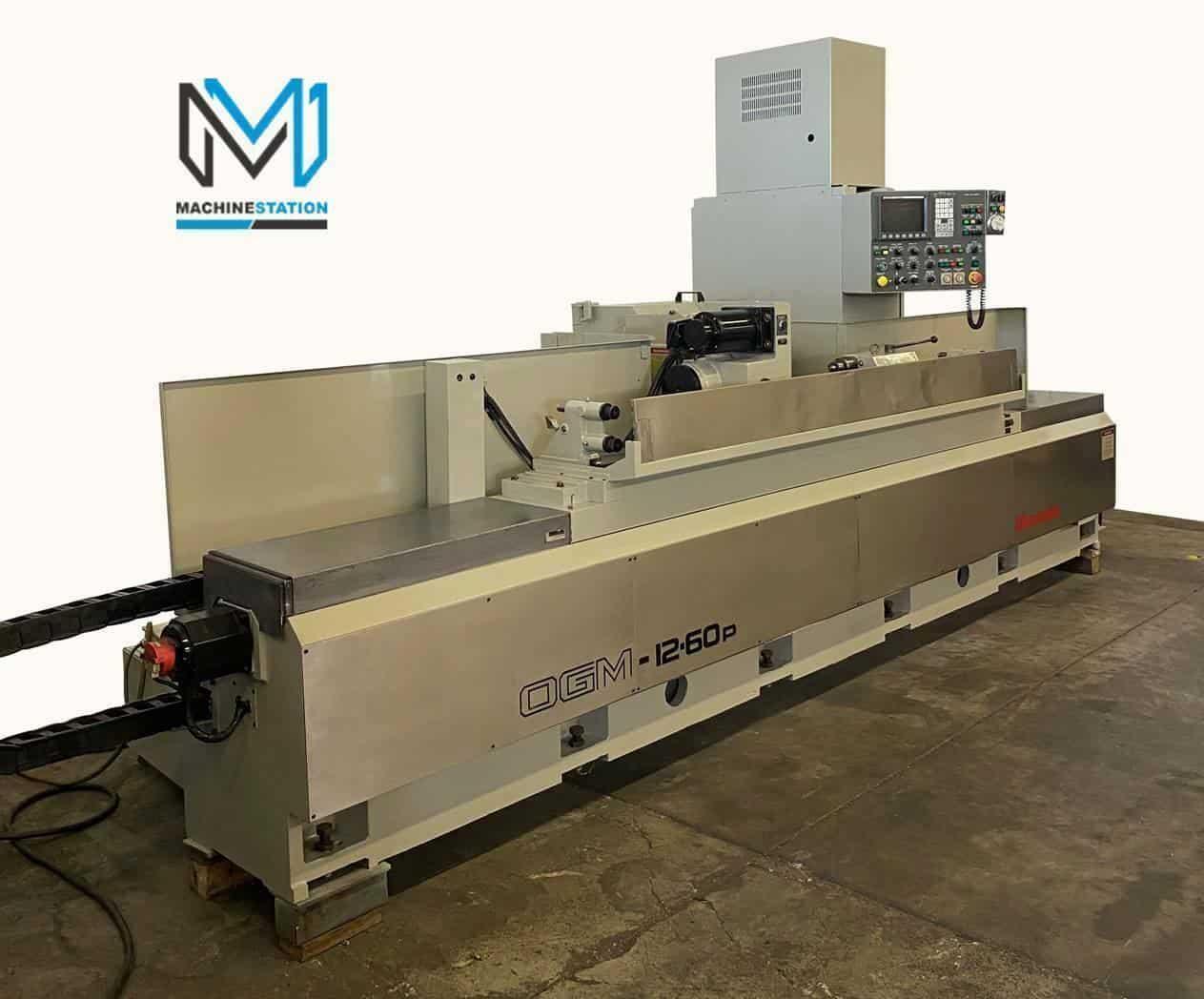

Okamoto OGM 12-60P CNC OD Cylindrical Grinder

Okamoto OGM 12-60P CNC OD Cylindrical Grinder

Brand

OKAMOTO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	OKAMOTO
Model:	OGM 12.60P
Year:
Condition:	Used – Good

Equipped With:
Fanuc 21-GA
Absolute/Incremental Combined Programming
4 x Subprograms
Swivelable Table
MPG Control
2 X Steady Rests
Inch / Metric Conversion
Stored Stroke Check
Auto Reference Point Return
Automatic Acceleration & Deceleration
Coolant System
Automatic Lubrication system
Manuals

Capacity:
Max Grinding Diameter: 11.81″
Max Grinding Length: 62.99″
Max load Capacity: 330 lbs
Swing Over Table: 12.59″
Distance Between Centers: 63.0″

Grinding Wheel:
Speed: 1742 RPM
wheel Size: 16″ X 2″ X 5″

Wheelhead:
X Axis Infeed Travel: 11.81″
Handfeed Travel: 7.9”
Least Travel Increment: 0.0001”
Rapid Feed Rate: 158″
Cont. Feed Rate: 0.0001″ to 158″
Motor: 7.5 HP

Workhead:
Center Taper: MT-4
Spindle Bore Dia.: 0.68″
Speed: 10-500 RPM
Motor: 1 HP

Table:
Z Axis Travel: 68.89″
Swivel Angle: +2 /- 6°
Least Travel Increment: 0.0001”
Rapid Feed Rate: 393″
Cont. Feed Rate: 0.0001″ to 393″

Tailstock:
Tailstock Quill Stroke: 1.18″
Tailstock Taper: MT-4

General:
Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 20 kva
Overall Dimensions: 245″ x 75″ x 66″ High
Weight : 11200 lbs Approx.

“No Charges for loading at list Price”
