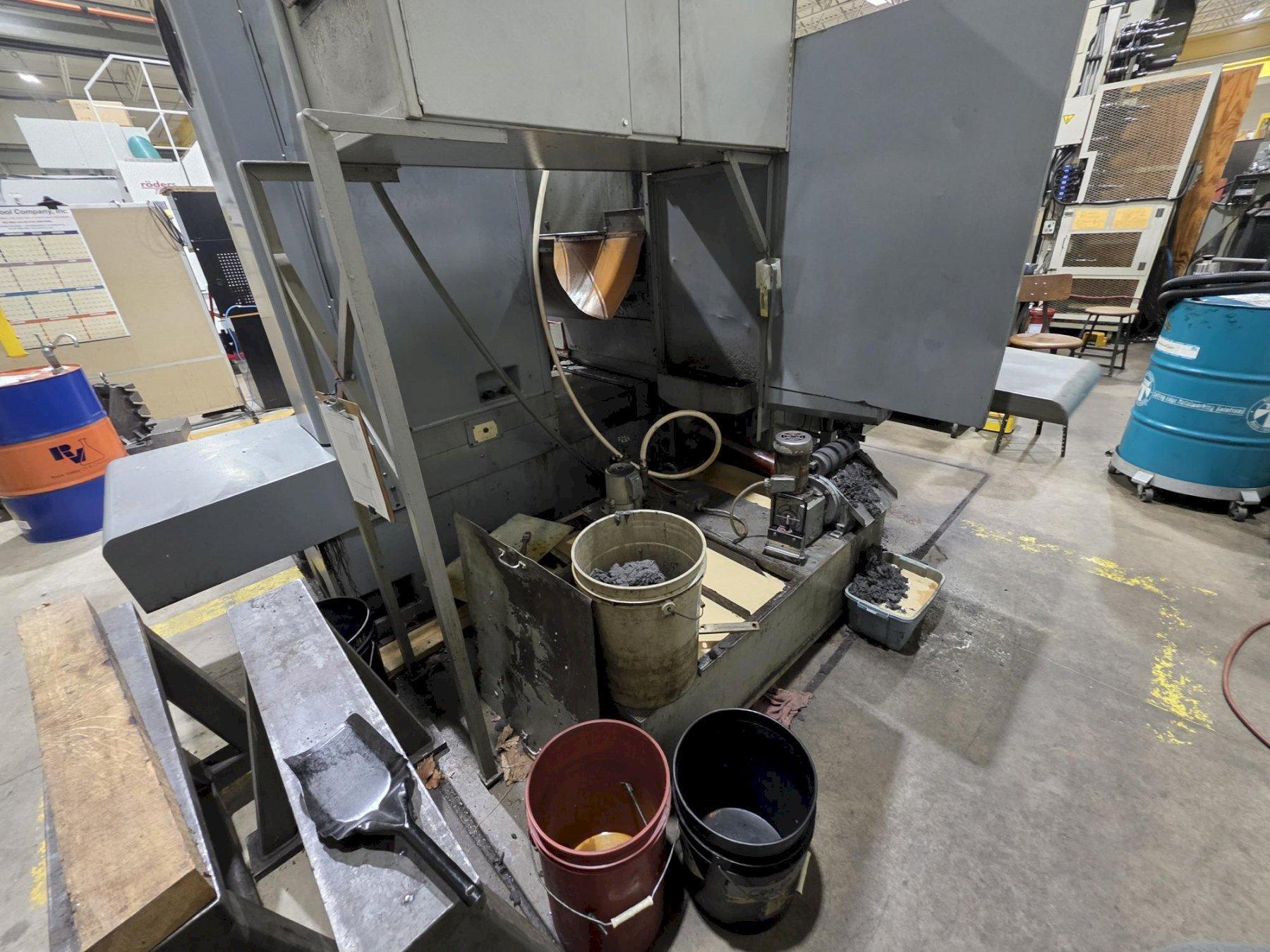

24″ x 48″ Okamoto PSG-186B Surface Grinder, 1979 – Electro-Magnetic Chuck, 3 Axis Feed

Grinding Capacity: 24″ x 48″ Maximum Table Movement: 25″ x 51″ Maximum Distance Between Wheel & Table: 27″ Magnetic Chuck Size: 24″ x 46″ Table Load Capacity Including Chuck: 5,470 Lbs Grinding Wheel Size: 20″ x 2″ x 5″ Wheel Speed: 1,800 RPM Grinding Wheel Spindle: 20 HP Electrical Requirements: 230V/460V/3Phz/60Hz/24KVa Approx. Machine Weight: 15,500 Lbs Approx. Machine Size: 151″ x 102″ x 100″H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: 3-Axis Automatic Feed. Incremental Downfeed. Electro-Magnetic Chuck & Rectifier. Hydraulic Over-The-Wheel Dresser. High/Low Table Settings. Spark Out Capability. Coolant System With Magnetic Separator

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
