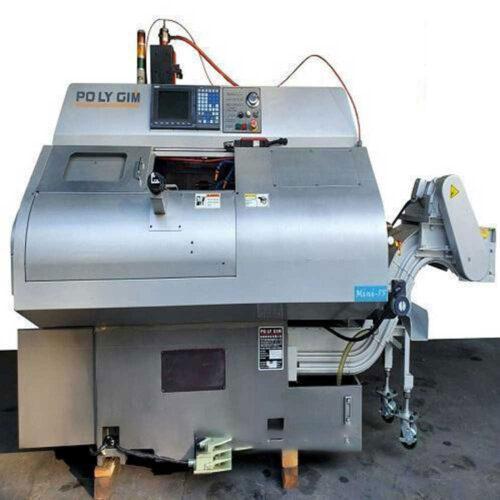

Polygim Mini-88-25 CNC Turning Center

Brand
POLY GIM
Category
Lathes & Turning Machines
Type
Turning Centers
Model
MINI-88-25
Stock #
112207
Year
2015
Condition
Not specified
Location
Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: POLYGIM
Model: MINI-88-25
Year: 2015
Condition: Used – Excellent



Equipped With:
Mitsubishi CNC Control
Auto Parts Loader
8 -Station Servo Turret
Spindle Synchronization
FireTrace fire suppression system
4″ 3 Jaw Chuck on Main Spindle
4″ 3 Jaw Chuck on Sub Spindle
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
Chip Conveyor
Parts Conveyor
PCMCIA Card Slot
Tool Holder Bushings



Capacity:
Max Turning Diameter: 3.15″ (80 mm)
Max Turning Length: 8.66″ (220 mm)
Max Bar Capacity: 1.00″ (25.4 mm)
Max Swing Over Bed: 15.74″  (400 mm)



Travels:
X Axis Travel: 3.15″ (80 mm)
Z Axis Travel: 11.02″ (280 mm)
A Axis Travel (Sub Spindle): 8.66″ (220 mm)



Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 472 IPM



Spindle:
Main Spindle Bore: 1.02″ (26 mm)
Sub Spindle Bore: 1.02″ (26 mm)
Main Spindle Nose: Ø3.34″ (85 mm)
Sub Spindle Nose: Ø3.34″ (85 mm)
Main Spindle Speed: 100-6000 RPM
Sub Spindle Speed: 100-6000 RPM
Main Spindle Power: 3 HP (2.5 kw)
Sub Spindle Power: 2 HP (1.5 kw)



Turret:
Capacity: 8 Station
Index Time: 1 second



General:
Power: 5 kVA 220v / 3-Phase Overall
Dimensions: 79″ x 47″ x 66″ High
Weight: 3042 lbs. Approx.
No files or videos to display
