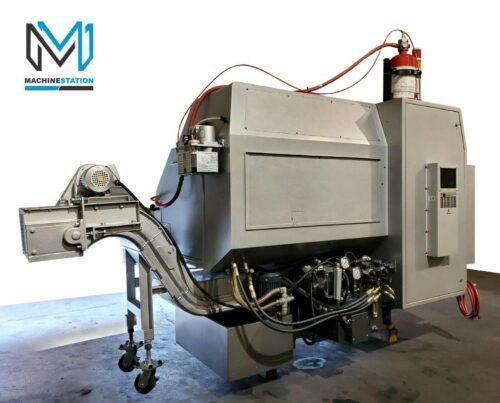

Polygim Mini-88-25 CNC Turning Center

Brand
POLY GIM
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Make:POLYGIMModel:MINI-88-25
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:POLYGIM
Model:MINI-88-25
Year:2018
Condition:Used – Excellent



Equipped With:
Mitsubishi CNC Control
Auto Parts Loader
8 -Station Servo Turret
Spindle Synchronization
FireTrace fire suppression system
Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
Chip Conveyor
Parts Conveyor
PCMCIA Card Slot
Tool Holder Bushings



Capacity:
Max Turning Diameter: 3.15″ (80 mm)
Max Turning Length: 8.66″ (220 mm)
Max Bar Capacity: 1.00″ (25.4 mm)
Max Swing Over Bed: 15.74″  (400 mm)



Travels:
X Axis Travel: 3.15″ (80 mm)
Z Axis Travel: 11.02″ (280 mm)
A Axis Travel (Sub Spindle): 8.66″ (220 mm)



Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 472 IPM



Spindle:
Main Spindle Bore: 1.02″ (26 mm)
Sub Spindle Bore: 1.02″ (26 mm)
Main Spindle Nose: Ø3.34″ (85 mm)
Sub Spindle Nose: Ø3.34″ (85 mm)
Main Spindle Speed: 100-6000 RPM
Sub Spindle Speed: 100-6000 RPM
Main Spindle Power: 3 HP (2.5 kw)
Sub Spindle Power: 2 HP (1.5 kw)



Turret:
Capacity: 8 Station
Index Time: 1 second



General:
Power: 5 kVA 220v / 3-Phase Overall
Dimensions: 79″ x 47″ x 66″ High
Weight: 3042 lbs. Approx.
