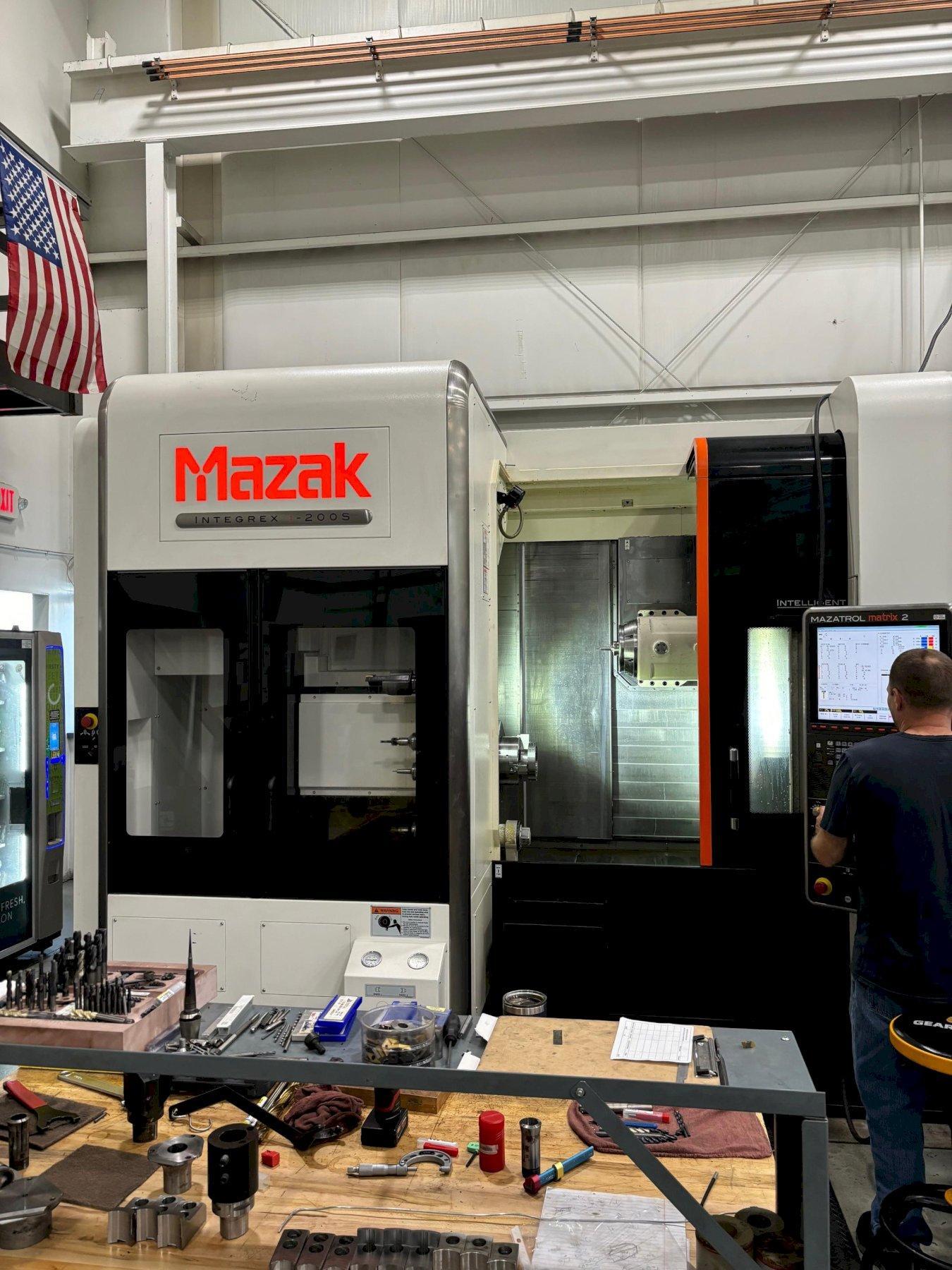

Mazak Integrex i200S 5 axis Turning Center

X Axis Travel: 24.21"
Z Axis Travel: 42.4"
Rapid Rate Z Axis: 1,969 IPM
ATC Tools: 72 Capto Station
Rapid Rate X Axis: 1,969 IPM
Max Turning Dia: 25.9"
Max Turning Length: 39.8"
Max Swing: 25.9"

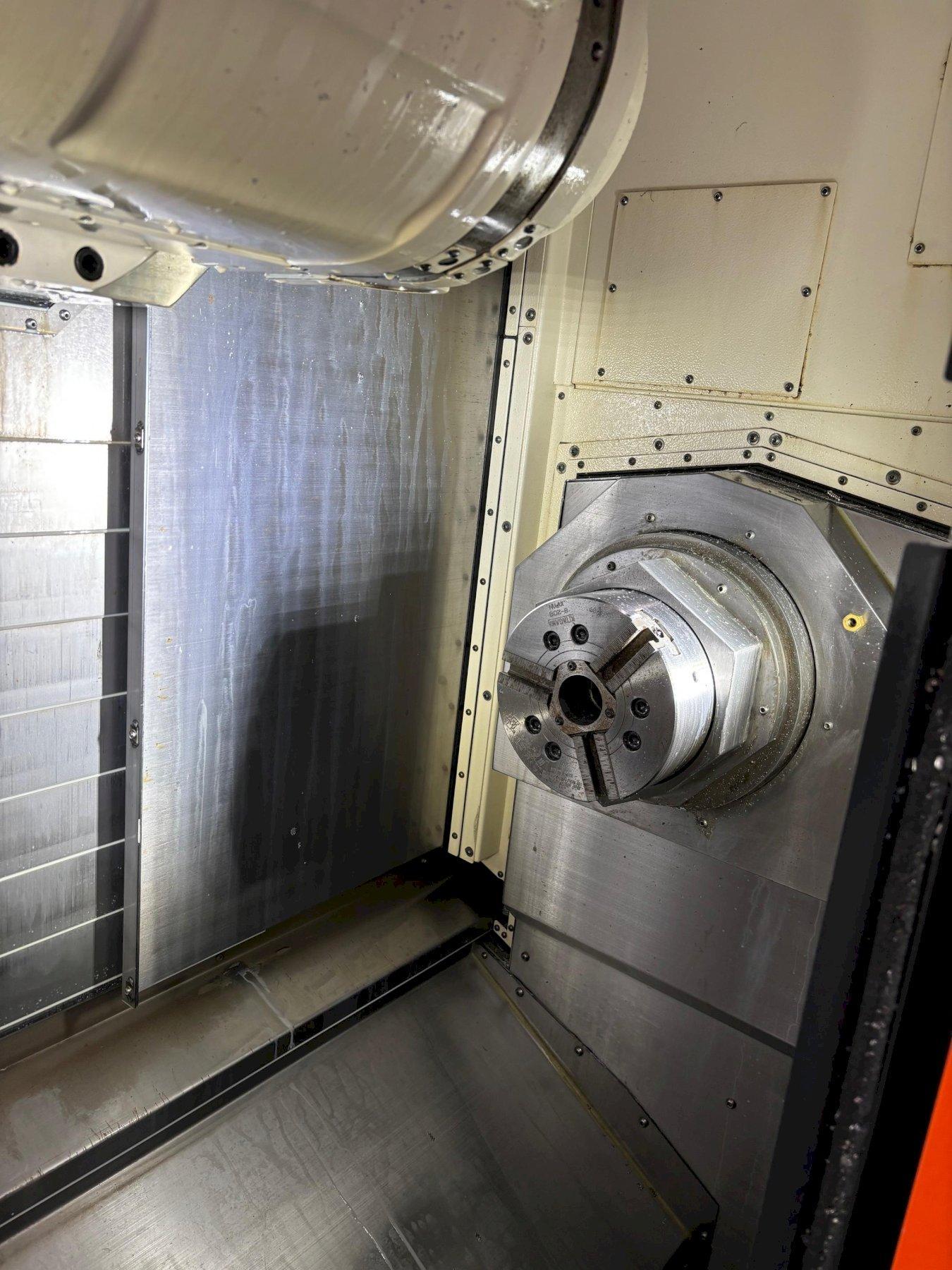

MAIN SPINDLE:
Bar Capacity: 2.6"
Chuck Size: 8" Chuck
Spindle Speed: 5,000 RPM
Spindle Nose A2-6
Spindle Bore 2.4"
Spindle Min. Indexing Increment .0001 DEG

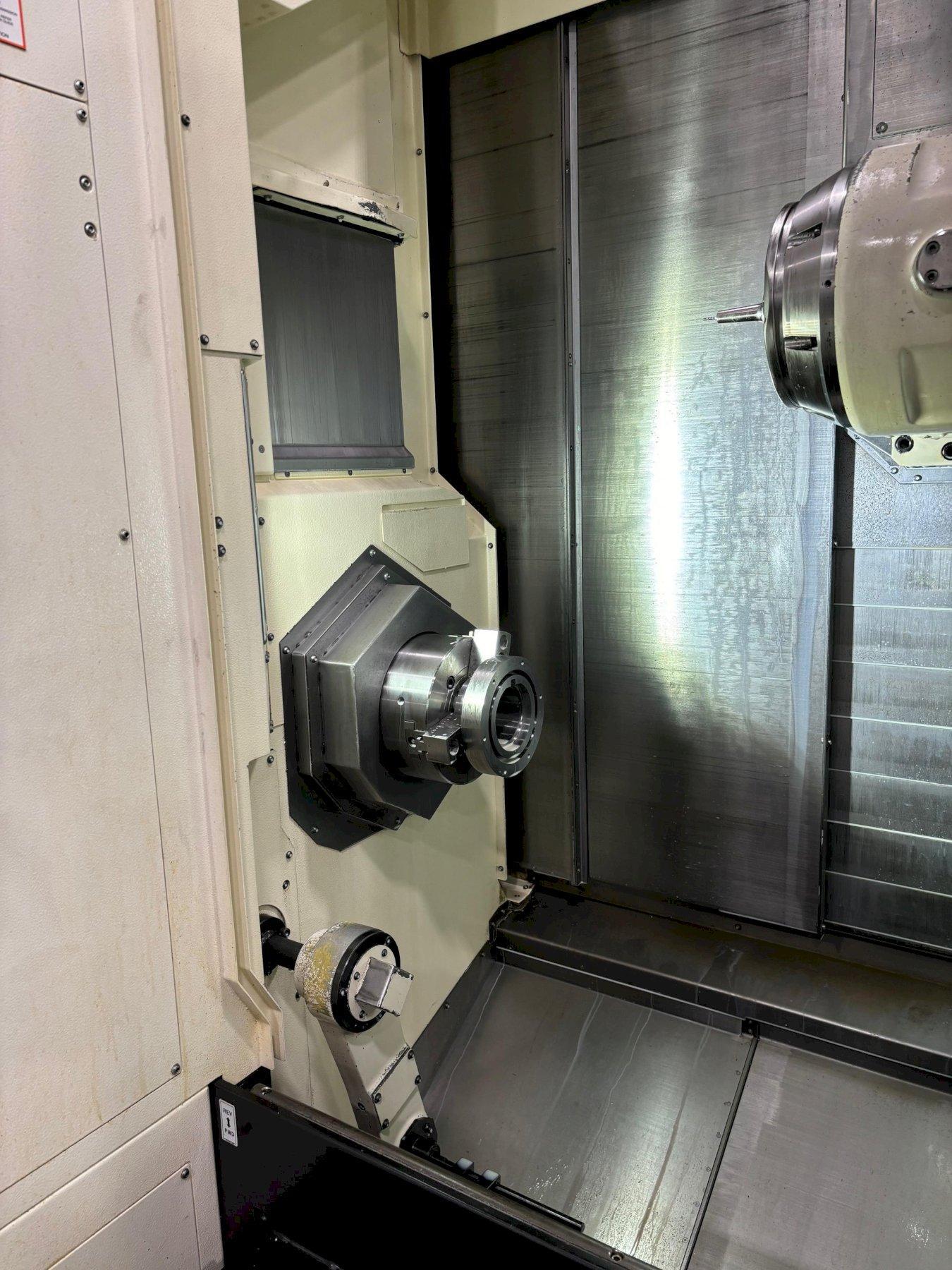

SUB SPINDLE:
Sub Spindle 5000 RPM
Sub Spindle 25HP
Sub Spindle 3 Jaw Chuck
W Axis Travel 41.97"

MILLING SPINDLE:
Milling Spindle RPM 12,000 RPM
Number of Tool Stations 36 ATC
Maximum Tool Diameter 3.54"
Maximum Tool Length 15.75"
Milling Spindle 30HP
Y Axis Travel 9.84
B Axis Travel 240 DEG
C Axis Positioning .0001 DEG

Dimensions: 157" x 110" x 107"
Weight: 28,800 LBS

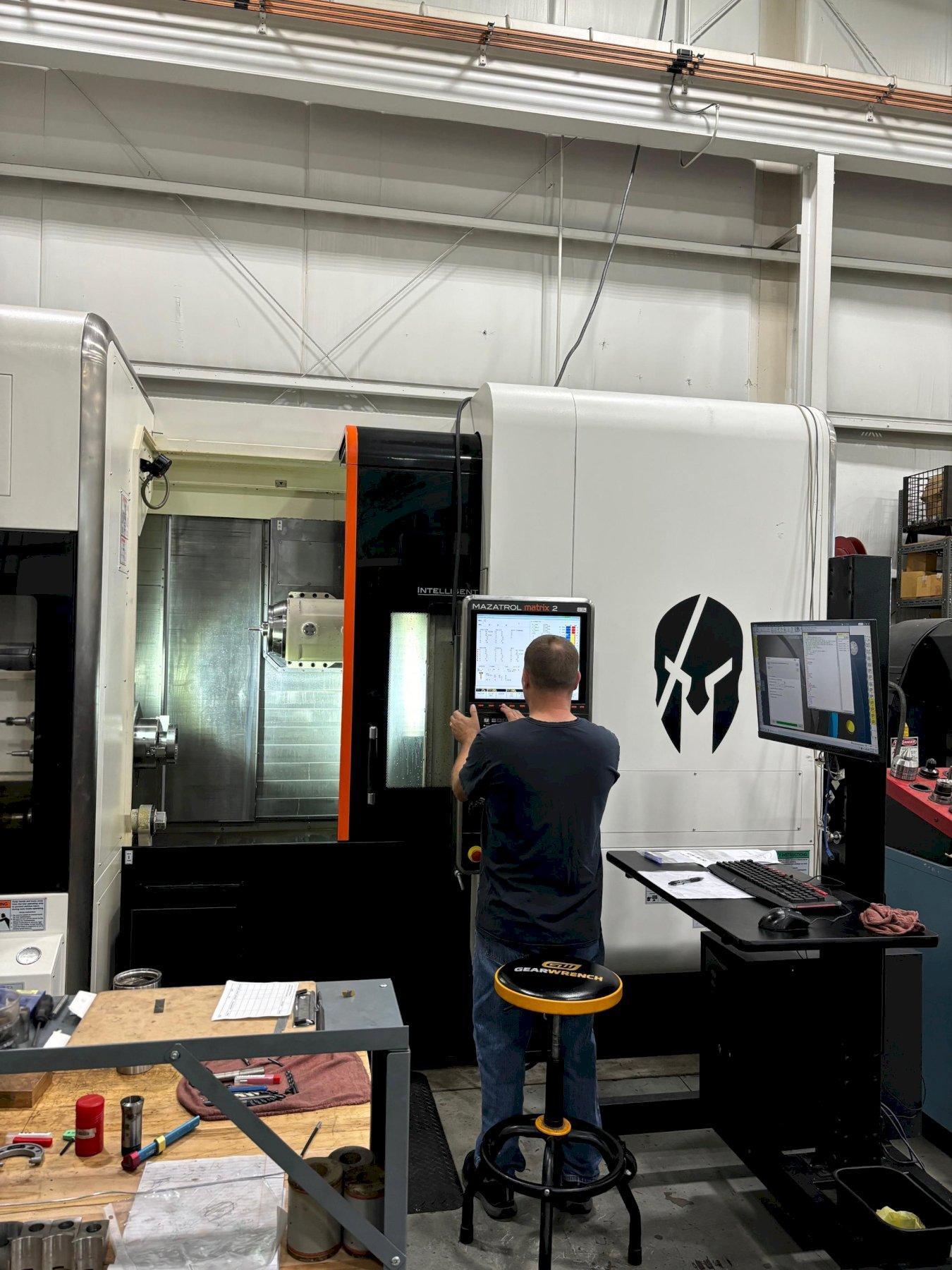

Mazatrol Matrix 2 Control
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Bar Feed Interface (Feeder Not Included)
Renishaw Probe
Full B-axis contour with smooth control
3D Coordinate Compensation
Cylindrical & Polar Coordinate
Front & Sub Spindle C Axis 0.0001 Degree Increment
USB Interface
X,Y,Z Pitch Error Compensation
Concept Chip Conveyor Side Disposal
Thread Start Point Compensation
213 PSI Thru Coolant / Flood Coolant Simul-Flowable
5 Axis Machining Package
Coolers for Ball Screw X Axis
EIA/ISO Input Function, Additional EIA/ISO Function
Shape Compensation for Rotary Axes
Milling Spindle Synchronous Tapping
Work Measuring System
Lan Port
Coolant thru Milling Head
Absolute Positioning System
Auto Chuck Jaws Open/Close
Windows 7 Operation System
72 Capto Tool Magazine
Tool Radius System
