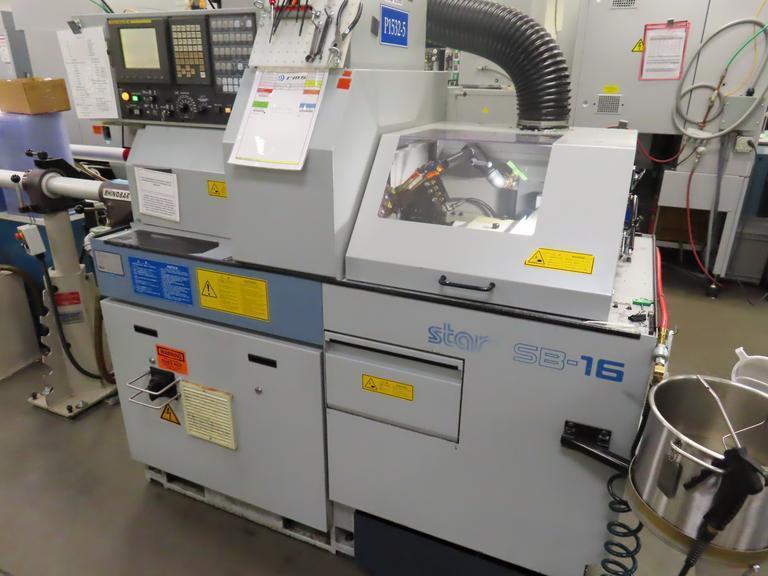

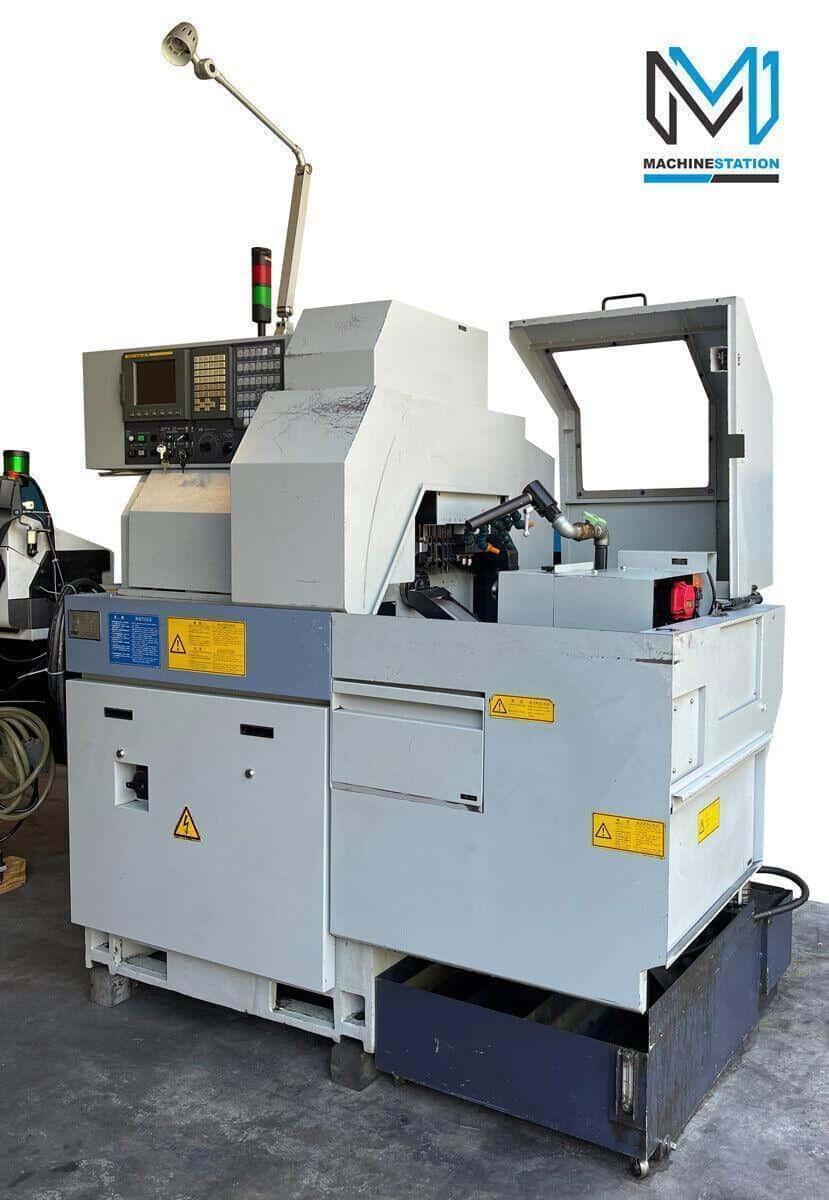

Star SB-16 CNC Swiss Screw Type Automatic Lathe Turning

Star SB-16 CNC Swiss Screw Type Automatic Lathe Turning

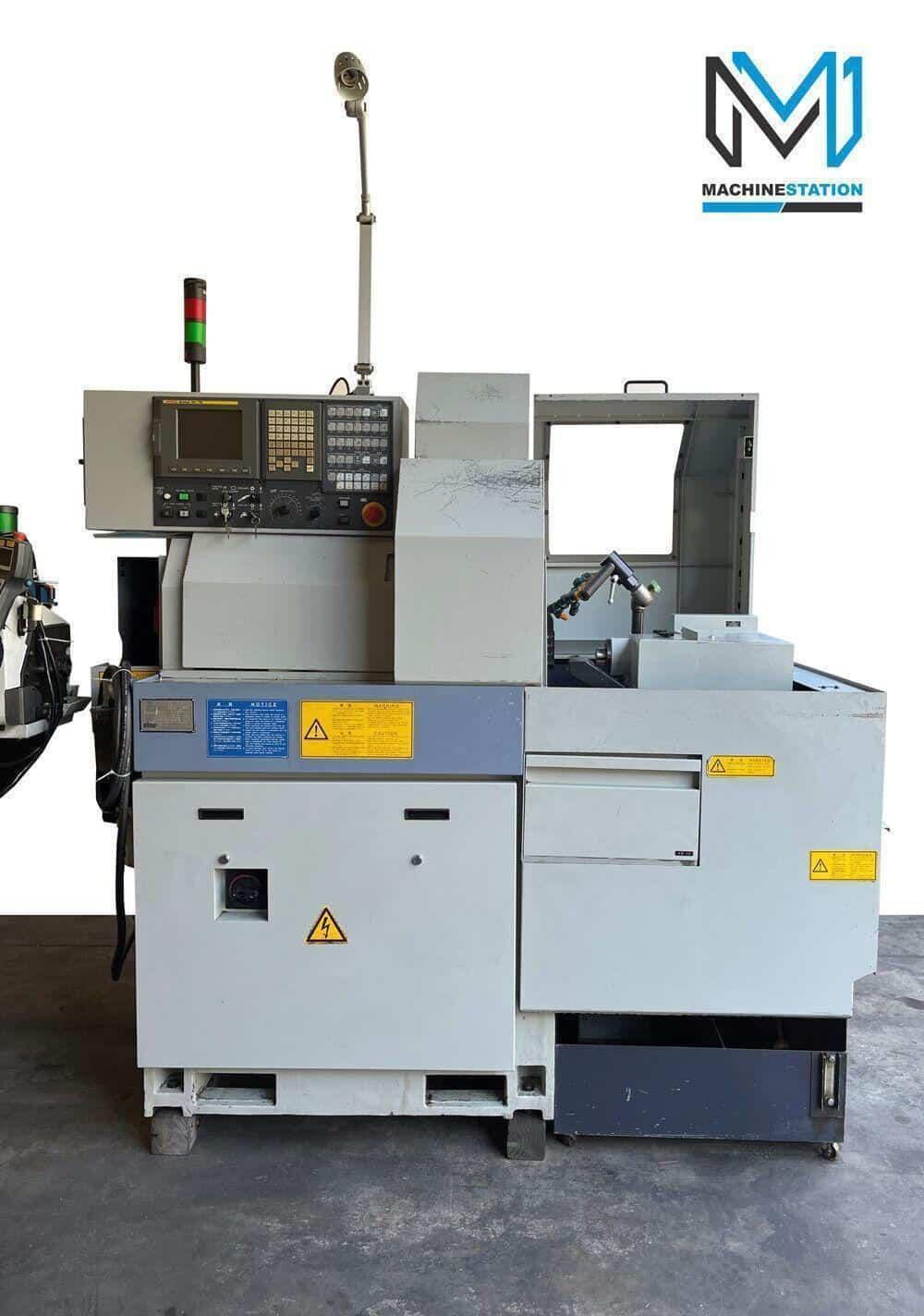

Name: Star SB-16 CNC Swiss Screw Type Automatic Lathe Turning
Brand: STAR
SKU: 112344
Availability: PreOrder

Brand

STAR

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

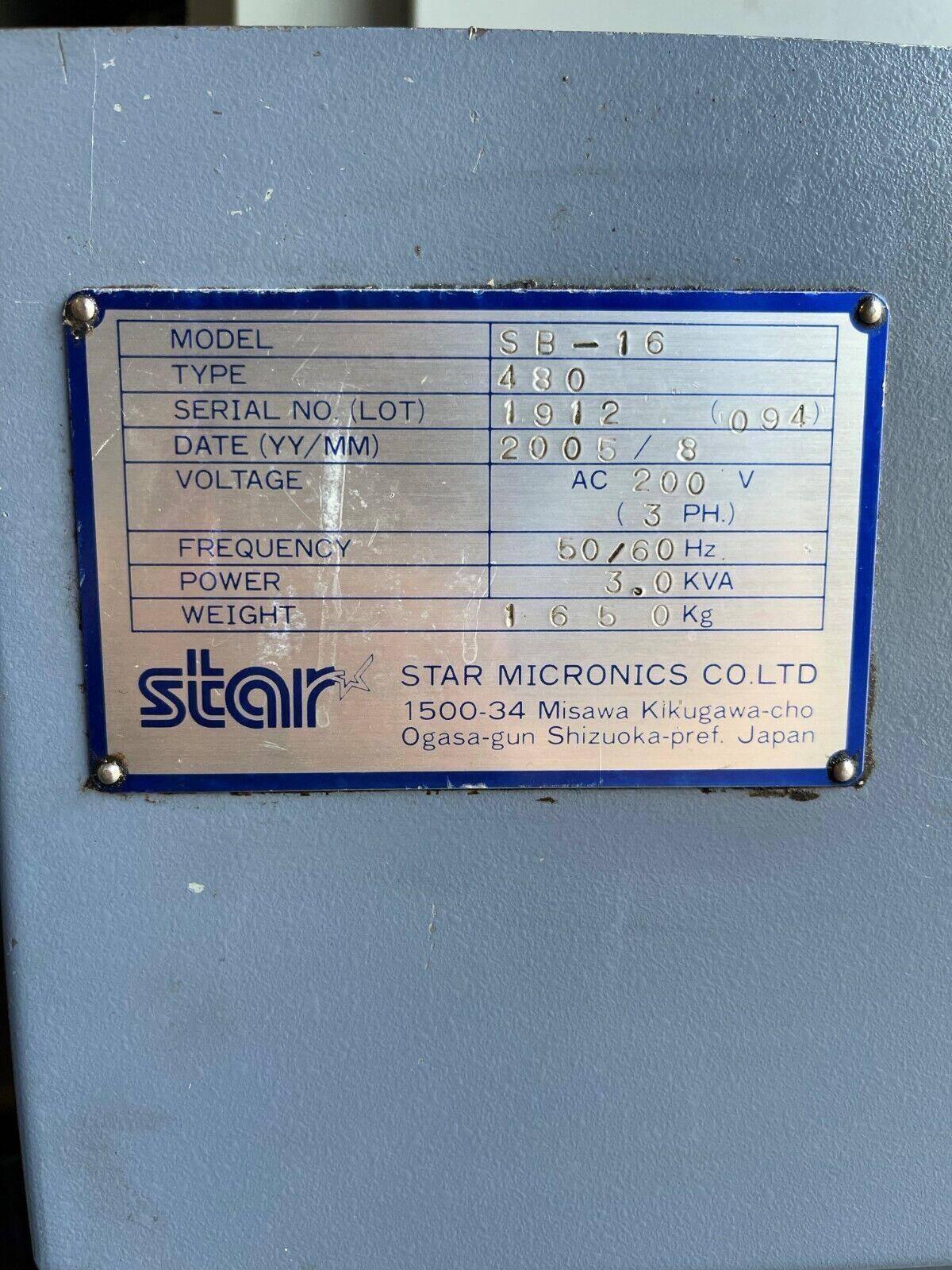

Make:	STAR
Model:	SB16
Year:	2005
Condition:	Used – Good

Equipped With:

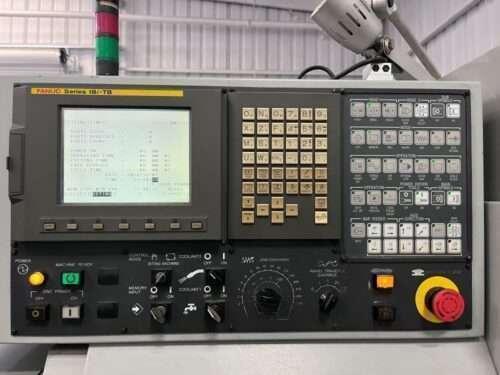

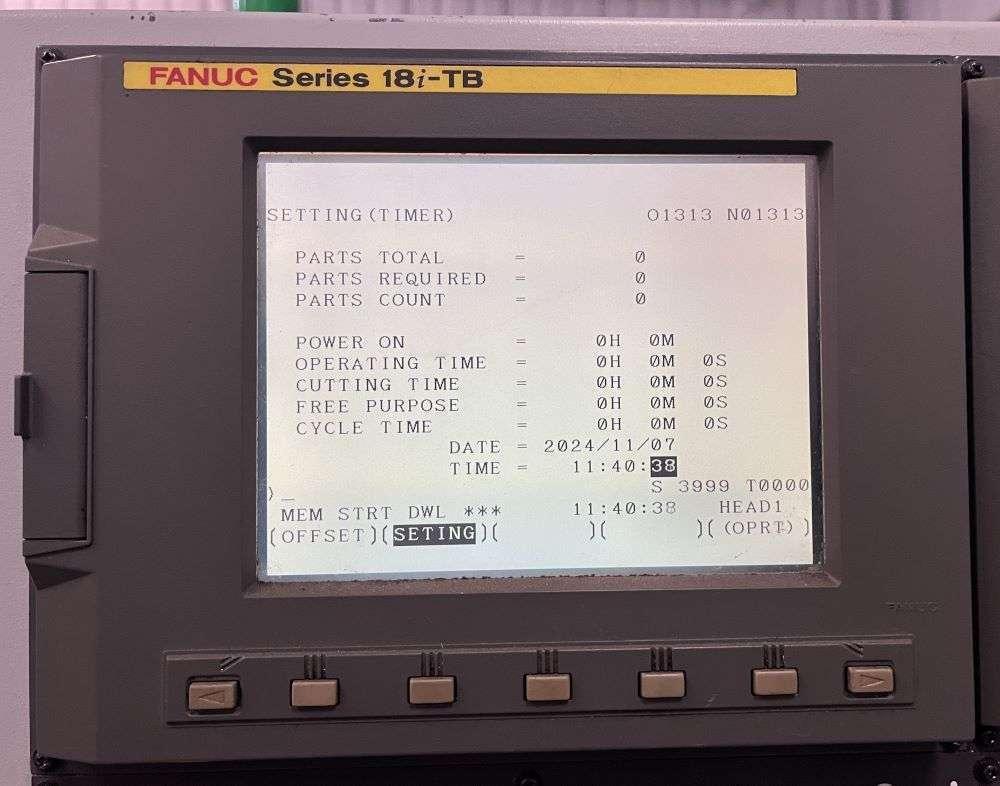

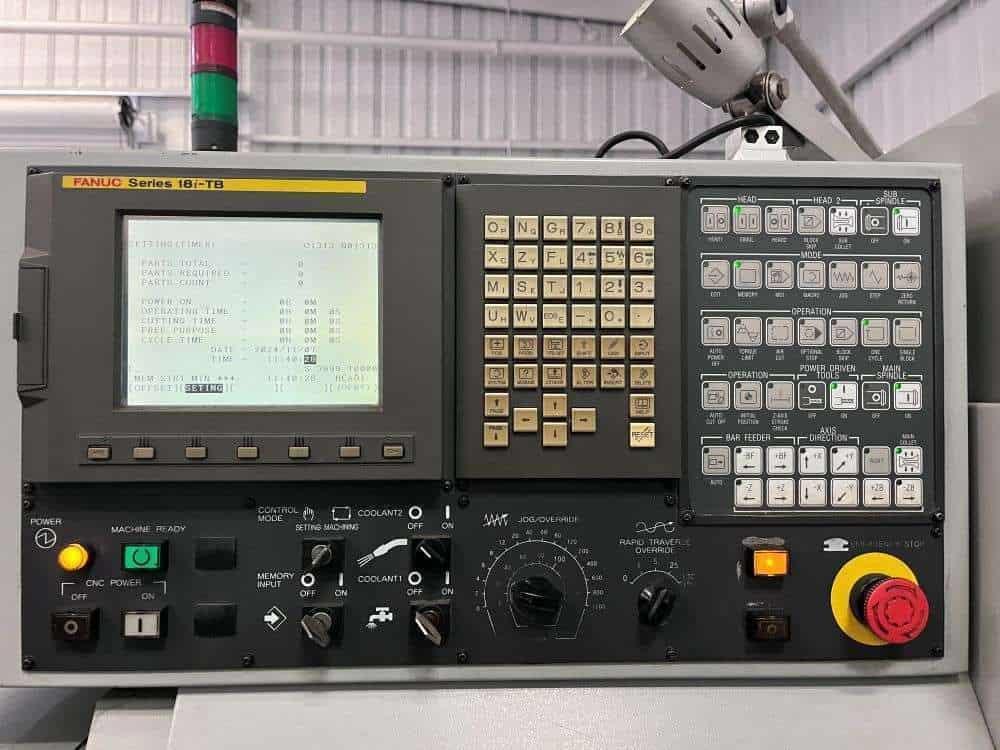

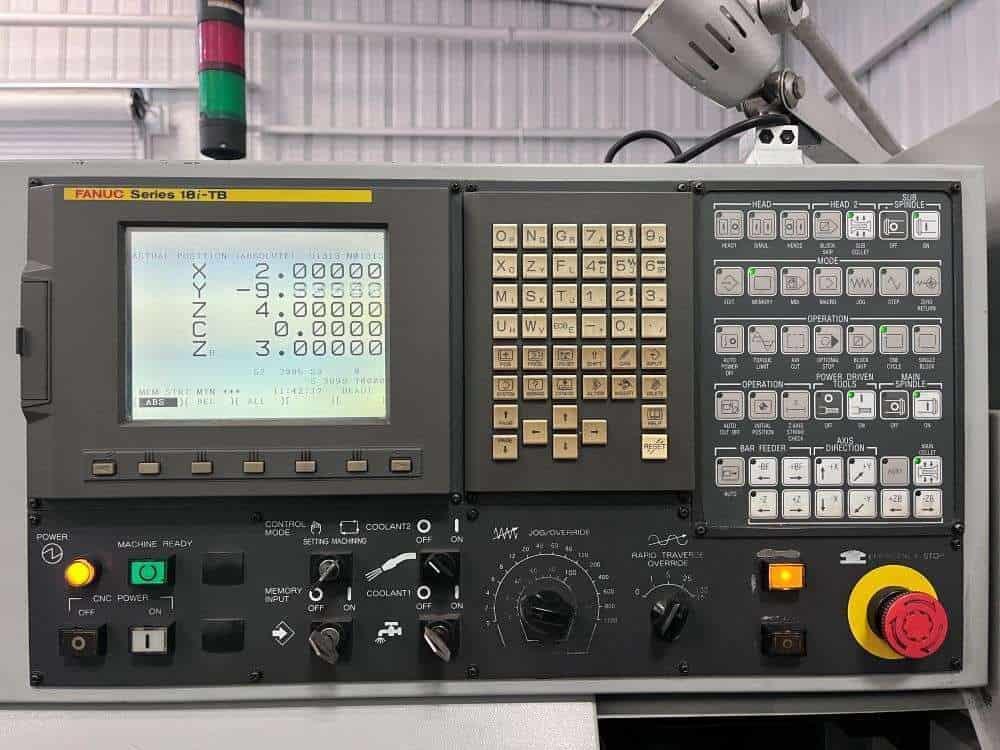

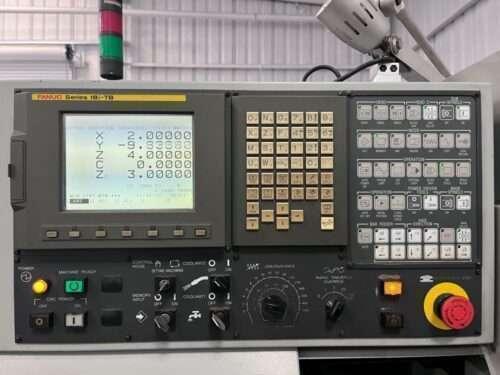

Fanuc 18i-TB CNC Control

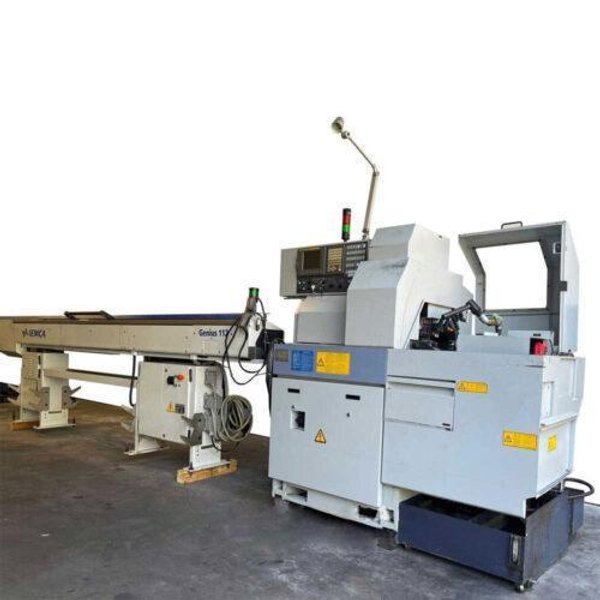

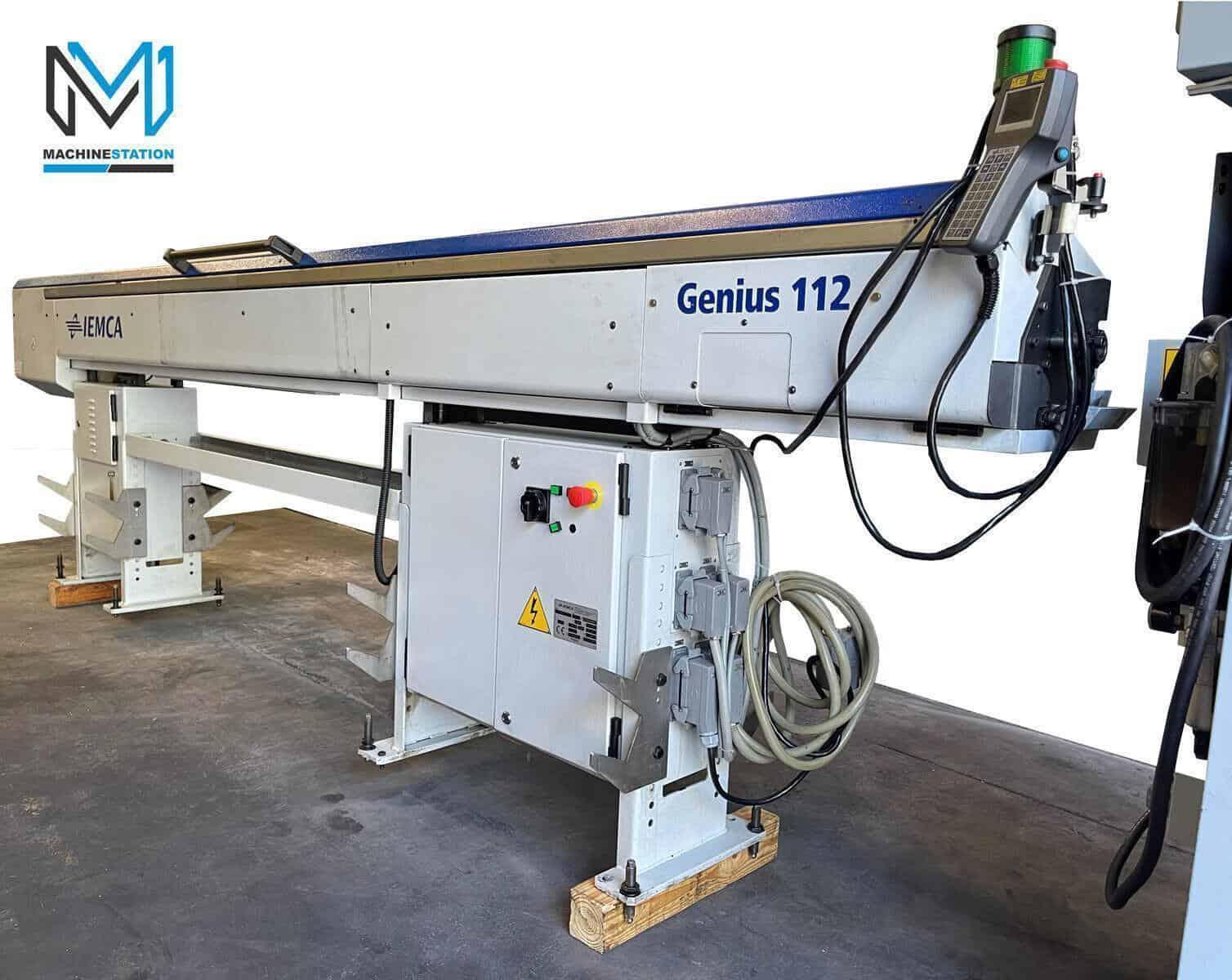

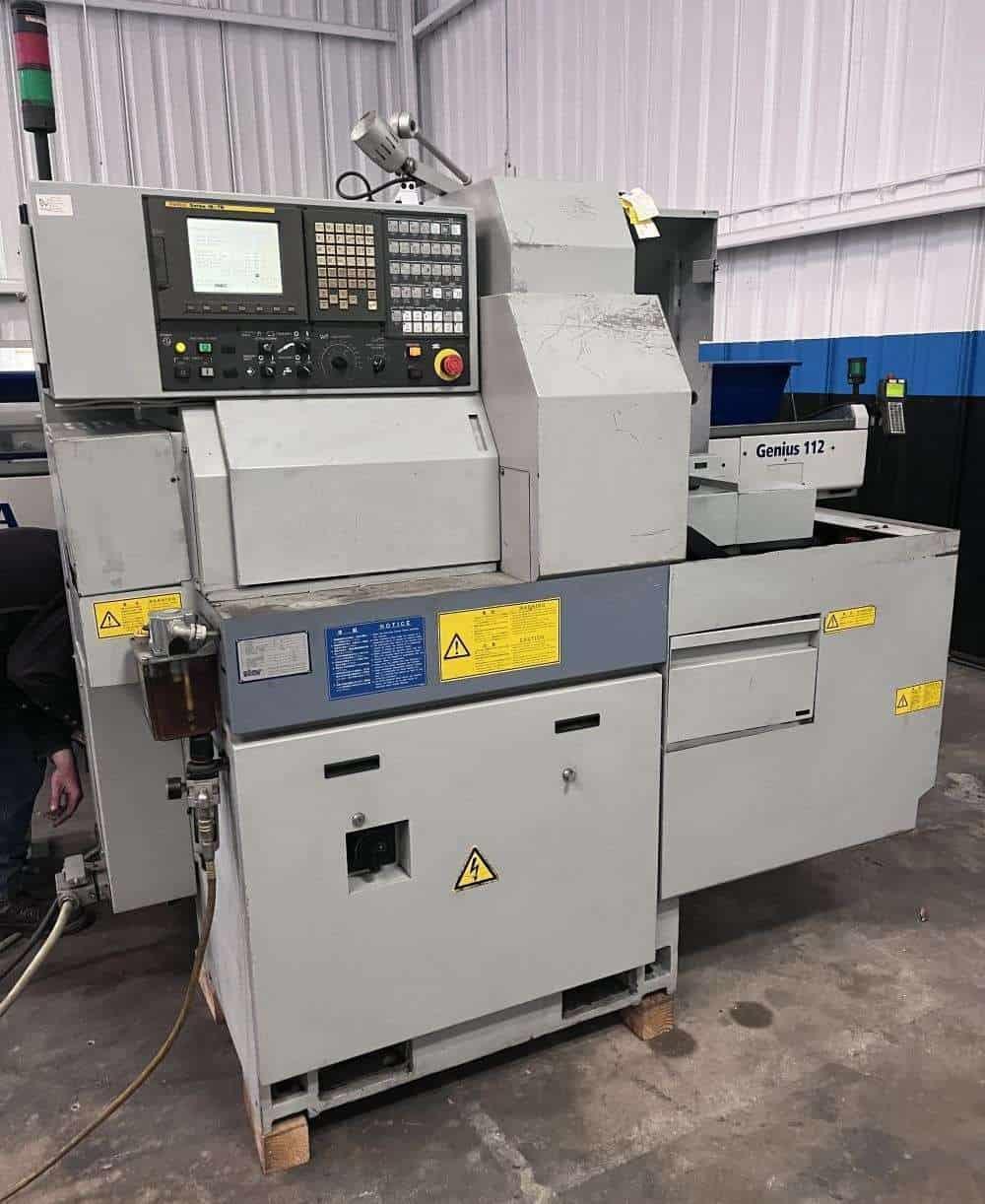

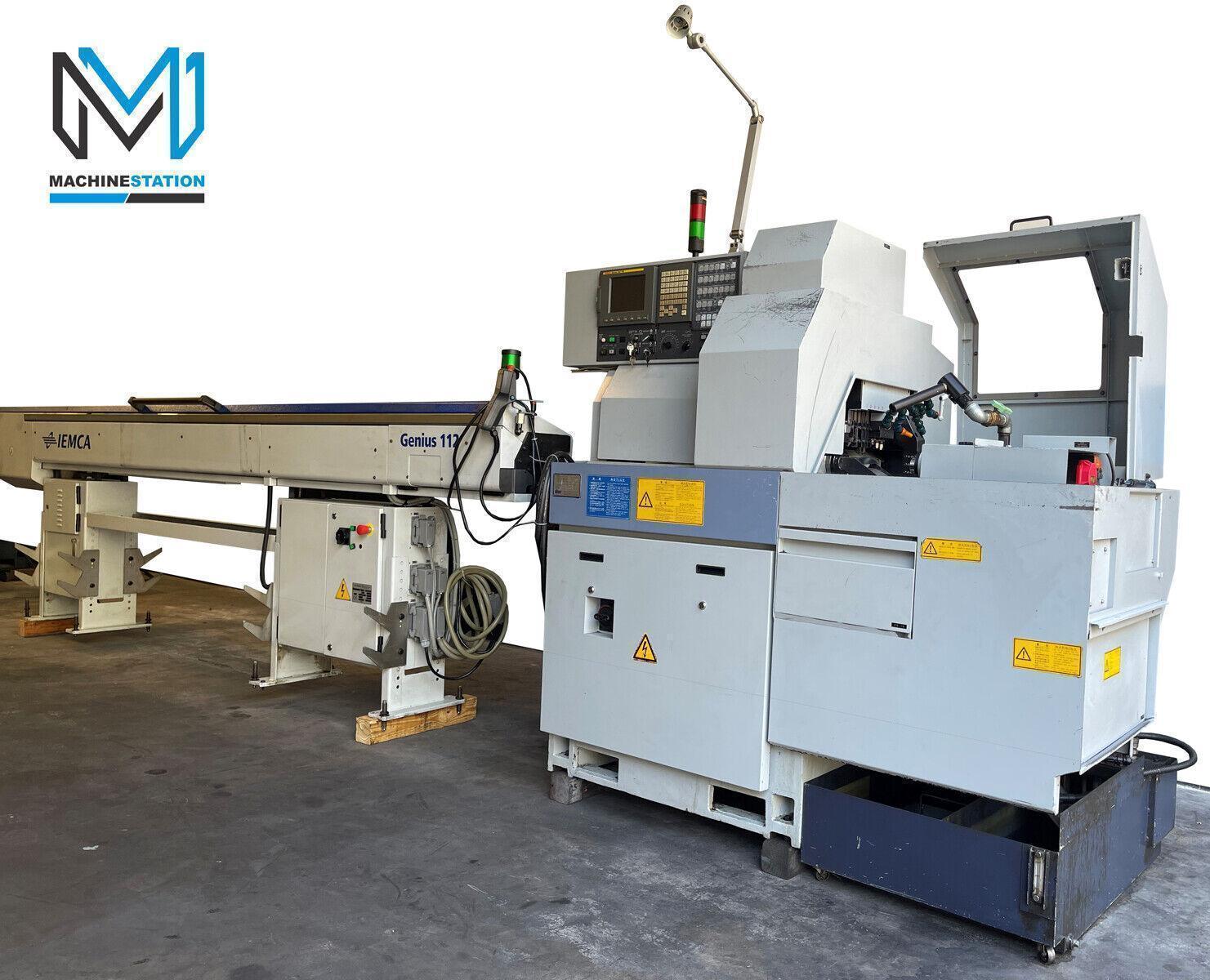

Comes with IEMCA Genius 112 Bar Feeder
Full C Axis and Live Tools Capable
Long Parts Capable
Main & Back Spindle Synchronization
High Speed Rapid Travers: 741 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Coolant System
Books & Manuals

Capacity:
Max Turning Diameter: 5/12″ (16 mm)
Max Turning Length: 8″ (205 mm)
Max Turning Length with Gripping Unit: 6.3/19″ (155 mm)
Max Bar Capacity: 5/12″ (16 mm)
Tool Capacity: 12

Spindle:
Main Spindle Index: 0.01 Degree (C-axis control)
Main Spindle Bore: 5/12″ (16 mm)
Main Spindle Speed: 10,000 RPM
Back Spindle Motor: 3.7 kw
Back Spindle Index: 1 Degree
Back Spindle Speed: 8,000 RPM
Back Spindle Motor: 1 kw

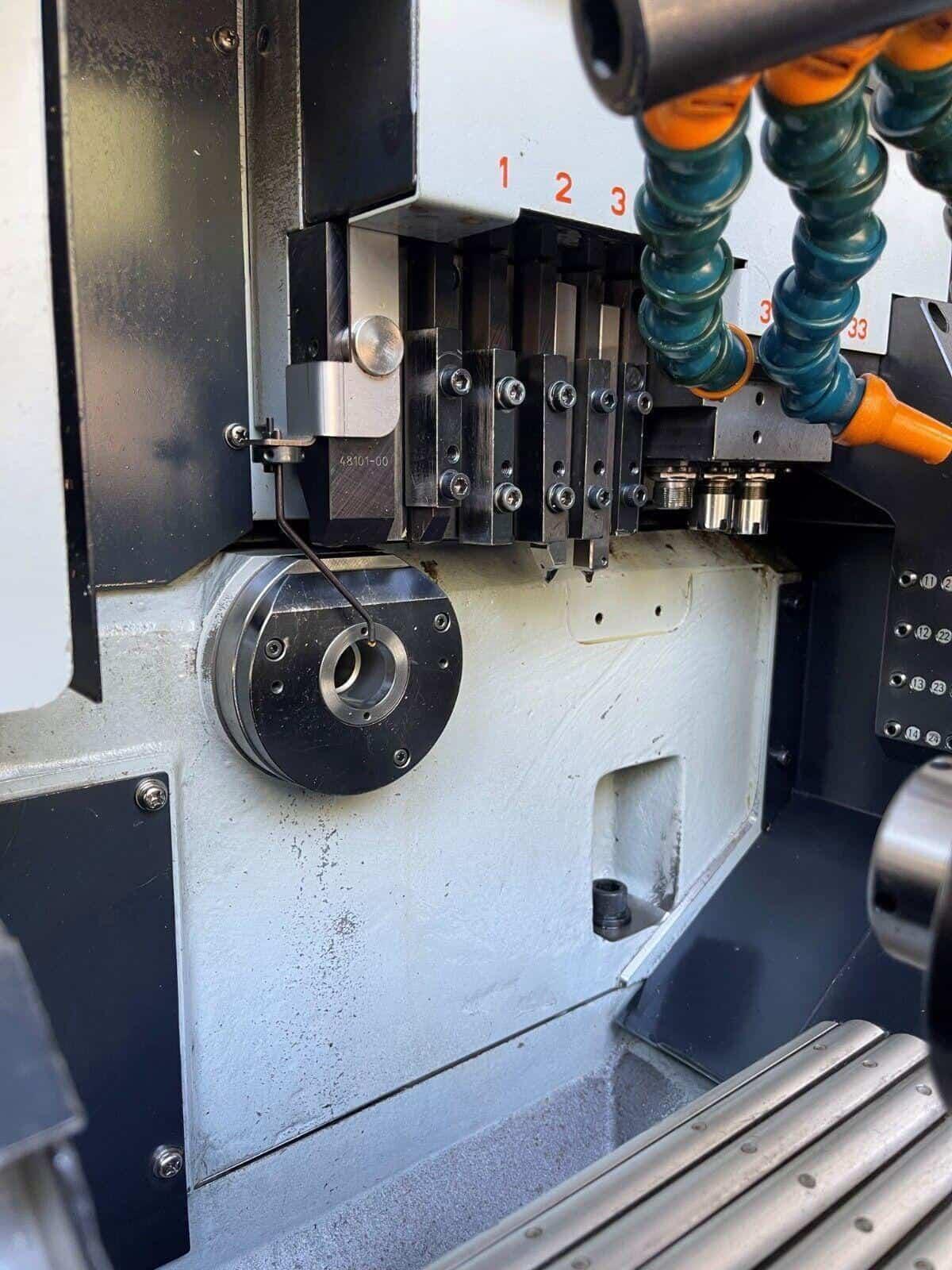

Standard Tools:
Turning Tools: 5
Stationary Tools: 8
Max Drilling Capability: 25/64″ (10mm)
Max Tapping Capability: M8 x P1.25
Die Cutting Capability: M8 X P1.25

Power Driven Tools Attachment:
Power Driven Tools: 3
Max Front Drilling: 15/64″ (6 mm)
Max Front Tapping: M6 x P1.0
Max Front Milling: 15/64″ (6 mm)
Driven Tool Speed: 5000 RPM
Driven Tool Motor: 0.4 kw
