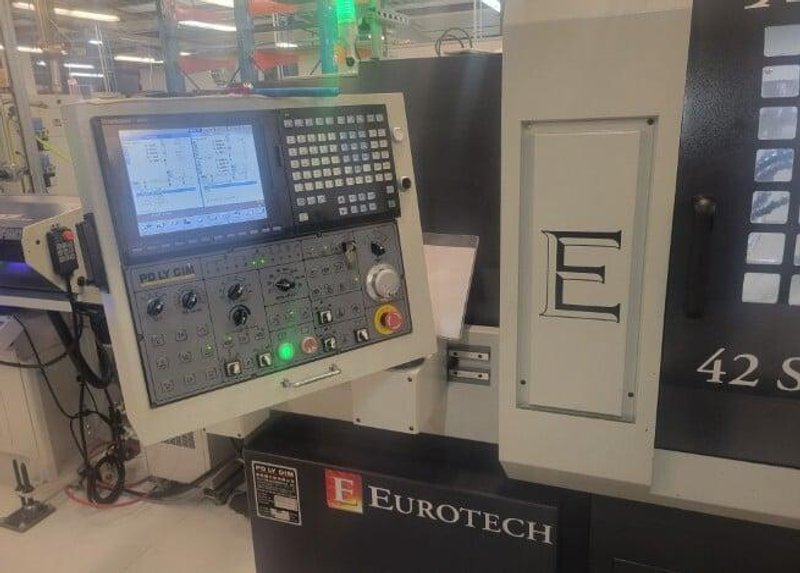

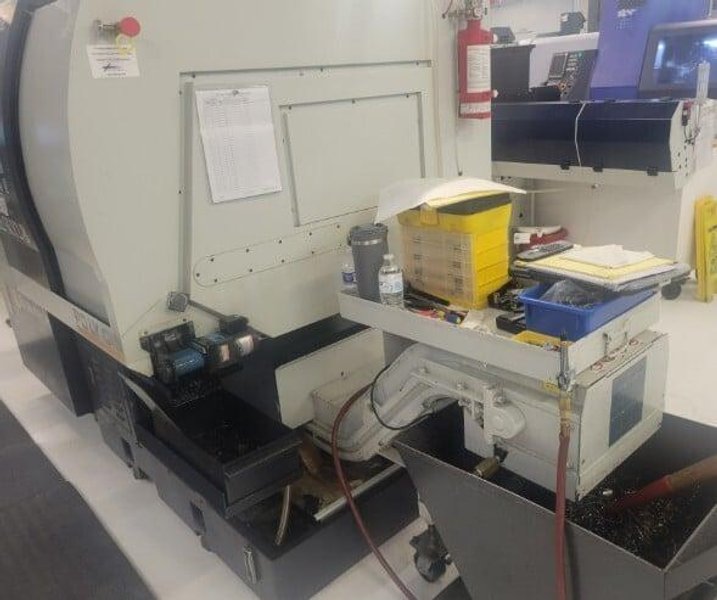

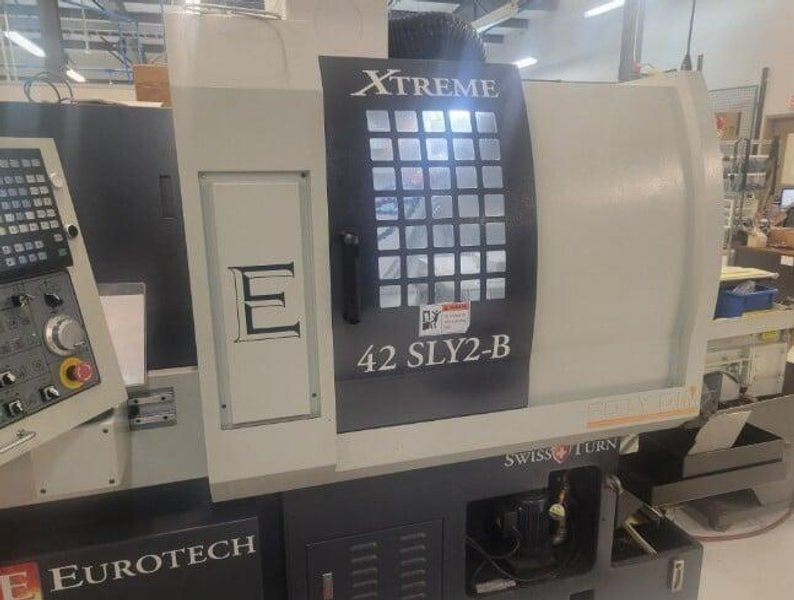

1-⅝” X 10.55” Swiss Turning Center with Mitsubishi M700 Control, Chip Conveyor, Parts Catcher, Edge Patriot Bar Feed, PressureTech PT2000 8 Port Swiss HP, TriMist 80 G2 Mist Collector and Firetrace FM 200 Suppression System

GENERAL SPECIFICATIONS
Max Turning Diameter:                    1-⅝”
Max Machining Length Per Chucking:            10.55”
Max. Drilling Diameter:                    20 mm
Max Tapping Diameter:                    M16

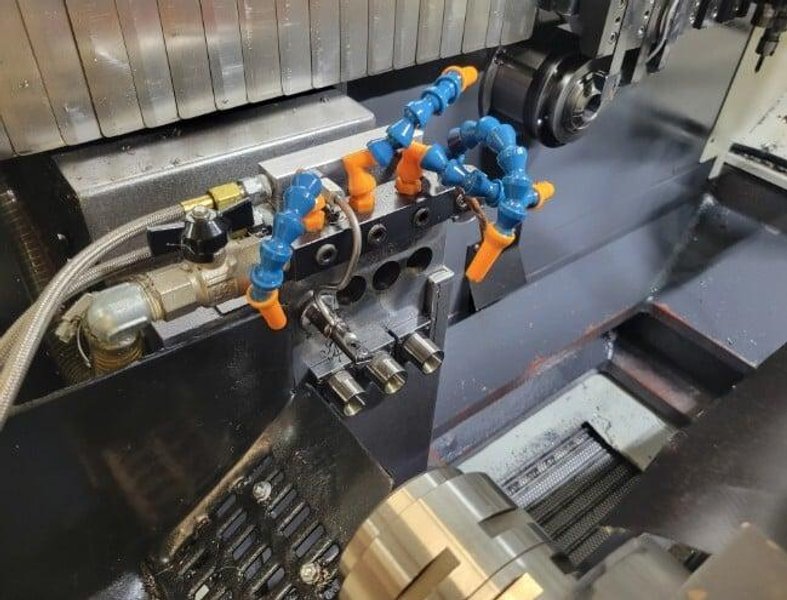

OD Tooling Number of Tools:                6
OD Tooling Dimension:                    16mm X 16mm X 120mm
ID Tooling Number of Tools:                2
ID Tooling Dimension:                    13mm (ER20)
Cross Working Driven Tooling Speed:            6,000 RPM
Backworking Static Tools Number:            4
Static Tools Dimension:                    ER20
Live Tools Number:                        3
Live Tools Dimension:                    ER20

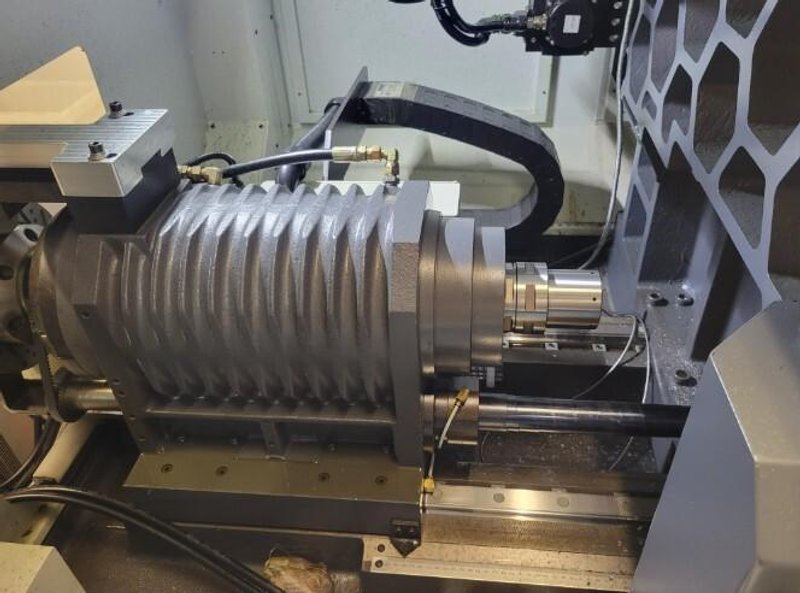

Main Spindle Hole Diameter:                46mm
Main Spindle Speed:                        5,000 RPM
Main Spindle Angular Movement:                C - Axis
Main Spindle Horsepower:                    10 HP
Back Working Spindle Hole Diameter:            33mm
Back Working Spindle Speed:                5,000 RPM
Back Working Spindle Max Length:            250mm
Back Working Spindle Angular Movement:        C - Axis
Back Working Spindle Horsepower:            9.7 HP
Long Shaft System Max Internal Diameter:        1.5”

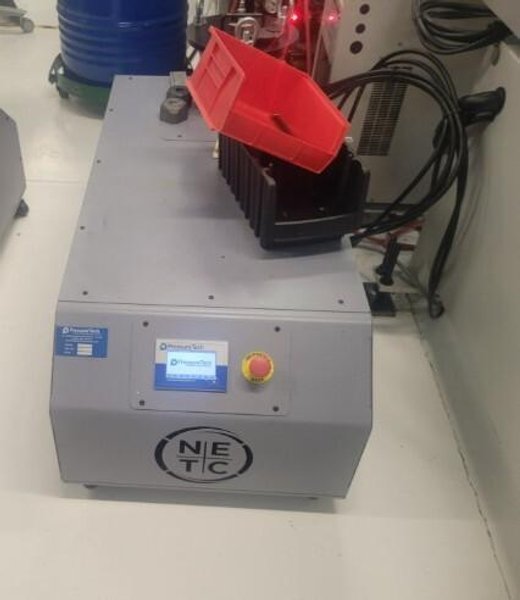

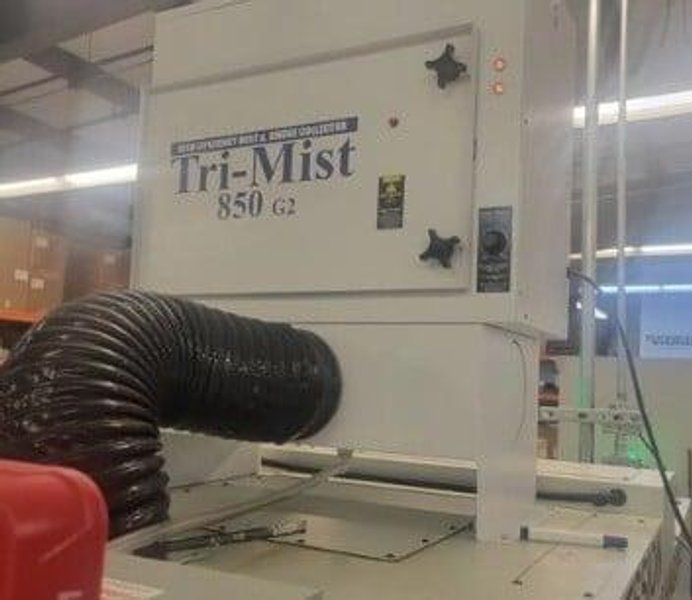

INCLUDES: Mitsubishi M700 Control, Chip Conveyor, Parts Catcher, Edge Patriot Bar Feed, PressureTech PT2000 8 Port Swiss HP, TriMist 80 G2 Mist Collector and Firetrace FM 200 Suppression System

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
