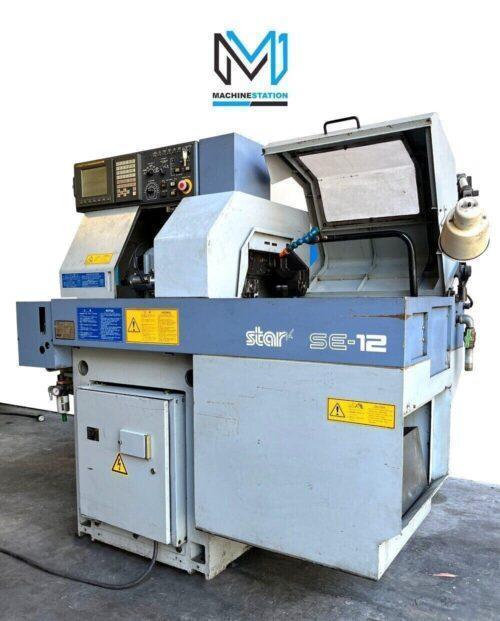

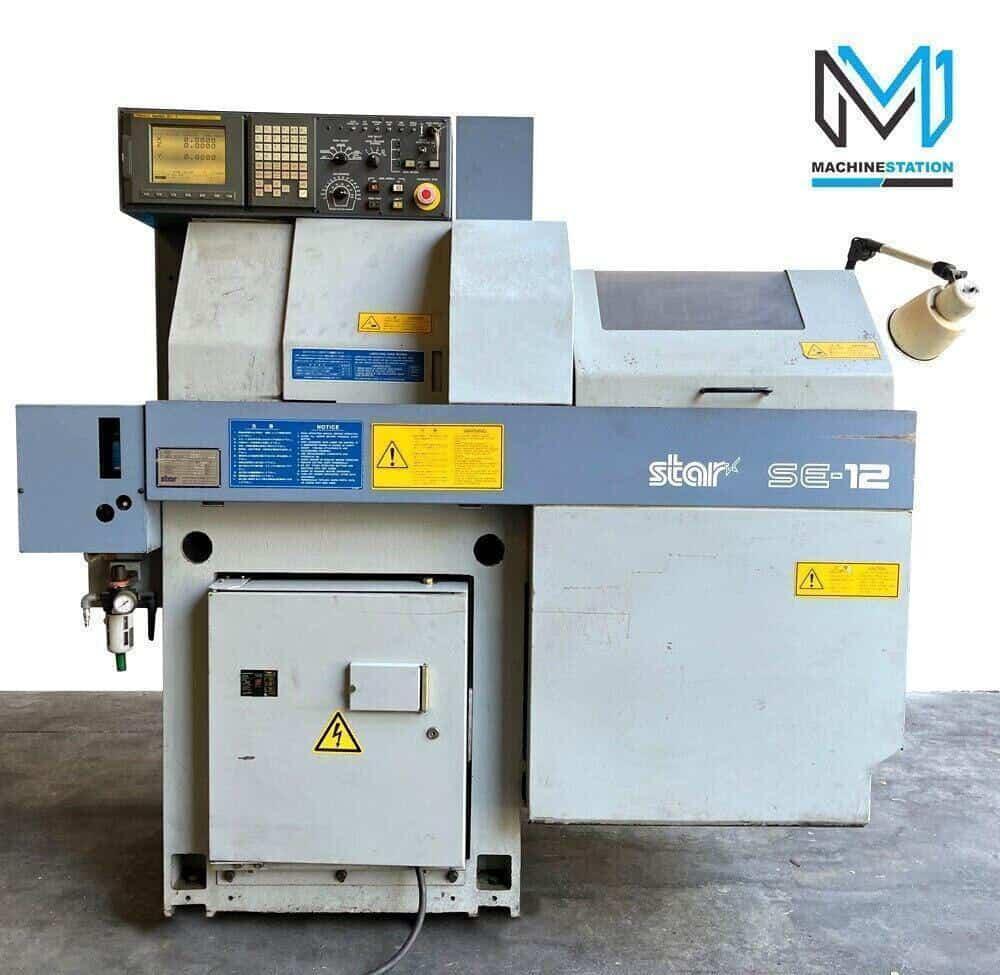

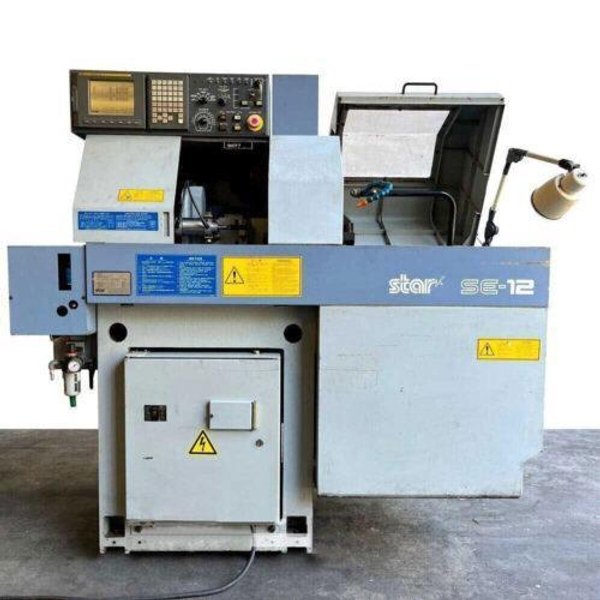

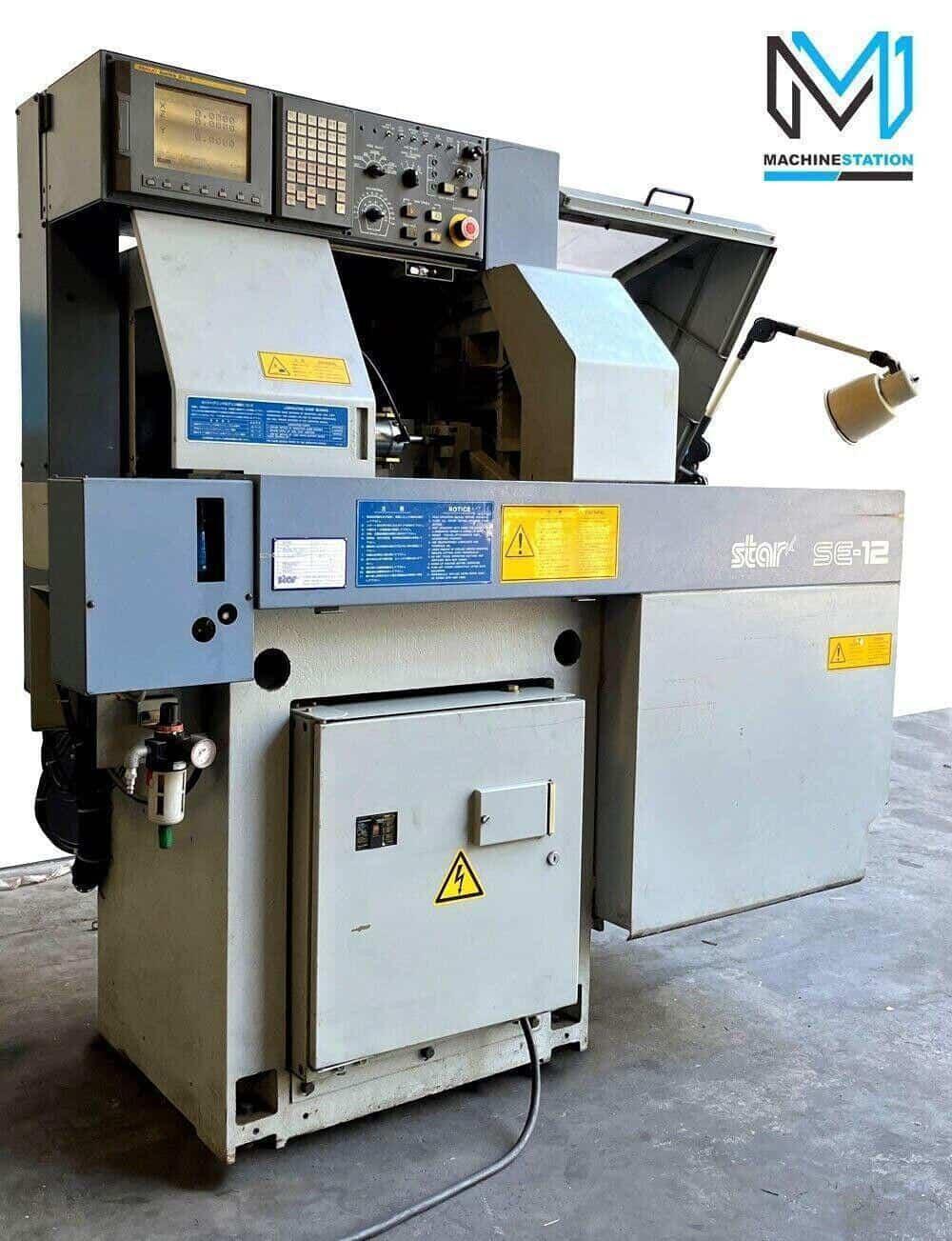

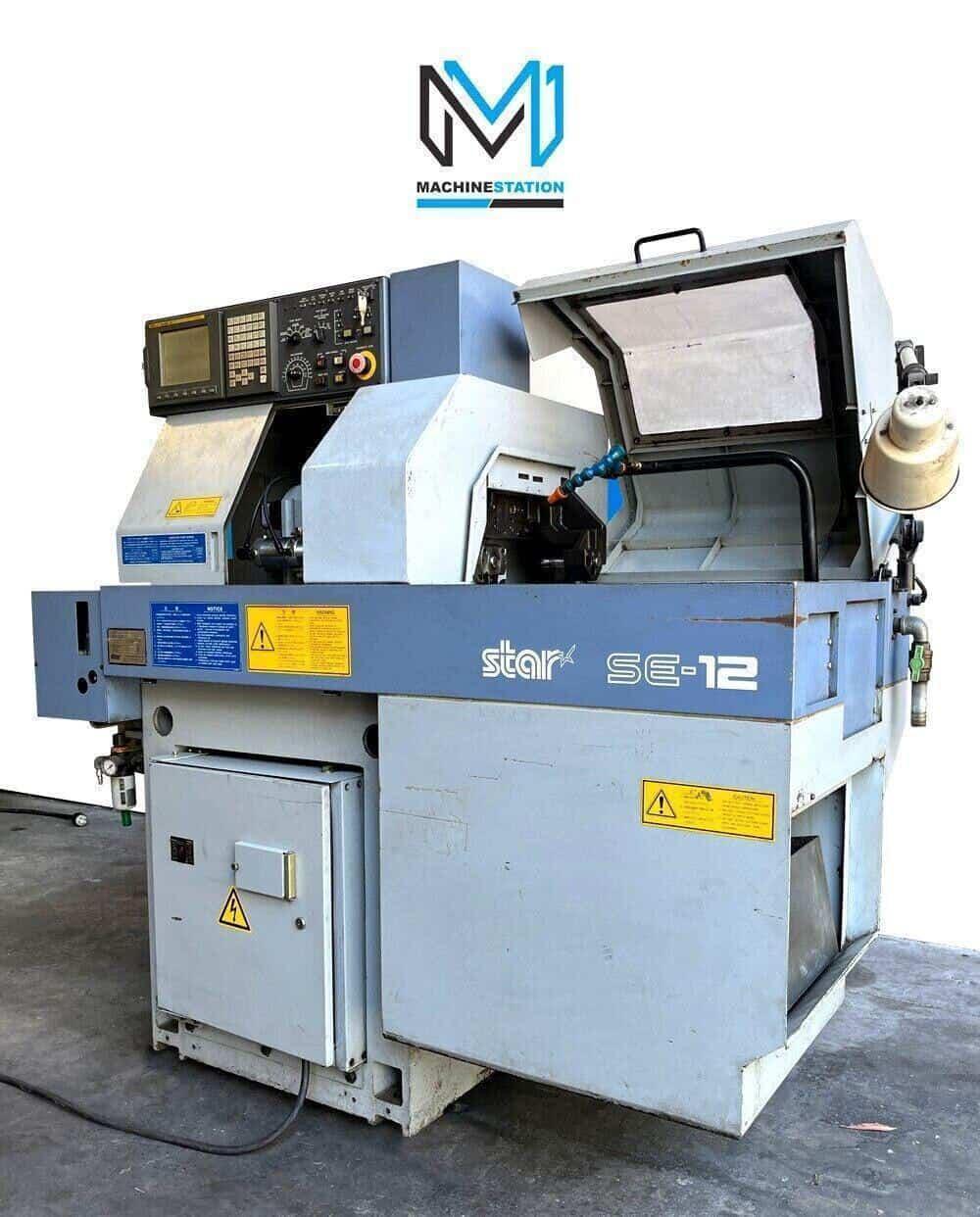

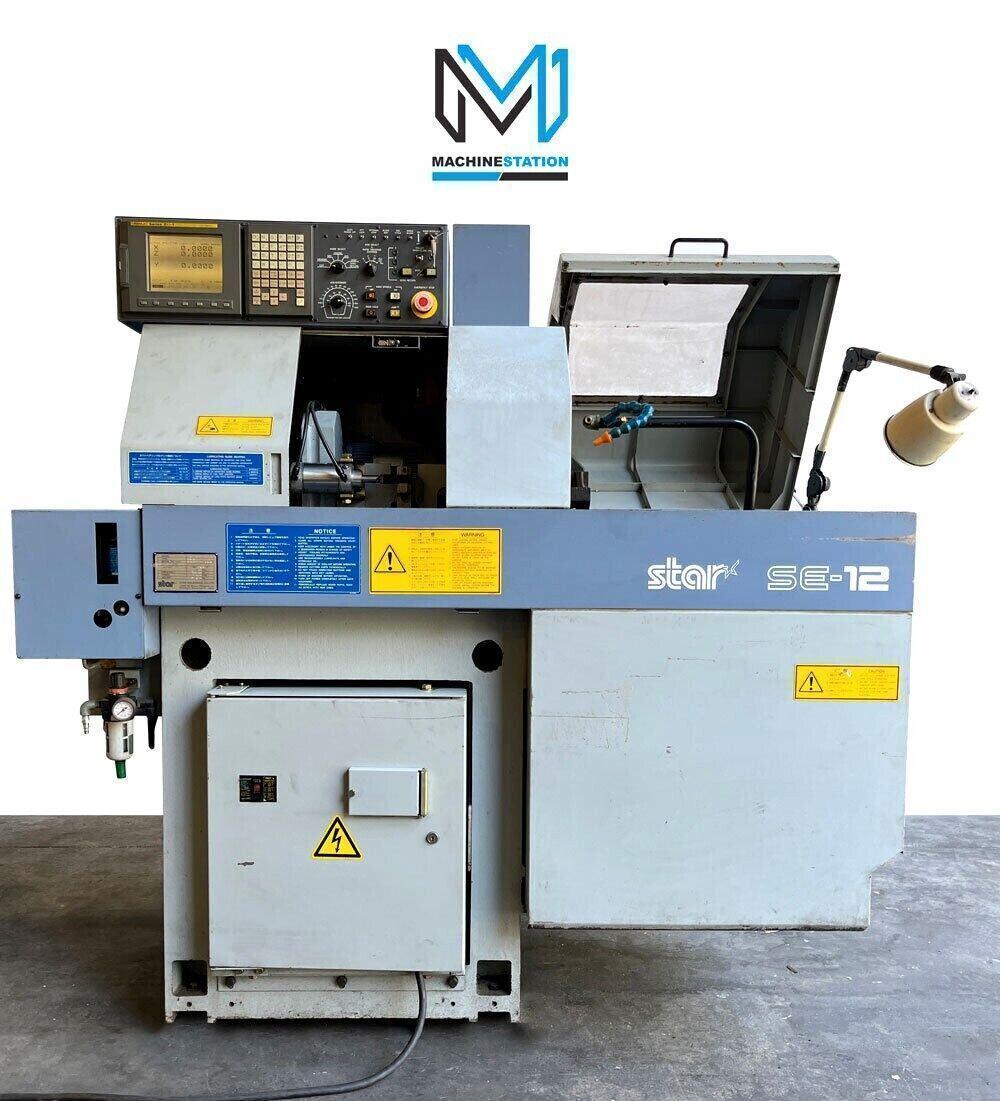

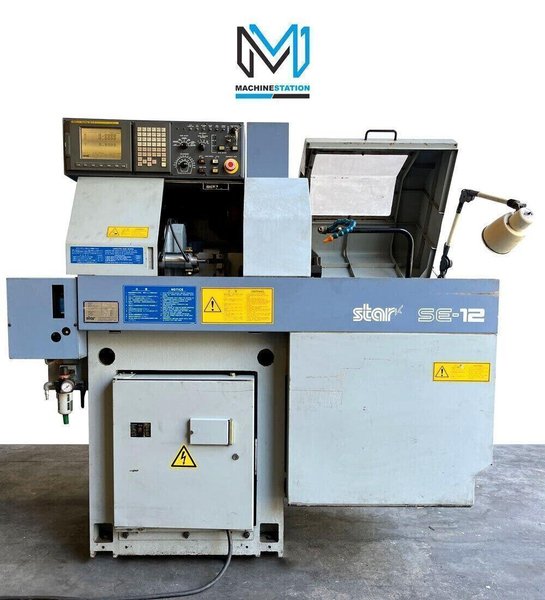

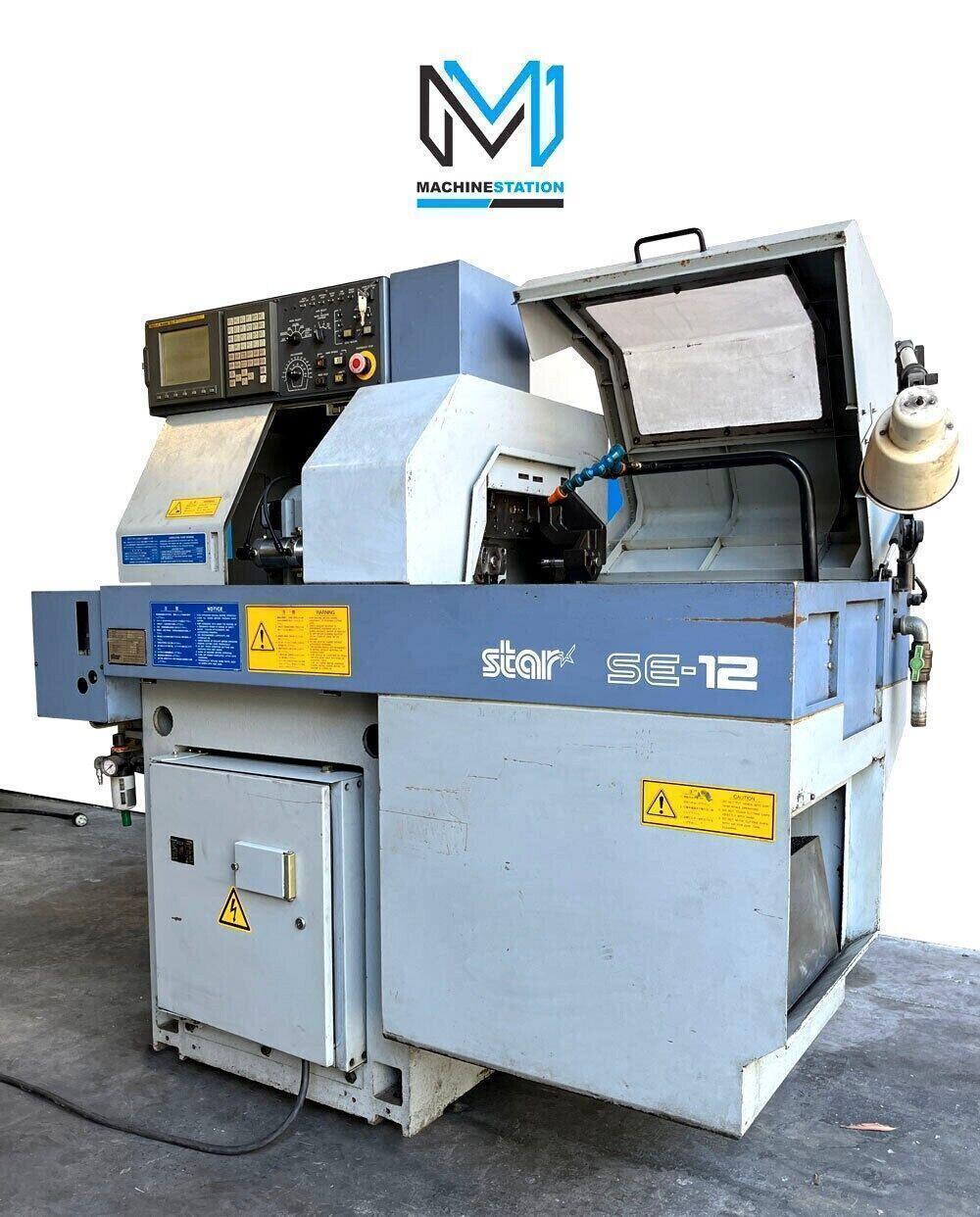

Star SE-12 CNC Swiss Screw Turning Lathe

Star SE-12 CNC Swiss Screw Turning Lathe

Name: Star SE-12 CNC Swiss Screw Turning Lathe
Brand: STAR
SKU: 111629
Availability: PreOrder

Brand

STAR

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	STAR
Model:	SE12
Year:	2006
Condition:	Used – Good

Equipped With:

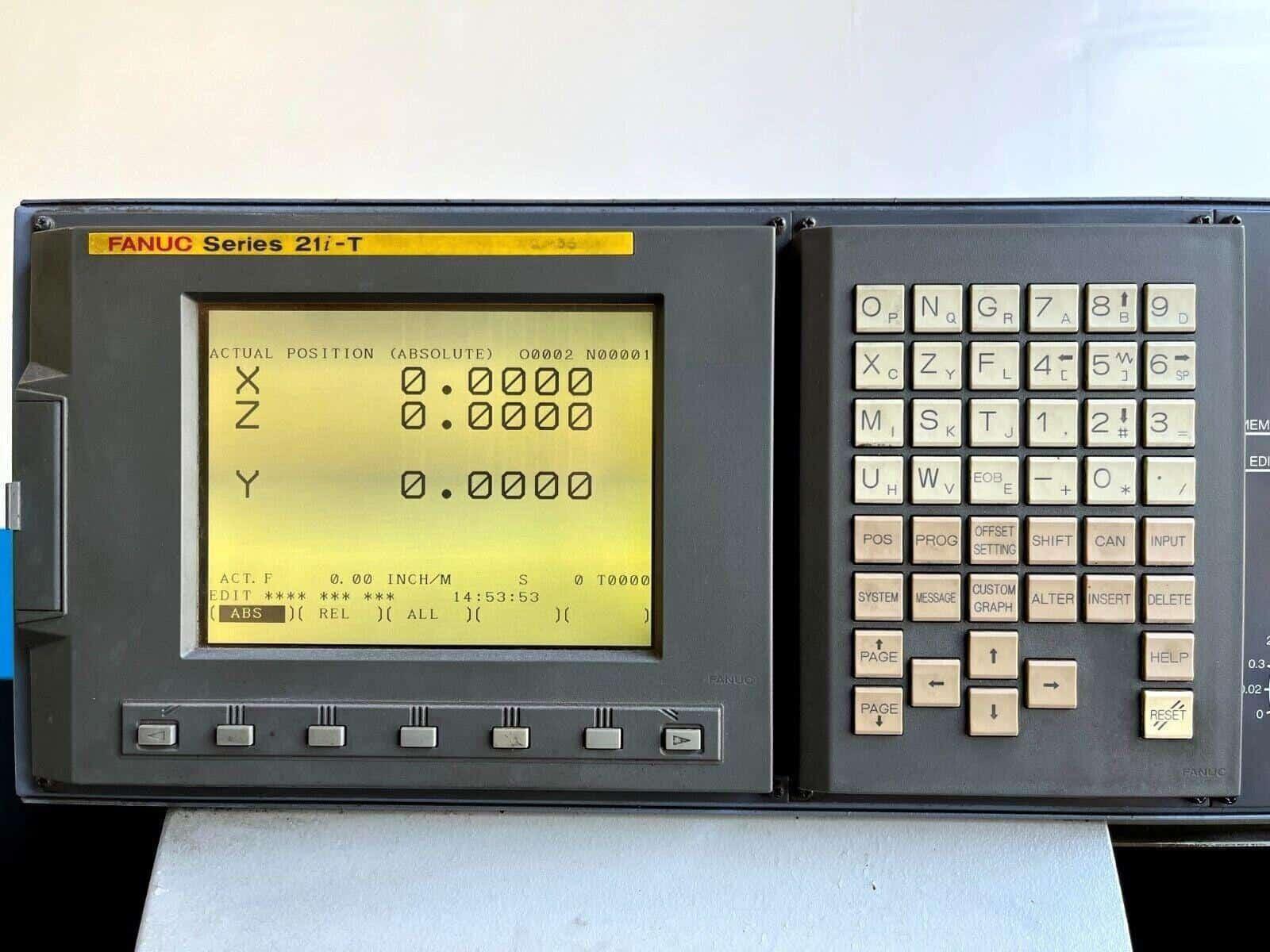

Fanuc 21i-TB CNC Control
3 Axis (X, Y,Z )

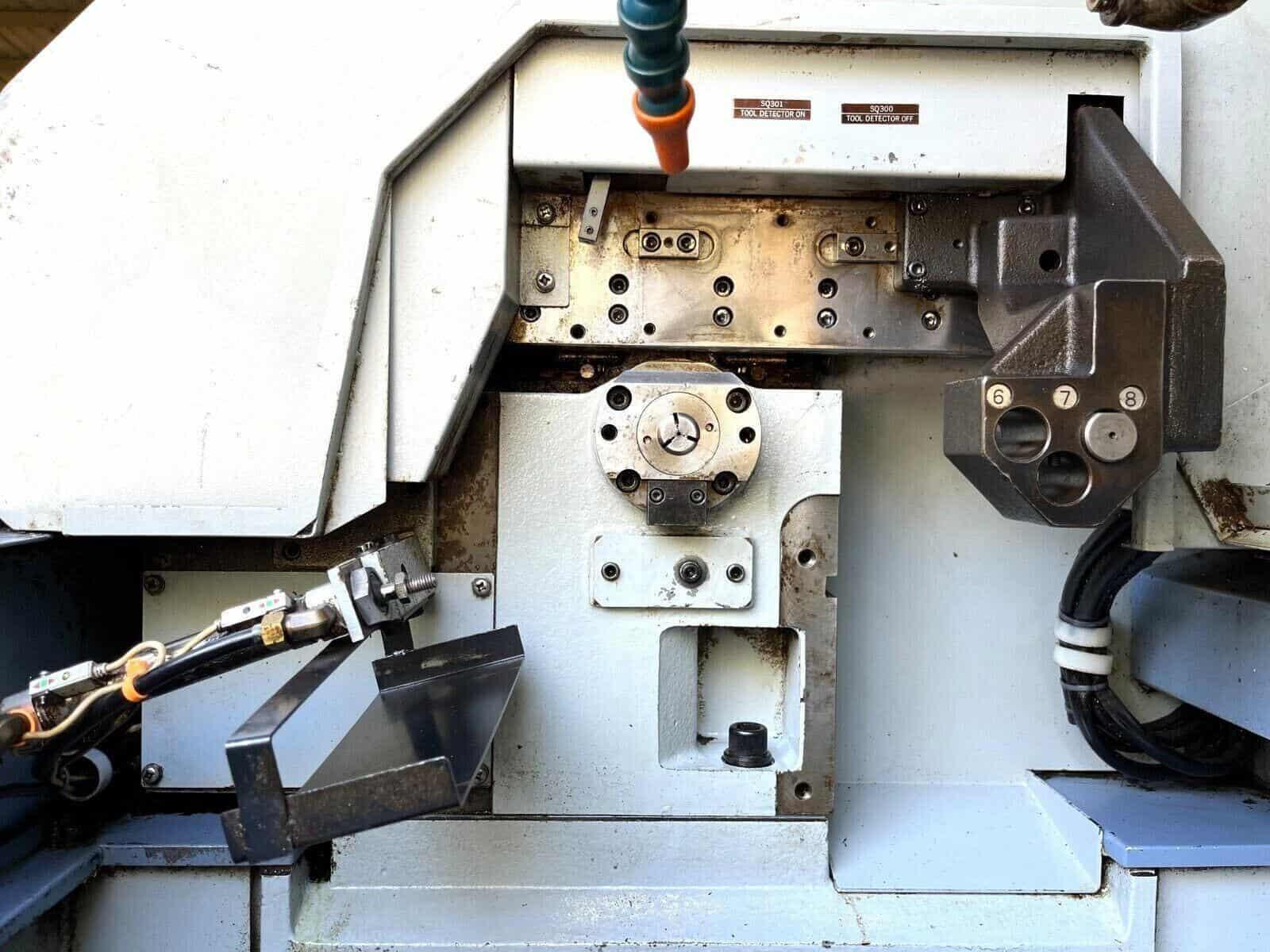

Guide Bushing
Part Catcher
Absolute Position Detection
Automatic Lubrication System

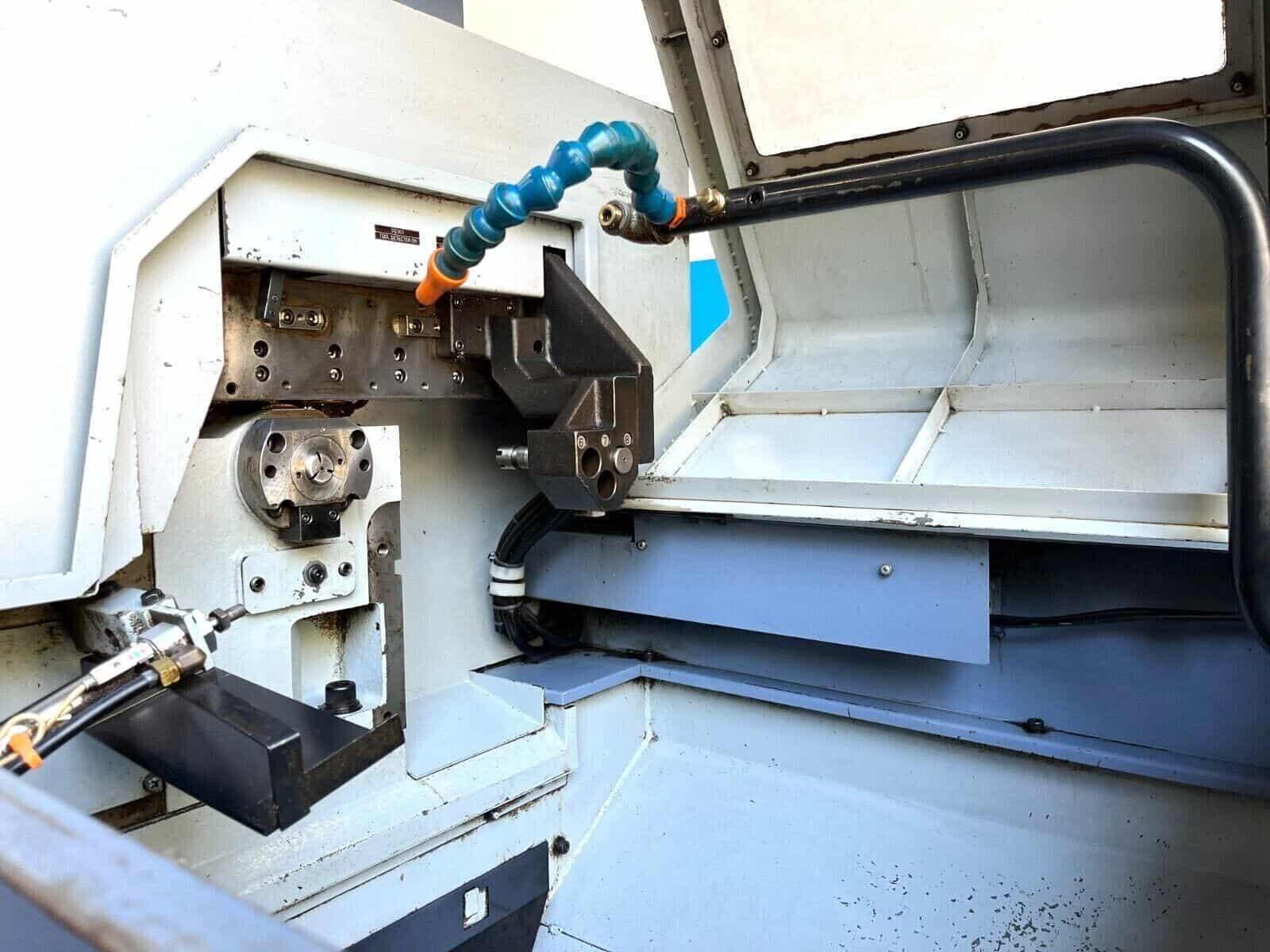

Coolant System

Capacity:
Max Turning Diameter: 0.472″ (12 mm)
Max Turning Length: 5.511″ (140 mm)
Max Turning Length with Gripping Unit: 3.937″ (100 mm)
Max Bar Capacity: 0.472″ (12 mm)
Tool Capacity: 8

Travels:
X Axis: 0.50″ (12.70 mm)
Y Axis: 0.50″ (12.70 mm)
Z Axis: 5.51″ (140 mm)
Raid Traverse X, Y, Z Axis: 590 IPM

Spindle:
Spindle Bore: 0.5″ (12.7 mm)
Spindle Speed: 10000 RPM

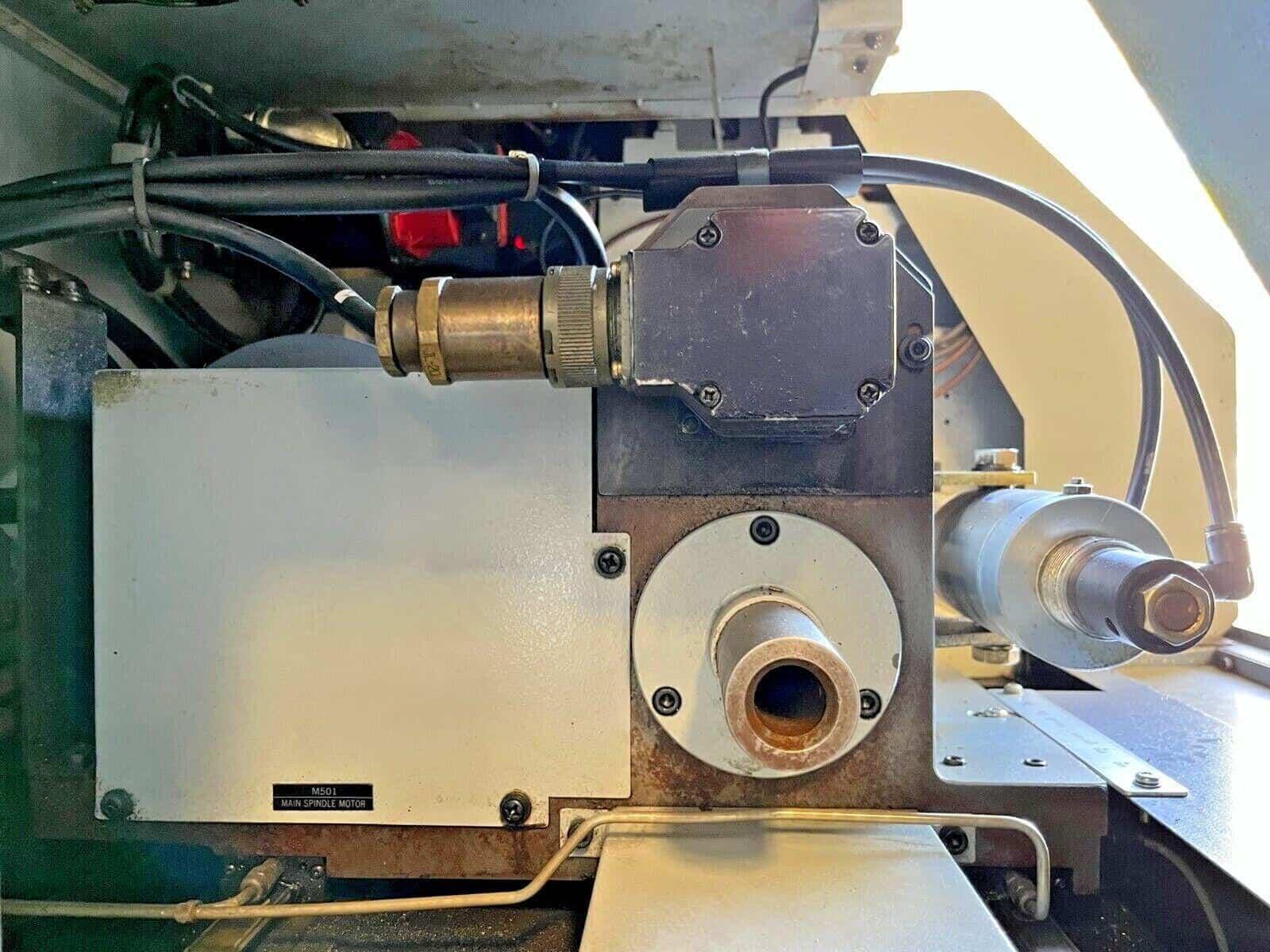

Spindle Motor: 2.2 kw

Standard Tools:
Number of Turning Tools: 5
Number of Stationary Tools: 3
Max Drilling Capability: 0.393″ (10mm)
Max Tapping Capability: M8 x P1.25
Die Cutting Capability: M8 x P1.25
