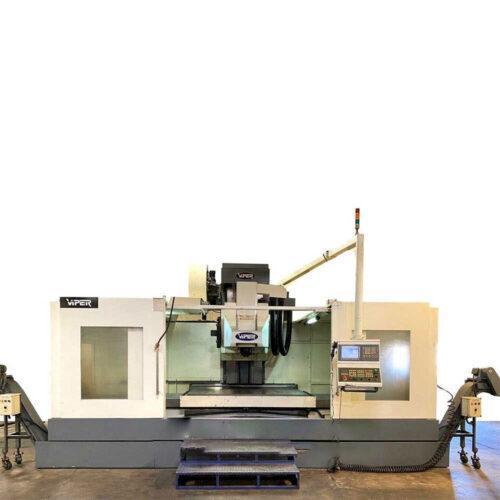

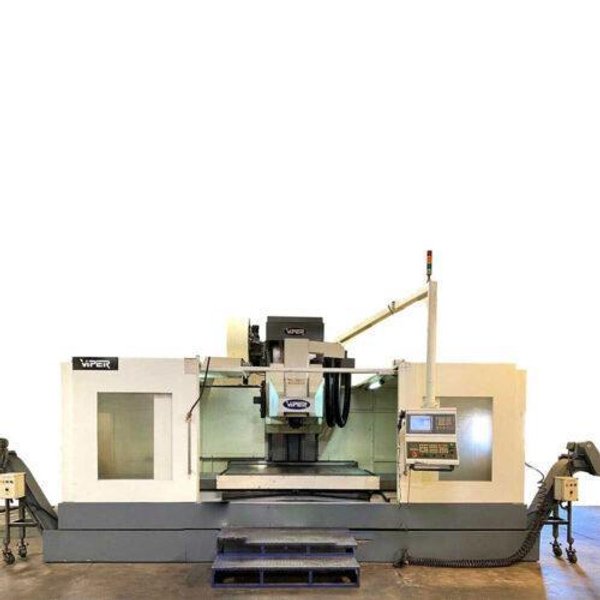

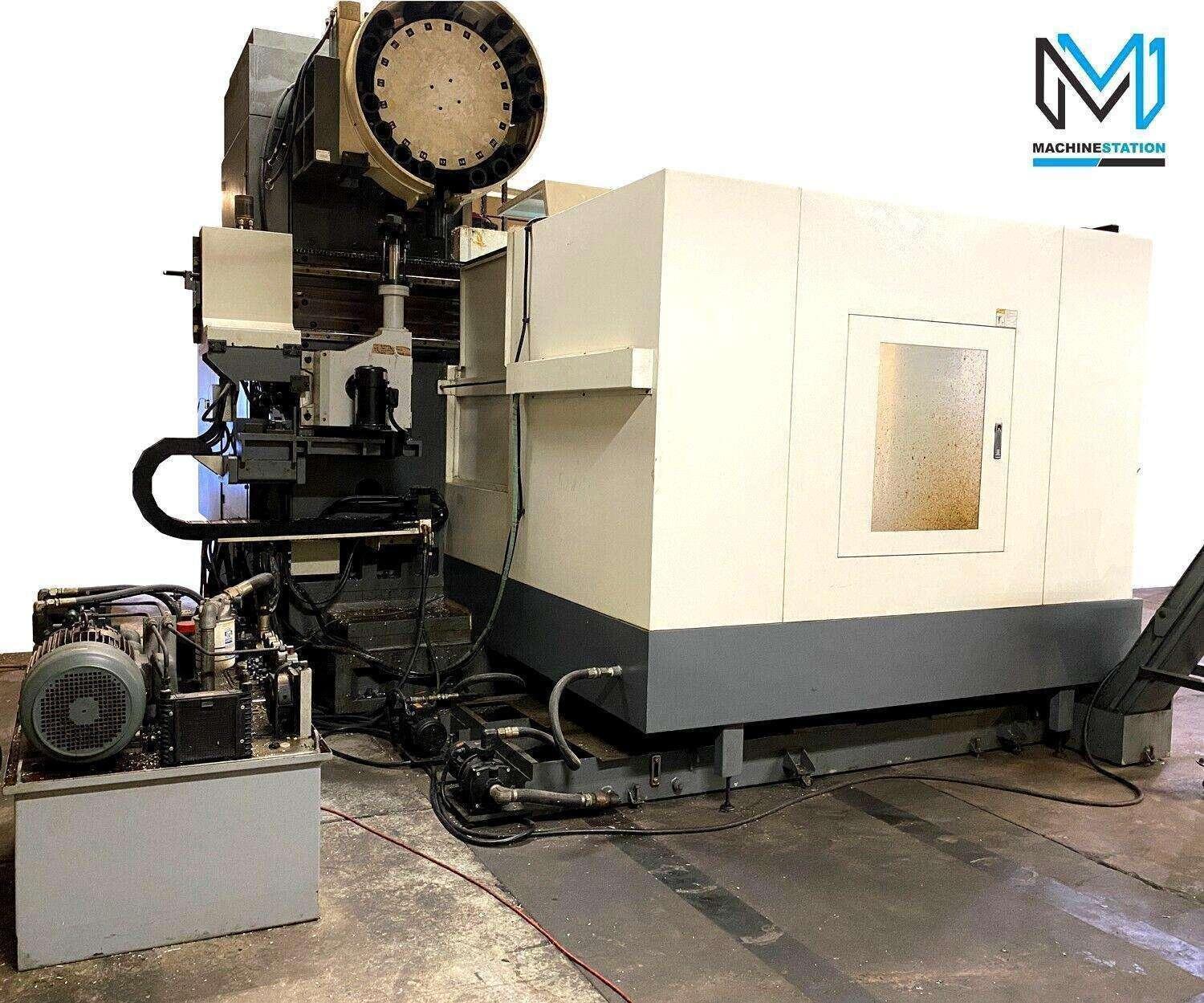

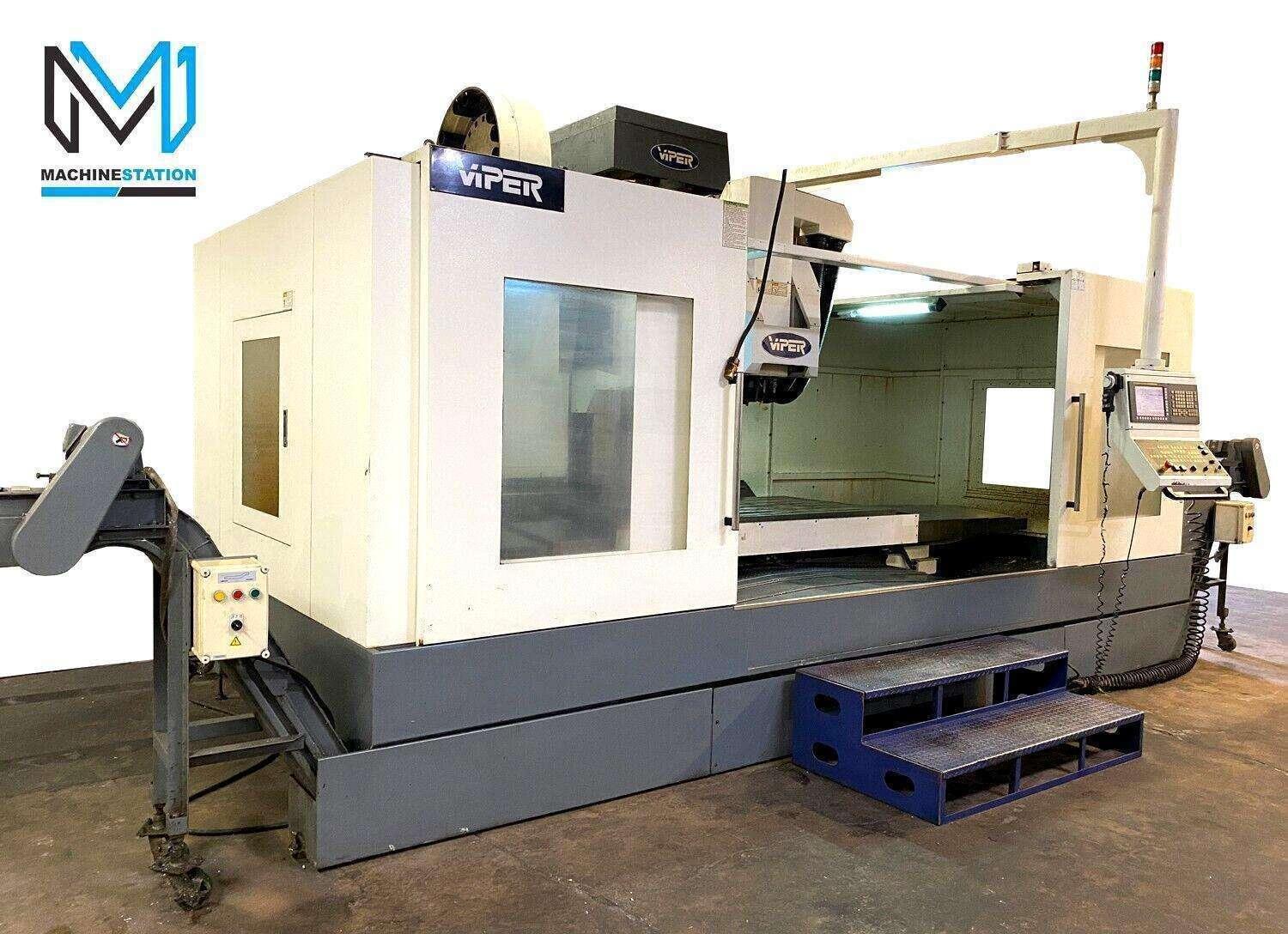

Mighty Viper VMC-2100 5AB 5-Axis CNC Vertical Machining Center

Mighty Viper VMC-2100 5AB 5-Axis CNC Vertical Machining Center

Brand

MIGHTY VIPER

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

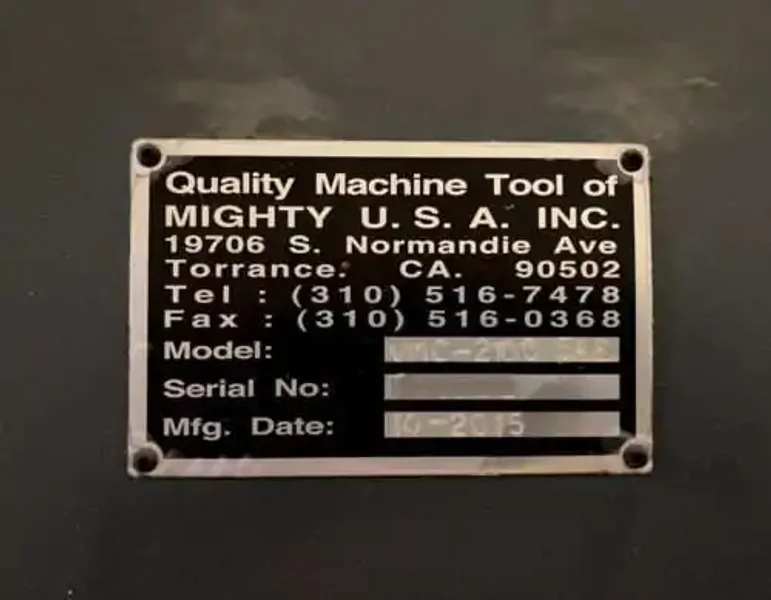

Make:	MIGHTY VIPER

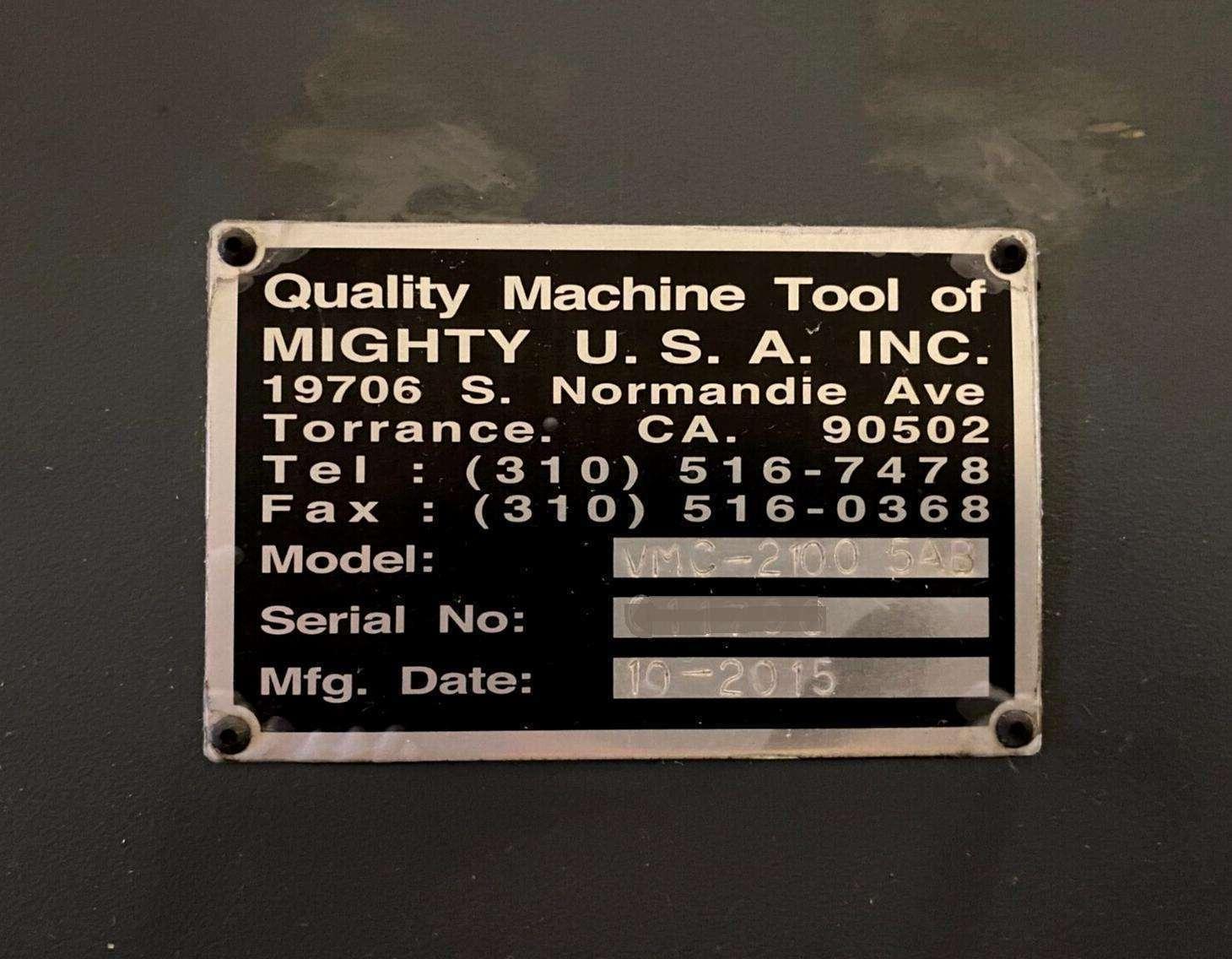

Model:	VMC-2100 5AB
Year:	2015
Condition:	Used – Excellent

Features:

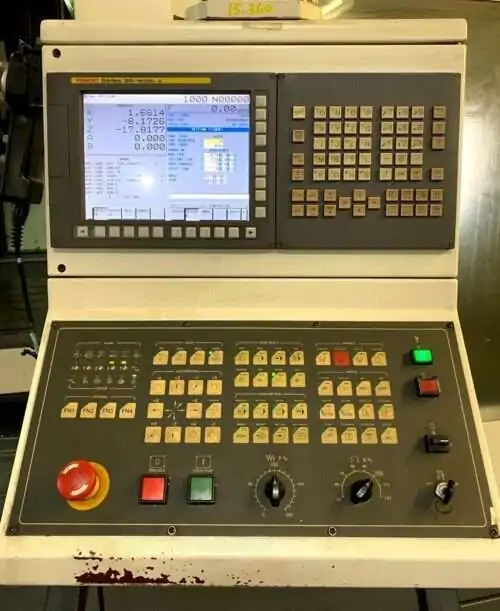

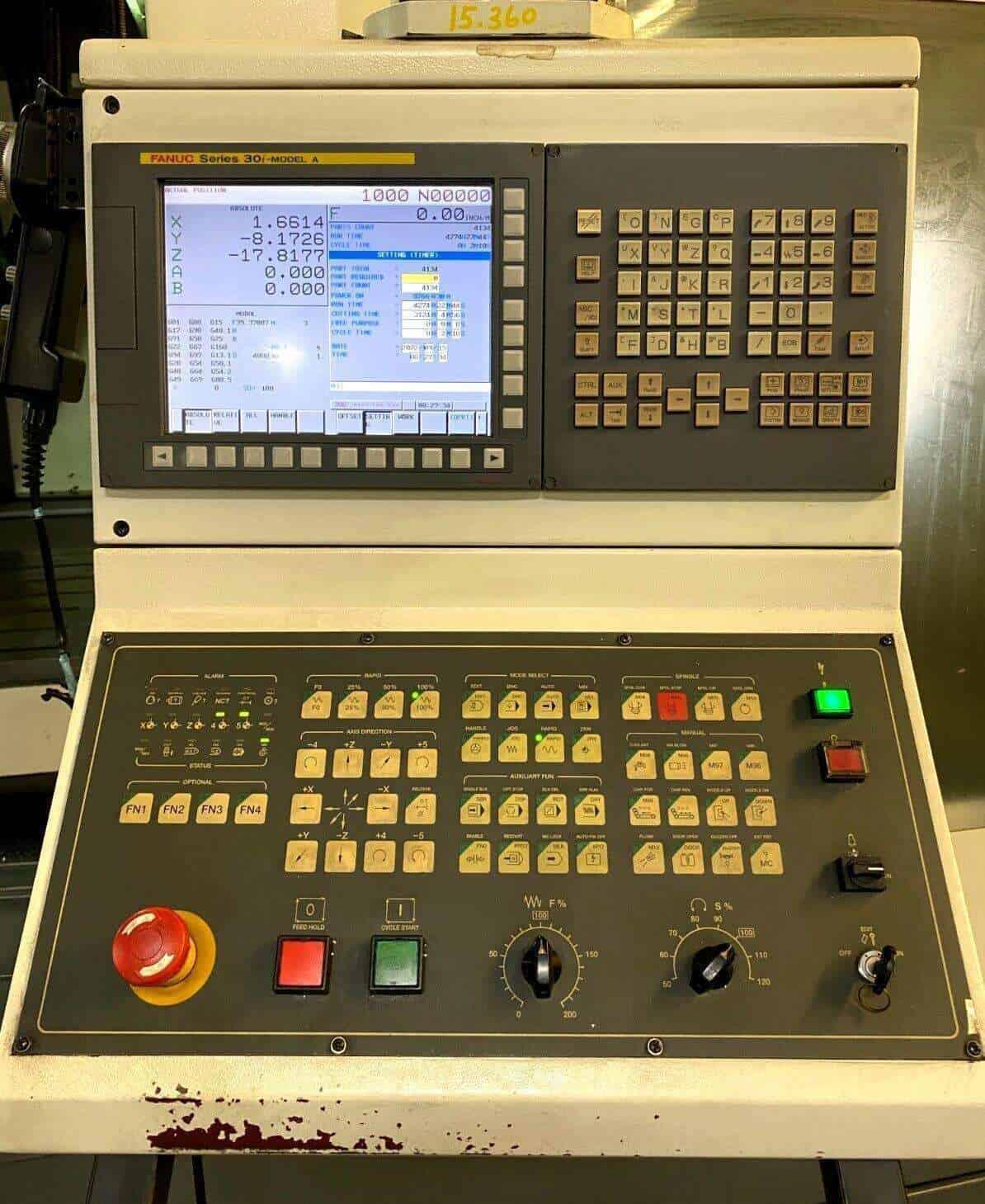

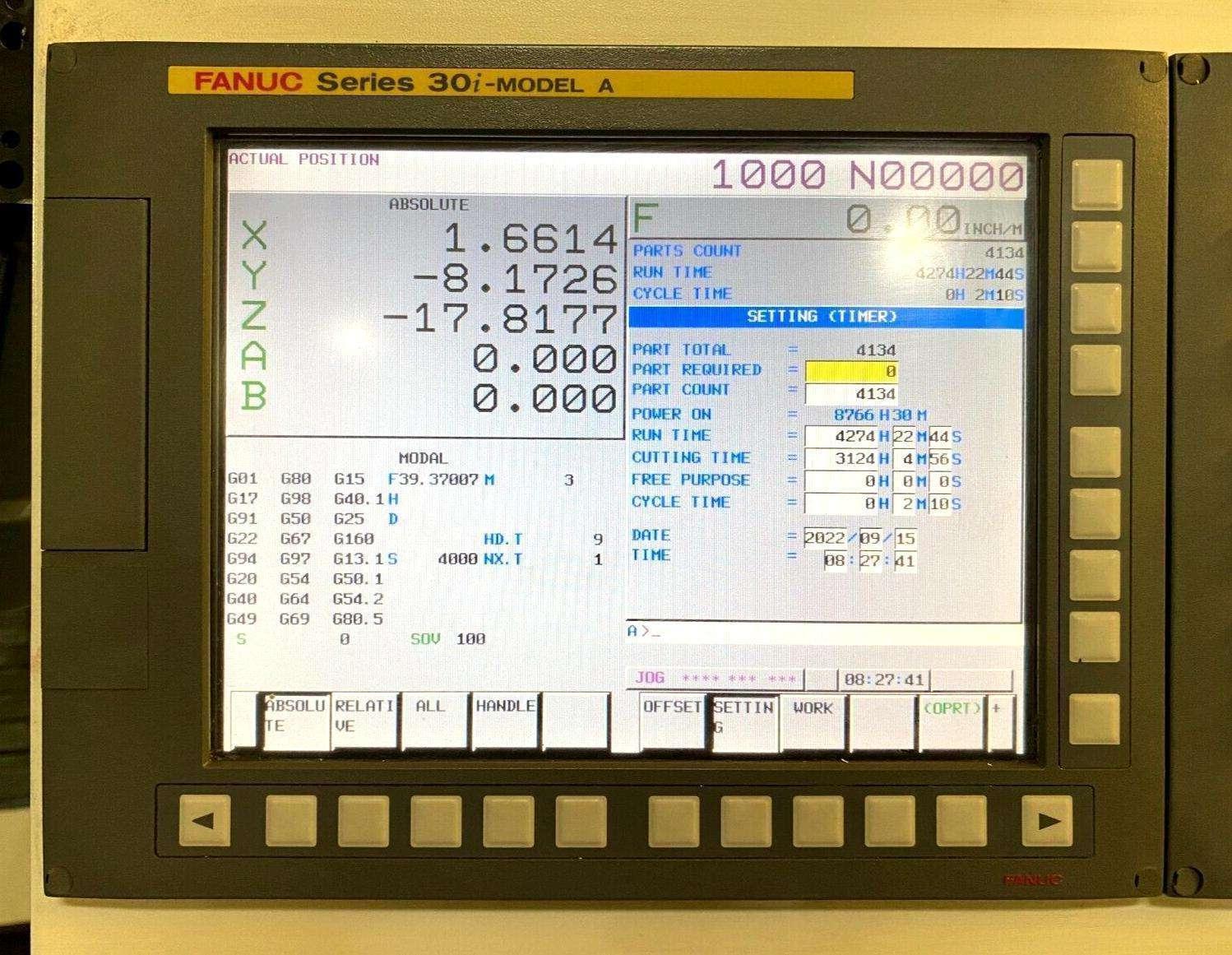

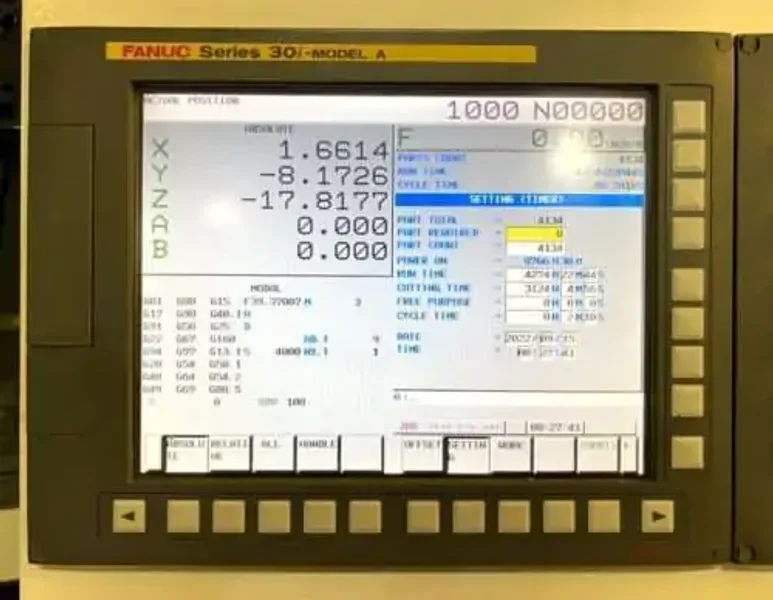

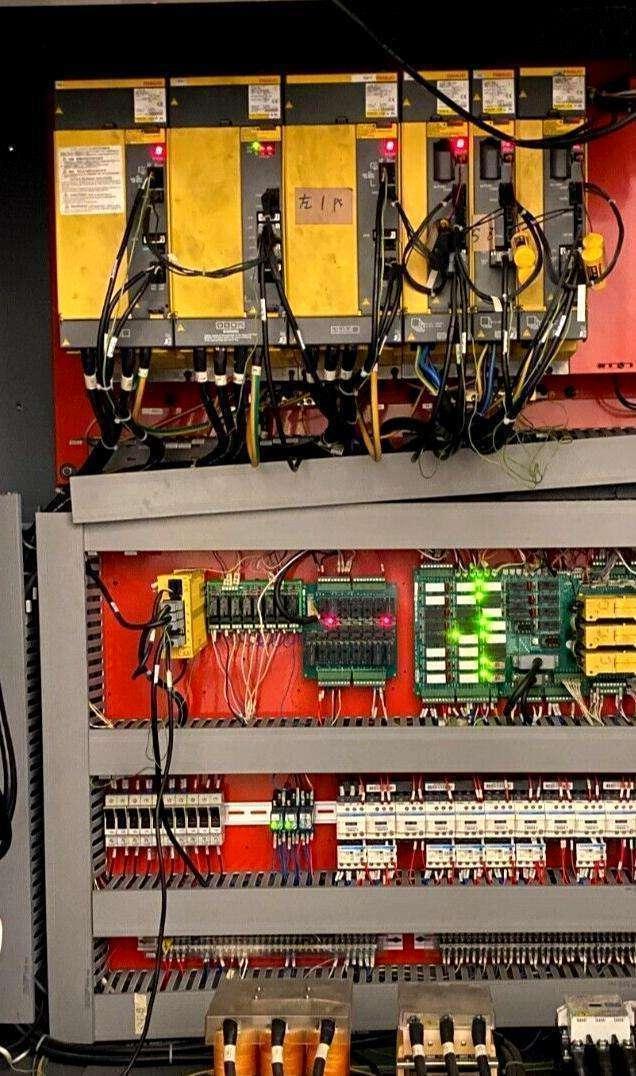

Fanuc 30i-MA 5 Axis Simultaneous Contouring Control

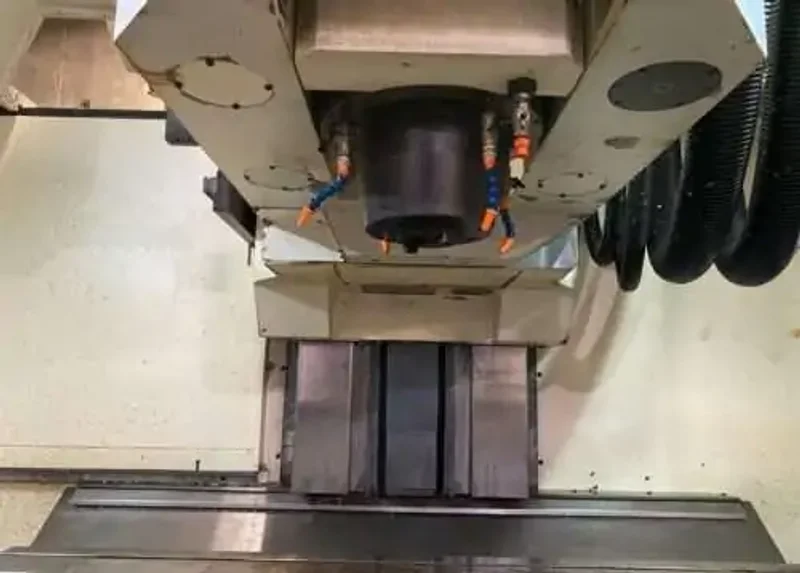

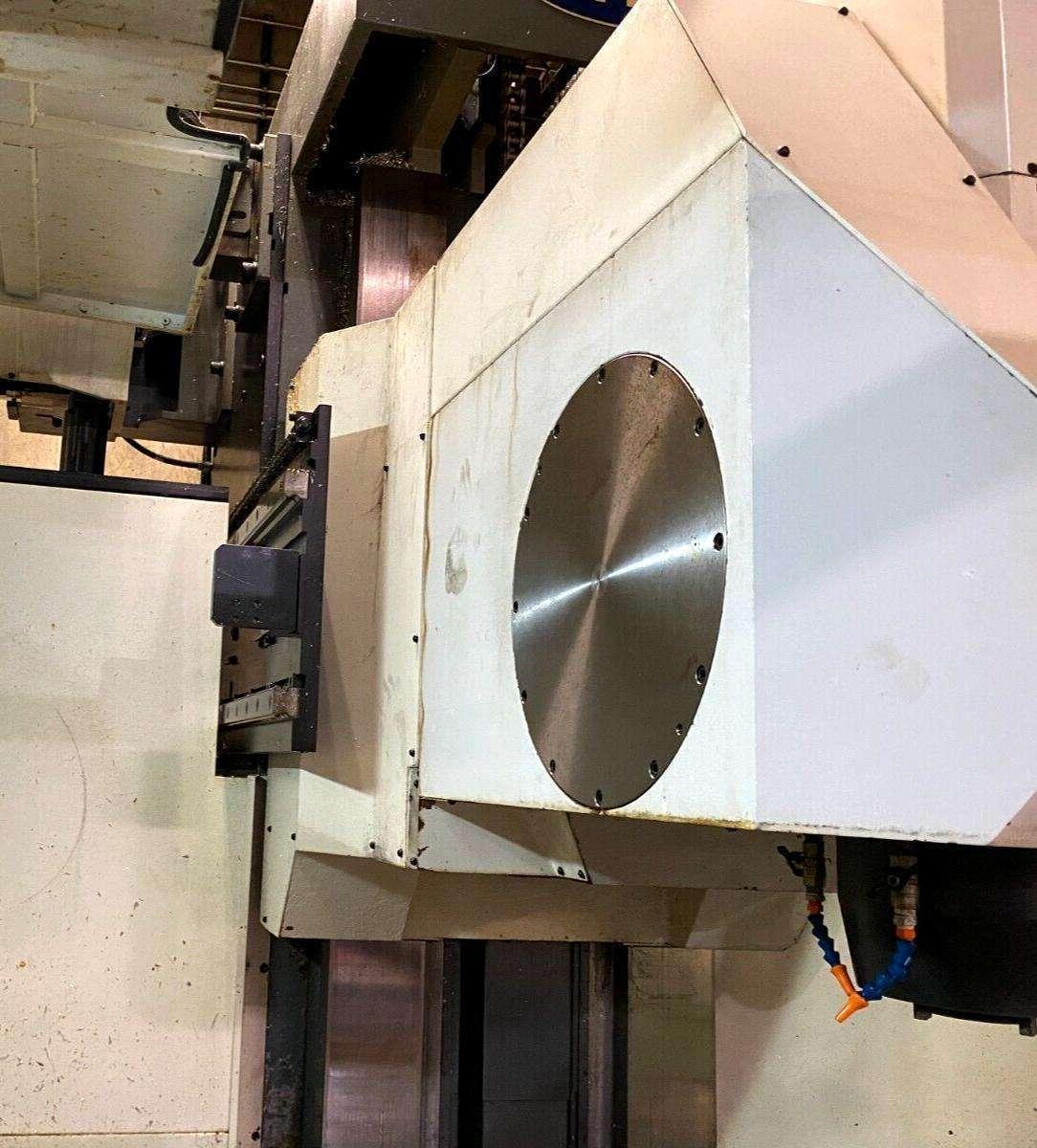

Articulating Spindle Head (A & B Axis)
Box Way Heavy Construction
50 HP High Torque Spindle Motor
50 Taper 10000 RPM Spindle
20 Automatic tool changer
MPG Control
Rigid Tapping
Spindle Orientation
Telescopic way covers
Oil Chiller Unit
Coolant Tank

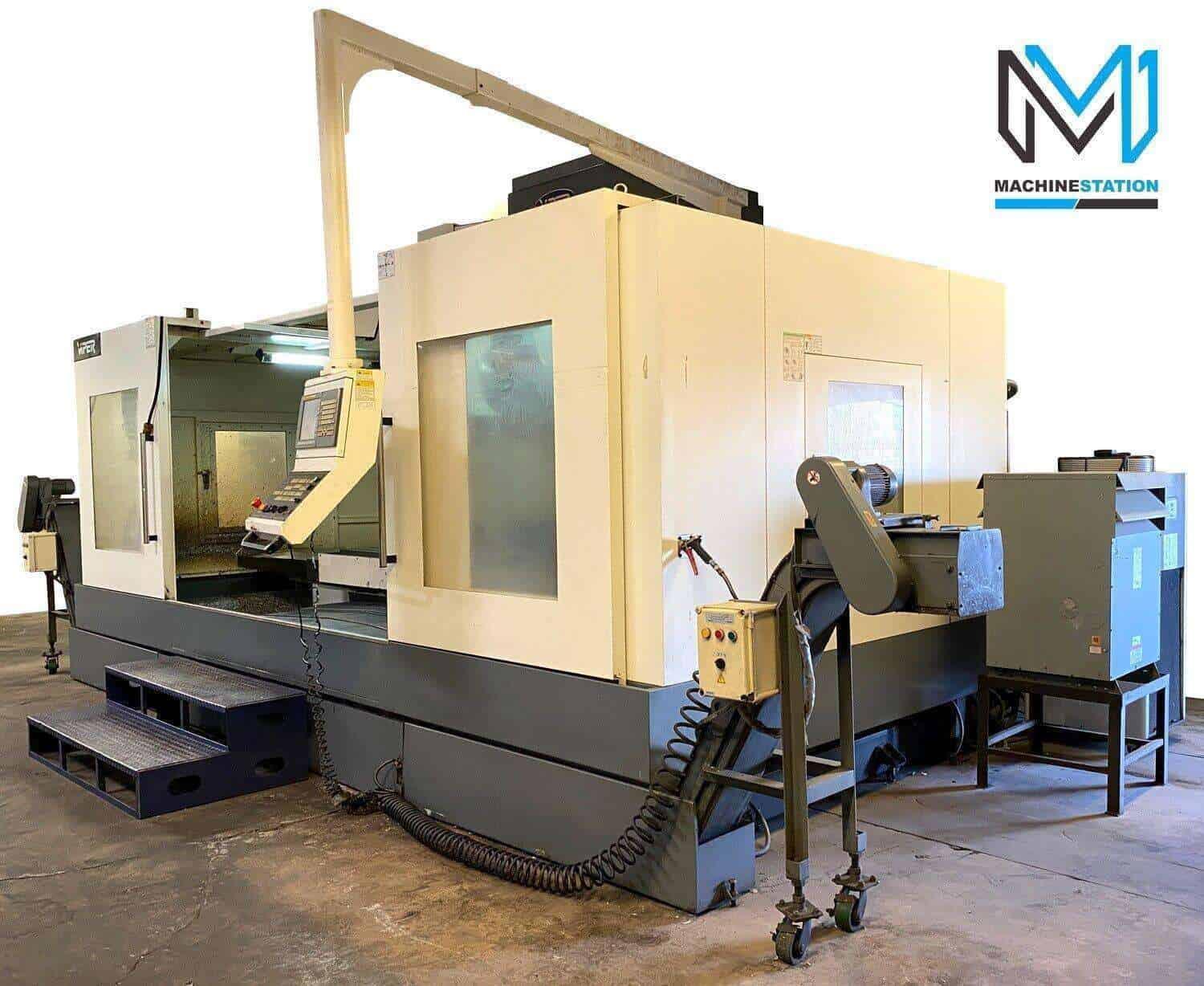

Dual Chip Conveyor

Travels:
X-Axis: 80.0″
Y-Axis: 40.0″
Z-Axis: 30.0″
A-Axis: +/- 35° degrees
B-Axis: +/- 35° degrees
Rapid Traverse Rates: IPM?
Spindle Nose to Table (Min.- Max.): 5.0″ – 39.0″

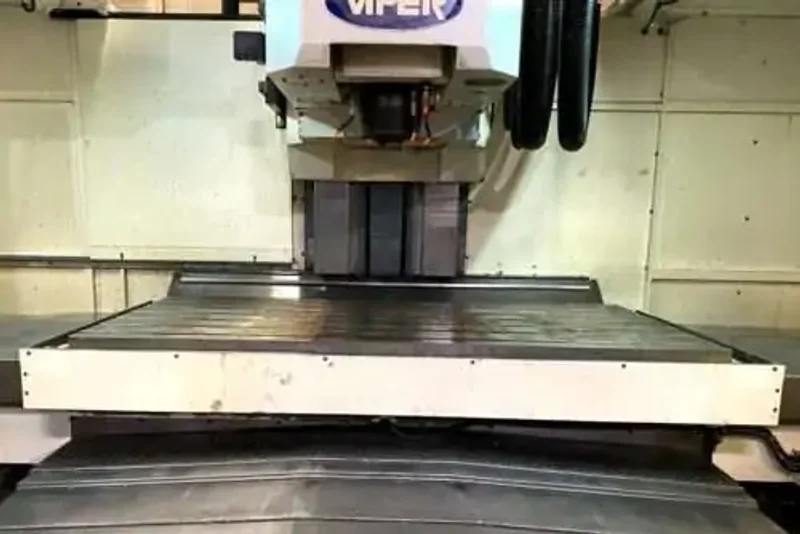

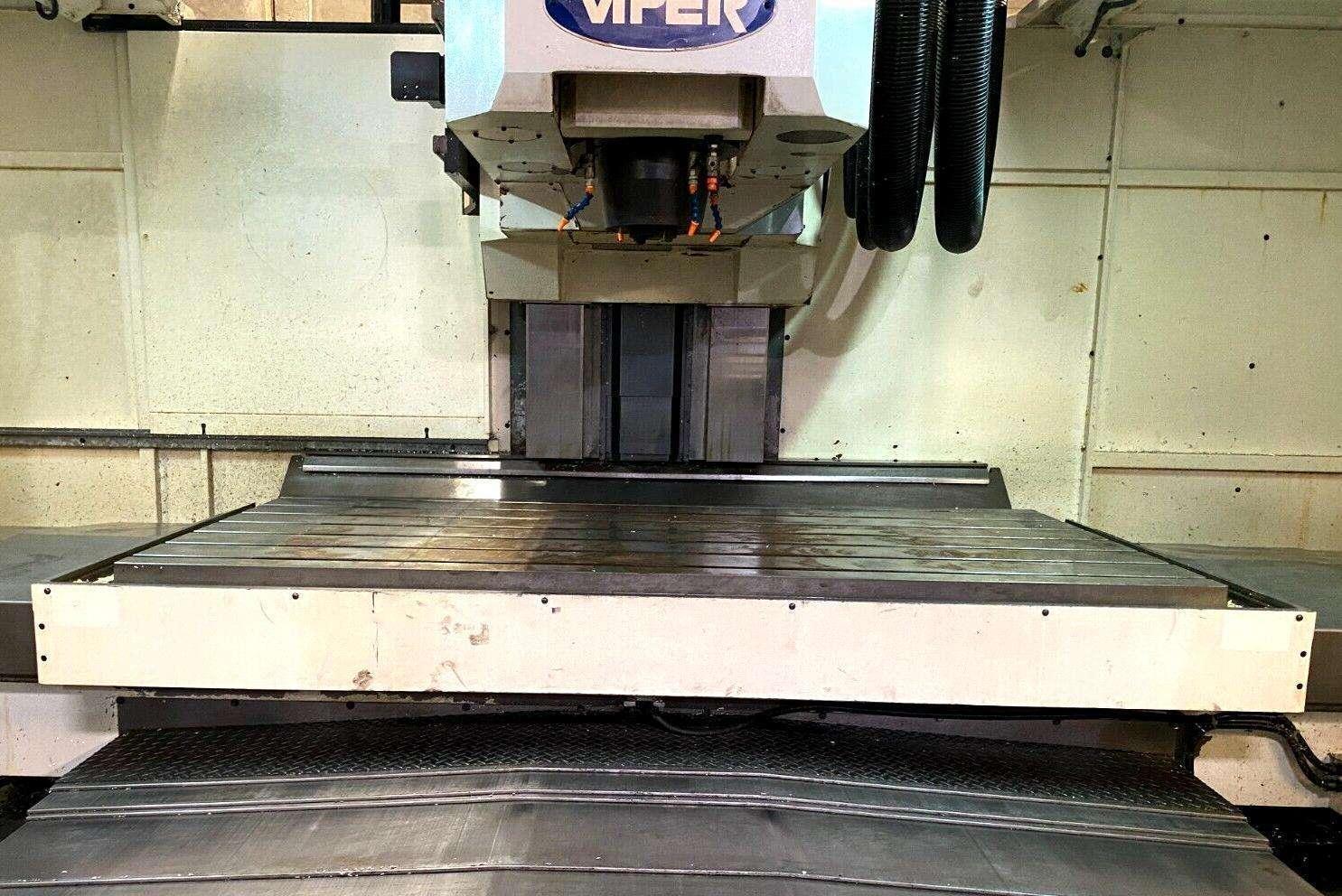

Table:
Length: 82.6″
Width: 41.3″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: lbs ?

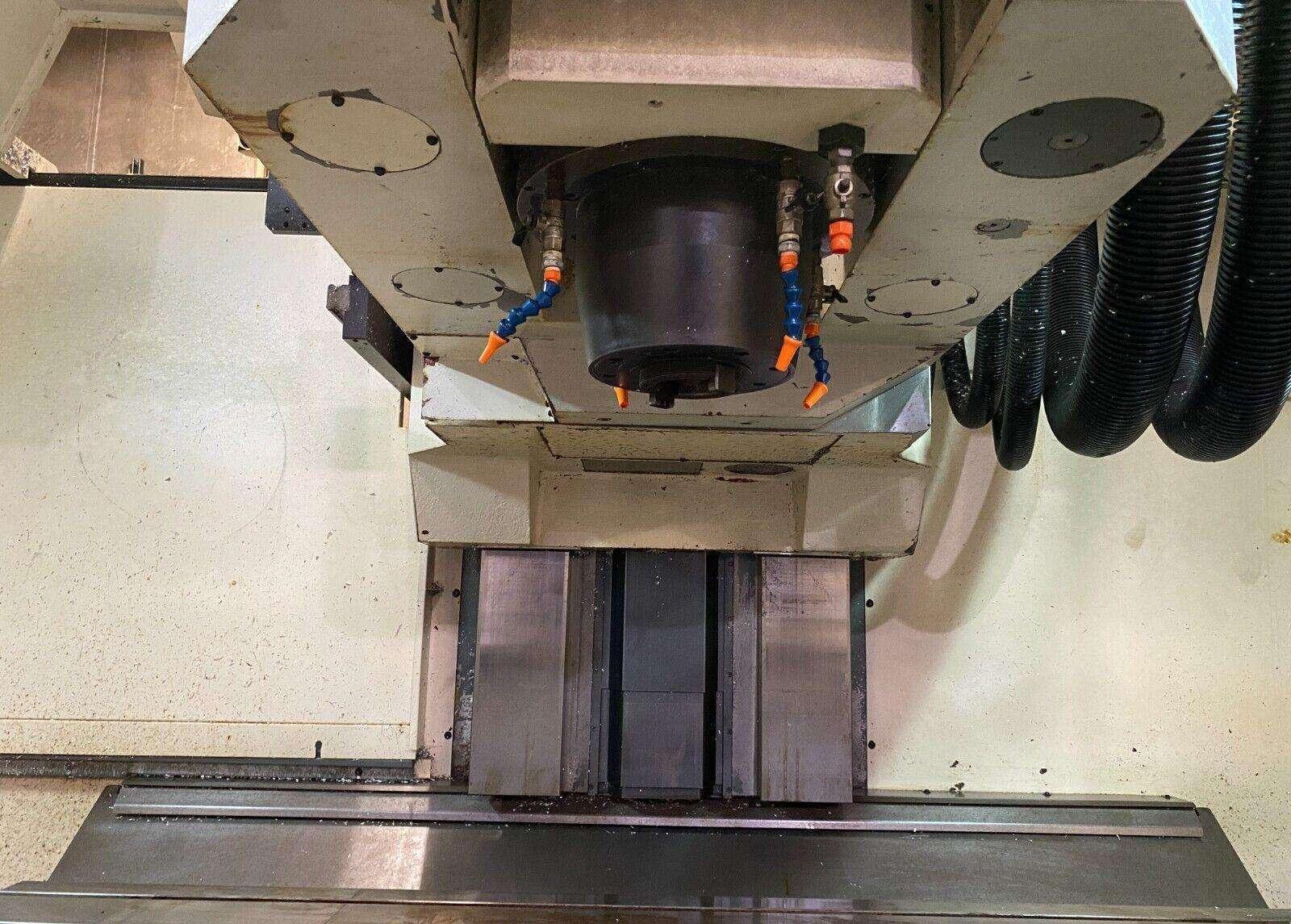

Spindle:
Articulated 5 Axis
Taper Size: 50
Speed Range: 10000 RPM
Spindle Power: 50 HP

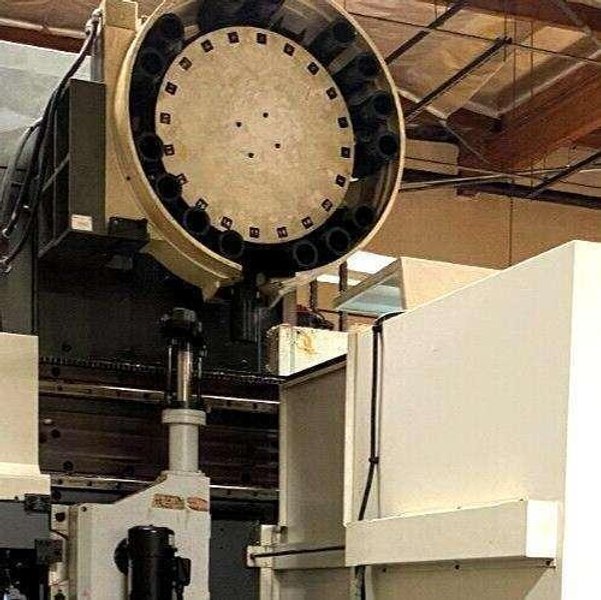

Automatic Tool Changer:
Capacity: 20
Max Tool Weight: 33 lbs
Max Tool Dia: 5.2″
Max Tool Length: 11.8″
Tool Changing Time: Seconds ?

General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: ” x ” x ” High ?
Weight: lbs ?

“No Charges for loading at list Price”
