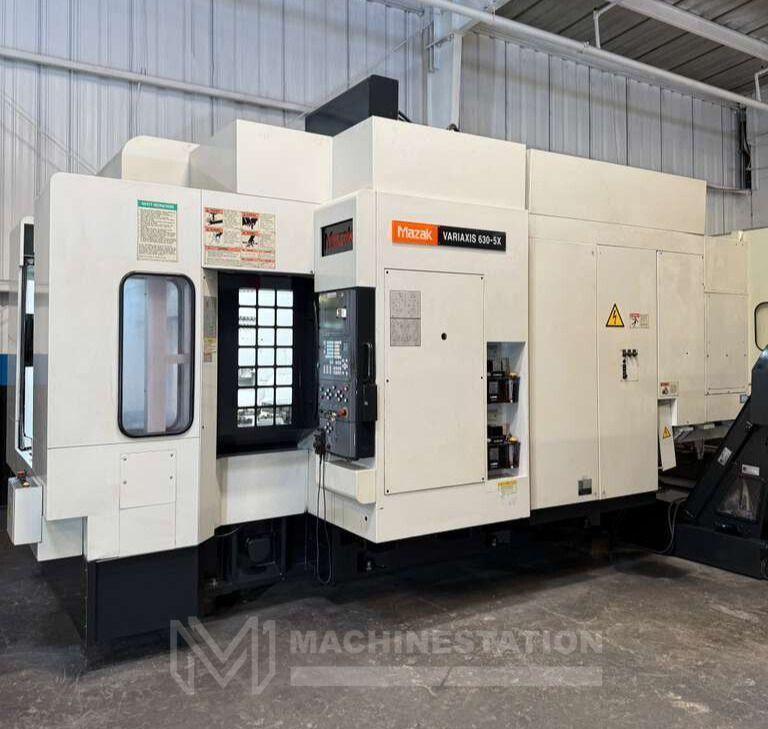

Mazak Variaxis 630-5X 5 Axis CNC Vertical Machining Center – Automatic Pallet Changer Mill

Mazak Variaxis 630-5X 5 Axis CNC Vertical Machining Center – Automatic Pallet Changer Mill

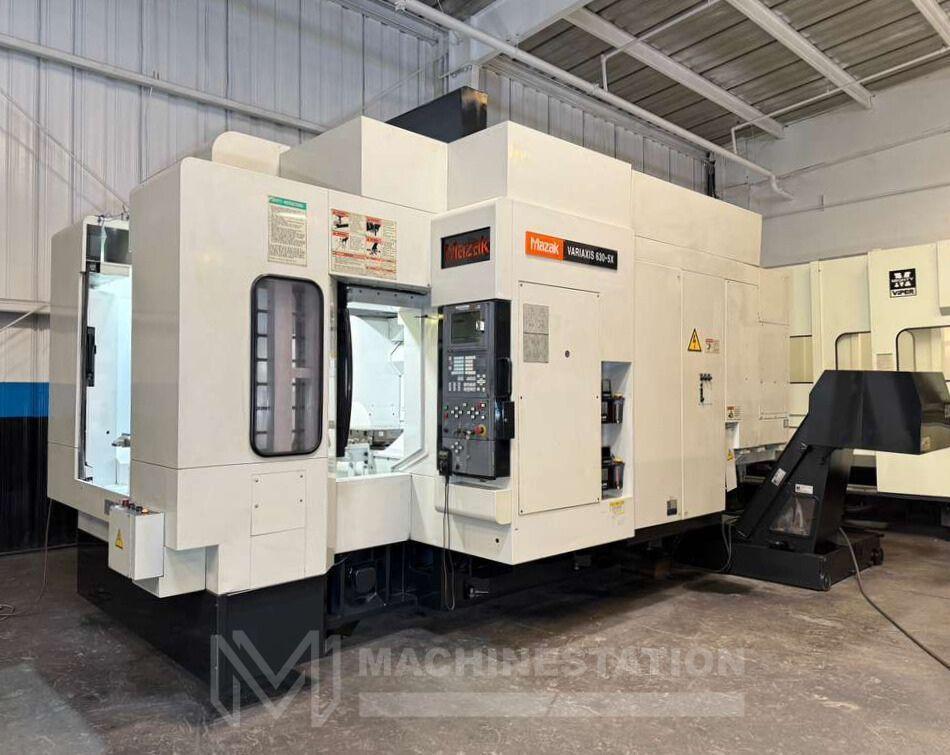

Name: Mazak Variaxis 630-5X 5 Axis CNC Vertical Machining Center – Automatic Pallet Changer Mill
Brand: MAZAK
SKU: 112321
Availability: PreOrder

Brand

MAZAK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112321
Make:	Mazak
Model No.:	Variaxis 630-5X
Year of Manufacture:	2002
Condition:	Used – Good

Equipped With:

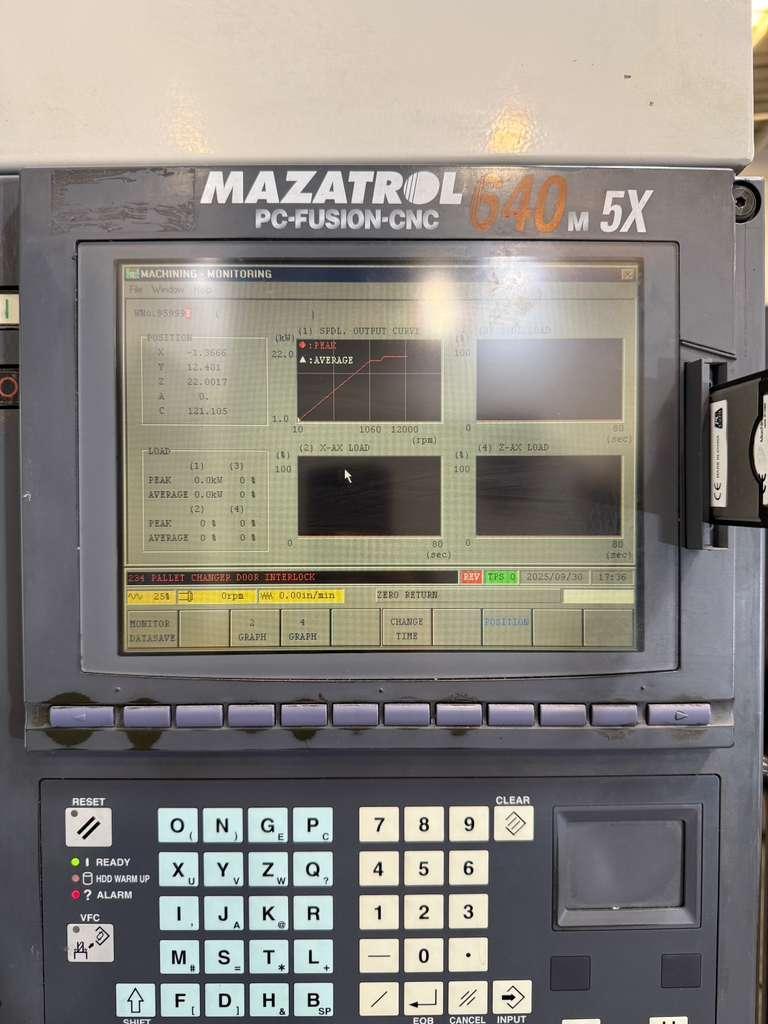

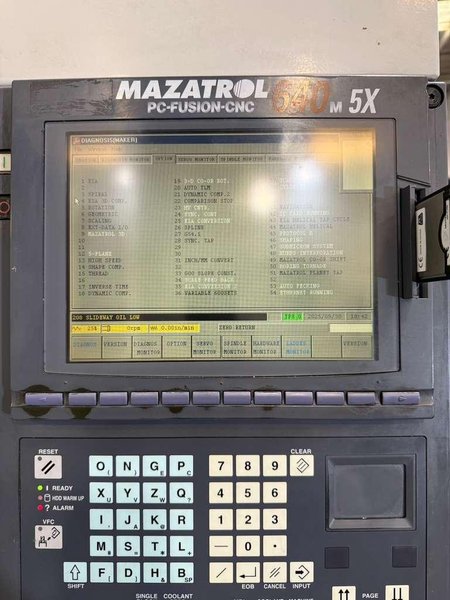

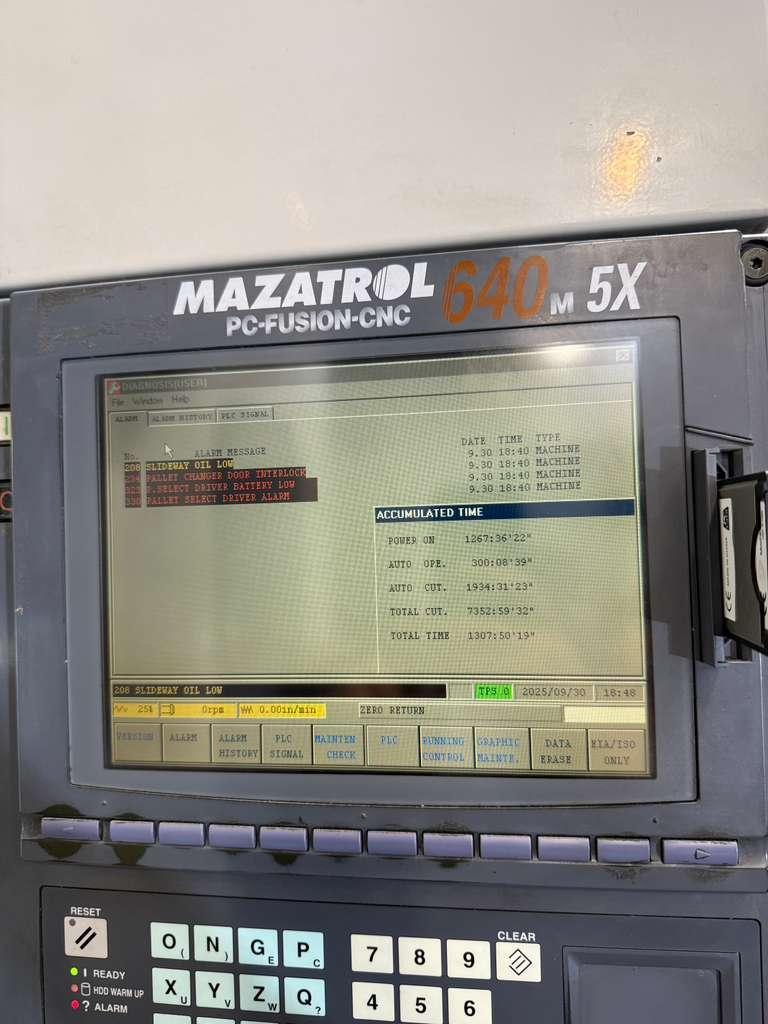

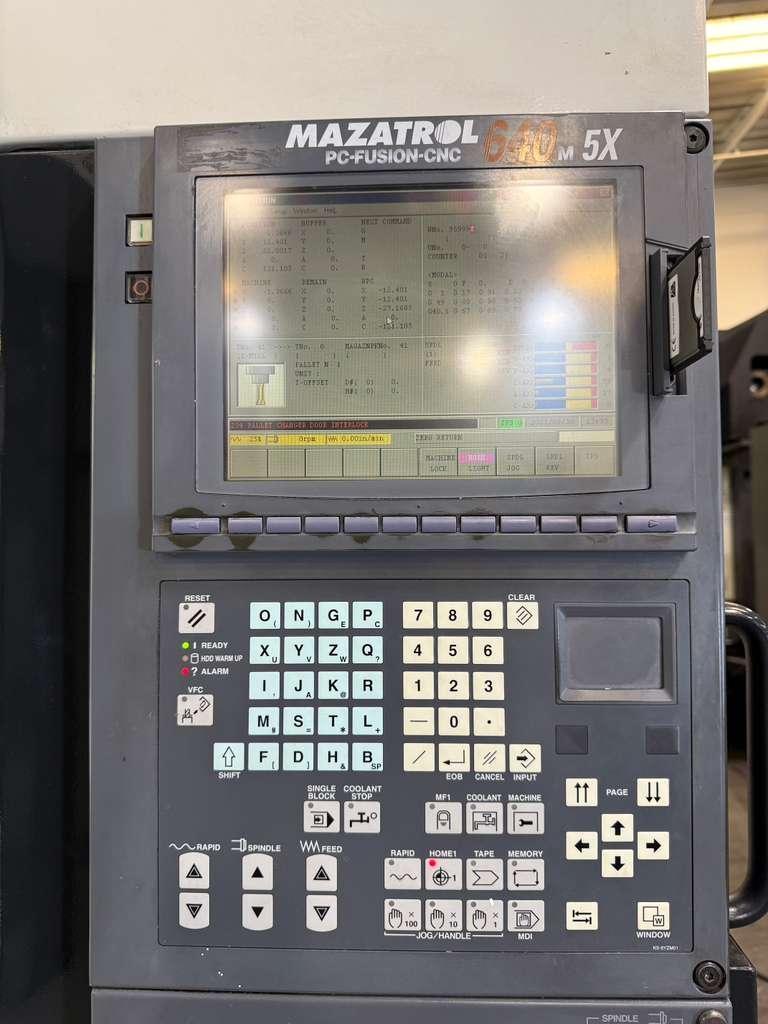

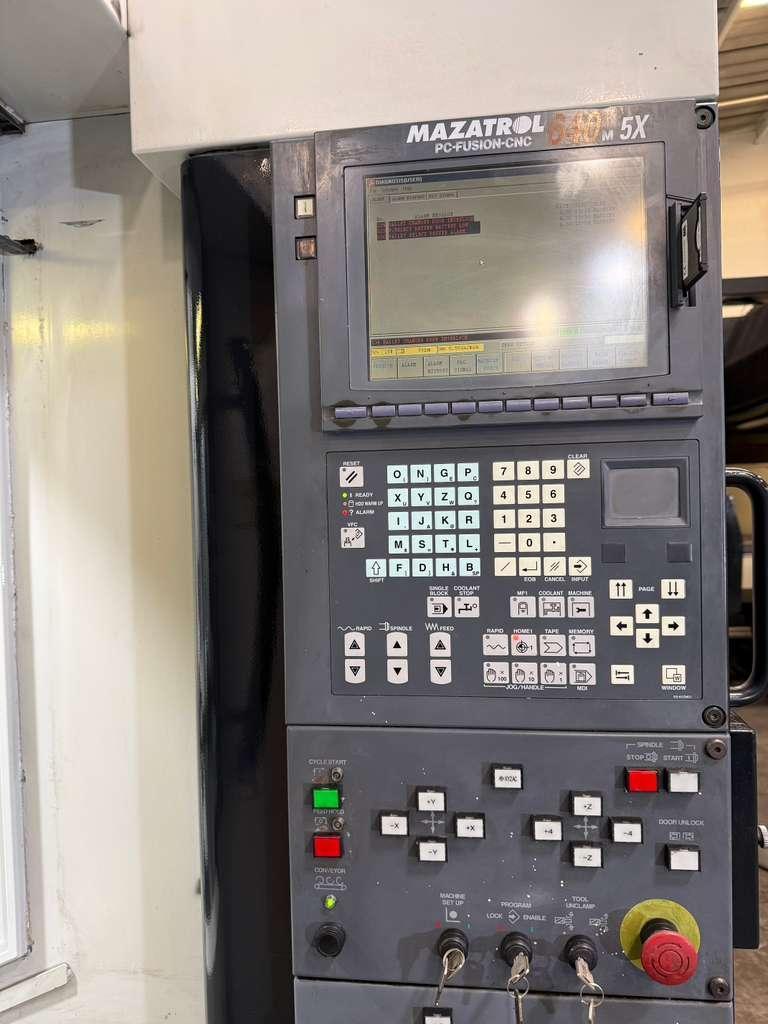

Mazatrol PC-Fusion 640M 5X CNC Control
Simultaneous 5 Axis Cutting

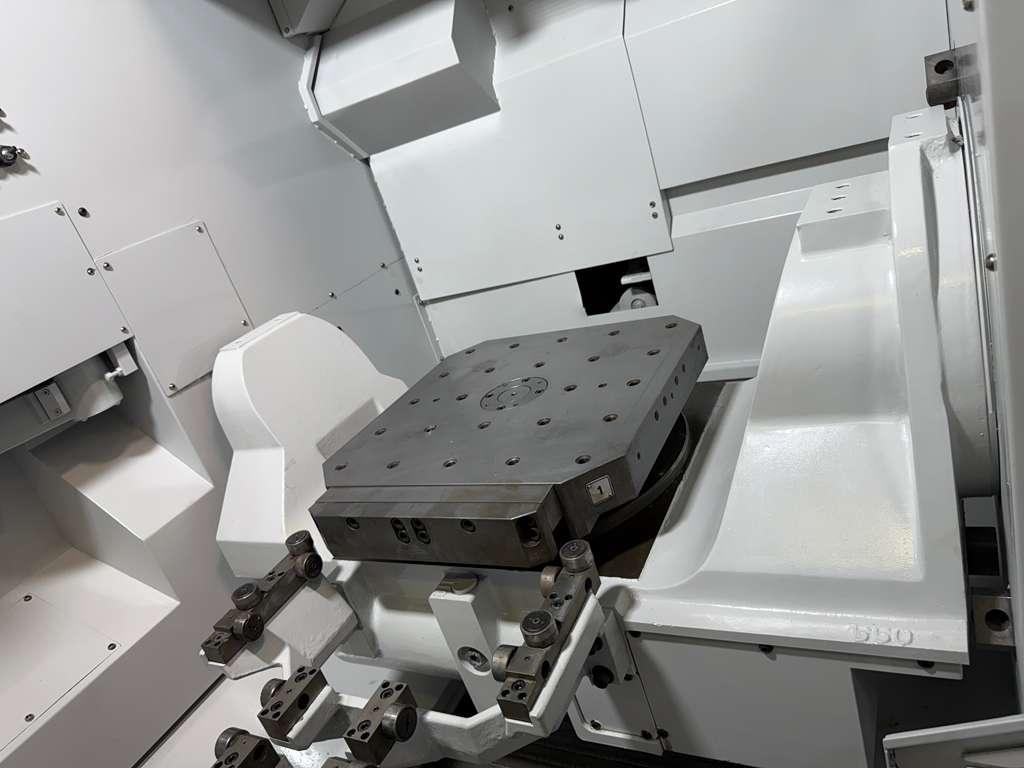

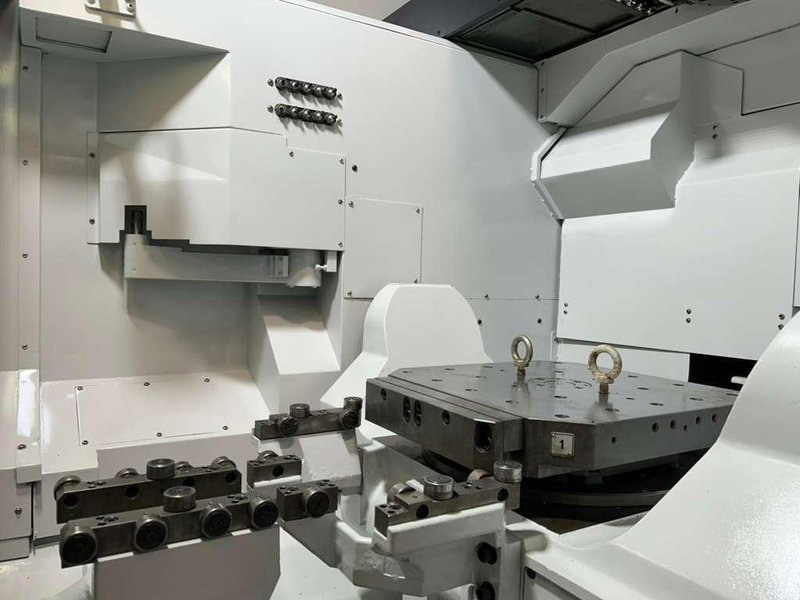

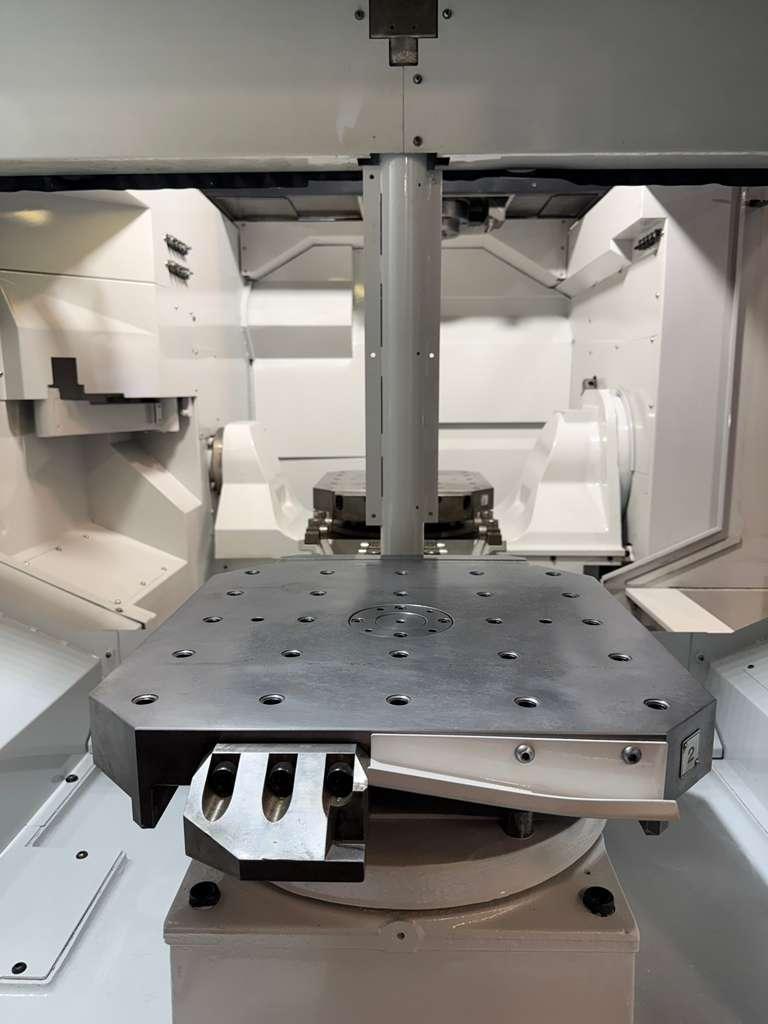

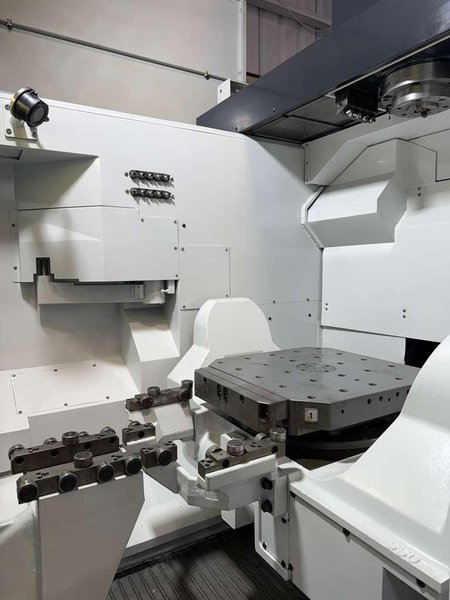

Programmable Swiveling Trunnion Table

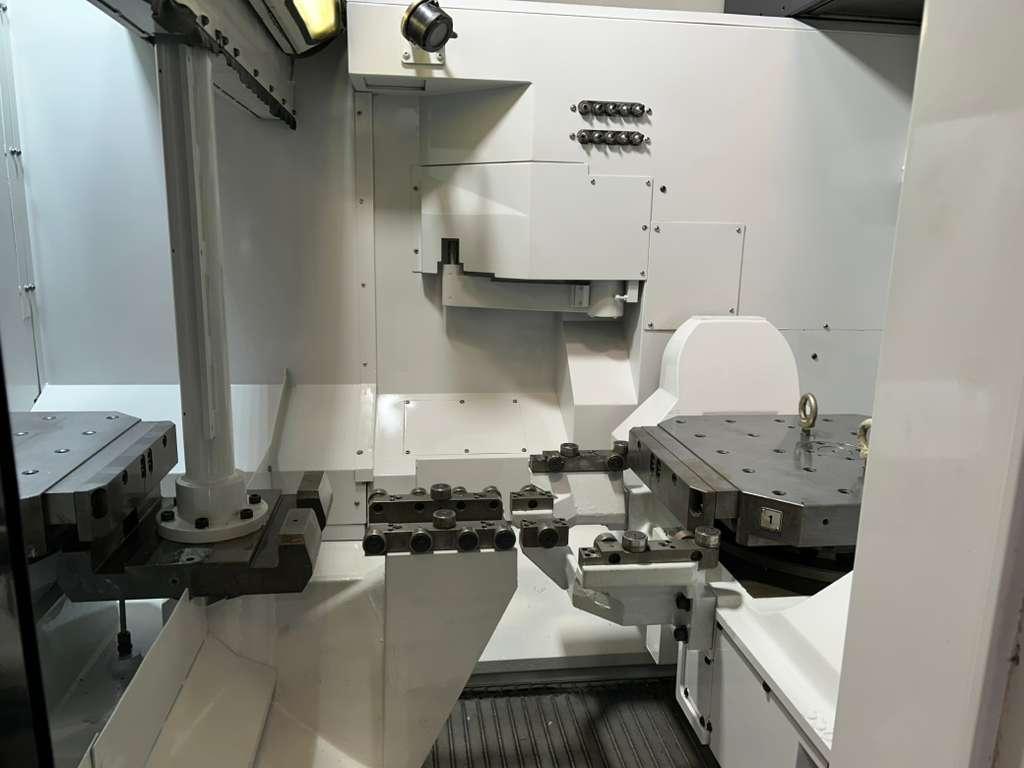

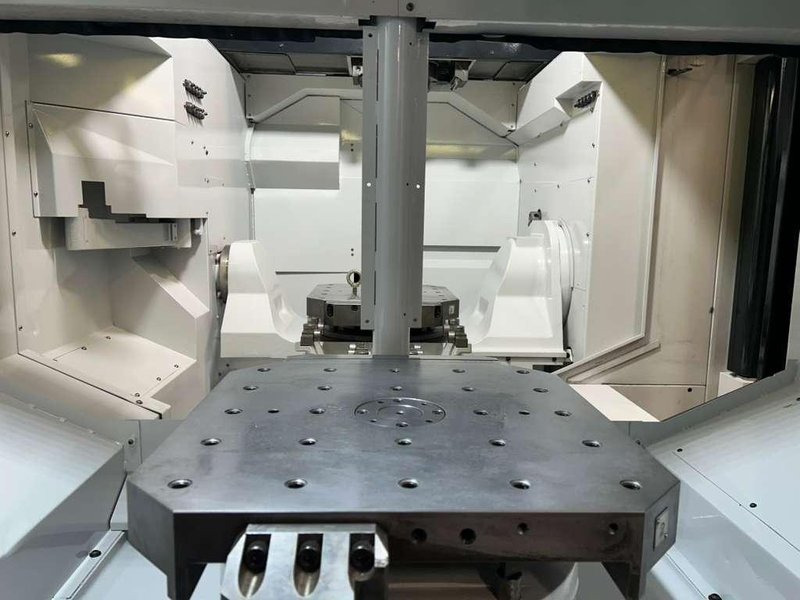

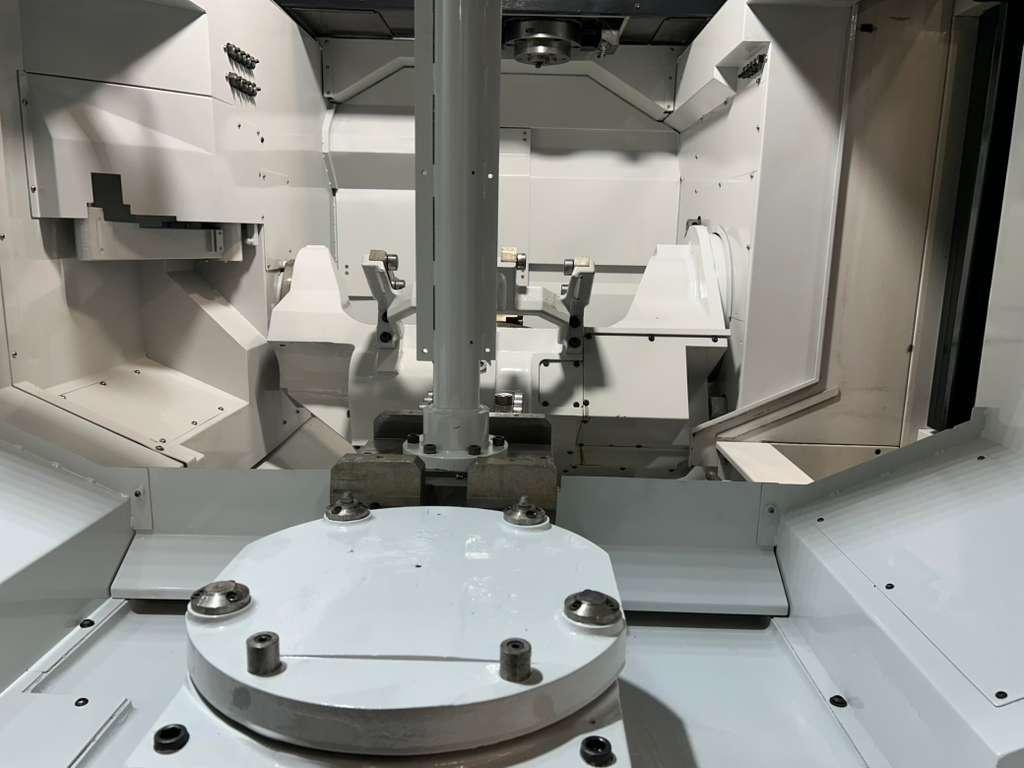

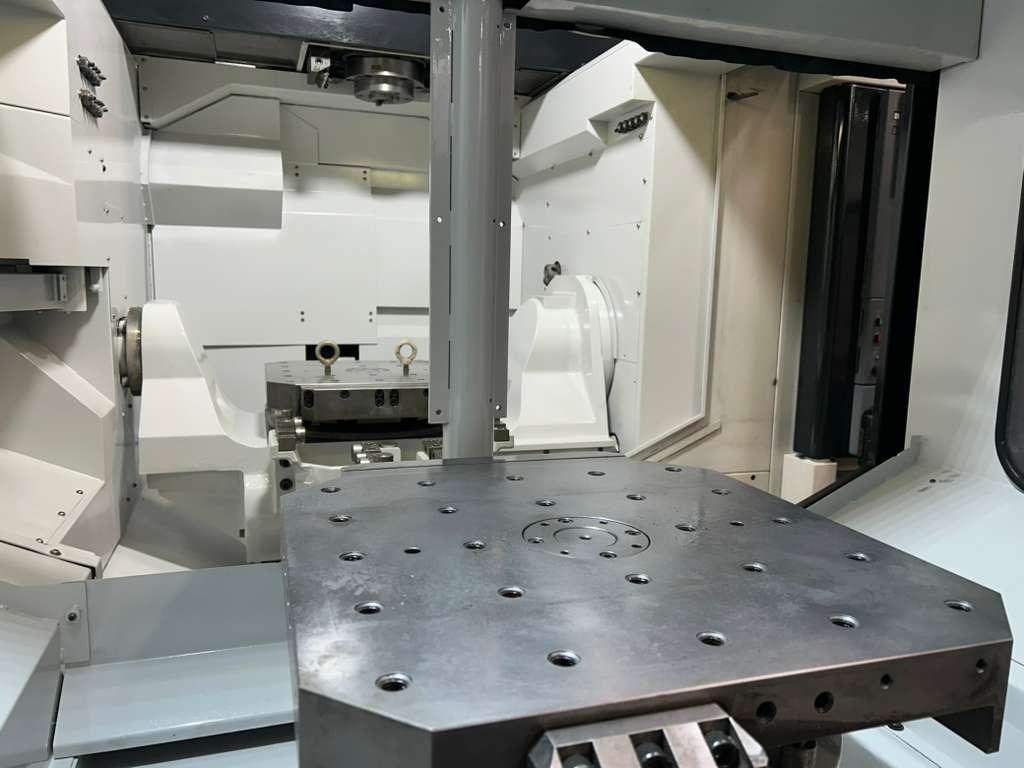

2 No. Pallet Changer 19.7 x 19.7”
12,000 RPM High Precision Spindle
Through Spindle Coolant
80 Station Automation Tool Changer
1969 IPM Fast Rapid Traverse Rate
Renishaw Probing System Ready (Needed Probe)
PCMCIA Card Slot
Helical Interpolation
Spindle Chiller
Spindle Orientation
Rigid Tapping
Absolute Incremental Programming
High Pressure Coolant System
Chip Conveyor
Transformer
Work light

Travels:
X Axis: 24.80″
Y Axis: 30.12″
Z Axis: 20.08″
A Axis: – 120° + 30° ( 150° Table Tilt )
C Axis: 360° ( Table Rotate ) Min. Increment: 0.001°

Pallet:
No. of Pallets: 2
Length: 19.70″
Width: 19.70″
Max Workpiece Diameter: 24.80″
Max Workpiece Height: 19.70″
Max Weight on Table: 1102 lbs

Spindle:
Taper Size: CAT-40
Max. Speed: 12,000 RPM
Power: 30 HP

Feed rates:
Rapid X, Y & Z : 1969 Inch Per Minute
Cutting Feedrate: 1574 Inch Per Minute

Tool changer:
Capacity: 80 Station
Taper: CAT-40
Max Tool Size: 3.15″
Max Tool Length: 14.17″
Max Tool Weight: 17.6 lbs.
Tool Change Time: 5.5 Second

General:
Air Required: 100 psi, 4 scfm
Power: 50kva / 400v / 3-Phase
Shipping Dimension: 162″ X 96″ x 126″ High Approx.
Weight: 37,400 lbs Approx.
