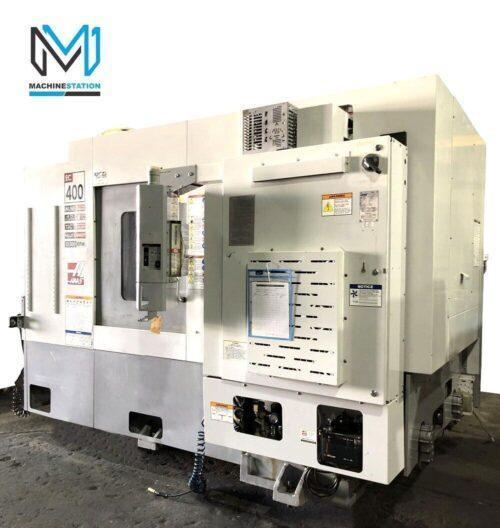

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.* Make: | HAAS | Model: | EC-400-4AX | Year: | 2006 | Condition: | Used – Good |
Equipped With: |
---|
Haas CNC Control | 12000 RPM Inline Direct Drive Spindle | Through Spindle Coolant | 4th Axis Dual Pallet Changer | 40 Tools Side Mount Tool Changer | Expanded Program Memory | Remote Jog Handle | Rigid Tapping | High Speed Machining | Advanced Tool Management | Power Failure Detection Module | User Definable Macros Spindle Orientation and Coordinate Rotational Scaling | Brush-type servo drive motors on all axis | Programmable coolant | Telescopic way covers | High Pressure Coolant system |
Travels: |
---|
X Axis: 22″ | Y Axis: 25″ | Z Axis: 22″ | B Axis: 0.001° ( Full 4th ) |
Pallet: |
---|
Dual Pallet Changer | Pallet Size: 15.75″ X 15.75″ | Pallet Change Time: 15 Seconds | Max Weight on Pallet: 880 lbs |
Spindle: |
---|
Taper Size: CAT 40 | Spindle Speed: 12000 RPM | Spindle Power: 30 HP | Max Torque: 90ft-lb @ 2000RPM |
Feed rates: |
---|
Rapid Traverse Rates: 1400 Inch Per Minute | Cutting Feed Rates: 833 Inch Per Minute |
Tool changer: |
---|
Capacity: 40 Station Side Mounted | Max Tool Diameter: 5″ | Max Tool Length: 12″ | Max Tool Weight: 12 lbs. | Tool Change Time (Tool to Tool): 2.8 Second |
General: |
---|
Air Required: 100 psi 4 scfm | Power: 220v / 66FLA / 3-Phase | Overall Shipping Dimensions: 150″ x 102″ x 95″ High ( Machine ) | Chip Conveyor Coolant Tanks Coolant systems Dimensions extra | Weight: 20000 lbs |
“No Charges for loading at list Price” |
|
